Home ▹ Connectors ▹ By # Of Ways ▹ 2-Way

2-Way

318 Items.  Showing Items 1 thru 50.
 1  2  3  4  5  6  7   Next »   Show All
2-Way Kit
050U-2P
2-Way Kit
OEM P/N: 7282-7623
050U-2P  2-Way Kit
Kit Contents: Housing, 2 pin contacts for 22-20 AWG wire

Mfr: OEM Yazaki
Series: 050 Unsealed
OEM P/N: 7282-7623
Mating Part: 050U-2S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:1.3mm (.050)
  • Wire Size:0.30 - 0.50 mm2
  • Number of Rows:1
  • Pitch:2.5mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-11368
QtyPrice
1-5$3.23
6-19$3.07
20-49$2.91
50-99$2.75
100+$2.58
Quantity:  Kit

2-Way Kit
050U-2S
2-Way Kit
OEM P/N: 7283-7623
050U-2S  2-Way Kit
Kit Contents: Housing, 2 socket contacts for 22-20 AWG wire

Mfr: OEM Yazaki
Series: 050 Unsealed
OEM P/N: 7283-7623
Mating Part: 050U-2P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:1.3mm (.050)
  • Wire Size:0.30 - 0.50 mm2
  • Number of Rows:1
  • Pitch:2.5mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-11369
QtyPrice
1-5$2.95
6-19$2.80
20-49$2.66
50-99$2.51
100+$2.36
Quantity:  Kit

2-Way Kit
090II-2P-1
2-Way Kit
OEM P/N: 7282-7023-10
090II-2P-1  2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals

Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7282-7023-10
Mating Part: 090II-2S-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.4mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10959
QtyPrice
1-5$3.99
6-19$3.79
20-49$3.59
50-99$3.39
100+$3.19
Quantity:  Kit

2-Way Kit
090II-2P-12
2-Way Kit
OEM P/N: 7282-8129-40
090II-2P-12  2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals

Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7282-8129-40
Mating Part: 090II-2S-12

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-11254
QtyPrice
1-5$4.37
6-19$4.15
20-49$3.93
50-99$3.71
100+$3.50
Quantity:  Kit

2-Way Kit
090II-2P-4
2-Way Kit
OEM P/N: 7282-7020-10
090II-2P-4  2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals

Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7282-7020-10
Mating Part: 090II-2S-4

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.4mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10898
QtyPrice
1-5$3.94
6-19$3.74
20-49$3.55
50-99$3.35
100+$3.15
Quantity:  Kit

2-Way Kit
090II-2P-5
2-Way Kit
OEM P/N: 7282-8120-40
090II-2P-5  2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals

Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7282-8120-40
Mating Part: 090II-2S-5

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-11168
QtyPrice
1-5$4.49
6-19$4.27
20-49$4.04
50-99$3.82
100+$3.59
Quantity:  Kit

2-Way Kit
090II-2P-9
2-Way Kit
OEM P/N: 7282-7028-30
090II-2P-9  2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals

Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7282-7028-30
Mating Part: 090II-2S-9

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-11069
QtyPrice
1-5$4.40
6-19$4.18
20-49$3.96
50-99$3.74
100+$3.52
Quantity:  Kit

2-Way Kit
090II-2S-1
2-Way Kit
OEM P/N: 7283-7023-10
090II-2S-1  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-7023-10
Mating Part: 090II-2P-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.4mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Suzuki
  • GSXR-600 camshaft sensor on 01-05 (harness side, grey)
  • GSXR-750 camshaft sensor on 98-05 (harness side, grey)
  • GSXR-1000 camshaft sensor on 01-06 (harness side, grey)
  • Hayabusa camshaft sensor on 99-07 (harness side, grey)
  • TL1000S camshaft sensor on 99-01 (harness side, grey)
spacer
  • Toyota 90980-10947
QtyPrice
1-5$3.26
6-19$3.10
20-49$2.93
50-99$2.77
100+$2.61
Quantity:  Kit

2-Way Kit
090II-2S-10
2-Way Kit
OEM P/N: 7283-8228-30 (Black)
7283-8228-40 (Grey)
090II-2S-10  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-8228-30 (Black)
7283-8228-40 (Grey)
Mating Part: 7282-8228

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-11250 (Grey)
QtyPrice
1-5$4.93
6-19$4.68
20-49$4.44
50-99$4.19
100+$3.94
Quantity:  Kit

2-Way Kit
090II-2S-11
2-Way Kit
OEM P/N: 7283-7029-40
090II-2S-11  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-7029-40
Mating Part: 7282-7029-40, 7282-7420-40

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-11075
QtyPrice
1-5$3.95
6-19$3.75
20-49$3.56
50-99$3.36
100+$3.16
Quantity:  Kit

2-Way Kit
090II-2S-12
2-Way Kit
OEM P/N: 7283-8129-40
090II-2S-12  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-8129-40
Mating Part: 090II-2P-12

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-11255
QtyPrice
1-5$4.66
6-19$4.43
20-49$4.19
50-99$3.96
100+$3.73
Quantity:  Kit

2-Way Kit
090II-2S-14
2-Way Kit
OEM P/N: 4A1038-000x Light gray (IN STOCK)
4A1035-000x Gray
090II-2S-14  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Tokai Rika
Series: 2.3II (090II) Sealed Series
OEM P/N: 4A1038-000x Light gray (IN STOCK)
4A1035-000x Gray
Mating Part: 4G5248-000x

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:19A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Toyota 90980-11273
  • Yazaki 7283-8825-40
QtyPrice
1-5$3.90
6-19$3.71
20-49$3.51
50-99$3.31
100+$3.12
Quantity:  Kit

2-Way Kit
090II-2S-2
2-Way Kit
OEM P/N: 7283-8220-40
090II-2S-2  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-8220-40
Mating Part: N/A, Device only

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota temp switch: 89428-06010, 89428-33010, 89428-33020, 89428-24010
  • Denso temp switch: 071 400-5520
  • Various aftermarket temp switches: EPS: 1.850.151, ERA: 330885, FACET: 75151, FAE: 36540, HELLA: 6ZT 007 835-071, KW: 550 151, MOTORAD: 5151, QUINTON HAZELL: XEFS312, VALEO: 820328
spacer
  • Toyota 90980-11235 (black)
QtyPrice
1-5$5.63
6-19$5.35
20-49$5.07
50-99$4.79
100+$4.50
Quantity:  Kit

2-Way Kit
090II-2S-21
2-Way Kit
OEM P/N: 7287-1495-30
090II-2S-21  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7287-1495-30
Part Name: 12747W9A02F-BY
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-12747
QtyPrice
1-5$7.29
6-19$6.93
20-49$6.56
50-99$6.20
100+$5.83
Quantity:  Kit

2-Way Kit
090II-2S-3
2-Way Kit
OEM P/N: 7283-8226-30
090II-2S-3  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-8226-30
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-11246
  • Ford AU2Z-14S411-ADA, WPT-1094 (Tin plated terminals, greased) pigtail connector
QtyPrice
1-5$4.49
6-19$4.27
20-49$4.04
50-99$3.82
100-249$3.59
250-499$3.37
500+$3.14
Quantity:  Kit

2-Way Kit
090II-2S-4
2-Way Kit
OEM P/N: 7283-7020-10
090II-2S-4  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-7020-10
Mating Part: 090II-2P-4

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.4mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10899
QtyPrice
1-5$4.17
6-19$3.96
20-49$3.75
50-99$3.54
100+$3.34
Quantity:  Kit

2-Way Kit
090II-2S-5
2-Way Kit
OEM P/N: 7283-7526-40 Light Gray
7283-7526-30 Black
090II-2S-5  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-7526-40 Light Gray
7283-7526-30 Black
Mating Part: 090II-2P-5

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-11162
QtyPrice
1-5$5.11
6-19$4.85
20-49$4.60
50-99$4.34
100+$4.09
Quantity:  Kit

2-Way Kit
090II-2S-6
2-Way Kit
OEM P/N: 7283-7021-10
090II-2S-6  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-7021-10
Mating Part: 7282-7021-10

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.4mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10901
QtyPrice
1-5$4.81
6-19$4.57
20-49$4.33
50-99$4.09
100+$3.85
Quantity:  Kit

2-Way Kit
090II-2S-7
2-Way Kit
OEM P/N: 7283-7027-40
090II-2S-7  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-7027-40
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Intake air temp sensor 89424-24010, 89424-60010 used on many Toyota models. (harness side)
spacer
  • Toyota 90980-11025
QtyPrice
1-5$4.46
6-19$4.24
20-49$4.01
50-99$3.79
100+$3.57
Quantity:  Kit

2-Way Kit
090II-2S-8
2-Way Kit
OEM P/N: 7283-1224-10
090II-2S-8  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-1224-10
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:4.5mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-11163
QtyPrice
1-5$4.51
6-19$4.28
20-49$4.06
50-99$3.83
100+$3.61
Quantity:  Kit

2-Way Kit
090II-2S-9
2-Way Kit
OEM P/N: 7283-7028-30
090II-2S-9  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-7028-30
Mating Part: 090II-2P-9

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-11070
QtyPrice
1-5$4.79
6-19$4.55
20-49$4.31
50-99$4.07
100+$3.83
Quantity:  Kit

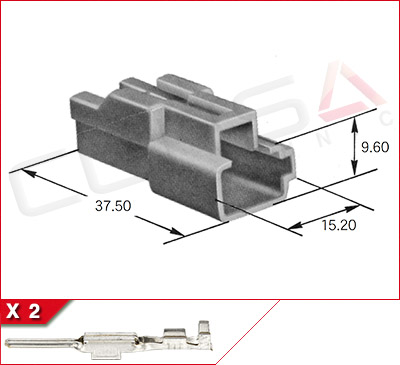

2-Way Kit
090IIU-2P-2
2-Way Kit
OEM P/N: 7282-1020
090IIU-2P-2  2-Way Kit
Kit Contents: Housing, 2 pin contacts

Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 7282-1020
Mating Part: 090IIU-2S-2

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:4.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:HPA
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10824
QtyPrice
1-5$2.17
6-19$2.06
20-49$1.95
50-99$1.84
100+$1.74
Quantity:  Kit

2-Way Kit
090IIU-2S-2
2-Way Kit
OEM P/N: 7283-6160 (ss: 7283-1020)
090IIU-2S-2  2-Way Kit
Kit Contents: Housing, 2 socket contacts

Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 7283-6160 (ss: 7283-1020)
Mating Part: 090IIU-2P-2, 7282-1022, 7282-8823, 7282-8824

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:4.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:HPA
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Mopar 68068634AA repair kit connector
  • Toyota 90980-10825, 90980-12014, 90980-12341, 90980-12471
QtyPrice
1-5$2.05
6-19$1.95
20-49$1.84
50-99$1.74
100+$1.64
Quantity:  Kit

2-Way Kit

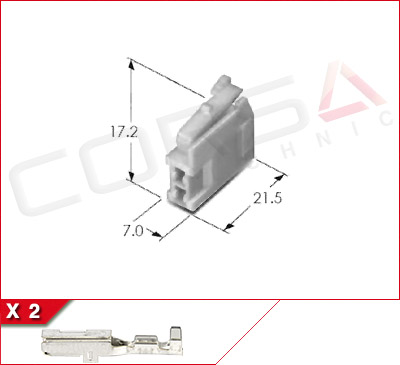

090IIU-2S-6
2-Way Kit
OEM P/N: 7283-1026
090IIU-2S-6  2-Way Kit
Kit Contents: Housing, 2 socket contacts

Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 7283-1026
Mating Part: 7282-1026

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Row Spacing:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:HPA
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10935, 90980-11723, 90980-11770, 90980-12343, 90980-12347
  • Tokai Rika 4F5260-000
QtyPrice
1-5$2.60
6-19$2.47
20-49$2.34
50-99$2.21
100+$2.08
Quantity:  Kit

2-Way Kit

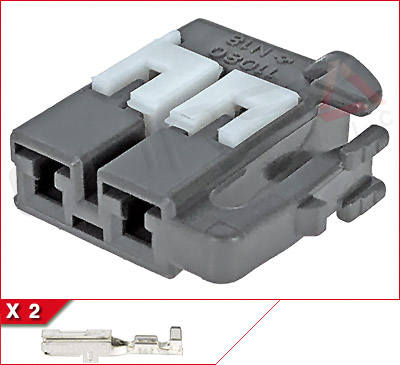

090IIU-2S-7
2-Way Kit
OEM P/N: 6240-5159 grey (in-stock)
6248-5342 natural
090IIU-2S-7  2-Way Kit
Kit Contents: Housing, 2 socket contacts

Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 6240-5159 grey (in-stock)
6248-5342 natural
Part Name: 11080N9A02F
Mating Part: N/A, device only

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:8.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-11080
QtyPrice
1-5$5.33
6-19$5.06
20-49$4.80
50-99$4.53
100+$4.26
Quantity:  Kit

2-Way Kit
110.FF-2S
2-Way Kit
OEM P/N: 925014-0
110.FF-2S  2-Way Kit
Kit Contents: Housing, 2 socket contacts for 20-18awg wire

Mfr: OEM Tyco/AMP
Series: FASTIN-FASTON Series
OEM P/N: 925014-0
Mating Part: N/A, device only
NOTE: For .8mm tab thickness terminals

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 1.50 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:11A
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$2.21
6-19$2.10
20-49$1.99
50-99$1.88
100+$1.77
Quantity:  Kit

2-Way Kit
250.ARM-2P-1
2-Way Kit
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7122-2128-30 (PA66), 7122-2228-30 (PP)
Natural | 6111-2567 (PA66), 6070-2381 (PP) | 7122-2128 (PA66), 7122-2228 (PP)
250.ARM-2P-1  2-Way Kit
Kit Contents: Housing, 2 pin contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7122-2128-30 (PA66), 7122-2228-30 (PP)
Natural | 6111-2567 (PA66), 6070-2381 (PP) | 7122-2128 (PA66), 7122-2228 (PP)
Mating Part: 250.ARM-2S-1

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$1.19
6-19$1.13
20-49$1.07
50-99$1.01
100-249$0.95
250-499$0.89
500-999$0.83
1000+$0.77
Quantity:  Kit

2-Way Kit (Reversed keying)
250.ARM-2P-2
2-Way Kit (Reversed keying)
250.ARM-2P-2  2-Way Kit (Reversed keying)
Kit Contents: Housing, 2 pin contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
Mating Part: 250.ARM-2S-2
Note: This is a reversed keying version of the regular 250.ARM-2P-1

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$1.19
6-19$1.11
20-49$1.01
50-99$0.95
100+$0.83
Quantity:  Kit

2-Way Kit
250.ARM-2S-1
2-Way Kit
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7123-2128-30 (PA66), 7123-2228-30 (PP)
Natural | 6111-2568 (PA66), 6070-2391 (PP) | 7123-2128 (PA66), 7123-2228 (PP)
250.ARM-2S-1  2-Way Kit
Kit Contents: Housing, 2 socket contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7123-2128-30 (PA66), 7123-2228-30 (PP)
Natural | 6111-2568 (PA66), 6070-2391 (PP) | 7123-2128 (PA66), 7123-2228 (PP)
Mating Part: 250.ARM-2P-1

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$1.19
6-19$1.13
20-49$1.07
50-99$1.01
100-249$0.95
250-499$0.89
500-999$0.83
1000+$0.77
Quantity:  Kit

2-Way Kit (Reversed keying)
250.ARM-2S-2
2-Way Kit (Reversed keying)
250.ARM-2S-2  2-Way Kit (Reversed keying)
Kit Contents: Housing, 2 socket contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
Mating Part: 250.ARM-2P-2
Note: This is a reversed keying version of the regular 250.ARM-2S-1

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.50 - 3.00 mm2
  • Number of Rows:2
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$1.19
6-19$1.11
20-49$1.01
50-99$0.95
100+$0.83
Quantity:  Kit

2-Way Kit
NEW ITEM! 250.ET-2S
2-Way Kit
OEM P/N: 6070-2481
NEW ITEM! 250.ET-2S  2-Way Kit
Kit Contents: Housing, 2 socket contacts

Mfr: Sumitomo
Series: 250 ET Type
OEM P/N: 6070-2481
Part Name: ET02-2W
Mating Part: 6070-2471

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PP
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$1.67
6-19$1.59
20-49$1.50
50-99$1.42
100+$1.34
Quantity:  Kit

2-Way Kit
250.FF-2P
2-Way Kit
OEM P/N: 180908-0
250.FF-2P  2-Way Kit
Kit Contents: Housing, 2 pin contacts for 22-18 AWG wire

Mfr: OEM Tyco/AMP
Series: FASTIN-FASTON Series
OEM P/N: 180908-0
Mating Part: 250.FF-2S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Row Spacing:7.4mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:12A
Environmental
  • Temp Range[2]:-30 - 125 °C
  • Flammability Rating:UL94 V-2
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$2.32
6-19$2.20
20-49$2.09
50-99$1.97
100+$1.86
Quantity:  Kit

2-Way Kit
250.FF-2S
2-Way Kit
OEM P/N: 180907
250.FF-2S  2-Way Kit
Kit Contents: Housing, 2 socket contacts for 18-14 AWG wire

Mfr: OEM Tyco/AMP
Series: FASTIN-FASTON Series
OEM P/N: 180907
Mating Part: 250.FF-2P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Row Spacing:7.4mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:12A
Environmental
  • Temp Range[2]:-30 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$2.24
6-19$2.13
20-49$2.02
50-99$1.90
100+$1.79
Quantity:  Kit

2-Way Kit
250.HL-2P
2-Way Kit
250.HL-2P  2-Way Kit
Kit Contents: Housing, 2 pin contacts

Mfr: AMP/TE, Sumitomo, Yazaki
Series: 250 Housing Lance, 250 Armlock-Housing Lance, CN(A) Plastic Lock-Arm
Mating Part: 250.HL-2S

AMP/TESumitomoYazaki
172129-16070-26217122-2820
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$1.19
6-19$1.11
20-49$1.01
50-99$0.95
100+$0.83
Quantity:  Kit

2-Way Kit
250.HL-2P-W
2-Way Kit
OEM P/N: 7122-2923
250.HL-2P-W  2-Way Kit
Kit Contents: Housing, 2 pin contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock-Housing Lance, CN(A) Plastic Lock-Arm
OEM P/N: 7122-2923
Mating Part: 250.HL-2S-W

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$3.16
6-19$3.00
20-49$2.84
50-99$2.69
100+$2.53
Quantity:  Kit

2-Way Kit
250.HL-2S
2-Way Kit
250.HL-2S  2-Way Kit
Kit Contents: Housing, 2 socket contacts

Mfr: AMP/TE, Sumitomo, Yazaki
Series: 250 Housing Lance, 250 Armlock-Housing Lance, CN(A) Plastic Lock-Arm
Mating Part: 250.HL-2P

AMP/TESumitomoYazaki
172130-16070-26117123-2820
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$1.19
6-19$1.11
20-49$1.01
50-99$0.95
100+$0.83
Quantity:  Kit

2-Way Kit
250.HL-2S-W
2-Way Kit
OEM P/N: 7123-2923
250.HL-2S-W  2-Way Kit
Kit Contents: Housing, 2 socket contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock-Housing Lance, CN(A) Plastic Lock-Arm
OEM P/N: 7123-2923
Mating Part: 250.HL-2P-W

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$3.14
6-19$2.98
20-49$2.83
50-99$2.67
100+$2.51
Quantity:  Kit

2-Way Kit

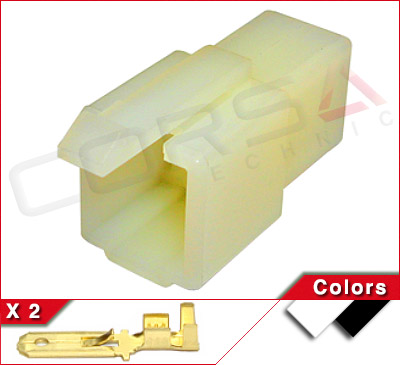

250.LOC-2P
2-Way Kit
250.LOC-2P  2-Way Kit
Kit Contents: Housing, 2 pin contacts

Mfr: Aftermarket Sumitomo
Series: 250 Lock series
Mating Part: 250.LOC-2S
P/N:
Natural, 6120-3523 (PP)
Black, ()

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Row Spacing:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$1.20
6-19$1.14
20-49$1.08
50-99$1.02
100-249$0.96
250-499$0.90
500+$0.84
Quantity:  Kit

2-Way Kit

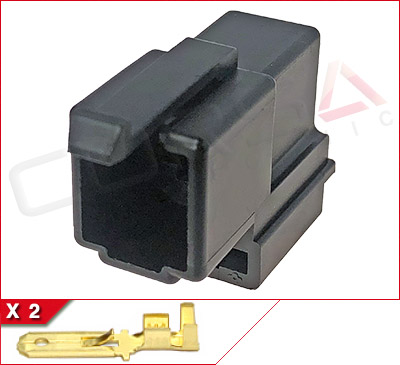

250.LOC-2P-CLIP
2-Way Kit
OEM P/N: 6010-2802
250.LOC-2P-CLIP  2-Way Kit
Kit Contents: Housing, 2 pin contacts

Mfr: OEM Sumitomo
Series: 250 Lock series
OEM P/N: 6010-2802
Part Name: 2PL-M-PP FIX-B
Mating Part: 250.LOC-2S
Bottom of connector features a bracket mount.

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Row Spacing:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PP
  • Mounting Style:Clip Slot
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-20 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$2.07
6-19$1.93
20-49$1.76
50-99$1.66
100+$1.45
Quantity:  Kit

2-Way Kit

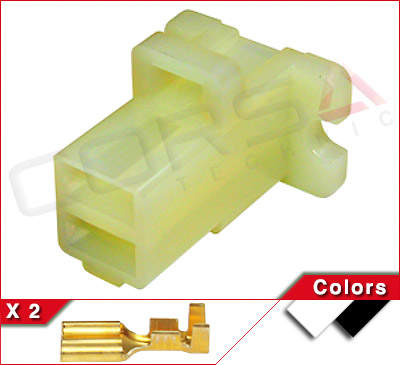

250.LOC-2S
2-Way Kit
250.LOC-2S  2-Way Kit
Kit Contents: Housing, 2 socket contacts

Mfr: Aftermarket Sumitomo
Series: 250 Lock series
Mating Part: 250.LOC-2P, 250.LOC-2P-CLIP
P/N:
Natural, 6110-4623 (PP)
Black, ()

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Row Spacing:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Panel Mount
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$1.20
6-19$1.14
20-49$1.08
50-99$1.02
100-249$0.96
250-499$0.90
500+$0.84
Quantity:  Kit

2-Way Kit
250.WC-2P-1
2-Way Kit
OEM P/N: 6180-2541
250.WC-2P-1  2-Way Kit
Kit Contents: Housing, 2 pin contacts, rear seal

Mfr: OEM Sumitomo
Series: 250 Waterproof Connector
OEM P/N: 6180-2541
Mating Part: 250.WC-2S-1

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Row Spacing:7.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Seal Material:NBR
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10156
QtyPrice
1-5$4.53
6-19$4.30
20-49$4.08
50-99$3.85
100+$3.62
Quantity:  Kit

2-Way Kit
250.WC-2P-2
2-Way Kit
250.WC-2P-2  2-Way Kit
Kit Contents: Housing, 2 pin contacts, rear wire seal

Mfr: Aftermarket Sumitomo
Series: 250 Waterproof Connector
Mating Part: 250.WC-2S-2

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Row Spacing:10.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$2.77
6-19$2.63
20-49$2.49
50-99$2.35
100+$2.22
Quantity:  Kit

2-Way Kit
250.WC-2S-1
2-Way Kit
OEM P/N: 6189-0274
250.WC-2S-1  2-Way Kit
Kit Contents: Housing, 2 socket contacts, rear seal

Mfr: OEM Sumitomo
Series: 250 Waterproof Connector
OEM P/N: 6189-0274
Part Name: 10157W2 A 02F
Mating Part: 250.WC-2P-1

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Row Spacing:7.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Seal Material:NBR
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10157
QtyPrice
1-5$4.53
6-19$4.30
20-49$4.08
50-99$3.85
100+$3.62
Quantity:  Kit

2-Way Kit
250.WC-2S-2
2-Way Kit
250.WC-2S-2  2-Way Kit
Kit Contents: Housing, 2 socket contacts, rear seal

Mfr: Aftermarket Sumitomo
Series: 250 Waterproof Connector
Mating Part: 250.WC-2P-2

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Row Spacing:10.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$2.76
6-19$2.62
20-49$2.48
50-99$2.35
100+$2.21
Quantity:  Kit

2-Way Kit
305-2P
2-Way Kit
305-2P  2-Way Kit
Kit Contents: Housing, 2x 305 pin contacts for 12-10 awg

Mating Part: 305-2S

QtyPrice
1-5$3.22
6-19$3.06
20-49$2.90
50-99$2.74
100+$2.58
Quantity:  Kit

2-Way Kit
305-2S
2-Way Kit
305-2S  2-Way Kit
Kit Contents: Housing, 2x 305 socket contacts for 12-10 awg

Mating Part: 305-2P

spacer
  • H7 type bulb connector
spacer
  • Dorman 84717 pigtail connector
QtyPrice
1-5$3.22
6-19$3.06
20-49$2.90
50-99$2.74
100+$2.58
Quantity:  Kit

2-Way Plug Kit
305.TL-2P-1
2-Way Plug Kit
305.TL-2P-1  2-Way Plug Kit
Kit Contents: Housing, 2x pin contacts

Mfr: Aftermarket
Series: Sumitomo 305 Series - Terminal Lance, Yazaki 305 Series - Terminal Lance
Mating Part: 305.TL-2S-1

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:7.8mm (.305)
  • Wire Size:0.50 - 5.00 mm2
  • Number of Rows:1
  • Pitch:9.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:27A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Hero B-58 (male half)
  • KUM PH231-02020
  • Yazaki 7122-3020
QtyPrice
1-5$1.78
6-19$1.69
20-49$1.60
50-99$1.51
100-249$1.42
250-499$1.33
500-999$1.25
1000+$1.16
Quantity:  Kit

2-Way Plug Kit
305.TL-2P-2
2-Way Plug Kit
305.TL-2P-2  2-Way Plug Kit
Kit Contents: Housing, 2x pin contacts

Mfr: Aftermarket
Series: Sumitomo 305 Series - Terminal Lance, Yazaki 305 Series - Terminal Lance
Mating Part: 305.TL-2S-2

  • See related terminal for crimp specs
spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:7.8mm (.305)
  • Wire Size:0.50 - 5.00 mm2
  • Number of Rows:1
  • Pitch:9.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:27A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Sumitomo 6410-5526
QtyPrice
1-5$1.90
6-19$1.77
20-49$1.61
50-99$1.52
100+$1.33
Quantity:  Kit

2-Way Receptacle Kit
305.TL-2S-1
2-Way Receptacle Kit
305.TL-2S-1  2-Way Receptacle Kit
Kit Contents: Housing, 2x socket contacts

Mfr: Aftermarket
Series: Sumitomo 305 Series - Terminal Lance, Yazaki 305 Series - Terminal Lance
Mating Part: 305.TL-2P-1

  • See related terminal for crimp specs
spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:7.8mm (.305)
  • Wire Size:0.50 - 5.00 mm2
  • Number of Rows:1
  • Pitch:9.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:27A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Hero B-58 (female half)
  • Yazaki 7123-3020
QtyPrice
1-5$1.78
6-19$1.66
20-49$1.51
50-99$1.42
100+$1.25
Quantity:  Kit

2-Way Receptacle Kit
305.TL-2S-2
2-Way Receptacle Kit
305.TL-2S-2  2-Way Receptacle Kit
Kit Contents: Housing, 2x socket contacts

Mfr: Aftermarket
Series: Sumitomo 305 Series - Terminal Lance, Yazaki 305 Series - Terminal Lance
Mating Part: 305.TL-2P-2

  • See related terminal for crimp specs
spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:7.8mm (.305)
  • Wire Size:0.50 - 5.00 mm2
  • Number of Rows:1
  • Pitch:9.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:27A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Sumitomo 6410-5326
QtyPrice
1-5$1.90
6-19$1.80
20-49$1.71
50-99$1.61
100-249$1.52
250-499$1.42
500+$1.33
Quantity:  Kit

318 Items.  Showing Items 1 thru 50.
 1  2  3  4  5  6  7   Next »   Show All

Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2025 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1
R7A4
R7A3
R7A2
