305 Terminal Lance Series

1-Way Plug Kit
305.TL-1P
1-Way Plug Kit
305.TL-1P  1-Way Plug Kit
Kit Contents: Housing, 1x pin contact

Mfr: Aftermarket
Series: Sumitomo 305 Series - Terminal Lance, Yazaki 305 Series - Terminal Lance
Mating Part: 305.TL-1S


spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:7.8mm (.305)
  • Wire Size:0.50 - 5.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:27A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Hero B-57 (male half)
  • Yazaki 7122-3010
QtyPrice
1-5$1.49
6-19$1.42
20-49$1.34
50-99$1.27
100-249$1.19
250-499$1.12
500+$1.04
Quantity:  Kit

1-Way Receptacle Kit
305.TL-1S
1-Way Receptacle Kit
305.TL-1S  1-Way Receptacle Kit
Kit Contents: Housing, 1x socket contact

Mfr: Aftermarket
Series: Sumitomo 305 Series - Terminal Lance, Yazaki 305 Series - Terminal Lance
Mating Part: 305.TL-1P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:7.8mm (.305)
  • Wire Size:0.50 - 5.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:27A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Hero B-57 (female half)
  • KUM PH235-01010
  • Yazaki 7123-3010
QtyPrice
1-5$1.49
6-19$1.42
20-49$1.34
50-99$1.27
100-249$1.19
250-499$1.12
500+$1.04
Quantity:  Kit

2-Way Plug Kit

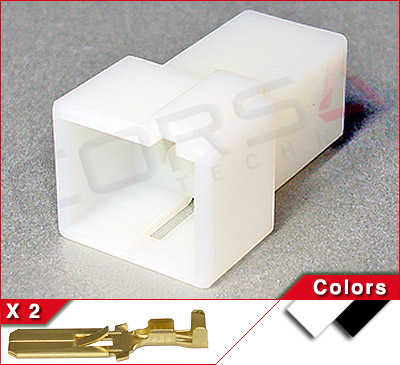

305.TL-2P-1
2-Way Plug Kit
305.TL-2P-1  2-Way Plug Kit
Kit Contents: Housing, 2x pin contacts

Mfr: Aftermarket
Series: Sumitomo 305 Series - Terminal Lance, Yazaki 305 Series - Terminal Lance
Mating Part: 305.TL-2S-1

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:7.8mm (.305)
  • Wire Size:0.50 - 5.00 mm2
  • Number of Rows:1
  • Pitch:9.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:27A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Hero B-58 (male half)
  • KUM PH231-02020
  • Yazaki 7122-3020
QtyPrice
1-5$1.78
6-19$1.69
20-49$1.60
50-99$1.51
100-249$1.42
250-499$1.33
500-999$1.25
1000+$1.16
Quantity:  Kit

2-Way Plug Kit

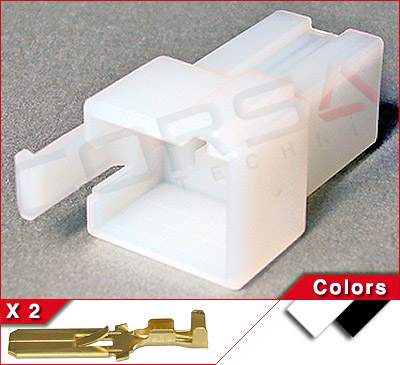

305.TL-2P-2
2-Way Plug Kit
305.TL-2P-2  2-Way Plug Kit
Kit Contents: Housing, 2x pin contacts

Mfr: Aftermarket
Series: Sumitomo 305 Series - Terminal Lance, Yazaki 305 Series - Terminal Lance
Mating Part: 305.TL-2S-2

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:7.8mm (.305)
  • Wire Size:0.50 - 5.00 mm2
  • Number of Rows:1
  • Pitch:9.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:27A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Sumitomo 6410-5526
QtyPrice
1-5$1.90
6-19$1.77
20-49$1.61
50-99$1.52
100+$1.33
Quantity:  Kit

2-Way Receptacle Kit

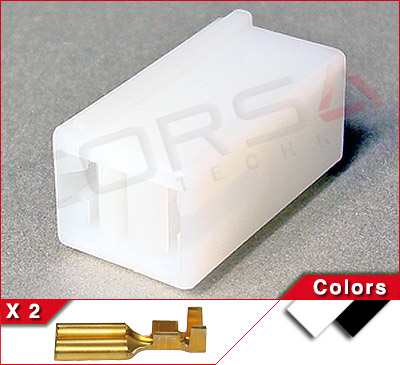

305.TL-2S-1
2-Way Receptacle Kit
305.TL-2S-1  2-Way Receptacle Kit
Kit Contents: Housing, 2x socket contacts

Mfr: Aftermarket
Series: Sumitomo 305 Series - Terminal Lance, Yazaki 305 Series - Terminal Lance
Mating Part: 305.TL-2P-1

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:7.8mm (.305)
  • Wire Size:0.50 - 5.00 mm2
  • Number of Rows:1
  • Pitch:9.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:27A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Hero B-58 (female half)
  • Yazaki 7123-3020
QtyPrice
1-5$1.78
6-19$1.66
20-49$1.51
50-99$1.42
100+$1.25
Quantity:  Kit

2-Way Receptacle Kit

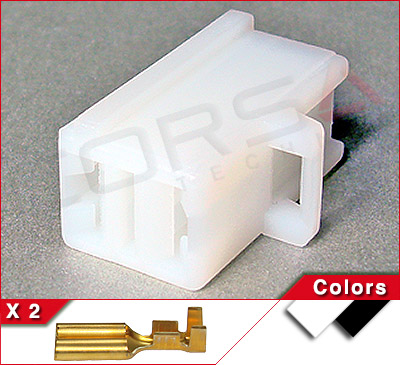

305.TL-2S-2
2-Way Receptacle Kit
305.TL-2S-2  2-Way Receptacle Kit
Kit Contents: Housing, 2x socket contacts

Mfr: Aftermarket
Series: Sumitomo 305 Series - Terminal Lance, Yazaki 305 Series - Terminal Lance
Mating Part: 305.TL-2P-2

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:7.8mm (.305)
  • Wire Size:0.50 - 5.00 mm2
  • Number of Rows:1
  • Pitch:9.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:27A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Sumitomo 6410-5326
QtyPrice
1-5$1.90
6-19$1.80
20-49$1.71
50-99$1.61
100-249$1.52
250-499$1.42
500+$1.33
Quantity:  Kit

3-Way Plug Kit
H4-3P
3-Way Plug Kit
H4-3P  3-Way Plug Kit
Kit Contents: Housing, 3 pin contacts

Mfr: Aftermarket
Series: Sumitomo 305 Series - Terminal Lance, Yazaki 305 Series - Terminal Lance
Mating Part: H4-3S-1

spacer
General
  • Sealing:Unsealed
  • Number of Ways:3
  • Contact Size:7.8mm (.305)
  • Wire Size:0.50 - 5.00 mm2
  • Number of Rows:2
  • Pitch:16.7mm
  • Row Spacing:8.6mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:27A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • H4 type bulb
spacer
QtyPrice
1-5$2.69
6-19$2.56
20-49$2.42
50-99$2.29
100+$2.15
Quantity:  Kit

3-Way Receptacle Kit
H4-3S-1
3-Way Receptacle Kit
H4-3S-1  3-Way Receptacle Kit
Kit Contents: Housing, 3 socket contacts

Mfr: Aftermarket
Series: Sumitomo 305 Series - Terminal Lance, Yazaki 305 Series - Terminal Lance
Mating Part: H4-3P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:3
  • Contact Size:7.8mm (.305)
  • Wire Size:0.85 - 5.00 mm2
  • Number of Rows:2
  • Pitch:16.9mm
  • Row Spacing:8.8mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PPS
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:27A
Environmental
  • Temp Range[2]:-40 - 150 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • H4, 9003 type bulb
spacer
QtyPrice
1-5$2.65
6-19$2.52
20-49$2.38
50-99$2.25
100+$2.12
Quantity:  Kit

305 Terminal Lance Pin Contact
305.TL-PIN
305 Terminal Lance Pin Contact
305.TL-PIN  305 Terminal Lance Pin Contact

Mfr: Aftermarket
Series: Sumitomo 305 Series - Terminal Lance, 305 Waterproof Connector, Yazaki 305 Series - Terminal Lance

Wire SizePlatingSumitomoYazaki
305.TL-PIN10.5-2.0 mm2 (20-14 AWG)Plain brass-7114-3040
-Tin-7114-3040-02
-0.5-5.0 mm2 (20-10 AWG)Plain brass8235-4050-
-Tin--
305.TL-PIN23.0-5.0 mm2 (12-10 AWG)Plain brass-7114-3030
-Tin-7114-3030-02
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:7.8mm (.305)
  • Wire Size:0.50 - 5.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:27A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Hero B-53 (size 1), B-55 (size 2)
  • KET ST740109-1, ST740109-3, ST740110-1, ST740110-3
  • KUM MT031-01230, MT031-01430
  • TE 170105-1
  • Toyota 82998-12010 repair wire terminal
QtyPrice
1-49$0.20
50-99$0.19
100-249$0.18
250-499$0.17
500+$0.16
Quantity:  Ea

305 Terminal Lance Socket Contact
305.TL-SKT
305 Terminal Lance Socket Contact
305.TL-SKT  305 Terminal Lance Socket Contact

Mfr: Aftermarket
Series: Sumitomo 305 Series - Terminal Lance, 305 Waterproof Connector, Yazaki 305 Series - Terminal Lance

-
Wire SizePlatingSumitomoYazaki
305.TL-SKT10.5-2.0 mm2 (20-14 AWG)Plain brass-7116-3050
-Tin-7116-3050-02
-0.5-5.0 mm2 (20-10 AWG)Plain brass8245-4060-
-Tin--
305.TL-SKT22.0-3.0 mm2 (14-12 AWG)Plain brass-
-Tin--
305.TL-SKT33.0-5.0 mm2 (12-10 AWG)Plain brass-7116-3060
-Tin-7116-3060-02
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:7.8mm (.305)
  • Wire Size:0.50 - 5.00 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:27A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Hero B-54 (size 1), B-56 (size 2)
  • KET ST730373-1, ST730373-3, ST730374-1, ST730374-3
  • KUM MT035-01400, MT035-01430
  • Toyota 82998-12020 repair wire terminal
QtyPrice
1-49$0.21
50-99$0.20
100-249$0.19
250-499$0.18
500-999$0.17
1000+$0.16
Quantity:  Ea

H4 Socket Contact
H4-SKT
H4 Socket Contact
H4-SKT  H4 Socket Contact

Mfr: Aftermarket
Series: Sumitomo 305 Series - Terminal Lance, Yazaki 305 Series - Terminal Lance

Wire SizePlatingAftermarket
H4-SKT1.85-1.25 mm2 (18-16 AWG)Plain brass-
-Tin-
H4-SKT23.0-5.0 mm2 (12-10 AWG)Plain brass-
-Tin-
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:7.8mm (.305)
  • Wire Size:0.85 - 5.00 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:27A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-49$0.20
50-99$0.19
100-249$0.18
250-499$0.16
500+$0.14
Quantity:  Ea


Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2024 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1
R7A4
R7A3
R7A2
