Search Results

1941 Items.

  Showing Items 551 thru 600.
« Previous  First Page  . . .  3  4  5  6  7  8  9  10  11  12  . . .  Last Page (39)    Next »
EPC 1.5mm Sealed Series Seals
EPC15-SL
EPC 1.5mm Sealed Series Seals
EPC15-SL  EPC 1.5mm Sealed Series Seals

Mfr: EPC
Series: 1.5mm Sealed Series
Also used with: APEX 150 EGAS, Federal Mogul 6.0 Centerline, MX150 Cable Sealed

Wire Insulation Dia.ColorPart Number
EPC15-SL11.19-1.65 mm (.047-.065 in)PinkE-1644-01
EPC15-SL21.60-2.10 mm (.063-.083 in)GreenE-1644-00
EPC15-SL32.10-2.50 mm (.083-.098 in)YellowE-1644-02
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
Mechanical
  • Seal Material:Silicone Rubber

spacer
  • Ford 97BG-10C930-SBA (SL1), XW43-14603-AA (SL2), XW4T-14603-FA (SL3)
QtyPrice
1-49$0.14
50-99$0.13
100-249$0.12
250-499$0.11
500-999$0.10
1000-2499$0.09
2500-4999$0.08
5000-9999$0.07
10000-19999$0.06
20000+$0.05
Quantity:  Ea

Multilock 040 Pin Contact
MLC040-PIN
Multilock 040 Pin Contact
MLC040-PIN  Multilock 040 Pin Contact

Mfr: Tyco/AMP
Series: Multilock 040 Series, Multilock 040 Series, Mk II

Wire SizePlatingStripLoose
MLC040-PIN1.3-.5 mm2 (22-20 AWG) wire,
1.0-1.7mm Insulation dia		Tin175206-1N/A
-GoldN/AN/A
MLC040-PIN2.3-.5 mm2 (22-20 AWG) wire,
1.8-2.0mm Insulation dia		Tin173682-1175063-1
-Gold2098032-3N/A
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 0.50 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:5A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Ford F50B-14421-DA (size 2, tin)
  • Harley Davidson 72990-01
QtyPrice
1-49$0.18
50-99$0.17
100-249$0.16
250-499$0.15
500-999$0.14
1000+$0.13
Quantity:  Ea

Multilock 040 Socket Contact
MLC040-SKT
Multilock 040 Socket Contact
MLC040-SKT  Multilock 040 Socket Contact

Mfr: Tyco/AMP
Series: Multilock 040 Series, Multilock 040 Series, Mk II

Wire SizePlatingStripLoose
MLC040-SKT1.3-.5 mm2 (22-20 AWG) wire,
1.1-1.6mm Insulation dia		Tin175180-1N/A
-Gold175180-2N/A
MLC040-SKT2.3-.5 mm2 (22-20 AWG) wire,
1.8-2.0mm Insulation dia		Tin173681-1175062-1
-Gold173681-2175062-2
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 0.50 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:5A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Ford F4SB-14474-GA (size 2, tin)
  • Harley Davidson 72991-01
QtyPrice
1-49$0.17
50-99$0.16
100-249$0.15
250-499$0.14
500-999$0.13
1000+$0.12
Quantity:  Ea

2-Way Kit
HX040-2P-2
2-Way Kit
OEM P/N: 6188-0590
HX040-2P-2  2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals

Mfr: OEM Sumitomo
Series: HX 040 Sealed Series
OEM P/N: 6188-0590
Mating Part: HX040-2S-2

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Pitch:4.1mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-5$2.99
6-19$2.78
20-49$2.54
50-99$2.39
100+$2.09
Quantity:  Kit

250 Series Socket Contact (Alternate design)
250.ATL-SKT
250 Series Socket Contact (Alternate design)
250.ATL-SKT  250 Series Socket Contact (Alternate design)

Mfr: Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal

Wire SizePlatingSumitomoYazaki
250.ATL-SKT1.5-.85 mm2 (20-18 AWG)Plain Brass--
-Tin--
-.5-2.0 mm2 (20-14 AWG)Plain Brass8240-40107116-2030
-Tin8240-40147116-2030-02
250.ATL-SKT21.25-2.0 mm2 (16-14 AWG)Plain Brass--
-Tin--
-3.0 mm2 (12 AWG)Plain Brass-7116-2033
-Tin-7116-2033-02
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:6.3mm (.250)
  • Wire Size:0.50 - 3.00 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
Electrical
  • Current Rating[1]:20A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Hero B-20
  • Terminal used in Toyota 82998-12070 repair wire
QtyPrice
1-49$0.18
50-99$0.17
100-249$0.16
250-499$0.15
500-999$0.14
1000-2499$0.13
2500+$0.12
Quantity:  Ea

1-Way Kit
250.ARM-1P
1-Way Kit
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7122-2115-30 (PA66), 7122-2215-30 (PP)
Natural | 6110-2683 (PA66), 6070-1381 (PP) | 7122-2115 (PA66), 7122-2215 (PP)

250.ARM-1P  1-Way Kit
Kit Contents: Housing, 1 pin contact

Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7122-2115-30 (PA66), 7122-2215-30 (PP)
Natural | 6110-2683 (PA66), 6070-1381 (PP) | 7122-2115 (PA66), 7122-2215 (PP)

Mating Part: 250.ARM-1S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Hero B-36R (male half)
  • KTM 000700000BN
QtyPrice
1-5$0.95
6-19$0.90
20-49$0.85
50-99$0.81
100-499$0.76
500+$0.71
Quantity:  Kit

1-Way Kit
250.ARM-1S
1-Way Kit
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7123-2115-30 (PA66), 7123-2215-30 (PP)
Natural | 6110-2682 (PA66), 6070-1391 (PP) | 7123-2115 (PA66), 7123-2215 (PP)
250.ARM-1S  1-Way Kit
Kit Contents: Housing, 1 socket contact

Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7123-2115-30 (PA66), 7123-2215-30 (PP)
Natural | 6110-2682 (PA66), 6070-1391 (PP) | 7123-2115 (PA66), 7123-2215 (PP)
Mating Part: 250.ARM-1P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:6.3mm (.250)
  • Wire Size:0.50 - 3.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Hero B-36R (female half)
  • KTM 000700000CH
QtyPrice
1-5$0.95
6-19$0.90
20-49$0.85
50-99$0.81
100-249$0.76
250-499$0.71
500+$0.67
Quantity:  Kit

2-Way Kit (Reversed keying)
250.ARM-2P-2
2-Way Kit (Reversed keying)
250.ARM-2P-2  2-Way Kit (Reversed keying)
Kit Contents: Housing, 2 pin contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
Mating Part: 250.ARM-2S-2
Note: This is a reversed keying version of the regular 250.ARM-2P-1

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$1.19
6-19$1.11
20-49$1.01
50-99$0.95
100+$0.83
Quantity:  Kit

14-Way Kit
HW-14S
14-Way Kit
OEM P/N: Gray: 6189-0136
Blue: 6189-0252
HW-14S  14-Way Kit
Kit Contents: Housing, 14 socket contacts, 14 seals, TPA lock

Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: Gray: 6189-0136
Blue: 6189-0252
Part Name: HW09-14FAY
Mating Part: HW-14P, HW.JC-14P-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:14
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:4
  • Pitch:6.0mm
  • Row Spacing:Multiple
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$6.10
6-19$5.79
20-49$5.49
50-99$5.18
100+$4.88
Quantity:  Kit

2-Way Kit (Reversed keying)
250.ARM-2S-2
2-Way Kit (Reversed keying)
250.ARM-2S-2  2-Way Kit (Reversed keying)
Kit Contents: Housing, 2 socket contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
Mating Part: 250.ARM-2P-2
Note: This is a reversed keying version of the regular 250.ARM-2S-1

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.50 - 3.00 mm2
  • Number of Rows:2
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$1.19
6-19$1.11
20-49$1.01
50-99$0.95
100+$0.83
Quantity:  Kit

12-Way Kit
MX150-12S-A
12-Way Kit
OEM P/N: 33472-1201
MX150-12S-A  12-Way Kit
Kit Contents: Housing, 12 socket contacts

Mfr: OEM Molex
Series: MX150 Sealed Series
OEM P/N: 33472-1201
Keying: A
Mating Part: MX150-12P-A

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:12
  • Contact Size:1.5mm (.060)
  • Wire Size:0.35 - 2.00 mm2
  • Number of Rows:2
  • Pitch:3.5mm
  • Row Spacing:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:SPS/PA+GF20
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes, connector option
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP67
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Ford AU2Z-14S411-AMA, WPT-1125 (Clip-slot body, Silver plated terminals) pigtail connector
  • Harley Davidson 72487-07BK
  • Nissan/Bosch J-48817-1120 pigtail connector
  • Nissan service part 24008-9DK3A connector
QtyPrice
1-5$3.29
6-19$3.13
20-49$2.96
50-99$2.80
100+$2.63
Quantity:  Kit

TS 090 Sealed Series Pin Contact
TS090-PIN
TS 090 Sealed Series Pin Contact
TS090-PIN  TS 090 Sealed Series Pin Contact

Mfr: Sumitomo
Series: TS 090 Sealed Series, TS 090+187 Hybrid

Wire SizePlatingPart Number
TS090-PIN1.3-.5 mm2 (22-20 AWG)Tin8100-0457
-Gold8100-1340
TS090-PIN2.5-1.25 mm2 (20-16 AWG)Tin8100-0458
-Gold8100-1007
TS090-PIN32.0 mm2 (14 AWG)Tin8100-0459
-Gold8100-1008
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
QtyPrice
1-49$0.21
50-99$0.20
100-249$0.19
250-499$0.18
500-999$0.17
1000-2499$0.16
2500-4999$0.15
5000-9999$0.14
10000-19999$0.13
20000+$0.12
Quantity:  Ea

4-Way Kit
TS090-4S-3
4-Way Kit
OEM P/N: Natural: 6189-0565
Black: 6189-0225 (Yazaki: 7283-1440-30)
Gray: 6189-0598

TS090-4S-3  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals

Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: Natural: 6189-0565
Black: 6189-0225 (Yazaki: 7283-1440-30)
Gray: 6189-0598

Part Name: 11150W9A04F

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Toyota/Lexus 2JZGE distributor
  • Lexus Accelerator Pedal Position Sensor
spacer
  • Toyota 90980-11150, 90980-12057
0x - Black (OUT OF STOCK) in stock.
QtyPrice
1-5$4.77
6-19$4.53
20-49$4.29
50-99$4.05
100+$3.82
Quantity:  Kit

20-Way Kit
HD090-20P
20-Way Kit
OEM P/N: 6098-0260
HD090-20P  20-Way Kit
Kit Contents: Housing, 20 pin contacts

Mfr: OEM Sumitomo
Series: HD 090 Unsealed Series
OEM P/N: 6098-0260
Mating Part: HD090-20S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-5$5.33
6-19$4.96
20-49$4.53
50-99$4.26
100+$3.73
Quantity:  Kit

20-Way Kit
HD090-20S
20-Way Kit
OEM P/N: 6098-0259
HD090-20S  20-Way Kit
Kit Contents: Housing, 20 socket contacts

Mfr: OEM Sumitomo
Series: HD 090 Unsealed Series
OEM P/N: 6098-0259
Mating Part: HD090-20P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-5$4.26
6-19$3.96
20-49$3.62
50-99$3.41
100+$2.98
Quantity:  Kit

2-Way Kit
TS090-2P-2
2-Way Kit
OEM P/N: Natural: 6188-0624
Light gray: (In Stock)
TS090-2P-2  2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals

Mfr: Aftermarket Sumitomo
Series: TS 090 Sealed Series
OEM P/N: Natural: 6188-0624
Light gray: (In Stock)
Part Name: 25020W9A02M-x
Mating Part: TS090-2S-2, compatible with DL090-2S-5

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Toyota 90980-25020
QtyPrice
1-5$2.94
6-19$2.79
20-49$2.65
50-99$2.50
100-249$2.35
250-499$2.21
500+$2.06
Quantity:  Kit

26-Way PCB Header (Keying 3)
SS10-26P-3
26-Way PCB Header (Keying 3)
OEM P/N: 6473423-1
SS10-26P-3  26-Way PCB Header (Keying 3)
Kit Contents: PCB header with right angle mounting

Mfr: Aftermarket Tyco/AMP
Series: Superseal 1.0 Series
OEM P/N: 6473423-1
Keying: 3
Mating Part: SS10-26S-3

spacer
Electrical
  • Current Rating[1]:15A
  • Voltage Rating:250V (AC, DC)
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$12.26
6-19$11.40
20-49$10.42
50-99$9.81
100+$9.20
Quantity:  Ea

DL 040 Sealed Series Seals
DL040-SL
DL 040 Sealed Series Seals
DL040-SL  DL 040 Sealed Series Seals

Mfr: Sumitomo
Series: DL 040 Sealed Series

Wire Insulation Dia.ColorPart Number
DL040-SL11.4-1.8 mm (.055-.071 in)Reddish/Brown7165-0547
DL040-SL21.8-2.2 mm (.071-.086 in)Blue7165-0548
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
Mechanical
  • Seal Material:Silicone Rubber

QtyPrice
1-49$0.17
50-99$0.16
100-249$0.15
250-499$0.14
500-999$0.13
1000-2499$0.12
2500+$0.11
Quantity:  Ea

Sumitomo 040 Sealed Series Plug
SUMI.040-PG
Sumitomo 040 Sealed Series Plug
OEM P/N: 7165-0432, black rubber
SUMI.040-PG  Sumitomo 040 Sealed Series Plug

Mfr: OEM Sumitomo
OEM P/N: 7165-0432, black rubber
Family: DL 040 Sealed Series, HV/HVG Sealed Series, HX 040 Sealed Series
Note: This is a plug, the hole pictured does not go all the way through.

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:1.0mm (.040)
Mechanical
  • Seal Material:NBR

QtyPrice
1-49$0.19
50-99$0.18
100-249$0.17
250-499$0.16
500-999$0.15
1000-2499$0.14
2500+$0.13
Quantity:  Ea

DL 040 Sealed Series Socket Contact
DL040-SKT
DL 040 Sealed Series Socket Contact
DL040-SKT  DL 040 Sealed Series Socket Contact

Mfr: Sumitomo
Series: DL 040 Sealed Series

Wire SizePlatingPart Number
DL040-SKT1.3-.5 mm2 (22-20 AWG)Tin8100-1466
-Gold8100-1501
DL040-SKT2.75-1.25 mm2 (18-16 AWG)Tin8100-1467
-Gold8100-1502
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-49$0.18
50-99$0.17
100-499$0.16
500-999$0.15
1000+$0.14
Quantity:  Ea

MX34 Series Socket Contact
MX34-SKT
MX34 Series Socket Contact
MX34-SKT  MX34 Series Socket Contact

Mfr: JAE
Series: MX34 Series

Wire SizeP/N
-CHFUS 0.13 mm2 (24 AWG)M34S75C4F5
-.3 mm2 (22 AWG)M34S75C4F1
MX34-SKT.5 mm2 (20 AWG)M34S75C4F2
-CAN SD 0.35 mm2 (Note)M34S75C4F3
-0.85 mm2 (18 AWG)(Note)M34S75C4F4
Available stock: Aftermarket OEM
Note: M34S75C4F3 and M34S75C4F4 can only be inserted in double row cavities on both sides, four cavities in total.

spacer
General
  • Sealing:Unsealed
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.85 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-49$0.10
50-99$0.09
100-249$0.08
250-499$0.07
500+$0.06
Quantity:  Ea

3-Way Kit
HX040-3P-1
3-Way Kit
OEM P/N: 6188-4739
HX040-3P-1  3-Way Kit
Kit Contents: Housing, 3 pin contacts, 3 seals

Mfr: OEM Sumitomo
Series: HX 040 Sealed Series
OEM P/N: 6188-4739
Mating Part: HX040-3S-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Pitch:4.1mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

Price: $6.45
Quantity:  Kit

3-Way Kit
DL040-3S
3-Way Kit
OEM P/N: 6189-0734 (superseded by: 6189-8156)
DL040-3S  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals

Mfr: OEM Sumitomo
Series: DL 040 Sealed Series
OEM P/N: 6189-0734 (superseded by: 6189-8156)
Part Name: W-04CISASY3F-GR (ss by: W-04CISASY3F2-GR)

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Pitch:4.1mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-5$3.47
6-19$3.30
20-49$3.12
50-99$2.95
100+$2.78
Quantity:  Kit

4-Way Kit
DL040-4S
4-Way Kit
OEM P/N: 6189-0551
DL040-4S  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals

Mfr: OEM Sumitomo
Series: DL 040 Sealed Series
OEM P/N: 6189-0551
Part Name: W-DL04-4FAY-DGR

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Pitch:4.3mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA6T
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-5$4.05
6-19$3.85
20-49$3.64
50-99$3.44
100+$3.24
Quantity:  Kit

20-Way Kit
DL040-20S
20-Way Kit
OEM P/N: 6189-0714
DL040-20S  20-Way Kit
Kit Contents: Housing, 20 socket contacts, 20 seals

Mfr: OEM Sumitomo
Series: DL 040 Sealed Series
OEM P/N: 6189-0714
Part Name: W-DL04AY20F-LGR
Mating Part: DL040-20P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:20
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:5
  • Pitch:4.3mm
  • Row Spacing:4.45mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-5$8.89
6-19$8.45
20-49$8.00
50-99$7.56
100+$7.11
Quantity:  Kit

2-Way Kit
MT-2S-3
2-Way Kit
OEM P/N: 6189-0035 Gray
6189-0063 Black
MT-2S-3  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Sumitomo
Series: MT Sealed Series
OEM P/N: 6189-0035 Gray
6189-0063 Black
Part Name: 09INJ2FAY
Mating Part: Not available, but MT-2P-4 is compatible
Related: Finger grip tab version (for easier connector removal), MT-2S-5

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$3.82
6-19$3.55
20-49$3.25
50-99$3.06
100+$2.67
Quantity:  Kit

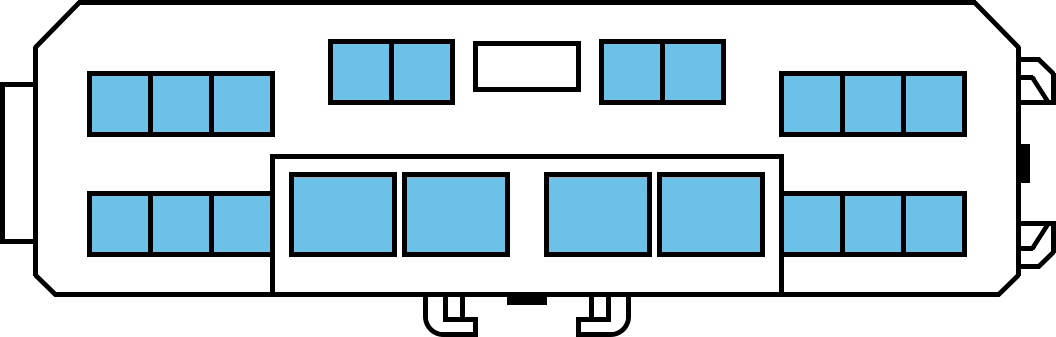

20-Way (16+4) Hybrid Kit
HD.HYB-20P
20-Way (16+4) Hybrid Kit
OEM P/N: 6950-0982
HD.HYB-20P  20-Way (16+4) Hybrid Kit
Kit Contents: Housing, 16x 090 pin contacts, 4x 187 pin contacts

Mfr: OEM Sumitomo
Series: HD 090+187 Hybrid Unsealed Series
OEM P/N: 6950-0982
Mating Part: HD.HYB-20S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:Mixed
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:Multiple
  • Row Spacing:Multiple
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:28A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.

spacer
  • Honda K-series (2002-2006) C302 connector
QtyPrice
1-5$6.31
6-19$5.99
20-49$5.68
50-99$5.36
100+$5.05
Quantity:  Kit

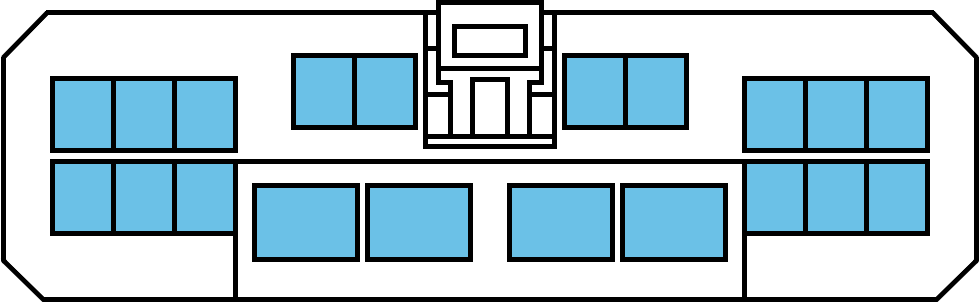

20-Way (16+4) Hybrid Kit
HD.HYB-20S
20-Way (16+4) Hybrid Kit
OEM P/N: 6950-0981
HD.HYB-20S  20-Way (16+4) Hybrid Kit
Kit Contents: Housing, 16x 090 socket contacts, 4x 187 socket contacts

Mfr: Aftermarket Sumitomo
Series: HD 090+187 Hybrid Unsealed Series
OEM P/N: 6950-0981
Mating Part: HD.HYB-20P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:Mixed
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:Multiple
  • Row Spacing:Multiple
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:28A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.

spacer
  • Honda K-series (2002-2006) C101 connector
QtyPrice
1-5$5.78
6-19$5.49
20-49$5.20
50-99$4.91
100+$4.62
Quantity:  Kit

GT-150 Sealed Device Socket Contact
GT150.A-SKT
GT-150 Sealed Device Socket Contact
GT150.A-SKT  GT-150 Sealed Device Socket Contact

Mfr: Delphi
Series: GT-150 Sealed Device

Wire SizeP/N
GT150.A-SKT1.35-.5 mm2 (22-20 AWG)15326264
GT150.A-SKT2.75-1.0 mm2 (18 AWG)15326265
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:1.5mm (.060)
  • Wire Size:0.35 - 1.00 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:15A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-49$0.12
50-99$0.11
100-249$0.10
250-499$0.09
500+$0.08
Quantity:  Ea

3-Way Kit
GT150.A-3S-1
3-Way Kit
OEM P/N: 13512092 (13589761, w/CPA)
GT150.A-3S-1  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals

Mfr: OEM Delphi
Series: GT-150 Sealed Device
OEM P/N: 13512092 (13589761, w/CPA)
Mating Part: N/A, device only

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:1.5mm (.060)
  • Wire Size:0.35 - 1.00 mm2
  • Number of Rows:2
  • Pitch:5.0mm
  • Row Spacing:7.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:Yes, separate item
Electrical
  • Current Rating[1]:15A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Oil pressure sensor on GM Duramax Diesel
QtyPrice
1-5$4.38
6-19$4.16
20-49$3.94
50-99$3.72
100+$3.50
Quantity:  Kit

4-Way Kit
TS187U-4P
4-Way Kit
OEM P/N: 6098-1851
TS187U-4P  4-Way Kit
Kit Contents: Housing, 4 pin contacts

Mfr: OEM Sumitomo
Series: TS 187 Unsealed Series
OEM P/N: 6098-1851
Part Name: 11878N8A04M-NA
Mating Part: TS187U-4S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:4
  • Contact Size:4.8mm (.187)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:6.8mm
  • Row Spacing:6.2mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:28A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Toyota 90980-11878 (Sumitomo source), 90980-11809
QtyPrice
1-5$3.67
6-19$3.49
20-49$3.30
50-99$3.12
100+$2.94
Quantity:  Kit

1-Way Kit
MT-1S
1-Way Kit
OEM P/N: 6180-1181
MT-1S  1-Way Kit
Kit Contents: Housing, 1 socket contact, 1 seal

Mfr: OEM Sumitomo
Series: MT Sealed Series
OEM P/N: 6180-1181
Mating Part: MT-1P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Hero FRS-105N
  • KTM 000700000GD
QtyPrice
1-5$1.12
6-19$1.06
20-49$1.01
50-99$0.95
100-249$0.90
250+$0.84
Quantity:  Kit

16-Way PCB Header - Straight Pin
MX34-16P-S
16-Way PCB Header - Straight Pin
OEM P/N: MX34016UF1
MX34-16P-S  16-Way PCB Header - Straight Pin
Kit Contents: PCB header

Mfr: OEM JAE
Series: MX34 Series
OEM P/N: MX34016UF1
Mating Part: MX34-16S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:16
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.85 mm2
  • Number of Rows:2
  • Pitch:2.2mm
  • Row Spacing:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:SPS+GF
  • Mounting Style:PCB Board Mount
  • CPA:No
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • GSXR-1000 '07-'08 dash
  • GSXR-1300R K8 dash
  • Kawasaki Z1000 '07-'09 dash
This item is backordered.
QtyPrice
1-5$3.18
6-19$2.96
20-49$2.70
50-99$2.54
100+$2.23
Quantity:  Ea

16-Way PCB Header - Angled Pin
MX34-16P-A
16-Way PCB Header - Angled Pin
OEM P/N: MX34016NF1
MX34-16P-A  16-Way PCB Header - Angled Pin
Kit Contents: PCB header

Mfr: OEM JAE
Series: MX34 Series
OEM P/N: MX34016NF1
Mating Part: MX34-16S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:16
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.85 mm2
  • Number of Rows:2
  • Pitch:2.2mm
  • Row Spacing:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:SPS+GF
  • Mounting Style:PCB Board Mount
  • CPA:No
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • GSXR-1000 '07-'08 dash
  • GSXR-1300R K8 dash
  • Kawasaki Z1000 '07-'09 dash
QtyPrice
1-5$2.83
6-19$2.63
20-49$2.41
50-99$2.26
100+$1.98
Quantity:  Ea

16-Way Kit
MX34-16S
16-Way Kit
OEM P/N: MX34016SF1
MX34-16S  16-Way Kit
Kit Contents: Housing, 16 socket contacts

Mfr: OEM JAE
Series: MX34 Series
OEM P/N: MX34016SF1
Mating Part: MX34-16P-A, MX34-16P-S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:16
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.85 mm2
  • Number of Rows:2
  • Pitch:2.2mm
  • Row Spacing:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PPE+PA66
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Kawasaki Z1000 '07-'09 dash
  • GSXR-1300R K8 dash
  • GSXR-1000 '07-'08 dash
QtyPrice
1-5$2.65
6-19$2.46
20-49$2.25
50-99$2.12
100+$1.85
Quantity:  Kit

3-Way Kit
090II-3S-4
3-Way Kit
OEM P/N: 7283-4535-30
090II-3S-4  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals

Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-4535-30

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:HPA
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$6.33
6-19$6.01
20-49$5.70
50-99$5.38
100+$5.06
Quantity:  Kit

3-Way Kit
090II-3S-5
3-Way Kit
OEM P/N: 7283-4536-40
090II-3S-5  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals

Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-4536-40

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:HPA
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$6.08
6-19$5.78
20-49$5.47
50-99$5.17
100+$4.86
Quantity:  Kit

2-Way Kit
HX090-2S-2
2-Way Kit
OEM P/N: 6189-0593
HX090-2S-2  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals, front lock

Mfr: OEM Sumitomo
Series: HX 090 Sealed Series
OEM P/N: 6189-0593
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-5$4.42
6-19$4.20
20-49$3.98
50-99$3.76
100+$3.54
Quantity:  Kit

DL 040 Sealed Series Pin Contact
DL040-PIN
DL 040 Sealed Series Pin Contact
DL040-PIN  DL 040 Sealed Series Pin Contact

Mfr: Sumitomo
Series: DL 040 Sealed Series

Wire SizePlatingPart Number
DL040-PIN1.3-.5 mm2 (22-20 AWG)Tin8100-2566
-Gold8100-2616
DL040-PIN2.75-1.25 mm2 (18-16 AWG)Tin8100-2567
-Gold8100-2615
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-49$0.21
50-99$0.20
100-249$0.19
250-499$0.18
500-999$0.17
1000-2499$0.16
2500+$0.15
Quantity:  Ea

20-Way Kit
DL040-20P
20-Way Kit
OEM P/N: 6188-0494
DL040-20P  20-Way Kit
Kit Contents: Housing, 20 pin contacts (for 18-16 awg, DL040-SKT2), 20 seals

Mfr: OEM Sumitomo
Series: DL 040 Sealed Series
OEM P/N: 6188-0494
Part Name: W-DL04AY20M-LGR
Mating Part: DL040-20S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:20
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:5
  • Pitch:4.3mm
  • Row Spacing:4.45mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-5$11.49
6-19$10.92
20-49$10.34
50-99$9.77
100+$9.19
Quantity:  Kit

6-Way Kit
HW-6P
6-Way Kit
OEM P/N: 6181-0074
HW-6P  6-Way Kit
Kit Contents: Housing, 6 pin contacts, 6 seals, TPA lock

Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6181-0074
Mating Part: HW-6S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:6
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$3.87
6-19$3.68
20-49$3.48
50-99$3.29
100+$3.10
Quantity:  Kit

8-Way Kit
HW-8P
8-Way Kit
OEM P/N: 6181-0075
HW-8P  8-Way Kit
Kit Contents: Housing, 8 pin contacts, 8 seals, TPA lock

Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6181-0075
Mating Part: HW-8S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:8
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$4.47
6-19$4.25
20-49$4.02
50-99$3.80
100-249$3.58
250+$3.35
Quantity:  Kit

6-Way Kit
HW-6S
6-Way Kit
OEM P/N: 6189-0133
HW-6S  6-Way Kit
Kit Contents: Housing, 6 socket contacts, 6 seals, TPA lock

Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6189-0133
Mating Part: HW-6P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:6
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$3.82
6-19$3.63
20-49$3.44
50-99$3.25
100+$3.06
Quantity:  Kit

8-Way Kit
HW-8S
8-Way Kit
OEM P/N: 6189-0134
HW-8S  8-Way Kit
Kit Contents: Housing, 8 socket contacts, 8 seals, TPA lock

Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6189-0134
Mating Part: HW-8P, HW.JC-8P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:8
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$4.58
6-19$4.35
20-49$4.12
50-99$3.89
100+$3.66
Quantity:  Kit

20-Way Kit
MX150-20S-A
20-Way Kit
OEM P/N: 33472-2001
MX150-20S-A  20-Way Kit
Kit Contents: Housing, 20 socket contacts

Mfr: OEM Molex
Series: MX150 Sealed Series
OEM P/N: 33472-2001
Keying: A
Mating Part: MX150-20P-A

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:20
  • Contact Size:1.5mm (.060)
  • Wire Size:0.35 - 2.00 mm2
  • Number of Rows:2
  • Pitch:3.5mm
  • Row Spacing:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:SPS/PA+GF20
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes, connector option
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP67
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Ford 7U2Z-14S411-GA, WPT-889 (Silver plated terminals) pigtail connector
  • Ford 6L3T-14A464-AA
  • Harley Davidson 72500-07BK
QtyPrice
1-5$5.46
6-19$5.19
20-49$4.91
50-99$4.64
100+$4.37
Quantity:  Kit

20-Way Kit
MX150-20P-A
20-Way Kit
OEM P/N: 33482-2001 (ss by: 33482-2101)
MX150-20P-A  20-Way Kit
Kit Contents: Housing, 20 pin contacts

Mfr: OEM Molex
Series: MX150 Sealed Series
OEM P/N: 33482-2001 (ss by: 33482-2101)
Keying: A
Mating Part: MX150-20S-A

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:20
  • Contact Size:1.5mm (.060)
  • Wire Size:0.35 - 2.00 mm2
  • Number of Rows:2
  • Pitch:3.5mm
  • Row Spacing:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:SPS/PA+GF20
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP67
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Ford 7U2Z-14S411-HA, WPT-890 (Silver plated terminals) pigtail connector
QtyPrice
1-5$4.43
6-19$4.21
20-49$3.99
50-99$3.77
100+$3.54
Quantity:  Kit

16-Way Kit
MX150-16S-A
16-Way Kit
OEM P/N: 33472-1601
MX150-16S-A  16-Way Kit
Kit Contents: Housing, 16 socket contacts

Mfr: OEM Molex
Series: MX150 Sealed Series
OEM P/N: 33472-1601
Keying: A
Mating Part: MX150-16P-A

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:16
  • Contact Size:1.5mm (.060)
  • Wire Size:0.35 - 2.00 mm2
  • Number of Rows:2
  • Pitch:3.5mm
  • Row Spacing:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:SPS/PA+GF20
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes, connector option
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP67
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Ford CU2Z-14S411-ADA, WPT-1279 (Silver plated terminals) pigtail connector
  • Ford 4L3T-14A464-WA
  • Harley Davidson 72166-07BK
QtyPrice
1-5$3.61
6-19$3.43
20-49$3.25
50-99$3.07
100+$2.89
Quantity:  Kit

16-Way Kit
MX150-16P-A
16-Way Kit
OEM P/N: 33482-8601 (supersedes: 33482-1601)
MX150-16P-A  16-Way Kit
Kit Contents: Housing, 16 pin contacts

Mfr: OEM Molex
Series: MX150 Sealed Series
OEM P/N: 33482-8601 (supersedes: 33482-1601)
Keying: A
Mating Part: MX150-16S-A

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:16
  • Contact Size:1.5mm (.060)
  • Wire Size:0.35 - 2.00 mm2
  • Number of Rows:2
  • Pitch:3.5mm
  • Row Spacing:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:SPS/PA+GF20
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP67
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Harley Davidson 72167-07BK
QtyPrice
1-5$3.78
6-19$3.59
20-49$3.40
50-99$3.21
100+$3.02
Quantity:  Kit

MX150 Sealed Series Plug
MX150-PG
MX150 Sealed Series Plug
OEM P/N: 34345-0001
MX150-PG  MX150 Sealed Series Plug

Mfr: OEM Molex
Series: MX150 Sealed Series
OEM P/N: 34345-0001

spacer

spacer
  • Harley Davidson 72473-07
QtyPrice
1-49$0.13
50-99$0.12
100+$0.11
Quantity:  Ea

MT Sealed Series Seals (P5)
MT-SL
MT Sealed Series Seals (P5)
OEM P/N: 7161-9785 (alt p/n: 7160-9785, Black)
MT-SL  MT Sealed Series Seals (P5)

Mfr: OEM Sumitomo
Series: MT Sealed Series
OEM P/N: 7161-9785 (alt p/n: 7160-9785, Black)
For 5mm pitch connectors

For wire insulation dia. 2.0-2.7 mm (.078-.106 in)


spacer
General
  • Sealing:Single Wire Sealed
Mechanical
  • Seal Material:NBR

Price: $0.23
Quantity:  Ea


1941 Items.

  Showing Items 551 thru 600.
« Previous  First Page  . . .  3  4  5  6  7  8  9  10  11  12  . . .  Last Page (39)    Next »

Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2025 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1
R7A4
R7A3
R7A2
