MT Sealed Series

1-Way Kit
MT-1P
1-Way Kit
OEM P/N: 6187-1171 (alt pn with mounting clamp 6187-1561)
MT-1P  1-Way Kit
Kit Contents: Housing, 1 pin contact, 1 seal

Mfr: OEM Sumitomo
Series: MT Sealed Series
OEM P/N: 6187-1171 (alt pn with mounting clamp 6187-1561)
Part Name: 0901MASSY
Mating Part: MT-1S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Hero FRS-104N
QtyPrice
1-5$2.55
6-19$2.37
20-49$2.17
50-99$2.04
100+$1.78
Quantity:  Kit

1-Way Kit
MT-1S
1-Way Kit
OEM P/N: 6180-1181
MT-1S  1-Way Kit
Kit Contents: Housing, 1 socket contact, 1 seal

Mfr: OEM Sumitomo
Series: MT Sealed Series
OEM P/N: 6180-1181
Mating Part: MT-1P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Hero FRS-105N
  • KTM 000700000GD
QtyPrice
1-5$1.12
6-19$1.06
20-49$1.01
50-99$0.95
100-249$0.90
250+$0.84
Quantity:  Kit

2-Way Kit

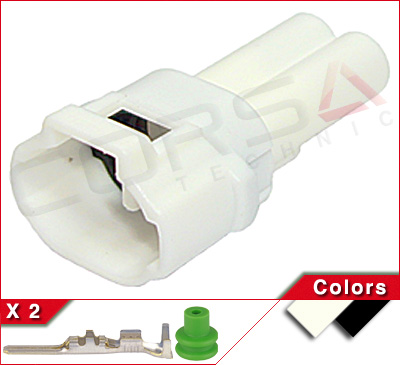

MT-2P-1
2-Way Kit
OEM P/N: 6187-2171
MT-2P-1  2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals

Mfr: Aftermarket Sumitomo
Series: MT Sealed Series
OEM P/N: 6187-2171
Mating Part: MT-2S-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • 07> GSXR Crank sensor (harness side)
spacer
  • KTM 000700000AL
  • Suzuki 09900-28710-006 (White)
  • Toyota 90980-10495
QtyPrice
1-5$2.49
6-19$2.32
20-49$2.12
50-99$1.99
100-249$1.74
250-499$1.62
500-999$1.49
1000+$1.37
Quantity:  Kit

2-Way Kit

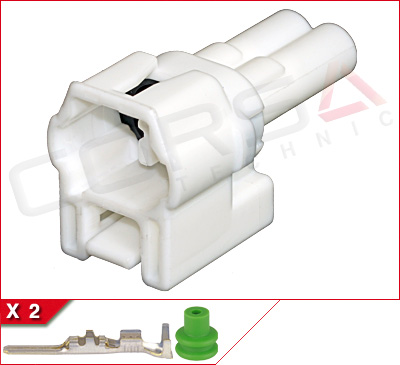

MT-2P-10
2-Way Kit
OEM P/N: 6187-2581
MT-2P-10  2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals

Mfr: Aftermarket Sumitomo
Series: MT Sealed Series
OEM P/N: 6187-2581
Mating Part: 6180-2591
Bottom of connector features a bracket mount.


spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$2.49
6-19$2.37
20-49$2.24
50-99$2.12
100-249$1.99
250-499$1.87
500+$1.74
Quantity:  Kit

2-Way Kit

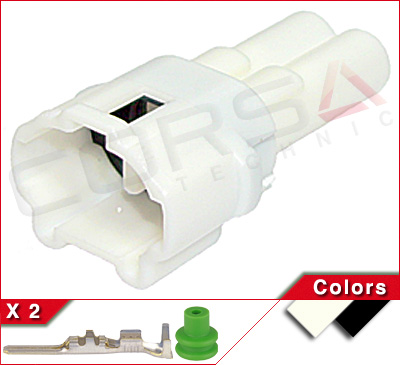

MT-2P-2
2-Way Kit
OEM P/N: 6187-2311
MT-2P-2  2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals

Mfr: Aftermarket Sumitomo
Series: MT Sealed Series
OEM P/N: 6187-2311
Part Name: 0902MILASSY
Mating Part: MT-2S-2

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • GSXR-1000 Tip over sensor on 01-04 (harness side, grey)
spacer
  • Hero FRS-106N
  • KTM 000700000EJ
QtyPrice
1-5$2.49
6-19$2.37
20-49$2.24
50-99$2.12
100-249$1.99
250-499$1.87
500+$1.74
Quantity:  Kit

2-Way Kit
MT-2P-4
2-Way Kit
MT-2P-4  2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals

Mfr: Aftermarket Sumitomo
Series: MT Sealed Series
Mating Part: Compatible with MT-2S-3, MT-2S-4

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Nippon Denso injector connector
  • Honda CBR600RR, CBR1000RR injectors
  • Many Subaru and Toyota
spacer
QtyPrice
1-5$2.54
6-19$2.41
20-49$2.29
50-99$2.16
100-249$2.03
250-499$1.91
500-999$1.78
1000+$1.65
Quantity:  Kit

2-Way Kit

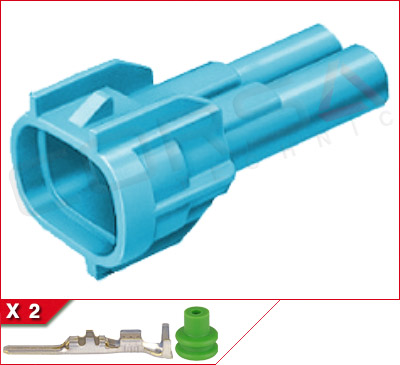

MT-2P-7
2-Way Kit
OEM P/N: 6180-2405
MT-2P-7  2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals

Mfr: OEM Sumitomo
Series: MT Sealed Series
OEM P/N: 6180-2405
Part Name: WP090VSV2M-L
Mating Part: MT-2S-7

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$3.34
6-19$3.17
20-49$3.01
50-99$2.84
100+$2.67
Quantity:  Kit

2-Way Kit

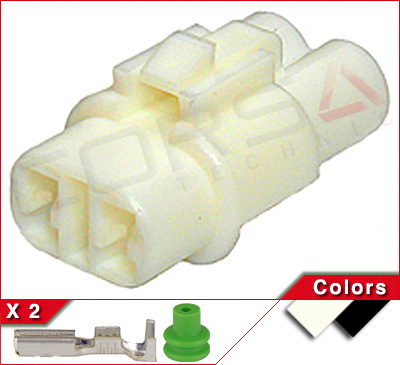

MT-2S-1
2-Way Kit
OEM P/N: 6180-2181
MT-2S-1  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: Aftermarket Sumitomo
Series: MT Sealed Series
OEM P/N: 6180-2181
Mating Part: MT-2P-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • 07> GSXR Crank sensor (sensor side)
spacer
  • KTM 000700000AT
  • Suzuki 09900-28710-007 (White)
  • Toyota 90980-10496
QtyPrice
1-5$1.95
6-19$1.81
20-49$1.66
50-99$1.56
100-249$1.36
250-499$1.27
500-999$1.17
1000+$1.07
Quantity:  Kit

2-Way Kit

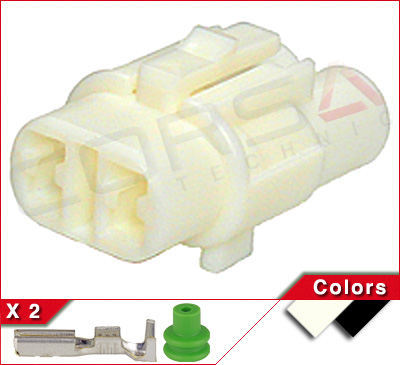

MT-2S-2
2-Way Kit
OEM P/N: Natural: 6180-2321, Black: 6180-2322
MT-2S-2  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: Aftermarket Sumitomo
Series: MT Sealed Series
OEM P/N: Natural: 6180-2321, Black: 6180-2322
Mating Part: MT-2P-2

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • GSXR-1000 Tip over sensor on 01-04 (sensor side, grey)
spacer
  • Hero FRS-107N
  • KTM 000700000EK
  • Toyota 90980-10556
QtyPrice
1-5$1.95
6-19$1.85
20-49$1.75
50-99$1.66
100-249$1.56
250-499$1.46
500+$1.36
Quantity:  Kit

2-Way Kit
MT-2S-3
2-Way Kit
OEM P/N: 6189-0035 Gray
6189-0063 Black
MT-2S-3  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Sumitomo
Series: MT Sealed Series
OEM P/N: 6189-0035 Gray
6189-0063 Black
Part Name: 09INJ2FAY
Mating Part: Not available, but MT-2P-4 is compatible
Related: Finger grip tab version (for easier connector removal), MT-2S-5

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$3.82
6-19$3.55
20-49$3.25
50-99$3.06
100+$2.67
Quantity:  Kit

2-Way Kit

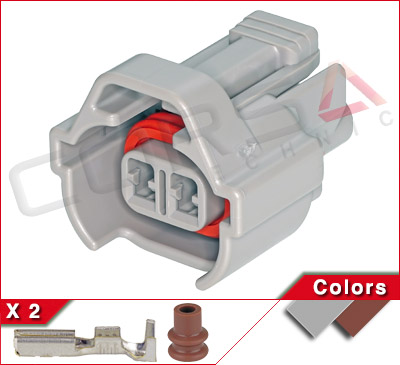

MT-2S-4
2-Way Kit
OEM P/N: Gray: 6189-0039
Brown: 6189-0040
MT-2S-4  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Sumitomo
Series: MT Sealed Series
OEM P/N: Gray: 6189-0039
Brown: 6189-0040
Mating Part: Not available, but MT-2P-4 is compatible
Related: Finger grip tab version (for easier connector removal), MT-2S-6

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Nippon Denso injector connector
  • Honda CBR600RR, CBR1000RR injectors
  • Many Subaru and Toyota
spacer
QtyPrice
1-5$3.43
6-19$3.26
20-49$3.09
50-99$2.92
100-249$2.74
250-499$2.57
500+$2.40
Quantity:  Kit

2-Way Kit

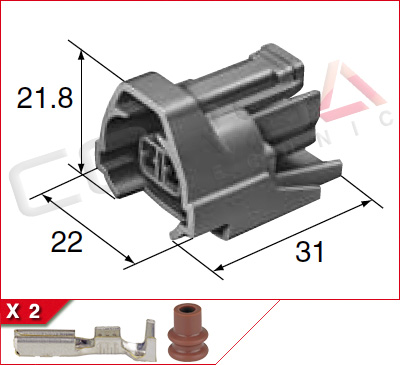

MT-2S-5
2-Way Kit
OEM P/N: 6189-0056
MT-2S-5  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Sumitomo
Series: MT Sealed Series
OEM P/N: 6189-0056
Mating Part: Not available, but MT-2P-4 is compatible
Related: Non-finger grip tab version, MT-2S-3
Obsolete per Sumitomo. Suggested alternative is TS090-2S-7

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Nippon Denso injector connector
spacer
  • Toyota 90980-10702
OBSOLETE - SEE LISTING FOR ALTERNATIVE
This item is backordered.

2-Way Kit

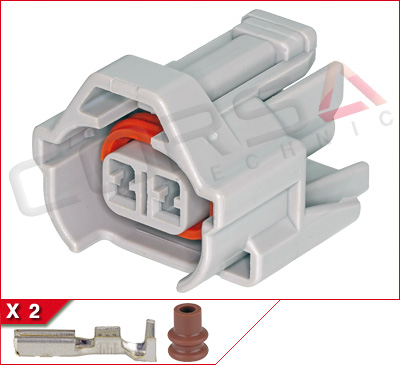

MT-2S-6
2-Way Kit
OEM P/N: 6189-0060
MT-2S-6  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: Aftermarket Sumitomo
Series: MT Sealed Series
OEM P/N: 6189-0060
Mating Part: Not available, but MT-2P-4 is compatible
Related: Non-finger grip tab version, MT-2S-4

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Nippon Denso injector connector
spacer
QtyPrice
1-5$2.81
6-19$2.67
20-49$2.53
50-99$2.39
100-249$2.25
250-499$2.11
500+$1.97
Quantity:  Kit

2-Way Kit

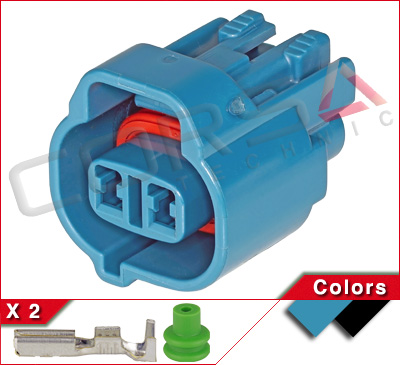

MT-2S-7
2-Way Kit
OEM P/N: Blue: 6189-0031
Black is an aftermarket part.
MT-2S-7  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Sumitomo
Series: MT Sealed Series
OEM P/N: Blue: 6189-0031
Black is an aftermarket part.
Mating Part: MT-2P-7

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • KTM 000700000GR
  • Mopar 68018952AA repair kit connector
QtyPrice
1-5$2.29
6-19$2.18
20-49$2.06
50-99$1.95
100-249$1.83
250-499$1.72
500+$1.60
Quantity:  Kit

2-Way Kit

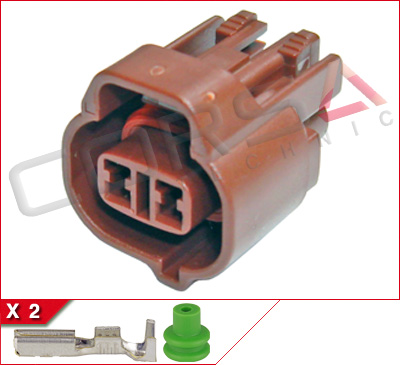

MT-2S-8
2-Way Kit
OEM P/N: 6189-0033
MT-2S-8  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: Aftermarket Sumitomo
Series: MT Sealed Series
OEM P/N: 6189-0033
Mating Part: Not available, but MT-2P-4 is compatible

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • KTM 000700000AV
  • Suzuki 09900-28710-010
QtyPrice
1-5$2.29
6-19$2.13
20-49$1.95
50-99$1.83
100+$1.60
Quantity:  Kit

2-Way Kit

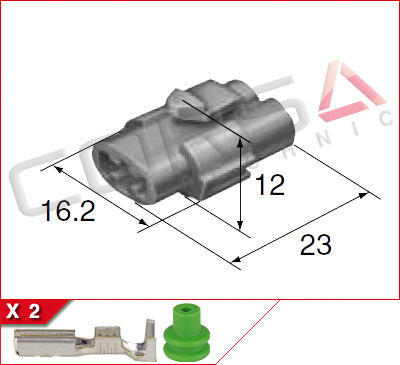

MT-2S-9
2-Way Kit
OEM P/N: 6180-2191
MT-2S-9  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Sumitomo
Series: MT Sealed Series
OEM P/N: 6180-2191
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$3.02
6-19$2.81
20-49$2.57
50-99$2.42
100+$2.11
Quantity:  Kit

3-Way Kit
MT-3P-1-CLIP
3-Way Kit
OEM P/N: 6187-3281
MT-3P-1-CLIP  3-Way Kit
Kit Contents: Housing, 3 pin contacts, 3 seals

Mfr: Aftermarket Sumitomo
Series: MT Sealed Series
OEM P/N: 6187-3281
Mating Part: MT-3S-1
Features integral clamp for 7mm dia., 0.7~2.2mm thickness hole.

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
This item is backordered.
QtyPrice
1-5$2.76
6-19$2.62
20-49$2.48
50-99$2.35
100+$2.21
Quantity:  Kit

3-Way Kit

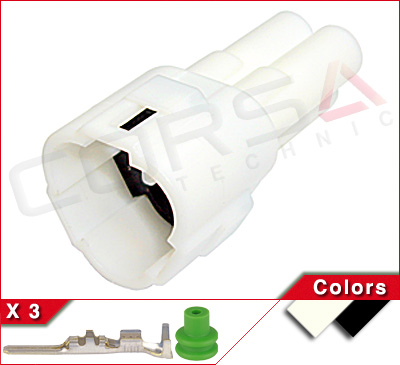

MT-3P-2
3-Way Kit
OEM P/N: 6187-3231
MT-3P-2  3-Way Kit
Kit Contents: Housing, 3 pin contacts, 3 seals

Mfr: Aftermarket Sumitomo
Series: MT Sealed Series
OEM P/N: 6187-3231
Mating Part: MT-3S-2

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Row Spacing:5.2mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • TRE connector on Kawasaki motorcycles
  • Ducati side stand switch on 899, 1199 (harness side)
  • Suzuki
  • TRE connector on Suzuki GSXR's & TL's. For SV's see HM-4P
  • GSXR-600 camshaft sensor on 06-17 (sensor side, black)
  • GSXR-750 camshaft sensor on 06-17 (sensor side, black)
  • GSXR-1000 camshaft sensor on 07-17 (sensor side, black)
  • GSXR-1000 fuel pump/sender on 03-16 (fuel pump side, white)
  • Hayabusa camshaft sensor on 08-17 (sensor side, black)
  • GSXR gear position, neutral sensor (harness side)
  • GSXR 1000 2nd throttle position sensor on 06'> (sensor side)
  • 07> GSXR Crank sensor (harness side)
  • Yamaha
  • YZF-R6 crank sensor 06-09', neutral sensor
  • YZF-R6 TPS 99-02' (sensor side, white)
spacer
  • Hero FRS-108N
  • KTM 000700000AR
  • Suzuki 09900-28710-004 (White)
QtyPrice
1-5$2.89
6-19$2.75
20-49$2.60
50-99$2.46
100-249$2.31
250-499$2.17
500-999$2.02
1000-2499$1.88
2500+$1.73
Quantity:  Kit

3-Way Kit

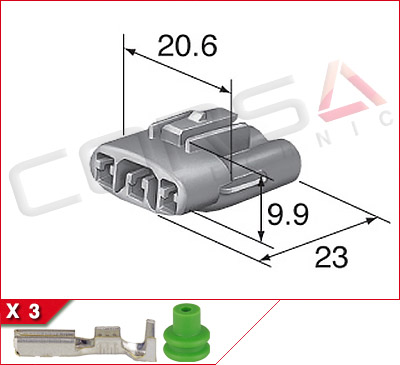

MT-3S-1
3-Way Kit
OEM P/N: 6180-3261
MT-3S-1  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals

Mfr: OEM Sumitomo
Series: MT Sealed Series
OEM P/N: 6180-3261
Mating Part: MT-3P-1-CLIP

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$2.74
6-19$2.60
20-49$2.47
50-99$2.33
100+$2.19
Quantity:  Kit

3-Way Kit

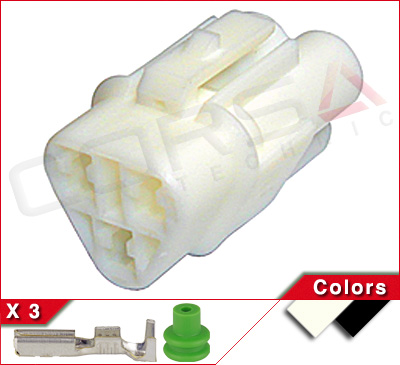

MT-3S-2
3-Way Kit
OEM P/N: 6180-3241
MT-3S-2  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals

Mfr: Aftermarket Sumitomo
Series: MT Sealed Series
OEM P/N: 6180-3241
Mating Part: MT-3P-2

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Row Spacing:5.2mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Ducati side stand switch on 899, 1199 (sensor side)
  • TRE connector on Kawasaki motorcycles
  • Suzuki
  • TRE connector on Suzuki GSXR's & TL's. For SV's see HM-4P
  • GSXR-600 camshaft sensor on 06-17 (harness side, black)
  • GSXR-750 camshaft sensor on 06-17 (harness side, black)
  • GSXR-1000 camshaft sensor on 07-17 (harness side, black)
  • GSXR-1000 fuel pump/sender on 03-16 (harness side, white)
  • Hayabusa camshaft sensor on 08-17 (harness side, black)
  • GSXR gear position, neutral sensor (harness side)
  • GSXR 1000 2nd throttle position sensor on 06'> (sensor side)
  • Yamaha
  • YZF-R6 TPS 99-02' (sensor side, white)
  • YZF-R6 crank sensor 06-09', neutral sensor
spacer
  • Hero FRS-109N
  • KTM 000700000AM
  • Suzuki 09900-28710-005 (White)
QtyPrice
1-5$2.03
6-19$1.93
20-49$1.83
50-99$1.73
100-249$1.62
250-499$1.52
500-999$1.42
1000-2499$1.32
2500+$1.22
Quantity:  Kit

3-Way Kit

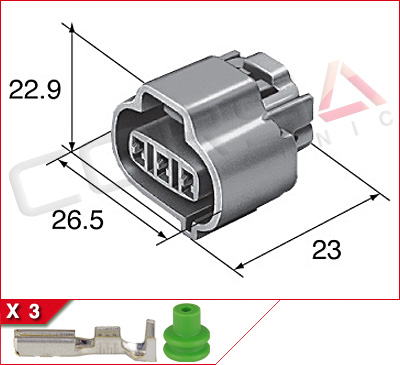

MT-3S-3
3-Way Kit
OEM P/N: 6189-0027
MT-3S-3  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals

Mfr: OEM Sumitomo
Series: MT Sealed Series
OEM P/N: 6189-0027
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Honda 070MZ-002A700 (Grey)
QtyPrice
1-5$3.28
6-19$3.05
20-49$2.79
50-99$2.62
100+$2.30
Quantity:  Kit

3-Way Kit

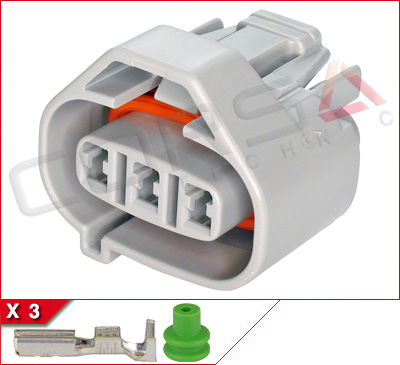

MT-3S-4
3-Way Kit
OEM P/N: 6189-0028
MT-3S-4  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals

Mfr: OEM Sumitomo
Series: MT Sealed Series
OEM P/N: 6189-0028
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$3.78
6-19$3.52
20-49$3.21
50-99$3.02
100+$2.65
Quantity:  Kit

4-Way Kit

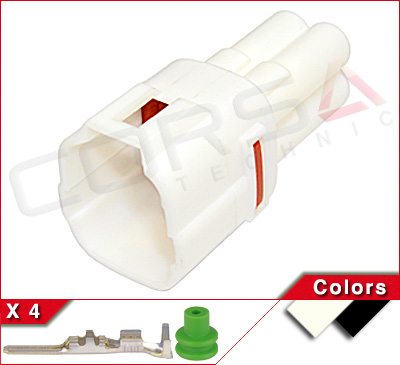

MT-4P-1
4-Way Kit
OEM P/N: 6188-0004
MT-4P-1  4-Way Kit
Kit Contents: Housing, 4 pin contacts, 4 seals

Mfr: Aftermarket Sumitomo
Series: MT Sealed Series
OEM P/N: 6188-0004
Mating Part: MT-4S-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • GSXR-1000 fuel pump/sender on 01-02 (fuel pump side, brown)
spacer
  • Hero FRS-110N
  • KTM 000700000CE (White)
  • Suzuki 09900-28710-011 (White)
QtyPrice
1-5$3.29
6-19$3.06
20-49$2.80
50-99$2.63
100-249$2.30
250+$2.14
Quantity:  Kit

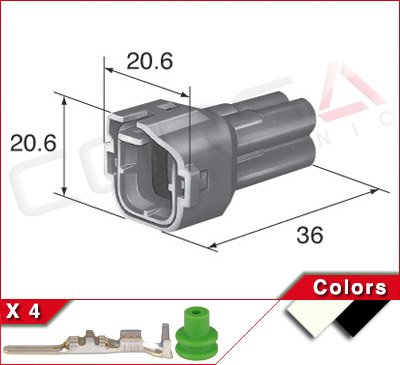

4-Way Kit
MT-4P-2
4-Way Kit
OEM P/N: 6189-4171 (Natural)
6189-4172 (Black)
MT-4P-2  4-Way Kit
Kit Contents: Housing, 4 pin contacts, 4 seals

Mfr: OEM Sumitomo
Series: MT Sealed Series
OEM P/N: 6189-4171 (Natural)
6189-4172 (Black)
Part Name: MT090-4MASSY
Mating Part: HM-4S
Similar to HM-4P, but without bottom bracket mount.

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • KTM 000700000CU (natural)
QtyPrice
1-5$3.49
6-19$3.32
20-49$3.14
50-99$2.97
100+$2.79
Quantity:  Kit

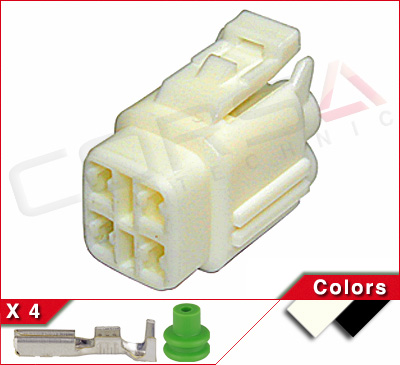

4-Way Kit
MT-4S-1
4-Way Kit
OEM P/N: Natural: 6180-4771
Black is an aftermarket part
MT-4S-1  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals

Mfr: OEM Sumitomo
Series: MT Sealed Series
OEM P/N: Natural: 6180-4771
Black is an aftermarket part
Mating Part: MT-4P-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • GSXR-1000 fuel pump/sender on 01-02 (harness side, brown)
spacer
  • Hero FRS-111N
  • KTM 000700000CA
  • Suzuki 09900-28710-012 (White)
QtyPrice
1-5$2.49
6-19$2.32
20-49$2.12
50-99$1.99
100+$1.74
Quantity:  Kit

6-Way Kit
MT-6P-1
6-Way Kit
OEM P/N: 6188-0382
MT-6P-1  6-Way Kit
Kit Contents: Housing, 6 pin contacts, 6 seals

Mfr: Aftermarket Sumitomo
Series: MT Sealed Series
OEM P/N: 6188-0382
Part Name: W0906MASSY
Mating Part: MT-6S-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:6
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$3.17
6-19$2.95
20-49$2.69
50-99$2.54
100+$2.22
Quantity:  Kit

6-Way Kit

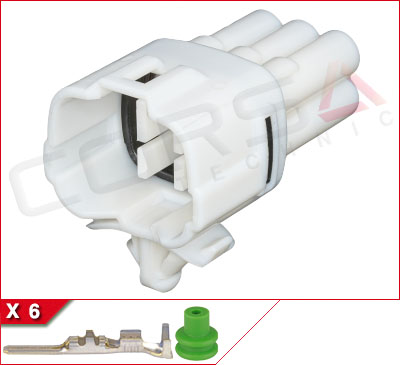

MT-6P-1-CLIP
6-Way Kit
OEM P/N: 6187-6561
MT-6P-1-CLIP  6-Way Kit
Kit Contents: Housing, 6 pin contacts, 6 seals

Mfr: OEM Sumitomo
Series: MT Sealed Series
OEM P/N: 6187-6561
Part Name: WP0906MCLASSY
Mating Part: MT-6S-1
Features integral clamp for 7mm dia., 0.7~2.2mm thickness hole.

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:6
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Dealer mode connector on many Suzuki motorcycles (white)
  • Suzuki ignition switch on GSXR 05-13' (harness side, grey)
spacer
  • Hero FRS-112N
  • KTM 000700000HE
QtyPrice
1-5$7.21
6-19$6.71
20-49$6.13
50-99$5.77
100+$5.05
Quantity:  Kit

6-Way Kit
6-Way Kit 360 iconspacer

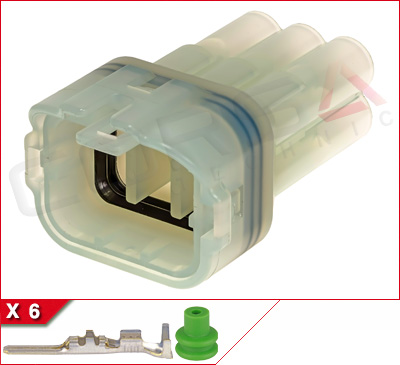

MT-6P-2
6-Way Kit
OEM P/N: 6189-6171
MT-6P-2  6-Way Kit
Kit Contents: Housing, 6 pin contacts, 6 seals

Mfr: OEM Sumitomo
Series: MT Sealed Series
OEM P/N: 6189-6171
Mating Part: MT-6S-2
Similar to HM-6P, but without bracket mount on bottom of connector.

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:6
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Ducati DTC on 1198S, Streetfighter S
  • MV Agusta F4-1000 secondary injectors
  • <06 YZF-R6 injector harness (sub-harness side)
  • 06-09 YZF-R6 secondary injector harness (main harness side)
spacer
  • KTM 000700000BH (natural)
QtyPrice
1-5$3.29
6-19$3.13
20-49$2.96
50-99$2.80
100-249$2.63
250-499$2.47
500+$2.30

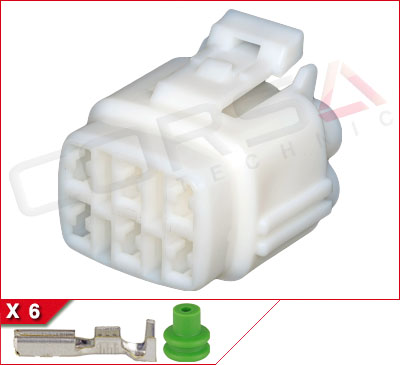

Quantity:  Kit

6-Way Kit
MT-6S-1
6-Way Kit
OEM P/N: 6180-6771
MT-6S-1  6-Way Kit
Kit Contents: Housing, 6 socket contacts, 6 seals

Mfr: OEM Sumitomo
Series: MT Sealed Series
OEM P/N: 6180-6771
Part Name: WP0906F
Mating Part: MT-6P-1, MT-6P-1-CLIP

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:6
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Suzuki ignition switch on GSXR 05-13' (switch side, grey)
  • Dealer mode connector on many Suzuki motorcycles (white)
spacer
  • Hero FRS-113N
  • KTM 000700000HD
  • Toyota 90980-10651 (White)
QtyPrice
1-5$3.61
6-19$3.36
20-49$3.07
50-99$2.89
100+$2.53

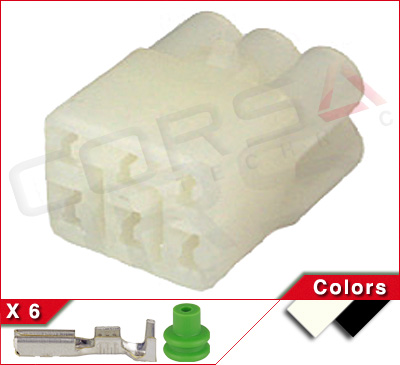

Quantity:  Kit

6-Way Kit
MT-6S-2
6-Way Kit
OEM P/N: 6180-6181
MT-6S-2  6-Way Kit
Kit Contents: Housing, 6 socket contacts, 6 seals

Mfr: OEM Sumitomo
Series: MT Sealed Series
OEM P/N: 6180-6181
Mating Part: MT-6P-2 and HM-6P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:6
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Ducati DTC on 1198S, Streetfighter S
  • Ducati ignition switch on 1199 (switch side)
  • MV Agusta F4-1000 secondary injectors
  • Suzuki ignition switch on GSXR to 05' (switch side, green or black depending on year)
  • GSXR-1000 Tip over sensor on 05-08 (harness side, natural)
  • GSXR-1300 Tip over sensor on 08-09 (harness side, natural)
  • <06 YZF-R6 injector harness (main harness side)
  • 06-09 YZF-R6 secondary injector harness (sub-harness side)
spacer
  • KTM 000700000AP (natural)
  • Toyota 90980-10478
QtyPrice
1-5$3.50
6-19$3.33
20-49$3.15
50-99$2.98
100-249$2.80
250-499$2.62
500+$2.45

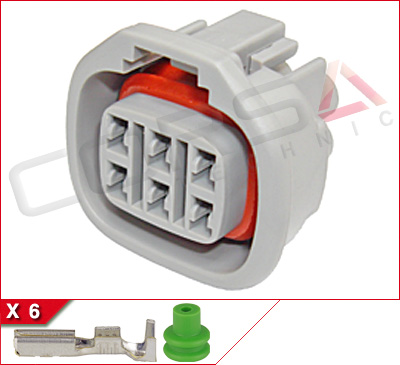

Quantity:  Kit

6-Way Kit
MT-6S-3
6-Way Kit
OEM P/N: 6189-0029
MT-6S-3  6-Way Kit
Kit Contents: Housing, 6 socket contacts, 6 seals

Mfr: Aftermarket Sumitomo
Series: MT Sealed Series
OEM P/N: 6189-0029
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:6
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$4.96
6-19$4.61
20-49$4.22
50-99$3.97
100+$3.47
Quantity:  Kit

MT, HM, HW Sealed Pin Contact
SUMI.A-PIN
MT, HM, HW Sealed Pin Contact
SUMI.A-PIN  MT, HM, HW Sealed Pin Contact

Mfr: Sumitomo
Series: MT 090, HM 090, and HW 090 sealed series

Wire SizeFinishP/N:
SUMI.A-PIN1.3-1.25 mm2 (22-16 AWG)Tin1500-0105
-Gold1500-0134
SUMI.A-PIN22.0-2.7 mm2 (14 AWG)Tin8230-4408
-GoldN/A
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Hero FRS-101N (size 1)
  • Honda 07JAZ-001080A
  • Suzuki 09900-28710-003 (terminal from refill kit)
  • Terminal used in Toyota 82998-12260, 82998-24070 (Gold plated) repair wire
QtyPrice
1-49$0.18
50-99$0.17
100-249$0.16
250-499$0.15
500-999$0.14
1000-2499$0.13
2500-4999$0.12
5000+$0.11
Quantity:  Ea

MT, HM, HW Sealed Socket Contact
SUMI.A-SKT
MT, HM, HW Sealed Socket Contact
SUMI.A-SKT  MT, HM, HW Sealed Socket Contact

Mfr: Sumitomo
Series: MT 090, HM 090, and HW 090 sealed series

Wire SizeMaterial/FinishSumitomoYazaki
SUMI.A-SKT1.3-1.25 mm2 (22-16 AWG)Brass/Tin1500-0106N/A
-Copper/Tin1500-01107116-1420
-Copper/Gold1500-0133N/A
-2.0-2.7 mm2 (14 AWG)Brass/TinN/AN/A
SUMI.A-SKT2Copper/Tin8240-48287116-1421
Available stock: Aftermarket OEM
Cross-compatible with Yazaki 090 Sealed Series


spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Hero FRS-102N (size 1)
  • Honda 07JAZ-001090A, 070MZ-002A800
  • KET ST730502-3 (SKT1), ST730554-3 (SKT2)
  • KUM MT095-31230 (SKT1), MT095-31030 (SKT2)
  • Suzuki 09900-28710-002 (terminal from refill kit)
  • Terminal used in Toyota 82998-12270, 82998-12600, 82998-24080 (Gold plated) repair wire
QtyPrice
1-49$0.21
50-99$0.20
100-249$0.18
250-499$0.17
500-999$0.16
1000-2499$0.15
2500-4999$0.13
5000-9999$0.12
10000+$0.11
Quantity:  Ea

DL HW MT SL TL TS Series Plug (P5)
SUMI-PG1
DL HW MT SL TL TS Series Plug (P5)
OEM P/N: 7161-9787
SUMI-PG1  DL HW MT SL TL TS Series Plug (P5)

Mfr: OEM Sumitomo
Series: DL 090 Sealed, HW Sealed, MT Sealed, SL 060 Sealed, SL 090 Sealed, TL Sealed, TS 090 Sealed
OEM P/N: 7161-9787
Part Name: SEAL DMY P5-BR
090 P5 plug, brown rubber
For 5mm pitch housings

spacer
General
  • Sealing:Single Wire Sealed
Mechanical
  • Seal Material:NBR

spacer
spacer
  • Toyota 90980-09229
QtyPrice
1-249$0.18
250-999$0.17
1000+$0.16
Quantity:  Ea

MT HM TS Series Plug (P6)
SUMI-PG2
MT HM TS Series Plug (P6)
OEM P/N: 7160-9465
SUMI-PG2  MT HM TS Series Plug (P6)

Mfr: OEM Sumitomo
Series: MT Sealed, HM Sealed, TS 090 Sealed, TS 090+187 Hybrid
OEM P/N: 7160-9465
090 P6 plug, black rubber
For 6mm pitch housings

spacer
General
  • Sealing:Single Wire Sealed
Mechanical
  • Seal Material:NBR

spacer
spacer
  • Honda 07VPZ-003030A
  • Toyota 90980-09152
QtyPrice
1-49$0.25
50-99$0.23
100-249$0.21
250-499$0.20
500-999$0.19
1000-2499$0.16
2500-4999$0.15
5000-9999$0.14
10000-14999$0.12
15000-19999$0.10
20000+$0.08
Quantity:  Ea

MT Series Plug (P5)
SUMI-PG3
MT Series Plug (P5)
OEM P/N: 7160-9787
SUMI-PG3  MT Series Plug (P5)

Mfr: Aftermarket Sumitomo
Series: MT Sealed
OEM P/N: 7160-9787
090 P5 plug, black rubber
For 5mm pitch housings

spacer
General
  • Sealing:Single Wire Sealed
Mechanical
  • Seal Material:Silicone Rubber

spacer
spacer
QtyPrice
1-49$0.12
50-99$0.11
100-249$0.10
250-499$0.09
500-999$0.08
1000-2499$0.07
2500-4999$0.06
5000+$0.05
Quantity:  Ea

MT Sealed Series Seals (P5)
MT-SL
MT Sealed Series Seals (P5)
OEM P/N: 7161-9785 (alt p/n: 7160-9785, Black)
MT-SL  MT Sealed Series Seals (P5)

Mfr: OEM Sumitomo
Series: MT Sealed Series
OEM P/N: 7161-9785 (alt p/n: 7160-9785, Black)
For 5mm pitch connectors

For wire insulation dia. 2.0-2.7 mm (.078-.106 in)


spacer
General
  • Sealing:Single Wire Sealed
Mechanical
  • Seal Material:NBR

spacer
spacer
Price: $0.23
Quantity:  Ea

MT HM Seals
SUMI-SL
MT HM Seals
SUMI-SL  MT HM Seals

Mfr: Sumitomo
Series: HM Sealed and MT Sealed series

Wire Insulation Dia.ColorPart Number
SUMI-SL11.3-1.7 mm (.051-.067 in)Green7165-0076
SUMI-SL21.7-2.7 mm (.067-.106 in)Black7160-8234
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
Mechanical
  • Seal Material:Silicone Rubber

spacer
spacer
  • Cross-compatible with Yazaki 090 Sealed Series
  • Hero FRS-103N
  • Honda 070MZ-002A900 (Green, SL1)
  • Honda 07JAZ-001100A (Black, SL2)
  • Suzuki 09900-28710-002, 09900-28710-003 (seal from refill kit)
QtyPrice
1-49$0.10
50-99$0.09
100-249$0.08
250-499$0.07
500-999$0.06
1000+$0.05
Quantity:  Ea

Rennsteig PEW 12 Die Set for Sumitomo HM/HW/MT sealed male terminal - small
TOOL-CDIE10
Rennsteig PEW 12 Die Set for Sumitomo HM/HW/MT sealed male terminal - small
OEM P/N: 624 396 3 012 RT
TOOL-CDIE10  Rennsteig PEW 12 Die Set for Sumitomo HM/HW/MT sealed male terminal - small
Kit Contents: Crimp die set, locator, wire stop

OEM P/N: 624 396 3 012 RT

Compatibility
P/NWire SizeFinishSumitomo P/N
✓SUMI.A-PIN1.3-1.25 mm2 (22-16 AWG)Tin1500-0105
Gold1500-0134
✗SUMI.A-PIN22.0-2.7 mm2 (14 AWG)Tin8230-4408
GoldN/A

spacer
spacer
spacer
This item is backordered.
Price: $354.87
Quantity:  Ea

Rennsteig PEW 12 Die Set for Sumitomo HM/HW/MT sealed female terminal - small
TOOL-CDIE11
Rennsteig PEW 12 Die Set for Sumitomo HM/HW/MT sealed female terminal - small
OEM P/N: 624 397 3 012 RT
TOOL-CDIE11  Rennsteig PEW 12 Die Set for Sumitomo HM/HW/MT sealed female terminal - small
Kit Contents: Crimp die set, locator, wire stop

OEM P/N: 624 397 3 012 RT

Compatibility
P/NWire SizeMaterial/FinishSumitomo P/NYazaki P/N
✓SUMI.A-SKT1.3-1.25 mm2 (22-16 AWG)Brass/Tin1500-0106N/A
Copper/Tin1500-01107116-1420
Copper/Gold1500-0133N/A
✗SUMI.A-SKT22.0-2.7 mm2 (14 AWG)Brass/TinN/AN/A
Copper/Tin8240-48287116-1421

spacer
spacer
spacer
This item is backordered.
Price: $370.84
Quantity:  Ea

Rennsteig PEW 12 Die Set for Sumitomo HM/HW/MT sealed male/female terminals - large
TOOL-CDIE33
Rennsteig PEW 12 Die Set for Sumitomo HM/HW/MT sealed male/female terminals - large
OEM P/N: 624 1726 3 01 RT
TOOL-CDIE33  Rennsteig PEW 12 Die Set for Sumitomo HM/HW/MT sealed male/female terminals - large
Kit Contents: Crimp die set, locator, wire stop

OEM P/N: 624 1726 3 01 RT

Compatibility
P/NWire SizeFinishSumitomo P/NYazaki P/N
✗SUMI.A-PIN1.3-1.25 mm2 (22-16 AWG)Tin1500-0105-
Gold1500-0134-
✓SUMI.A-PIN22.0-2.7 mm2 (14 AWG)Tin8230-4408-
GoldN/A-
✗SUMI.A-SKT1.3-1.25 mm2 (22-16 AWG)Brass/Tin1500-0106N/A
Copper/Tin1500-01107116-1420
Copper/Gold1500-0133N/A
✓SUMI.A-SKT22.0-2.7 mm2 (14 AWG)Brass/TinN/AN/A
Copper/Tin8240-48287116-1421

spacer
spacer
spacer
Price: $358.01
Quantity:  Ea


Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2024 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1
R7A4
R7A3
R7A2
