HV/HVG Sealed Series

2-Way Kit

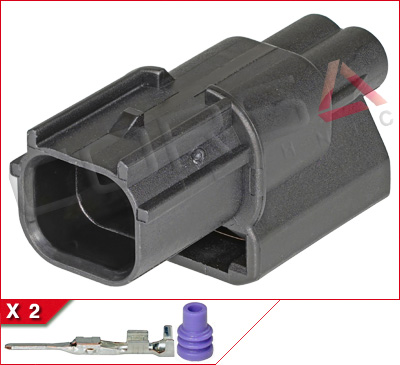

HV-2P-1
2-Way Kit
HV-2P-1  2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals, TPA lock

Mfr: Aftermarket Sumitomo
Series: HV/HVG Sealed Series
Mating Part: HV-2S-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Pitch:4.1mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$3.08
6-19$2.93
20-49$2.77
50-99$2.62
100-249$2.46
250-499$2.31
500+$2.16
Quantity:  Kit

2-Way Kit
HV-2S-1

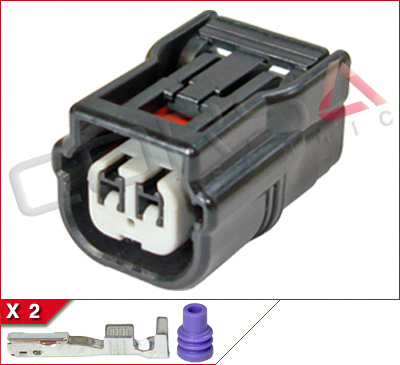

2-Way Kit
OEM P/N: 6189-6905
HV-2S-1  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals, TPA lock

Mfr: OEM Sumitomo
Series: HV/HVG Sealed Series
OEM P/N: 6189-6905
Part Name: HV4-2FAY-B
Mating Part: HV-2P-1
Interchangeable with HVG series p/n: 6189-7036

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Pitch:4.1mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$3.36
6-19$3.19
20-49$3.02
50-99$2.86
100+$2.69
Quantity:  Kit

4-Way Kit
HV-4S
4-Way Kit
OEM P/N: 6189-6908
HV-4S  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals, TPA lock

Mfr: OEM Sumitomo
Series: HV/HVG Sealed Series
OEM P/N: 6189-6908
Part Name: HV4-4FAY-B
Mating Part: HVG-4P-1
Cross-compatible with HVG-4S-1 (HVG type, with finger ribs)

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:2
  • Pitch:4.1mm
  • Row Spacing:5.2mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Honda 070PZ-Z6LA300
QtyPrice
1-5$4.51
6-19$4.28
20-49$4.06
50-99$3.83
100+$3.61
Quantity:  Kit

3-Way Kit
HVG-3P-1
3-Way Kit
OEM P/N: 6188-4775
HVG-3P-1  3-Way Kit
Kit Contents: Housing, 3 pin contacts, 3 seals

Mfr: OEM Sumitomo
Series: HV/HVG Sealed Series
OEM P/N: 6188-4775
Mating Part: HVG-3S-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Pitch:4.1mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Honda 070PZ-Z5TA200
QtyPrice
1-5$3.77
6-19$3.58
20-49$3.39
50-99$3.20
100-249$3.02
250+$2.83
Quantity:  Kit

3-Way Kit
HVG-3S-1
3-Way Kit
OEM P/N: 6189-7037
HVG-3S-1  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals, TPA lock

Mfr: OEM Sumitomo
Series: HV/HVG Sealed Series
OEM P/N: 6189-7037
Mating Part: HVG-3P-1
Cross-compatible with 6189-6907 (HV type, without finger ribs)

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Pitch:4.1mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$3.57
6-19$3.39
20-49$3.21
50-99$3.03
100-249$2.86
250+$2.68
Quantity:  Kit

4-Way Kit
HVG-4P-1
4-Way Kit
OEM P/N: 6188-4776
HVG-4P-1  4-Way Kit
Kit Contents: Housing, 4 pin contacts, 4 seals

Mfr: OEM Sumitomo
Series: HV/HVG Sealed Series
OEM P/N: 6188-4776
Part Name: HV4-4MAY-B
Mating Part: HV-4S, HVG-4S-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:2
  • Pitch:4.1mm
  • Row Spacing:5.2mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Honda 070PZ-Z6LA400
QtyPrice
1-5$4.83
6-19$4.59
20-49$4.35
50-99$4.11
100+$3.86
Quantity:  Kit

4-Way Kit
HVG-4S-1
4-Way Kit
OEM P/N: 6189-7039
HVG-4S-1  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals, TPA lock

Mfr: OEM Sumitomo
Series: HV/HVG Sealed Series
OEM P/N: 6189-7039
Part Name: HVG4-4FAY-B
Mating Part: HVG-4P-1
Cross-compatible with HV-4S (HV type, without finger ribs)

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:2
  • Pitch:4.1mm
  • Row Spacing:5.2mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$4.87
6-19$4.63
20-49$4.38
50-99$4.14
100+$3.90
Quantity:  Kit

4-Way Kit
HVG-4S-2
4-Way Kit
OEM P/N: 6189-7041
HVG-4S-2  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals, TPA lock

Mfr: OEM Sumitomo
Series: HV/HVG Sealed Series
OEM P/N: 6189-7041
Part Name: HVG4ACG4FAY-DL

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:2
  • Pitch:4.1mm
  • Row Spacing:5.2mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$4.79
6-19$4.55
20-49$4.31
50-99$4.07
100+$3.83
Quantity:  Kit

5-Way Kit
HVG-5P
5-Way Kit
HVG-5P  5-Way Kit
Kit Contents: Housing, 5 pin contacts, 5 seals, lock

Mfr: Aftermarket Sumitomo
Series: HV/HVG Sealed Series
Mating Part: HVG-5S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:5
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Pitch:4.1mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$3.61
6-19$3.43
20-49$3.25
50-99$3.07
100+$2.89
Quantity:  Kit

5-Way Kit
HVG-5S
5-Way Kit
OEM P/N: 6189-6909
HVG-5S  5-Way Kit
Kit Contents: Housing, 5 socket contacts, 5 seals, TPA lock

Mfr: OEM Sumitomo
Series: HV/HVG Sealed Series
OEM P/N: 6189-6909
Part Name: HV4-5FAY-B
Mating Part: HVG-5P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:5
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Pitch:4.1mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$5.65
6-19$5.37
20-49$5.08
50-99$4.80
100+$4.52
Quantity:  Kit

6-Way Kit
HVG-6P
6-Way Kit
OEM P/N: 6188-4908
HVG-6P  6-Way Kit
Kit Contents: Housing, 6 pin contacts, 6 seals

Mfr: OEM Sumitomo
Series: HV/HVG Sealed Series
OEM P/N: 6188-4908
Mating Part: HVG-6S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:6
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:2
  • Pitch:4.1mm
  • Row Spacing:5.2mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$5.10
6-19$4.84
20-49$4.59
50-99$4.33
100+$4.08
Quantity:  Kit

6-Way Kit
HVG-6S
6-Way Kit
OEM P/N: 6189-7040
HVG-6S  6-Way Kit
Kit Contents: Housing, 6 socket contacts, 6 seals, TPA lock

Mfr: OEM Sumitomo
Series: HV/HVG Sealed Series
OEM P/N: 6189-7040
Part Name: HVG4-S6FAY-B
Mating Part: HVG-6P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:6
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:2
  • Pitch:4.1mm
  • Row Spacing:5.2mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$5.45
6-19$5.18
20-49$4.91
50-99$4.63
100+$4.36
Quantity:  Kit

HX 040, HV/HVG Series Pin Contact
HX040-PIN
HX 040, HV/HVG Series Pin Contact
HX040-PIN  HX 040, HV/HVG Series Pin Contact

Mfr: Sumitomo
Series: HX 040 Sealed Series, HV/HVG Sealed Series

Wire SizeP/N
HX040-PIN1.3-.5 mm2 (22-20 AWG)8100-3177
HX040-PIN2.75-1.25 mm2 (18-16 AWG)8100-3178
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Honda 070PZ-Z6LA200
QtyPrice
1-49$0.18
50-99$0.17
100-249$0.16
250-499$0.15
500-999$0.14
1000-2499$0.13
2500-4999$0.12
5000+$0.11
Quantity:  Ea

HX 040, HV/HVG Series Socket Contact
HX040-SKT
HX 040, HV/HVG Series Socket Contact
HX040-SKT  HX 040, HV/HVG Series Socket Contact

Mfr: Sumitomo
Series: HX 040 Sealed Series, HV/HVG Sealed Series

Wire SizeP/N
HX040-SKT1.3-.5 mm2 (22-20 AWG)8100-3067
HX040-SKT2.75-1.25 mm2 (18-16 AWG)8100-3068
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Honda 070PZ-002A400
  • Nissan/Bosch J-48817-244 repair wire terminal
QtyPrice
1-49$0.16
50-99$0.15
100-249$0.14
250-499$0.13
500-999$0.12
1000-2499$0.11
2500-4999$0.10
5000-9999$0.09
10000-19999$0.08
20000+$0.07
Quantity:  Ea

Sumitomo 040 Sealed Series Plug
SUMI.040-PG
Sumitomo 040 Sealed Series Plug
OEM P/N: 7165-0432, black rubber
SUMI.040-PG  Sumitomo 040 Sealed Series Plug

Mfr: OEM Sumitomo
OEM P/N: 7165-0432, black rubber
Family: DL 040 Sealed Series, HV/HVG Sealed Series, HX 040 Sealed Series
Note: This is a plug, the hole pictured does not go all the way through.

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:1.0mm (.040)
Mechanical
  • Seal Material:NBR

spacer
spacer
QtyPrice
1-49$0.19
50-99$0.18
100-249$0.17
250-499$0.16
500-999$0.15
1000-2499$0.14
2500+$0.13
Quantity:  Ea

HX 040, HV/HVG Sealed Series Seals
HX040-SL
HX 040, HV/HVG Sealed Series Seals
HX040-SL  HX 040, HV/HVG Sealed Series Seals

Mfr: Sumitomo
Series: HX 040 Sealed Series and used with HV/HVG Sealed Series

Wire Insulation Dia.ColorPart Number
HX040-SL11.10-1.60 mm (.043-.063 in)Orange7165-1075
HX040-SL21.60-1.90 mm (.063-.075 in)Light green7165-0621
HX040-SL31.80-2.20 mm (.071-.087 in)Violet7165-0622
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
Mechanical
  • Seal Material:Silicone Rubber

spacer
spacer
  • Honda 070PZ-002A300 (SL2), 070PZ-Z6LA100 (SL3)
QtyPrice
1-49$0.13
50-99$0.12
100-249$0.11
250-499$0.10
500-999$0.09
1000+$0.08
Quantity:  Ea

Rennsteig PEW 12 Die Set for Sumitomo HX/HV/HVG 040 terminals
TOOL-CDIE20
Rennsteig PEW 12 Die Set for Sumitomo HX/HV/HVG 040 terminals
OEM P/N: 624 1713 3 01 RT
TOOL-CDIE20  Rennsteig PEW 12 Die Set for Sumitomo HX/HV/HVG 040 terminals
Kit Contents: Crimp die set, locator, wire stop

OEM P/N: 624 1713 3 01 RT

Compatibility
P/NWire SizeSumitomo P/N
✓HX040-PIN1.3-.5 mm2 (22-20 AWG)8100-3177
✓HX040-PIN2.75-1.25 mm2 (18-16 AWG)8100-3178
✓HX040-SKT1.3-.5 mm2 (22-20 AWG)8100-3067
✓HX040-SKT2.75-1.25 mm2 (18-16 AWG)8100-3068

spacer
spacer
spacer
This item is backordered.
Price: $324.08
Quantity:  Ea


Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2024 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1
R7A4
R7A3
R7A2
