13-Way

13-Way Kit

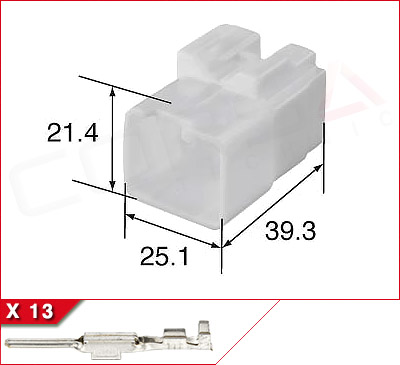

090IIU-13P-1
13-Way Kit
OEM P/N: 6240-1122, 7282-1130, 7282-1530 (w/o clip mount)
090IIU-13P-1  13-Way Kit
Kit Contents: Housing, 13 pin contacts

Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 6240-1122, 7282-1130, 7282-1530 (w/o clip mount)
Part Name: 10804N9A13M
Mating Part: 090IIU-13S-1

spacer
General
  • Sealing:Unsealed
  • Number of Ways:13
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:3
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Toyota 90980-10804
QtyPrice
1-5$5.50
6-19$5.22
20-49$4.95
50-99$4.67
100+$4.40
Quantity:  Kit

13-Way Kit

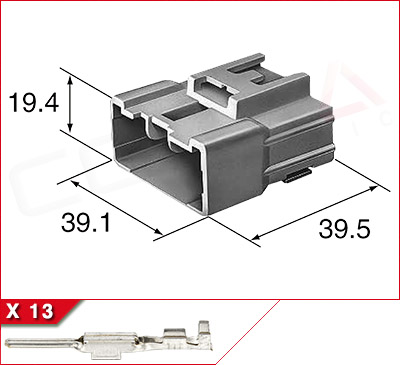

090IIU-13P-2
13-Way Kit
OEM P/N: 1300-4927 (Natural, in stock), 1300-4928 (Grey), 1300-5539 (Black), 6098-1845 (Blue)
090IIU-13P-2  13-Way Kit
Kit Contents: Housing, 13 pin contacts

Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 1300-4927 (Natural, in stock), 1300-4928 (Grey), 1300-5539 (Black), 6098-1845 (Blue)
Part Name: 11694N9A13M-NA
Mating Part: 1300-4682

spacer
General
  • Sealing:Unsealed
  • Number of Ways:13
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Toyota 90980-11541, 90980-11694, 90980-11713, 90980-12482, 90980-12531
QtyPrice
1-5$5.70
6-19$5.42
20-49$5.13
50-99$4.85
100+$4.56
Quantity:  Kit

13-Way Kit

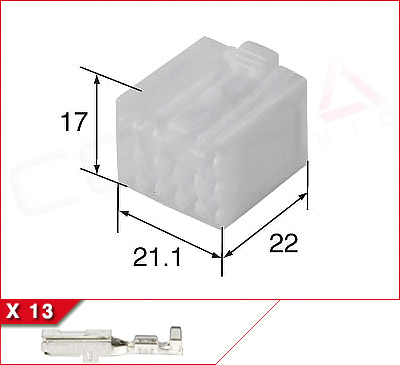

090IIU-13S-1
13-Way Kit
OEM P/N: 6240-5175, 7283-1130
090IIU-13S-1  13-Way Kit
Kit Contents: Housing, 13 socket contacts

Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 6240-5175, 7283-1130
Part Name: 10805N9A13F
Mating Part: 090IIU-13P-1

spacer
General
  • Sealing:Unsealed
  • Number of Ways:13
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:3
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Toyota 90980-10805, 90980-12083
QtyPrice
1-5$4.92
6-19$4.67
20-49$4.43
50-99$4.18
100+$3.94
Quantity:  Kit

13-Way Kit
HE040-13P
13-Way Kit
OEM P/N: 6098-2788
HE040-13P  13-Way Kit
Kit Contents: Housing, 13 pin contacts for 22-18 AWG wire

Mfr: OEM Sumitomo
Series: HE 040 Unsealed Series
OEM P/N: 6098-2788
Part Name: HE04 13M-NA
Mating Part: HE040-13S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:13
  • Contact Size:1.0mm (.040)
  • Wire Size:0.22 - 0.85 mm2
  • Number of Rows:2
  • Pitch:2.5mm
  • Row Spacing:5.4mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$5.45
6-19$5.18
20-49$4.91
50-99$4.63
100+$4.36
Quantity:  Kit

13-Way Kit
HE040-13S
13-Way Kit
OEM P/N: 6098-2784
HE040-13S  13-Way Kit
Kit Contents: Housing, 13 socket contacts for 22-18 AWG wire

Mfr: OEM Sumitomo
Series: HE 040 Unsealed Series
OEM P/N: 6098-2784
Part Name: HE04 13F-NA
Mating Part: HE040-13P, 6098-3239

spacer
General
  • Sealing:Unsealed
  • Number of Ways:13
  • Contact Size:1.0mm (.040)
  • Wire Size:0.22 - 0.85 mm2
  • Number of Rows:2
  • Pitch:2.5mm
  • Row Spacing:5.4mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$5.37
6-19$5.10
20-49$4.83
50-99$4.56
100+$4.30
Quantity:  Kit

13-Way Kit
HMU-13P
13-Way Kit
OEM P/N: 6090-1090
HMU-13P  13-Way Kit
Kit Contents: Housing, 13 pin contacts

Mfr: OEM Sumitomo
Series: HM Unsealed Series
OEM P/N: 6090-1090
Mating Part: HMU-13S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:13
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Clip Slot
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$3.44
6-19$3.20
20-49$2.92
50-99$2.75
100+$2.41
Quantity:  Kit

13-Way Kit

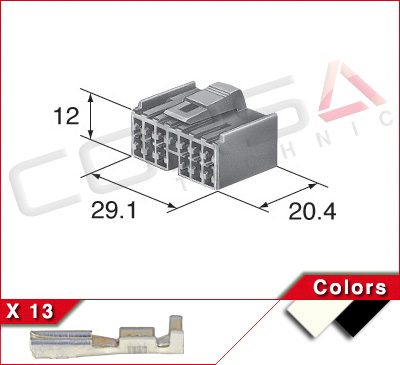

HMU-13S
13-Way Kit
OEM P/N: 6090-1061
HMU-13S  13-Way Kit
Kit Contents: Housing, 13 socket contacts

Mfr: OEM Sumitomo
Series: HM Unsealed Series
OEM P/N: 6090-1061
Mating Part: HMU-13P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:13
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$4.24
6-19$3.94
20-49$3.60
50-99$3.39
100+$2.97
Quantity:  Kit

13-Way (12+1) Hybrid Kit
HX.HYB-13P
13-Way (12+1) Hybrid Kit
OEM P/N: 6181-6464
HX.HYB-13P  13-Way (12+1) Hybrid Kit
Kit Contents: Housing, 12x 040 pin terminals and seals, 1x 187 pin terminal and seal, front lock

Mfr: OEM Sumitomo
Series: HX Sealed Hybrid Series
OEM P/N: 6181-6464
Part Name: HX4-12+1M-B
Mating Part: 6189-6863

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:13
  • Contact Size:Mixed
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:Multiple
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:28A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$9.44
6-19$8.97
20-49$8.50
50-99$8.02
100+$7.55
Quantity:  Kit

13-Way Kit
MIC.MK2-13P
13-Way Kit
OEM P/N: 172508-1
MIC.MK2-13P  13-Way Kit
Kit Contents: Housing, 13 pin contacts

Mfr: OEM Tyco/AMP
Series: Multiple Interlock Connectors (MIC) Mk-II
OEM P/N: 172508-1
Part Name: MIC CAP HSG 13P MK II
Mating Part: MIC.MK2-13S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:13
  • Contact Size:3.0mm (.118)
  • Wire Size:0.30 - 2.27 mm2
  • Number of Rows:2
  • Pitch:Multiple
  • Row Spacing:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA
  • Mounting Style:Free hanging
  • CPA:No
Electrical
  • Current Rating[1]:25A
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$5.42
6-19$5.15
20-49$4.88
50-99$4.61
100+$4.34
Quantity:  Kit

13-Way Kit
MIC.MK2-13S
13-Way Kit
OEM P/N: 172498-1
MIC.MK2-13S  13-Way Kit
Kit Contents: Housing, 13 socket contacts

Mfr: OEM Tyco/AMP
Series: Multiple Interlock Connectors (MIC) Mk-II
OEM P/N: 172498-1
Part Name: MIC PLUG HSG 13P (MK II)
Mating Part: MIC.MK2-13P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:13
  • Contact Size:3.0mm (.118)
  • Wire Size:0.30 - 2.27 mm2
  • Number of Rows:2
  • Pitch:Multiple
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:25A
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$5.16
6-19$4.90
20-49$4.64
50-99$4.39
100+$4.13
Quantity:  Kit

13-Way Kit
MTU.IL-13P
13-Way Kit
OEM P/N: 6240-1131, 7122-1330
MTU.IL-13P  13-Way Kit
Kit Contents: Housing, 13 pin contacts

Mfr: OEM Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed
OEM P/N: 6240-1131, 7122-1330
Mating Part: MTU.IL-13S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:13
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:3
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Clip Slot
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Toyota 90980-10323
QtyPrice
1-5$4.59
6-19$4.27
20-49$3.90
50-99$3.67
100+$3.21
Quantity:  Kit

13-Way Kit
MTU.IL-13S
13-Way Kit
OEM P/N: 6240-5131, 7123-1330
MTU.IL-13S  13-Way Kit
Kit Contents: Housing, 13 socket contacts

Mfr: OEM Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed
OEM P/N: 6240-5131, 7123-1330
Mating Part: MTU.IL-13P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:13
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:3
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Toyota 90980-10324
QtyPrice
1-5$4.43
6-19$4.12
20-49$3.77
50-99$3.54
100+$3.10
Quantity:  Kit

13-Way Kit

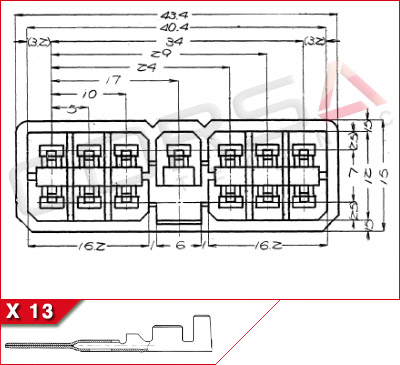

PA-13P
13-Way Kit
OEM P/N: 7118-3130
PA-13P  13-Way Kit
Kit Contents: Housing, 13 pin contacts

Mfr: Aftermarket Yazaki
Series: PA Series
OEM P/N: 7118-3130
Mating Part: PA-13S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:13
  • Contact Size:3.0mm (.118)
  • Wire Size:0.20 - 2.00 mm2
  • Number of Rows:2
  • Pitch:Multiple
  • Row Spacing:7.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Toyota 90980-10032
QtyPrice
1-5$3.73
6-19$3.54
20-49$3.36
50-99$3.17
100+$2.98
Quantity:  Kit

13-Way Kit

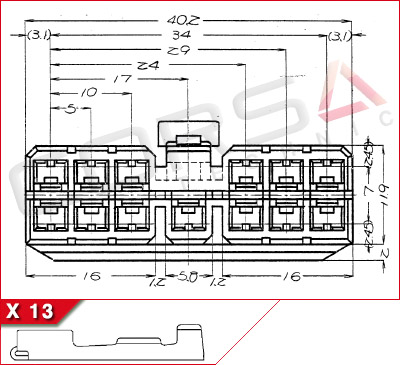

PA-13S
13-Way Kit
OEM P/N: 7119-3130
PA-13S  13-Way Kit
Kit Contents: Housing, 13 socket contacts

Mfr: Aftermarket Yazaki
Series: PA Series
OEM P/N: 7119-3130
Mating Part: PA-13P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:13
  • Contact Size:3.0mm (.118)
  • Wire Size:0.20 - 2.00 mm2
  • Number of Rows:2
  • Pitch:Multiple
  • Row Spacing:7.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Toyota 90980-10033
QtyPrice
1-5$3.76
6-19$3.57
20-49$3.38
50-99$3.20
100+$3.01
Quantity:  Kit

13-Way Kit
TS025-13P
13-Way Kit
OEM P/N: 6188-4914
TS025-13P  13-Way Kit
Kit Contents: Housing, 13 pin contacts for 24-20 awg wire, 13 seals

Mfr: OEM Sumitomo
Series: TS 025 Sealed Series
OEM P/N: 6188-4914
Part Name: 12716WQA13M-GR
Mating Part: TS025-13S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:13
  • Contact Size:0.64mm (.025)
  • Wire Size:0.22 - 0.50 mm2
  • Number of Rows:2
  • Pitch:3.0mm
  • Row Spacing:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Toyota 90980-12716
QtyPrice
1-5$6.17
6-19$5.86
20-49$5.55
50-99$5.24
100+$4.94
Quantity:  Kit

13-Way Kit

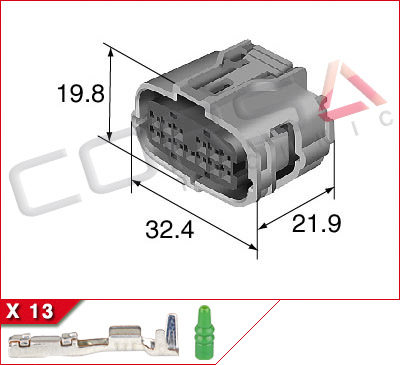

TS025-13S
13-Way Kit
OEM P/N: 6189-1092
TS025-13S  13-Way Kit
Kit Contents: Housing, 13 socket contacts, 13 seals

Mfr: OEM Sumitomo
Series: TS 025 Sealed Series
OEM P/N: 6189-1092
Part Name: 12326WQA13F-GR
Mating Part: TS025-13P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:13
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.50 mm2
  • Number of Rows:2
  • Pitch:3.0mm
  • Row Spacing:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Toyota 90980-12326
QtyPrice
1-5$5.98
6-19$5.68
20-49$5.38
50-99$5.08
100+$4.78
Quantity:  Kit


Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2024 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1
R7A4
R7A3
R7A2
