MT Unsealed Interlocking Series

2-Way Kit

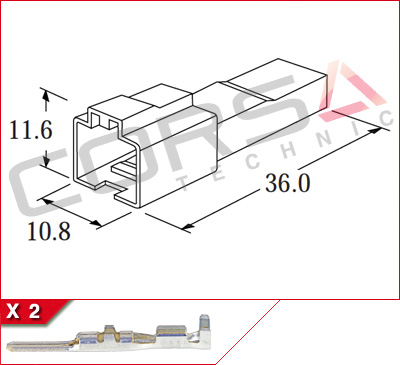

MTU.IL-2P-2
2-Way Kit
OEM P/N: 7122-7721
MTU.IL-2P-2  2-Way Kit
Kit Contents: Housing, 2 pin contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed
OEM P/N: 7122-7721
Mating Part: MTU.IL-2S-2

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:4.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$1.78
6-19$1.66
20-49$1.51
50-99$1.42
100+$1.25
Quantity:  Kit

2-Way Kit

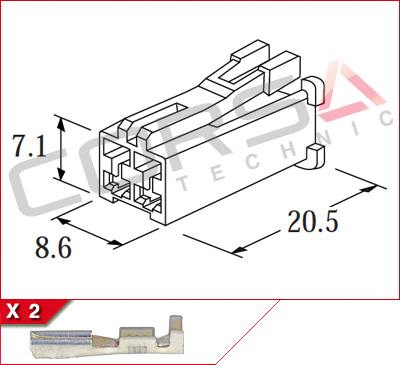

MTU.IL-2S-2
2-Way Kit
OEM P/N: 7123-7721, 7123-7722 (w/clamp)
MTU.IL-2S-2  2-Way Kit
Kit Contents: Housing, 2 socket contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed
OEM P/N: 7123-7721, 7123-7722 (w/clamp)
Mating Part: MTU.IL-2P-2

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:4.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$1.78
6-19$1.66
20-49$1.51
50-99$1.42
100+$1.25
Quantity:  Kit

2-Way Kit

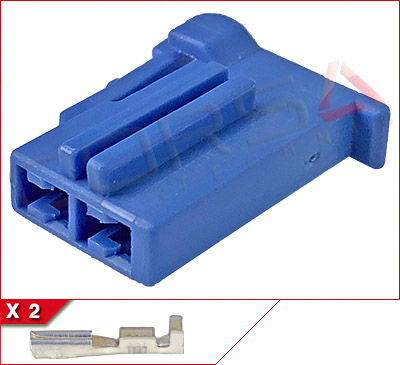

MTU.IL-2S-3
2-Way Kit
MTU.IL-2S-3  2-Way Kit
Kit Contents: Housing, 2 socket contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Mazda RX-7 fuel pump/sender
spacer
QtyPrice
1-5$3.23
6-19$3.07
20-49$2.91
50-99$2.75
100+$2.58
Quantity:  Kit

2-Way Kit
MTU.IL-2S-4
2-Way Kit
MTU.IL-2S-4  2-Way Kit
Kit Contents: Housing, 2 socket contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Mazda RX-7 fuel pump/sender
spacer
QtyPrice
1-5$3.23
6-19$3.07
20-49$2.91
50-99$2.75
100+$2.58
Quantity:  Kit

6-Way Kit

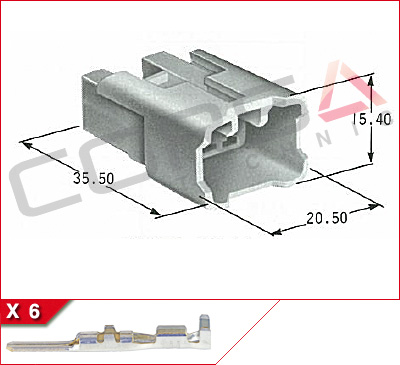

MTU.IL-6P
6-Way Kit
OEM P/N: 7122-1360
MTU.IL-6P  6-Way Kit
Kit Contents: Housing, 6 pin contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed
OEM P/N: 7122-1360
Mating Part: MTU.IL-6S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:6
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Clip Slot
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Toyota 90980-10384
QtyPrice
1-5$2.19
6-19$2.04
20-49$1.86
50-99$1.75
100+$1.53
Quantity:  Kit

6-Way Kit

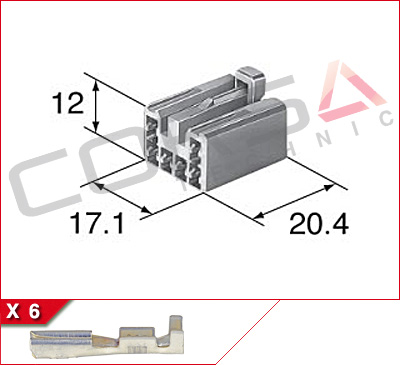

MTU.IL-6S
6-Way Kit
OEM P/N: 6244-5061, 7123-1360
MTU.IL-6S  6-Way Kit
Kit Contents: Housing, 6 socket contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed
OEM P/N: 6244-5061, 7123-1360
Mating Part: MTU.IL-6P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:6
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Toyota 90980-10414
QtyPrice
1-5$2.04
6-19$1.90
20-49$1.73
50-99$1.63
100+$1.43
Quantity:  Kit

8-Way Kit

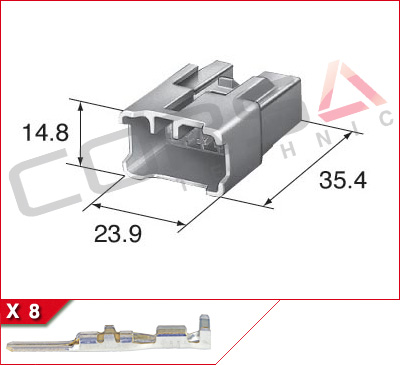

MTU.IL-8P
8-Way Kit
OEM P/N: 6240-1081, 7122-1480
MTU.IL-8P  8-Way Kit
Kit Contents: Housing, 8 pin contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed
OEM P/N: 6240-1081, 7122-1480
Mating Part: MTU.IL-8S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:8
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Clip Slot
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Toyota 90980-10360
QtyPrice
1-5$3.07
6-19$2.86
20-49$2.61
50-99$2.46
100+$2.15
Quantity:  Kit

8-Way Kit

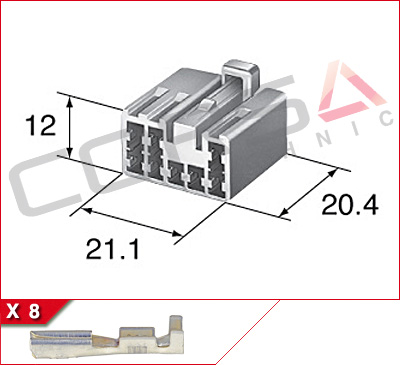

MTU.IL-8S
8-Way Kit
OEM P/N: 6240-5081, 7123-1480
MTU.IL-8S  8-Way Kit
Kit Contents: Housing, 8 socket contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed
OEM P/N: 6240-5081, 7123-1480
Mating Part: MTU.IL-8P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:8
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Toyota 90980-10321
QtyPrice
1-5$2.86
6-19$2.66
20-49$2.43
50-99$2.29
100+$2.00
Quantity:  Kit

10-Way Kit

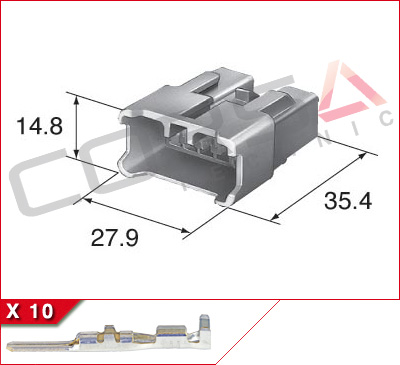

MTU.IL-10P
10-Way Kit
OEM P/N: 6240-1101, 7122-1300
MTU.IL-10P  10-Way Kit
Kit Contents: Housing, 10 pin contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed
OEM P/N: 6240-1101, 7122-1300
Mating Part: MTU.IL-10S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:10
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Clip Slot
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Toyota 90980-10375
QtyPrice
1-5$3.63
6-19$3.38
20-49$3.09
50-99$2.90
100+$2.54
Quantity:  Kit

10-Way Kit

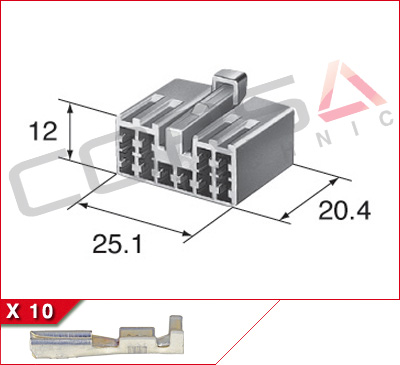

MTU.IL-10S
10-Way Kit
OEM P/N: 6240-5101, 7123-1300
MTU.IL-10S  10-Way Kit
Kit Contents: Housing, 10 socket contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed
OEM P/N: 6240-5101, 7123-1300
Mating Part: MTU.IL-10P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:10
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Toyota 90980-10322
QtyPrice
1-5$3.36
6-19$3.12
20-49$2.86
50-99$2.69
100+$2.35
Quantity:  Kit

12-Way Kit

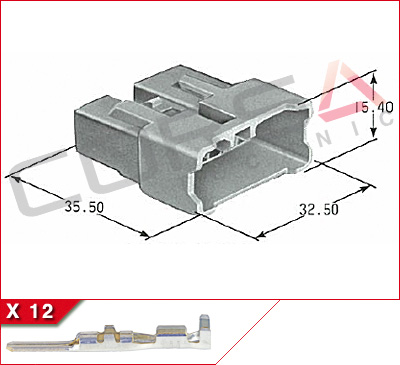

MTU.IL-12P
12-Way Kit
OEM P/N: 7122-1210
MTU.IL-12P  12-Way Kit
Kit Contents: Housing, 12 pin contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed
OEM P/N: 7122-1210
Mating Part: MTU.IL-12S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:12
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Clip Slot
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Toyota 90980-10513
QtyPrice
1-5$4.39
6-19$4.08
20-49$3.73
50-99$3.51
100+$3.07
Quantity:  Kit

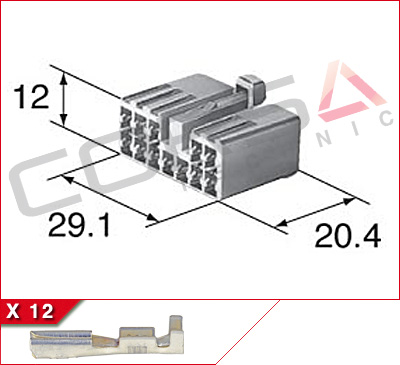

12-Way Kit
MTU.IL-12S
12-Way Kit
OEM P/N: 6244-5121, 7123-1210
MTU.IL-12S  12-Way Kit
Kit Contents: Housing, 12 socket contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed
OEM P/N: 6244-5121, 7123-1210
Mating Part: MTU.IL-12P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:12
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Toyota 90980-10432
QtyPrice
1-5$4.08
6-19$3.79
20-49$3.47
50-99$3.26
100+$2.86
Quantity:  Kit

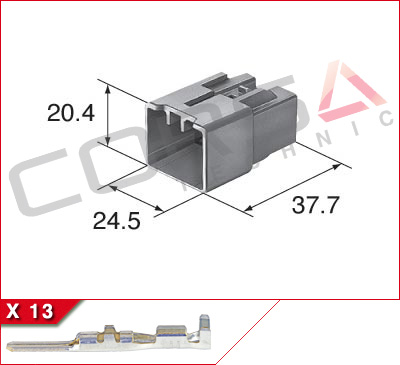

13-Way Kit
MTU.IL-13P
13-Way Kit
OEM P/N: 6240-1131, 7122-1330
MTU.IL-13P  13-Way Kit
Kit Contents: Housing, 13 pin contacts

Mfr: OEM Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed
OEM P/N: 6240-1131, 7122-1330
Mating Part: MTU.IL-13S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:13
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:3
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Clip Slot
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Toyota 90980-10323
QtyPrice
1-5$4.59
6-19$4.27
20-49$3.90
50-99$3.67
100+$3.21
Quantity:  Kit

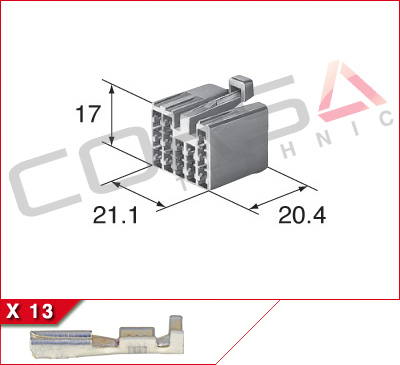

13-Way Kit
MTU.IL-13S
13-Way Kit
OEM P/N: 6240-5131, 7123-1330
MTU.IL-13S  13-Way Kit
Kit Contents: Housing, 13 socket contacts

Mfr: OEM Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed
OEM P/N: 6240-5131, 7123-1330
Mating Part: MTU.IL-13P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:13
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:3
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Toyota 90980-10324
QtyPrice
1-5$4.43
6-19$4.12
20-49$3.77
50-99$3.54
100+$3.10
Quantity:  Kit

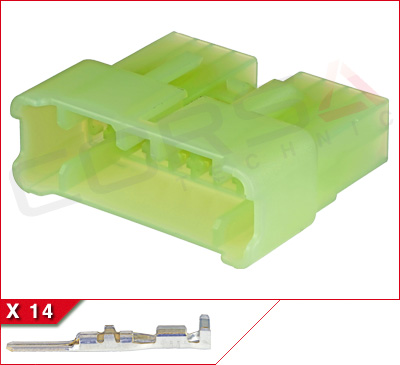

14-Way Kit
MTU.IL-14P
14-Way Kit
MTU.IL-14P  14-Way Kit
Kit Contents: Housing, 14 pin contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed
Mating Part: MTU.IL-14S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:14
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Clip Slot
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$5.06
6-19$4.71
20-49$4.30
50-99$4.05
100+$3.54
Quantity:  Kit

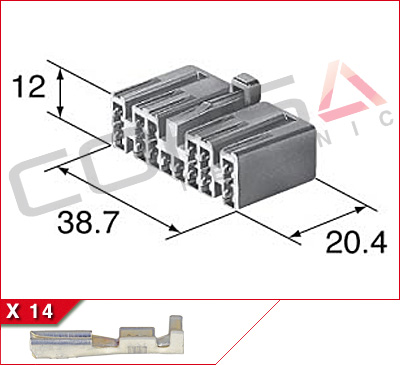

14-Way Kit
MTU.IL-14S
14-Way Kit
OEM P/N: 6244-5141
MTU.IL-14S  14-Way Kit
Kit Contents: Housing, 14 socket contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed
OEM P/N: 6244-5141
Mating Part: MTU.IL-14P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:14
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Toyota 90980-10538
QtyPrice
1-5$4.69
6-19$4.36
20-49$3.99
50-99$3.75
100+$3.28
Quantity:  Kit

18-Way Kit
MTU.IL-18S
18-Way Kit
OEM P/N: 6240-5181, 7123-1280
MTU.IL-18S  18-Way Kit
Kit Contents: Housing, 18 socket contacts

Mfr: OEM Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed
OEM P/N: 6240-5181, 7123-1280
Part Name: MT090-18F
Mating Part: 6240-1181, 7122-1280

spacer
General
  • Sealing:Unsealed
  • Number of Ways:18
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$5.56
6-19$5.28
20-49$5.00
50-99$4.73
100+$4.45
Quantity:  Kit

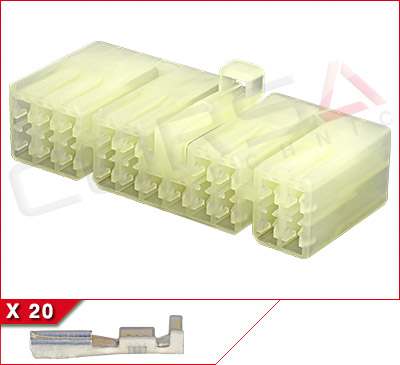

20-Way Kit
MTU.IL-20S-1
20-Way Kit
OEM P/N: Sumitomo: 6240-5201, Yazaki: 7123-1220
MTU.IL-20S-1  20-Way Kit
Kit Contents: Housing, 20 socket contacts

Mfr: OEM Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed
OEM P/N: Sumitomo: 6240-5201, Yazaki: 7123-1220
Part Name: MT090-20F
Mating Part: 6240-1201, 7122-1220

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Toyota 90980-10327
QtyPrice
1-5$6.49
6-19$6.04
20-49$5.52
50-99$5.19
100+$4.54
Quantity:  Kit

DS, HD, HM, MT 090 Unsealed Series Pin Contact
SUMI.090U.A-PIN
DS, HD, HM, MT 090 Unsealed Series Pin Contact
SUMI.090U.A-PIN  DS, HD, HM, MT 090 Unsealed Series Pin Contact

Mfr: Sumitomo, Yazaki
Series: Sumitomo: HD 090 Unsealed, HD 090+187 Hybrid Unsealed, HM Unsealed, MT Unsealed Interlocking, MT Unsealed Semi-Locking
Yazaki: 090 Unsealed

Wire SizeFinishSumitomoYazaki
SUMI.090U.A-PIN1.3-.5 mm2 (22-20 AWG)Tin8230-42727114-1170
-Gold8230-44197114-1170-08
SUMI.090U.A-PIN2.5-1.25 mm2 (20-16 AWG)Tin8230-42827114-1171
-GoldN/A7114-1171-08
SUMI.090U.A-PIN32.0 mm2 (14 AWG)Tin8230-4392N/A
-GoldN/AN/A
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Terminal used in Toyota 82998-12160, 82998-24050 (Gold plated) repair wire
QtyPrice
1-49$0.16
50-99$0.15
100-249$0.14
250-499$0.13
500-999$0.12
1000-2499$0.11
2500-4999$0.10
5000-9999$0.09
10000+$0.08
Quantity:  Ea

DS, HD, HM, MT 090 Unsealed Series Socket Contact
SUMI.090U.A-SKT
DS, HD, HM, MT 090 Unsealed Series Socket Contact
SUMI.090U.A-SKT  DS, HD, HM, MT 090 Unsealed Series Socket Contact

Mfr: Sumitomo, Yazaki
Series: Sumitomo: HD 090 Unsealed, HD 090+187 Hybrid Unsealed, HM Unsealed, HM Unsealed Splice, MT Unsealed Interlocking, MT Unsealed Semi-Locking
Yazaki: 090 Unsealed

Wire SizeFinishSumitomoYazaki
SUMI.090U.A-SKT1.3-.5 mm2 (22-20 AWG)Tin8240-44127116-1180
-Gold8240-48497116-1180-08
SUMI.090U.A-SKT2.5-1.25 mm2 (20-16 AWG)Tin8240-44227116-1181
-GoldN/A7116-1181-08
SUMI.090U.A-SKT32.0 mm2 (14 AWG)Tin8240-4652N/A
-GoldN/AN/A
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Terminal used in Toyota 82998-12170 repair wire
QtyPrice
1-49$0.17
50-99$0.16
100-249$0.15
250-499$0.14
500-999$0.13
1000-2499$0.12
2500-4999$0.11
5000-9999$0.10
10000+$0.09
Quantity:  Ea


Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2024 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1
R7A4
R7A3
R7A2
