RS Series - Standard Type 1 (old 91 series)

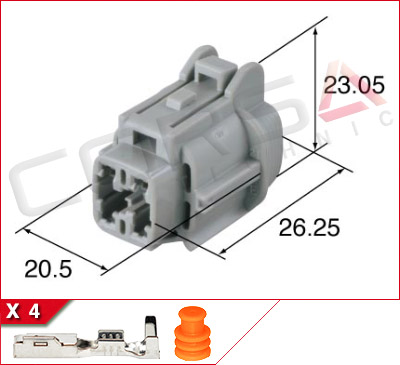

RS.T1-4S-1
4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals, front lock
Mfr: Furukawa, Sumitomo
Series: Furukawa: RS Series (previously called 91 series)
Sumitomo: RS Series - Standard Type 1
Mating Part: 6188-0558
Kit Contents: Housing, 4 socket contacts, 4 seals, front lock
Mfr: Furukawa, Sumitomo
Series: Furukawa: RS Series (previously called 91 series)
Sumitomo: RS Series - Standard Type 1
Mating Part: 6188-0558
| Furukawa | Sumitomo | |
|---|---|---|
| Housing | PB295-04920 RS04FGY-PR | 6185-1171 RS04FGY-PR |
| Retainer | PB464-04900 F/H RS04NP-OR | 6918-1776 RS04MF-F/H-O |
| Terminals | - | RS-SKT |
| Wire Seals | - | RS-SL |
| Available stock: Aftermarket OEM | ||
General
- Sealing:Single Wire Sealed
- Number of Ways:4
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:5.6mm
- Row Spacing:7.9mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:19A
- Voltage Rating:14V
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Nissan/Bosch J-48817-119 pigtail connector
- Nissan service part 24008-9DM4E connector

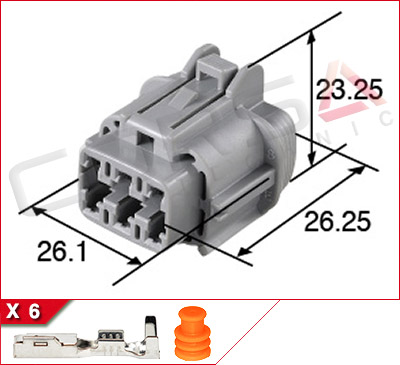

RS.T1-6S-1
6-Way Kit
Kit Contents: Housing, 6 socket contacts, 6 seals, front lock
Mfr: Furukawa, Sumitomo
Series: Furukawa: RS Series (previously called 91 series)
Sumitomo: RS Series - Standard Type 1
Mating Part: 6188-0560, 6188-5540
Kit Contents: Housing, 6 socket contacts, 6 seals, front lock
Mfr: Furukawa, Sumitomo
Series: Furukawa: RS Series (previously called 91 series)
Sumitomo: RS Series - Standard Type 1
Mating Part: 6188-0560, 6188-5540
| Furukawa | Sumitomo | |
|---|---|---|
| Housing | PB295-06920 RS06FGY-PR | 6185-5177 (ss: 6185-1175) RS06FGY |
| Retainer | PB464-06900 F/H RS06NP-OR | 6918-1779 RS06MF-F/H-O |
| Terminals | - | RS-SKT |
| Wire Seals | - | RS-SL |
| Available stock: Aftermarket OEM | ||
General
- Sealing:Single Wire Sealed
- Number of Ways:6
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:5.6mm
- Row Spacing:7.9mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:19A
- Voltage Rating:14V
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
RS-PIN
RS Series Pin Contact
Mfr: Furukawa, Sumitomo
Series: Furukawa: RS Series
Sumitomo: RS Series - Standard Type 1 (previously called 91 series), RS Series - Standard Type 2, RS Series - Type E-RS
Mfr: Furukawa, Sumitomo
Series: Furukawa: RS Series
Sumitomo: RS Series - Standard Type 1 (previously called 91 series), RS Series - Standard Type 2, RS Series - Type E-RS
| Wire Size | Plating | Furukawa | Sumitomo | |
|---|---|---|---|---|
| RS-PIN1 | 0.3-0.5 mm2 (22-20 AWG) | Tin | MT091-76050 | 8100-3803 |
| - | Gold | MT091-76060 | 8100-3805 | |
| RS-PIN2 | 0.85-1.25 mm2 (18-16 AWG) | Tin | MT091-76250 | 8100-3804 |
| - | Gold | MT091-76260 | 8100-3806 | |
| RS-PIN3 | 2.0 mm2 (14 AWG) | Tin | N/A | 8100-4172 |
| - | Gold | N/A | 8100-4173 | |
| Available stock: Aftermarket OEM | ||||
General
- Sealing:Single Wire Sealed
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
Electrical
- Current Rating[1]:19A
- Voltage Rating:14V
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Nissan/Bosch J-48817-209 repair wire terminal
RS-SKT
RS Series Socket Contact
Mfr: Furukawa, Sumitomo
Series: Furukawa: RS Series
Sumitomo: RS Series - Standard Type 1 (previously called 91 series), RS Series - Standard Type 2, RS Series - Type E-RS
Mfr: Furukawa, Sumitomo
Series: Furukawa: RS Series
Sumitomo: RS Series - Standard Type 1 (previously called 91 series), RS Series - Standard Type 2, RS Series - Type E-RS
| Wire Size | Plating | Furukawa | Sumitomo | |
|---|---|---|---|---|
| RS-SKT1 | 0.3-0.5 mm2 (22-20 AWG) | Tin | MT095-76050 | 8240-0263 |
| - | Gold | MT095-76060 | 8240-0266 | |
| RS-SKT2 | 0.85-1.25 mm2 (18-16 AWG) | Tin | MT095-76250 | 8240-0264 |
| - | Gold | MT095-76260 | 8240-0267 | |
| RS-SKT3 | 2.0 mm2 (14 AWG) | Tin | N/A | 8240-0265 |
| - | Gold | N/A | 8240-0268 | |
| Available stock: Aftermarket OEM | ||||
General
- Sealing:Single Wire Sealed
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
Electrical
- Current Rating[1]:19A
- Voltage Rating:14V
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Nissan/Bosch J-48817-202, J-48817-206, J-48817-213 repair wire terminal
RS-PG
RS Series Seals
Mfr: Furukawa, Sumitomo
Series: Furukawa: RS Series
Sumitomo: RS Series - Standard Type 1 (previously called 91 series), RS Series - Standard Type 2, RS Series - Type E-RS
OEM P/N: 7165-1131
Part Name: RSE-DMY-N
Mfr: Furukawa, Sumitomo
Series: Furukawa: RS Series
Sumitomo: RS Series - Standard Type 1 (previously called 91 series), RS Series - Standard Type 2, RS Series - Type E-RS
OEM P/N: 7165-1131
Part Name: RSE-DMY-N
General
- Sealing:Single Wire Sealed
Mechanical
- Seal Material:Silicone Rubber
Environmental
- Temp Range[2]:-40 - 120 °C
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For detailed characteristics, see applicable product documents.
RS-SL
RS Series Seals
Mfr: Furukawa, Sumitomo
Series: Furukawa: RS Series
Sumitomo: RS Series - Standard Type 1 (previously called 91 series), RS Series - Standard Type 2, RS Series - Type E-RS
Mfr: Furukawa, Sumitomo
Series: Furukawa: RS Series
Sumitomo: RS Series - Standard Type 1 (previously called 91 series), RS Series - Standard Type 2, RS Series - Type E-RS
| Wire Insulation Dia. | Color | Furukawa | Sumitomo | |
|---|---|---|---|---|
| RS-SL1 | 1.0-1.4 mm (.039-.055 in) | Orange | RS610-01100 | 7165-0474 |
| RS-SL2 | 1.5-1.9 mm (.059-.075 in) | Light blue | RS610-02100 | 7165-0473 |
| RS-SL3 | 2.0-2.4 mm (.079-.094 in) | Violet | RS610-03100 | 7165-0472 |
| RS-SL4 | 2.5-2.9 mm (.098-.114 in) | Light green | RS610-04100 | 7165-0471 |
| Available stock: Aftermarket OEM | ||||
General
- Sealing:Single Wire Sealed
- Contact Size:2.3mm (.090)
Mechanical
- Seal Material:Silicone Rubber
Environmental
- Temp Range[2]:-40 - 120 °C
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For detailed characteristics, see applicable product documents.
