RS Series - Standard Type 2 (old 91 series)

4-Way Kit

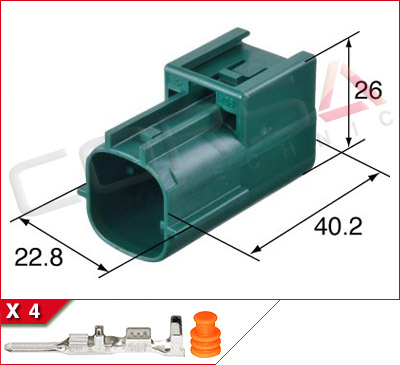

RS.T2-4P-1
4-Way Kit
OEM P/N: 6181-0513
RS.T2-4P-1  4-Way Kit
Kit Contents: Housing, 4 pin contacts, 4 seals, front lock

Mfr: OEM Sumitomo
Series: RS Series - Standard Type 2 (previously called 91 series)
OEM P/N: 6181-0513
Part Name: RS04MG
Mating Part: RS.T2-4S-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:5.6mm
  • Row Spacing:7.9mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:19A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$3.64
6-19$3.46
20-49$3.28
50-99$3.09
100+$2.91
Quantity:  Kit

4-Way Kit

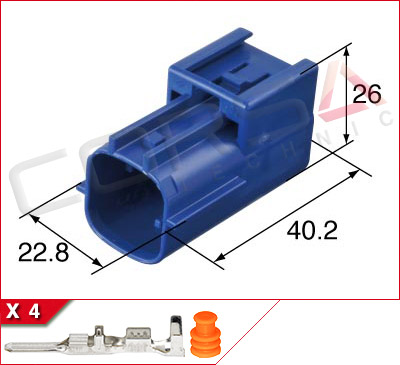

RS.T2-4P-2
4-Way Kit
OEM P/N: 6181-0514
RS.T2-4P-2  4-Way Kit
Kit Contents: Housing, 4 pin contacts, 4 seals, front lock

Mfr: OEM Sumitomo
Series: RS Series - Standard Type 2 (previously called 91 series)
OEM P/N: 6181-0514
Part Name: RS04ML
Mating Part: RS.T2-4S-2

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:5.6mm
  • Row Spacing:7.9mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:19A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$4.14
6-19$3.93
20-49$3.73
50-99$3.52
100+$3.31
Quantity:  Kit

4-Way Kit

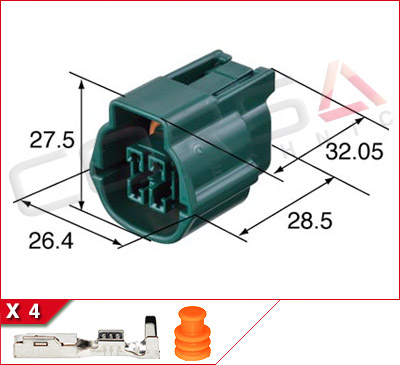

RS.T2-4S-1
4-Way Kit
OEM P/N: 6189-7756 (ss: 6189-0929)
RS.T2-4S-1  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals, front lock

Mfr: OEM Sumitomo
Series: RS Series - Standard Type 2 (previously called 91 series)
OEM P/N: 6189-7756 (ss: 6189-0929)
Part Name: RS04FG
Mating Part: RS.T2-4P-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:5.6mm
  • Row Spacing:7.9mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:19A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Nissan/Bosch J-48817-149 pigtail connector
  • Nissan service part 24008-9DM9D connector
QtyPrice
1-5$4.46
6-19$4.24
20-49$4.01
50-99$3.79
100+$3.57
Quantity:  Kit

4-Way Kit

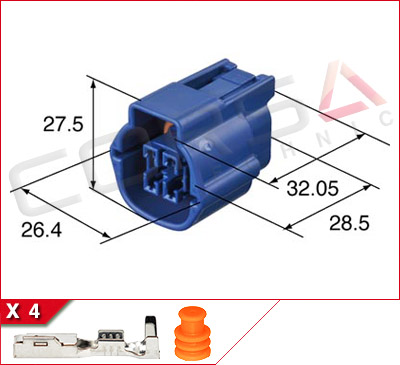

RS.T2-4S-2
4-Way Kit
OEM P/N: 6189-7758 (supersedes 6189-0930)
RS.T2-4S-2  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals, front lock

Mfr: OEM Sumitomo
Series: RS Series - Standard Type 2 (previously called 91 series)
OEM P/N: 6189-7758 (supersedes 6189-0930)
Part Name: RS04FL
Mating Part: RS.T2-4P-2

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:5.6mm
  • Row Spacing:7.9mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:19A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Nissan/Bosch J-48817-148 pigtail connector
QtyPrice
1-5$4.53
6-19$4.30
20-49$4.08
50-99$3.85
100+$3.62
Quantity:  Kit

6-Way Kit

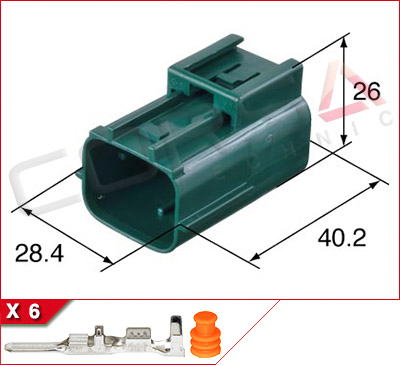

RS.T2-6P-1
6-Way Kit
OEM P/N: 6181-0511
RS.T2-6P-1  6-Way Kit
Kit Contents: Housing, 6 pin contacts, 6 seals, front lock

Mfr: OEM Sumitomo
Series: RS Series - Standard Type 2 (previously called 91 series)
OEM P/N: 6181-0511
Part Name: RS06MG
Mating Part: RS.T2-6S-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:6
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:5.6mm
  • Row Spacing:7.9mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:19A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$4.76
6-19$4.52
20-49$4.28
50-99$4.05
100+$3.81
Quantity:  Kit

6-Way Kit

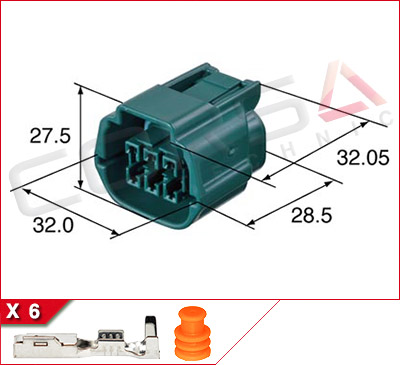

RS.T2-6S-1
6-Way Kit
OEM P/N: 6189-7760 (supersedes: 6189-0766)
RS.T2-6S-1  6-Way Kit
Kit Contents: Housing, 6 socket contacts, 6 seals, front lock

Mfr: OEM Sumitomo
Series: RS Series - Standard Type 2 (previously called 91 series)
OEM P/N: 6189-7760 (supersedes: 6189-0766)
Part Name: RS06FG
Mating Part: RS.T2-6P-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:6
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:5.6mm
  • Row Spacing:7.9mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:19A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$4.88
6-19$4.64
20-49$4.39
50-99$4.15
100+$3.90
Quantity:  Kit

RS Series Pin Contact
RS-PIN
RS Series Pin Contact
RS-PIN  RS Series Pin Contact

Mfr: Furukawa, Sumitomo
Series: Furukawa: RS Series
Sumitomo: RS Series - Standard Type 1 (previously called 91 series), RS Series - Standard Type 2, RS Series - Type E-RS

Wire SizePlatingFurukawaSumitomo
RS-PIN10.3-0.5 mm2 (22-20 AWG)TinMT091-760508100-3803
-GoldMT091-760608100-3805
RS-PIN20.85-1.25 mm2 (18-16 AWG)TinMT091-762508100-3804
-GoldMT091-762608100-3806
RS-PIN32.0 mm2 (14 AWG)TinN/A8100-4172
-GoldN/A8100-4173
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:19A
  • Voltage Rating:14V
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Nissan/Bosch J-48817-209 repair wire terminal
QtyPrice
1-49$0.19
50-99$0.18
100-249$0.17
250-499$0.16
500-999$0.15
1000-2400$0.14
2500-4999$0.13
5000-9999$0.12
10000+$0.11
Quantity:  Ea

RS Series Socket Contact
RS-SKT
RS Series Socket Contact
RS-SKT  RS Series Socket Contact

Mfr: Furukawa, Sumitomo
Series: Furukawa: RS Series
Sumitomo: RS Series - Standard Type 1 (previously called 91 series), RS Series - Standard Type 2, RS Series - Type E-RS

Wire SizePlatingFurukawaSumitomo
RS-SKT10.3-0.5 mm2 (22-20 AWG)TinMT095-760508240-0263
-GoldMT095-760608240-0266
RS-SKT20.85-1.25 mm2 (18-16 AWG)TinMT095-762508240-0264
-GoldMT095-762608240-0267
RS-SKT32.0 mm2 (14 AWG)TinN/A8240-0265
-GoldN/A8240-0268
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:19A
  • Voltage Rating:14V
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Nissan/Bosch J-48817-202, J-48817-206, J-48817-213 repair wire terminal
QtyPrice
1-49$0.18
50-99$0.17
100-249$0.16
250-499$0.15
500-999$0.14
1000-2499$0.13
2500-4999$0.12
5000-9999$0.11
10000+$0.10
Quantity:  Ea

RS Series Seals
RS-PG
RS Series Seals
OEM P/N: 7165-1131
RS-PG  RS Series Seals

Mfr: Furukawa, Sumitomo
Series: Furukawa: RS Series
Sumitomo: RS Series - Standard Type 1 (previously called 91 series), RS Series - Standard Type 2, RS Series - Type E-RS
OEM P/N: 7165-1131
Part Name: RSE-DMY-N

spacer
General
  • Sealing:Single Wire Sealed
Mechanical
  • Seal Material:Silicone Rubber
Environmental
  • Temp Range[2]:-40 - 120 °C
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-49$0.25
50-99$0.24
100-249$0.23
250-499$0.20
500+$0.17
Quantity:  Ea

RS Series Seals
RS-SL
RS Series Seals
RS-SL  RS Series Seals

Mfr: Furukawa, Sumitomo
Series: Furukawa: RS Series
Sumitomo: RS Series - Standard Type 1 (previously called 91 series), RS Series - Standard Type 2, RS Series - Type E-RS

Wire Insulation Dia.ColorFurukawaSumitomo
RS-SL11.0-1.4 mm (.039-.055 in)OrangeRS610-011007165-0474
RS-SL21.5-1.9 mm (.059-.075 in)Light blueRS610-021007165-0473
RS-SL32.0-2.4 mm (.079-.094 in)VioletRS610-031007165-0472
RS-SL42.5-2.9 mm (.098-.114 in)Light greenRS610-041007165-0471
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.3mm (.090)
Mechanical
  • Seal Material:Silicone Rubber
Environmental
  • Temp Range[2]:-40 - 120 °C
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-49$0.16
50-99$0.15
100-249$0.14
250-499$0.13
500-999$0.12
1000-2499$0.11
2500-4999$0.10
5000-9999$0.09
10000+$0.08
Quantity:  Ea
