SDL-Series

4-Way Kit

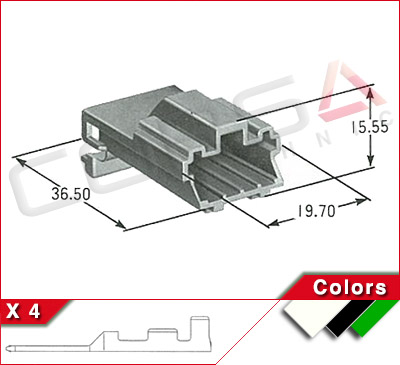

SDL-4P
4-Way Kit
OEM P/N: 7122-8345 (Natural)
7122-8345-30 (Black)
7122-8345-60 (Green)

SDL-4P  4-Way Kit
Kit Contents: Housing, 4 pin contacts

Mfr: OEM Yazaki
Series: SDL Series
OEM P/N: 7122-8345 (Natural)
7122-8345-30 (Black)
7122-8345-60 (Green)

Mating Part: SDL-4S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:4
  • Contact Size:1.8mm (.070)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:3.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:9A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$2.41
6-19$2.29
20-49$2.17
50-99$2.05
100+$1.93
Quantity:  Kit

4-Way Kit

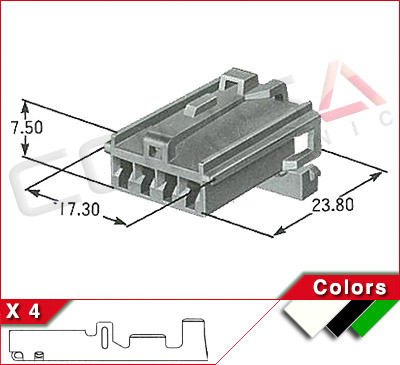

SDL-4S
4-Way Kit
OEM P/N: 7123-8345 (Natural)
7123-8345-30 (Black)
7123-8345-60 (Green)

SDL-4S  4-Way Kit
Kit Contents: Housing, 4 socket contacts

Mfr: OEM Yazaki
Series: SDL Series
OEM P/N: 7123-8345 (Natural)
7123-8345-30 (Black)
7123-8345-60 (Green)

Mating Part: SDL-4P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:4
  • Contact Size:1.8mm (.070)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:3.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:9A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Mopar 68340117AA repair kit connector
QtyPrice
1-5$2.27
6-19$2.16
20-49$2.04
50-99$1.93
100-249$1.82
250+$1.70
Quantity:  Kit

6-Way Kit
SDL-6S
6-Way Kit
OEM P/N: 7123-8365
SDL-6S  6-Way Kit
Kit Contents: Housing, 6 socket contacts

Mfr: OEM Yazaki
Series: SDL Series
OEM P/N: 7123-8365
Mating Part: 7122-8365

spacer
General
  • Sealing:Unsealed
  • Number of Ways:6
  • Contact Size:1.8mm (.070)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:3.5mm
  • Row Spacing:4.4mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:9A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$3.20
6-19$3.04
20-49$2.88
50-99$2.72
100+$2.56
Quantity:  Kit

10-Way Kit

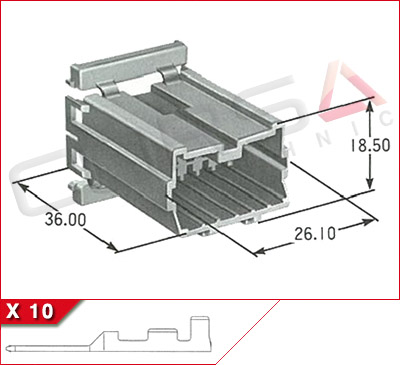

SDL-10P
10-Way Kit
OEM P/N: 7122-8307
SDL-10P  10-Way Kit
Kit Contents: Housing, 10 pin contacts

Mfr: OEM Yazaki
Series: SDL Series
OEM P/N: 7122-8307
Mating Part: SDL-10S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:10
  • Contact Size:1.8mm (.070)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:3.5mm
  • Row Spacing:4.4mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:9A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$4.91
6-19$4.66
20-49$4.42
50-99$4.17
100+$3.93
Quantity:  Kit

10-Way Kit

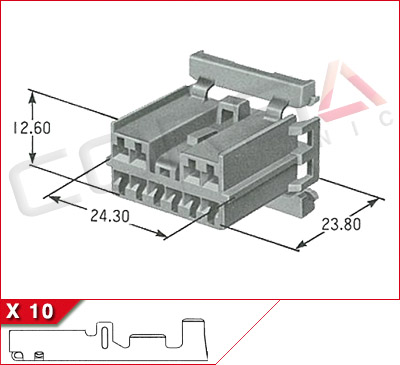

SDL-10S
10-Way Kit
OEM P/N: 7123-8307
SDL-10S  10-Way Kit
Kit Contents: Housing, 10 socket contacts

Mfr: OEM Yazaki
Series: SDL Series
OEM P/N: 7123-8307
Mating Part: SDL-10P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:10
  • Contact Size:1.8mm (.070)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:3.5mm
  • Row Spacing:4.4mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:9A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$4.95
6-19$4.70
20-49$4.46
50-99$4.21
100+$3.96
Quantity:  Kit

14-Way Kit
SDL-14S
14-Way Kit
OEM P/N: 7123-8346
SDL-14S  14-Way Kit
Kit Contents: Housing, 14 socket contacts

Mfr: OEM Yazaki
Series: SDL Series
OEM P/N: 7123-8346
Mating Part: 7122-8346

spacer
General
  • Sealing:Unsealed
  • Number of Ways:14
  • Contact Size:1.8mm (.070)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:3.5mm
  • Row Spacing:4.4mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:9A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$5.32
6-19$5.05
20-49$4.79
50-99$4.52
100+$4.26
Quantity:  Kit

SDL Series Pin Contact
SDL-PIN
SDL Series Pin Contact
SDL-PIN  SDL Series Pin Contact

Mfr: Yazaki
Series: SDL Series

Wire SizePlatingPart Number
SDL-PIN10.3-.85 mm2 (22-18 AWG)Tin7114-1470
-Gold7114-1470-08
SDL-PIN21.25-2.0 mm2 (16-14 AWG)Tin7114-1475
-Gold7114-1475-08
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:1.8mm (.070)
  • Wire Size:0.30 - 2.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:9A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-49$0.18
50-99$0.17
100-249$0.16
250-499$0.15
500-999$0.14
1000+$0.13
Quantity:  Ea

SDL Series Socket Contact
SDL-SKT
SDL Series Socket Contact
SDL-SKT  SDL Series Socket Contact

Mfr: Yazaki
Series: SDL Series

Wire SizePlatingPart Number
SDL-SKT10.3-.85 mm2 (22-18 AWG)Tin7116-1473
-Gold7116-1473-08
SDL-SKT21.25-2.0 mm2 (16-14 AWG)Tin7116-1474
-Gold7116-1474-08
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:1.8mm (.070)
  • Wire Size:0.30 - 2.00 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:9A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-49$0.13
50-99$0.12
100-249$0.11
250-499$0.10
500-999$0.09
1000+$0.08
Quantity:  Ea

Yazaki Connector Clamp (5x10mm hole)
CLIP-106
Yazaki Connector Clamp (5x10mm hole)
CLIP-106  Yazaki Connector Clamp (5x10mm hole)

Mfr: Aftermarket Yazaki
Series: SDL, SSD, SWP
For 5 x 10mm hole with 0.7-1.6mm thickness

spacer

spacer
spacer
QtyPrice
1-5$0.33
6-19$0.31
20-49$0.30
50-99$0.28
100+$0.26
Quantity:  Ea

Yazaki Connector Clamp (7mm hole)
CLIP-107
Yazaki Connector Clamp (7mm hole)
CLIP-107  Yazaki Connector Clamp (7mm hole)

Mfr: Aftermarket Yazaki
Series: SDL, SSD, SWP
For 7mm dia, hole with 0.7-1.6mm thickness

spacer

spacer
spacer
QtyPrice
1-5$0.33
6-19$0.31
20-49$0.30
50-99$0.28
100+$0.26
Quantity:  Ea

Yazaki Connector Clamp (9mm hole)
CLIP-108
Yazaki Connector Clamp (9mm hole)
OEM P/N: 7147-4065
CLIP-108  Yazaki Connector Clamp (9mm hole)

Mfr: Aftermarket Yazaki
Series: 91 A-Type, 91 Hybrid, 91 NS, 91 RK Series, 91 TK, SDL, SSD, SWP, compatible with Sumitomo 91 A-Type, TE Multilock 040 Series
OEM P/N: 7147-4065
For 9.0mm dia. hole with 1-4.9 mm thickness

spacer
spacer
spacer
QtyPrice
1-5$0.33
6-19$0.31
20-49$0.30
50-99$0.28
100+$0.26
Quantity:  Ea

Yazaki Connector Clamp (9mm hole)
CLIP-115
Yazaki Connector Clamp (9mm hole)
OEM P/N: 7147-4066
CLIP-115  Yazaki Connector Clamp (9mm hole)

Mfr: OEM Yazaki
Series: 91 A-Type, 91 Hybrid, 91 NS, 91 RK Series, 91 TK, SDL, SSD, SWP, compatible with Sumitomo 91 A-Type, TE Multilock 040 Series
OEM P/N: 7147-4066
For 9.0mm dia. hole with 5-8.4 mm thickness

spacer
spacer
spacer
QtyPrice
1-5$0.68
6-19$0.65
20-49$0.61
50-99$0.58
100+$0.54
Quantity:  Ea

Yazaki Connector Clamp (6.5mm hole)
CLIP-204
Yazaki Connector Clamp (6.5mm hole)
OEM P/N: 7147-9091
CLIP-204  Yazaki Connector Clamp (6.5mm hole)

Mfr: OEM Yazaki
Series: 91 A-Type, 91 Hybrid, 91 NS, 91 RK Series, 91 TK, SDL, SSD, SWP, compatible with Sumitomo 91 A-Type, TE Multilock 040 Series
OEM P/N: 7147-9091
For 6.5mm dia. hole with .56-5.1mm thickness

spacer
spacer
spacer
QtyPrice
1-5$0.64
6-19$0.61
20-49$0.58
50-99$0.54
100+$0.51
