SSD-Series

2-Way Kit
SSD-2S
2-Way Kit
OEM P/N: 7283-8720-30
SSD-2S  2-Way Kit
Kit Contents: Housing, 2 socket contacts for 22-18 AWG wire, 2 seals, rear lock

Mfr: OEM Yazaki
Series: SSD Series
OEM P/N: 7283-8720-30
Mating Part: 7182-8720-30

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:1.2mm (.047)
  • Wire Size:0.30 - 0.85 mm2
  • Number of Rows:1
  • Pitch:4.1mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:5A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$4.01
6-19$3.81
20-49$3.61
50-99$3.41
100+$3.21
Quantity:  Kit

3-Way Kit
SSD-3P-1
3-Way Kit
OEM P/N: 7182-8730-30
SSD-3P-1  3-Way Kit
Kit Contents: Housing, 3 pin contacts for 22-18 AWG wire, 3 seals, rear lock

Mfr: OEM Yazaki
Series: SSD Series
OEM P/N: 7182-8730-30
Mating Part: SSD-3S-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:1.2mm (.047)
  • Wire Size:0.30 - 0.85 mm2
  • Number of Rows:1
  • Pitch:4.1mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:5A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Miata CMP
  • GSXR1000 K4,K5 TPS
spacer
QtyPrice
1-5$3.11
6-19$2.95
20-49$2.80
50-99$2.64
100+$2.49
Quantity:  Kit

3-Way Kit
SSD-3S-1
3-Way Kit
OEM P/N: 7283-8730-30
SSD-3S-1  3-Way Kit
Kit Contents: Housing, 3 socket contacts for 22-18 AWG wire, 3 seals, rear lock

Mfr: OEM Yazaki
Series: SSD Series
OEM P/N: 7283-8730-30
Mating Part: SSD-3P-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:1.2mm (.047)
  • Wire Size:0.30 - 0.85 mm2
  • Number of Rows:1
  • Pitch:4.1mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:5A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Miata CMP
  • GSXR1000 K4,K5,K8 TPS
spacer
  • KTM 000700000EX
QtyPrice
1-5$4.34
6-19$4.12
20-49$3.91
50-99$3.69
100-499$3.47
500-999$3.25
1000+$3.04
Quantity:  Kit

3-Way Kit
SSD-3S-2
3-Way Kit
OEM P/N: 7283-8732-40
SSD-3S-2  3-Way Kit
Kit Contents: Housing, rear lock, 3 socket contacts for 22-18 AWG wire, 3 seals

Mfr: OEM Yazaki
Series: SSD Series
OEM P/N: 7283-8732-40
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:1.2mm (.047)
  • Wire Size:0.30 - 0.85 mm2
  • Number of Rows:1
  • Pitch:4.1mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:5A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
Price: $5.79
Quantity:  Kit

SSD Series Pin Contact
SSD-PIN
SSD Series Pin Contact
SSD-PIN  SSD Series Pin Contact

Mfr: Yazaki
Series: SSD Series

Wire SizePlatingPart Number
SSD-PIN0.3-.85 mm2 (22-18 AWG)Tin7114-1680-02
-Gold7114-1680-08
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:1.2mm (.047)
  • Wire Size:0.30 - 0.85 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:5A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-49$0.16
50-99$0.15
100-249$0.14
250-499$0.13
500-999$0.12
1000+$0.11
Quantity:  Ea

SSD Series Socket Contact
SSD-SKT
SSD Series Socket Contact
SSD-SKT  SSD Series Socket Contact

Mfr: Yazaki
Series: SSD Series

Wire SizePlatingPart Number
SSD-SKT0.3-.85 mm2 (22-18 AWG)Tin7116-1680-02
-Gold7116-1680-08
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:1.2mm (.047)
  • Wire Size:0.30 - 0.85 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:5A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-49$0.16
50-99$0.15
100-249$0.14
250-499$0.13
500-999$0.12
1000-2499$0.11
2500+$0.10
Quantity:  Ea

SSD Series Seal Plug
SSD-PG
SSD Series Seal Plug
OEM P/N: 7157-3952-80
SSD-PG  SSD Series Seal Plug

Mfr: Aftermarket Yazaki
Series: SSD Series
OEM P/N: 7157-3952-80

spacer

spacer
spacer
QtyPrice
1-49$0.15
50-99$0.14
100-249$0.13
250-499$0.12
500+$0.10
Quantity:  Ea

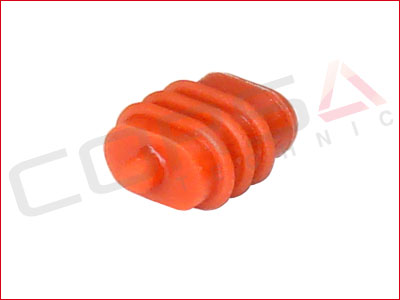

SSD Series Seals
SSD-SL
SSD Series Seals
SSD-SL  SSD Series Seals

Mfr: Yazaki
Series: SSD Series

Wire Insulation Dia.ColorPart Number
SSD-SL11.4-1.7 mm (.055-.067 in)Orange7157-3950-80
SSD-SL21.8-2.1 mm (.071-.083 in)Green7157-3951-60
Available stock: Aftermarket OEM

spacer

spacer
spacer
QtyPrice
1-49$0.23
50-99$0.22
100-249$0.21
250-499$0.20
500-999$0.19
1000-2499$0.18
2500-4999$0.17
5000+$0.16
Quantity:  Ea

Yazaki Connector Clamp (5x10mm hole)
CLIP-106
Yazaki Connector Clamp (5x10mm hole)
CLIP-106  Yazaki Connector Clamp (5x10mm hole)

Mfr: Aftermarket Yazaki
Series: SDL, SSD, SWP
For 5 x 10mm hole with 0.7-1.6mm thickness

spacer

spacer
spacer
QtyPrice
1-5$0.33
6-19$0.31
20-49$0.30
50-99$0.28
100+$0.26
Quantity:  Ea

Yazaki Connector Clamp (7mm hole)
CLIP-107
Yazaki Connector Clamp (7mm hole)
CLIP-107  Yazaki Connector Clamp (7mm hole)

Mfr: Aftermarket Yazaki
Series: SDL, SSD, SWP
For 7mm dia, hole with 0.7-1.6mm thickness

spacer

spacer
spacer
QtyPrice
1-5$0.33
6-19$0.31
20-49$0.30
50-99$0.28
100+$0.26
Quantity:  Ea

Yazaki Connector Clamp (9mm hole)
CLIP-108
Yazaki Connector Clamp (9mm hole)
OEM P/N: 7147-4065
CLIP-108  Yazaki Connector Clamp (9mm hole)

Mfr: Aftermarket Yazaki
Series: 91 A-Type, 91 Hybrid, 91 NS, 91 RK Series, 91 TK, SDL, SSD, SWP, compatible with Sumitomo 91 A-Type, TE Multilock 040 Series
OEM P/N: 7147-4065
For 9.0mm dia. hole with 1-4.9 mm thickness

spacer
spacer
spacer
QtyPrice
1-5$0.33
6-19$0.31
20-49$0.30
50-99$0.28
100+$0.26
Quantity:  Ea

Yazaki Connector Clamp (9mm hole)
CLIP-115
Yazaki Connector Clamp (9mm hole)
OEM P/N: 7147-4066
CLIP-115  Yazaki Connector Clamp (9mm hole)

Mfr: OEM Yazaki
Series: 91 A-Type, 91 Hybrid, 91 NS, 91 RK Series, 91 TK, SDL, SSD, SWP, compatible with Sumitomo 91 A-Type, TE Multilock 040 Series
OEM P/N: 7147-4066
For 9.0mm dia. hole with 5-8.4 mm thickness

spacer
spacer
spacer
QtyPrice
1-5$0.68
6-19$0.65
20-49$0.61
50-99$0.58
100+$0.54
Quantity:  Ea

Yazaki Connector Clamp (6.5mm hole)
CLIP-204
Yazaki Connector Clamp (6.5mm hole)
OEM P/N: 7147-9091
CLIP-204  Yazaki Connector Clamp (6.5mm hole)

Mfr: OEM Yazaki
Series: 91 A-Type, 91 Hybrid, 91 NS, 91 RK Series, 91 TK, SDL, SSD, SWP, compatible with Sumitomo 91 A-Type, TE Multilock 040 Series
OEM P/N: 7147-9091
For 6.5mm dia. hole with .56-5.1mm thickness

spacer
spacer
spacer
QtyPrice
1-5$0.64
6-19$0.61
20-49$0.58
50-99$0.54
100+$0.51
Quantity:  Ea
