RS Series - Type E-RS (old 91 series)

4-Way Kit
GEN090-4P-1
4-Way Kit
GEN090-4P-1  4-Way Kit
Kit Contents: Housing, 4 pin contacts, 4 seals

Mfr: Aftermarket, Sumitomo does not make an actual part.
Series: DL 090 Sealed Series, RS Series - Type E-RS
Mating Part: 62E-4S-1, DL090-4S-2, RS.E-4S-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$3.45
6-19$3.28
20-49$3.10
50-99$2.93
100+$2.76
Quantity:  Kit

2-Way Kit
RS.E-2S-1
2-Way Kit
OEM P/N: 6189-0772 grey
RS.E-2S-1  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals, front lock

Mfr: OEM Sumitomo
Series: RS Series - Type E-RS (previously called 91 series)
OEM P/N: 6189-0772 grey
Part Name: E02FGY-RS
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:19A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Nissan/Bosch J-48817-122 pigtail connector
  • Nissan service part 24008-9DM5B connector
QtyPrice
1-5$3.63
6-19$3.45
20-49$3.27
50-99$3.09
100+$2.90
Quantity:  Kit

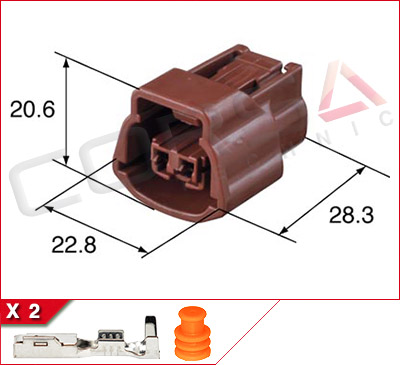

2-Way Kit
RS.E-2S-3
2-Way Kit
OEM P/N: 6189-0774 brown (in stock)
6189-1093 grey
RS.E-2S-3  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals, front lock

Mfr: OEM Sumitomo
Series: RS Series - Type E-RS (previously called 91 series)
OEM P/N: 6189-0774 brown (in stock)
6189-1093 grey
Part Name: E02FBR-RS
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:19A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$4.50
6-19$4.28
20-49$4.05
50-99$3.83
100+$3.60
Quantity:  Kit

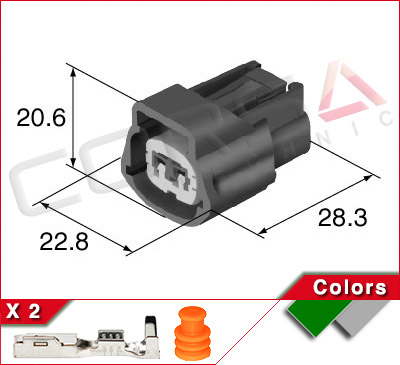

2-Way Kit
RS.E-2S-4
2-Way Kit
OEM P/N: 6189-0775 green
6189-1094 grey
RS.E-2S-4  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals, front lock

Mfr: OEM Sumitomo
Series: RS Series - Type E-RS (previously called 91 series)
OEM P/N: 6189-0775 green
6189-1094 grey
Part Name: E02FG-RS
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:19A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Nissan/Bosch J-48817-182 pigtail connector
  • Nissan service part 24008-9DN6D connector
QtyPrice
1-5$3.93
6-19$3.73
20-49$3.54
50-99$3.34
100+$3.14
Quantity:  Kit

2-Way Kit
RS.E-2S-6
2-Way Kit
OEM P/N: 6189-0777 blue
6189-1096 grey (IN STOCK)
RS.E-2S-6  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals, front lock

Mfr: OEM Sumitomo
Series: RS Series - Type E-RS (previously called 91 series)
OEM P/N: 6189-0777 blue
6189-1096 grey (IN STOCK)
Part Name: E02FL-RS
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:19A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Nissan/Bosch J-48817-183 (blue), J-48817-184 (light grey) pigtail connector
  • Nissan service part 24008-9DN6E (blue), 24008-9DN7A (light gray) connector
QtyPrice
1-5$4.41
6-19$4.19
20-49$3.97
50-99$3.75
100+$3.53
Quantity:  Kit

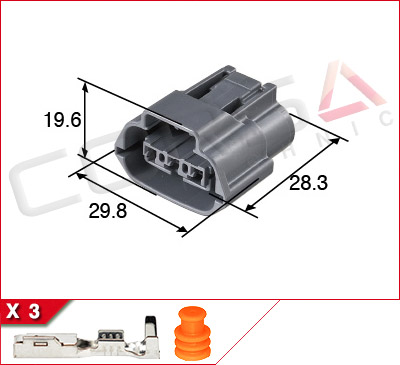

3-Way Kit
RS.E-3S-1
3-Way Kit
OEM P/N: 6189-7471 (ss: 6189-0779)
RS.E-3S-1  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals, front lock

Mfr: OEM Sumitomo
Series: RS Series - Type E-RS (previously called 91 series)
OEM P/N: 6189-7471 (ss: 6189-0779)
Part Name: E03FGY-RS
Mating Part: N/A
Supersedes 62E-3S-1 per Sumitomo

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:19A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Bosch/Nissan J-48817-102 pigtail connector
  • Nissan service part 24008-9DM2B connector
QtyPrice
1-5$3.53
6-19$3.35
20-49$3.18
50-99$3.00
100+$2.82
Quantity:  Kit

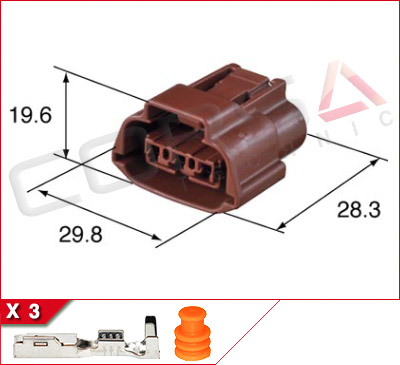

3-Way Kit
RS.E-3S-2
3-Way Kit
OEM P/N: Brown: 6189-7710 (ss: 6189-0780) IN STOCK
Black: 6189-7711 (ss: 6189-1098)
RS.E-3S-2  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals, front lock

Mfr: OEM Sumitomo
Series: RS Series - Type E-RS (previously called 91 series)
OEM P/N: Brown: 6189-7710 (ss: 6189-0780) IN STOCK
Black: 6189-7711 (ss: 6189-1098)
Part Name: E03FBR-RS
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:19A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$3.28
6-19$3.12
20-49$2.95
50-99$2.79
100+$2.62
Quantity:  Kit

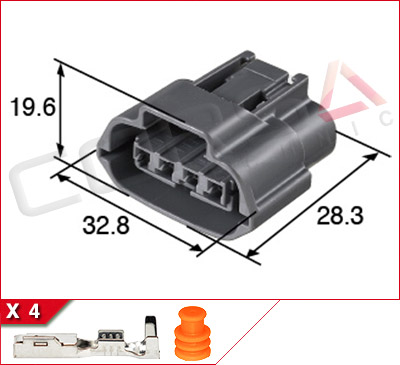

4-Way Kit
RS.E-4S-1
4-Way Kit
OEM P/N: 6189-7469 (ss: 6189-0781) IN STOCK
RS.E-4S-1  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals, front lock

Mfr: OEM Sumitomo
Series: RS Series - Type E-RS (previously called 91 series)
OEM P/N: 6189-7469 (ss: 6189-0781) IN STOCK
Part Name: E04FGY-RS
Mating Part: N/A, but an aftermarket part exists. GEN090-4P-1
Supersedes 62E-4S-1 per Sumitomo

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:19A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Nissan/Bosch J-48817-1118 pigtail connector
  • Nissan service part 24008-9DK2D connector
QtyPrice
1-5$4.07
6-19$3.87
20-49$3.66
50-99$3.46
100-499$3.26
500-999$3.05
1000+$2.85
Quantity:  Kit

RS Series Pin Contact
RS-PIN
RS Series Pin Contact
RS-PIN  RS Series Pin Contact

Mfr: Furukawa, Sumitomo
Series: Furukawa: RS Series
Sumitomo: RS Series - Standard Type 1 (previously called 91 series), RS Series - Standard Type 2, RS Series - Type E-RS

Wire SizePlatingFurukawaSumitomo
RS-PIN10.3-0.5 mm2 (22-20 AWG)TinMT091-760508100-3803
-GoldMT091-760608100-3805
RS-PIN20.85-1.25 mm2 (18-16 AWG)TinMT091-762508100-3804
-GoldMT091-762608100-3806
RS-PIN32.0 mm2 (14 AWG)TinN/A8100-4172
-GoldN/A8100-4173
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:19A
  • Voltage Rating:14V
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Nissan/Bosch J-48817-209 repair wire terminal
QtyPrice
1-49$0.19
50-99$0.18
100-249$0.17
250-499$0.16
500-999$0.15
1000-2400$0.14
2500-4999$0.13
5000-9999$0.12
10000+$0.11
Quantity:  Ea

RS Series Socket Contact
RS-SKT
RS Series Socket Contact
RS-SKT  RS Series Socket Contact

Mfr: Furukawa, Sumitomo
Series: Furukawa: RS Series
Sumitomo: RS Series - Standard Type 1 (previously called 91 series), RS Series - Standard Type 2, RS Series - Type E-RS

Wire SizePlatingFurukawaSumitomo
RS-SKT10.3-0.5 mm2 (22-20 AWG)TinMT095-760508240-0263
-GoldMT095-760608240-0266
RS-SKT20.85-1.25 mm2 (18-16 AWG)TinMT095-762508240-0264
-GoldMT095-762608240-0267
RS-SKT32.0 mm2 (14 AWG)TinN/A8240-0265
-GoldN/A8240-0268
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:19A
  • Voltage Rating:14V
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Nissan/Bosch J-48817-202, J-48817-206, J-48817-213 repair wire terminal
QtyPrice
1-49$0.18
50-99$0.17
100-249$0.16
250-499$0.15
500-999$0.14
1000-2499$0.13
2500-4999$0.12
5000-9999$0.11
10000+$0.10
Quantity:  Ea

RS Series Seals
RS-PG
RS Series Seals
OEM P/N: 7165-1131
RS-PG  RS Series Seals

Mfr: Furukawa, Sumitomo
Series: Furukawa: RS Series
Sumitomo: RS Series - Standard Type 1 (previously called 91 series), RS Series - Standard Type 2, RS Series - Type E-RS
OEM P/N: 7165-1131
Part Name: RSE-DMY-N

spacer
General
  • Sealing:Single Wire Sealed
Mechanical
  • Seal Material:Silicone Rubber
Environmental
  • Temp Range[2]:-40 - 120 °C
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-49$0.25
50-99$0.24
100-249$0.23
250-499$0.20
500+$0.17
Quantity:  Ea

RS Series Seals
RS-SL
RS Series Seals
RS-SL  RS Series Seals

Mfr: Furukawa, Sumitomo
Series: Furukawa: RS Series
Sumitomo: RS Series - Standard Type 1 (previously called 91 series), RS Series - Standard Type 2, RS Series - Type E-RS

Wire Insulation Dia.ColorFurukawaSumitomo
RS-SL11.0-1.4 mm (.039-.055 in)OrangeRS610-011007165-0474
RS-SL21.5-1.9 mm (.059-.075 in)Light blueRS610-021007165-0473
RS-SL32.0-2.4 mm (.079-.094 in)VioletRS610-031007165-0472
RS-SL42.5-2.9 mm (.098-.114 in)Light greenRS610-041007165-0471
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.3mm (.090)
Mechanical
  • Seal Material:Silicone Rubber
Environmental
  • Temp Range[2]:-40 - 120 °C
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-49$0.16
50-99$0.15
100-249$0.14
250-499$0.13
500-999$0.12
1000-2499$0.11
2500-4999$0.10
5000-9999$0.09
10000+$0.08
Quantity:  Ea


Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2024 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1
R7A4
R7A3
R7A2
