DL 090 Sealed Series

1-Way Kit
DL090-1S
1-Way Kit
OEM P/N: 6195-0066
DL090-1S  1-Way Kit
Kit Contents: Housing, 1 socket contact, 1 seal

Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0066
Part Name: W-DL09F/S1AY-GR
Mating Part: 6195-0240

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$3.54
6-19$3.36
20-49$3.19
50-99$3.01
100+$2.83
Quantity:  Kit

2-Way Kit

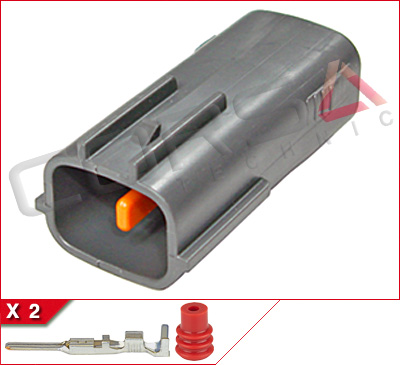

DL090-2P-1
2-Way Kit
OEM P/N: 6195-0006
DL090-2P-1  2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals

Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0006
Part Name: DL09ASY2M-GR
Mating Part: DL090-2S-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA6T
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$3.36
6-19$3.19
20-49$3.02
50-99$2.86
100+$2.69
Quantity:  Kit

2-Way Kit
DL090-2P-2
2-Way Kit
DL090-2P-2  2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals

Mfr: Aftermarket. Sumitomo does not make an actual part.
Series: DL 090 Sealed Series
Mating Part: DL090-2S-2

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$2.78
6-19$2.64
20-49$2.50
50-99$2.36
100-249$2.22
250-499$2.08
500-999$1.95
1000+$1.81
Quantity:  Kit

2-Way Kit

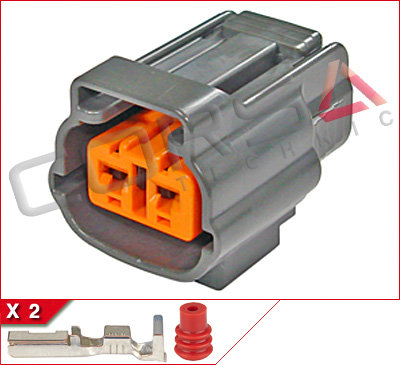

DL090-2S-1
2-Way Kit
OEM P/N: 6195-0003 Gray
6195-0076 Natural
DL090-2S-1  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0003 Gray
6195-0076 Natural
Part Name: DL09ASY2F
Mating Part: DL090-2P-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA6T
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Ford 3U2Z-14S411-ZUB, WPT-1210 (Tin plated terminals, greased) pigtail connector (Gray)
  • Ford 98AG-14A464-YBA (Gray)
QtyPrice
1-5$3.29
6-19$3.13
20-49$2.96
50-99$2.80
100-249$2.63
250-499$2.47
500+$2.30
Quantity:  Kit

2-Way Kit
DL090-2S-2
2-Way Kit
OEM P/N: 6195-0043 w/o bottom tabs (alt p/n: 6195-0041 with injector anti-rotation tabs on bottom)
DL090-2S-2  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0043 w/o bottom tabs (alt p/n: 6195-0041 with injector anti-rotation tabs on bottom)
Part Name: W-DL09INJ2AY-GR
Mating Part: DL090-2P-2

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$5.64
6-19$5.36
20-49$5.08
50-99$4.79
100+$4.51
Quantity:  Kit

2-Way Kit

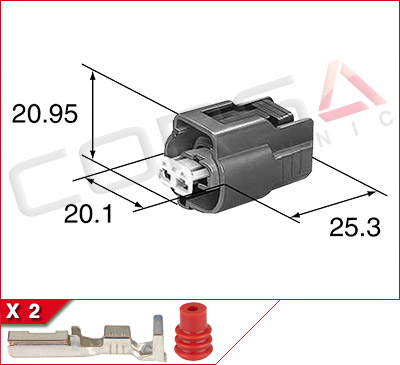

DL090-2S-4
2-Way Kit
OEM P/N: 6195-0062
DL090-2S-4  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0062
Part Name: W-DL09ISC2AY-B
Mating Part: Device only, but TS090-2P-1 is compatible

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$3.72
6-19$3.53
20-49$3.35
50-99$3.16
100+$2.98
Quantity:  Kit

2-Way Kit

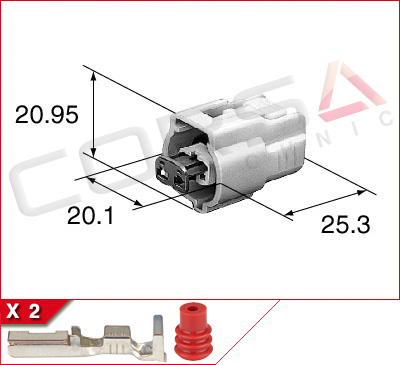

DL090-2S-5
2-Way Kit
OEM P/N: 6195-0064
DL090-2S-5  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0064
Mating Part: Device only, but TS090-2P-2 is compatible

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$4.17
6-19$3.96
20-49$3.75
50-99$3.54
100+$3.34
Quantity:  Kit

3-Way Kit

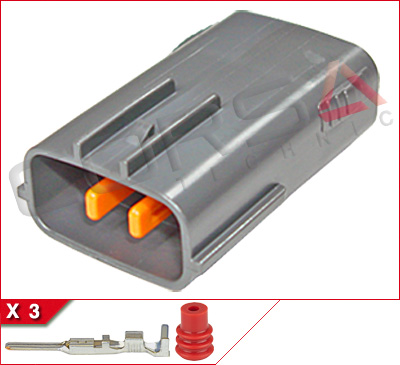

DL090-3P
3-Way Kit
OEM P/N: 6195-0012
DL090-3P  3-Way Kit
Kit Contents: Housing, 3 pin contacts, 3 seals

Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0012
Part Name: DL09ASY3M-GR
Mating Part: DL090-3S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA6T
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$3.52
6-19$3.34
20-49$3.17
50-99$2.99
100+$2.82
Quantity:  Kit

3-Way Kit

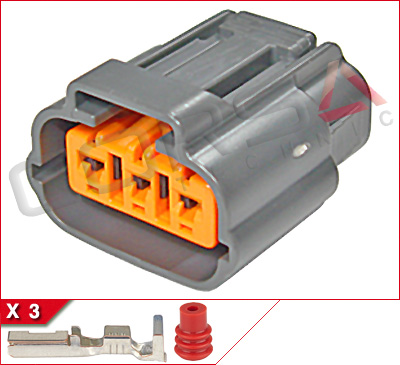

DL090-3S
3-Way Kit
OEM P/N: 6195-0009
DL090-3S  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals

Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0009
Part Name: DL09ASY3F-GR
Mating Part: DL090-3P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA6T
  • Seal Material:NBR
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$3.77
6-19$3.58
20-49$3.39
50-99$3.20
100+$3.02
Quantity:  Kit

4-Way Kit
DL090-4P-1
4-Way Kit
OEM P/N: 6195-0018
DL090-4P-1  4-Way Kit
Kit Contents: Housing, 4 pin contacts, 4 seals

Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0018
Mating Part: DL090-4S-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Row Spacing:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA6T
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$3.97
6-19$3.77
20-49$3.57
50-99$3.37
100+$3.18
Quantity:  Kit

4-Way Kit
DL090-4S-1
4-Way Kit
OEM P/N: 6195-0015
DL090-4S-1  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals

Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0015
Mating Part: DL090-4P-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Row Spacing:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA6T
  • Seal Material:NBR
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$5.08
6-19$4.83
20-49$4.57
50-99$4.32
100+$4.06
Quantity:  Kit

4-Way Kit
DL090-4S-2
4-Way Kit
OEM P/N: 6195-0030
DL090-4S-2  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals

Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0030
Mating Part: N/A, but an aftermarket part exists. GEN090-4P-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Miata igniter (harness side)
  • Miata cam sensor, CAS (harness side)
spacer
QtyPrice
1-5$4.73
6-19$4.49
20-49$4.26
50-99$4.02
100+$3.78
Quantity:  Kit

4-Way Kit
DL090-4S-3
4-Way Kit
OEM P/N: 6195-0315
DL090-4S-3  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals

Mfr: Aftermarket Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0315
Part Name: WDL9F/P-4F AY-DH
Mating Part: N/A, device only

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:8.0mm
  • Row Spacing:11.2mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$4.15
6-19$3.94
20-49$3.74
50-99$3.53
100+$3.32
Quantity:  Kit

4-Way Kit
DL090-4S-4
4-Way Kit
OEM P/N: 6195-0032
DL090-4S-4  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals

Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0032
Part Name: DL09F/P4AY-NA
Mating Part: N/A, device only

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:5.5mm
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$6.07
6-19$5.77
20-49$5.46
50-99$5.16
100+$4.86
Quantity:  Kit

4-Way Kit
DL090-4S-5
4-Way Kit
OEM P/N: 6195-0305
DL090-4S-5  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals

Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0305
Part Name: F/P-WDL9-4FA-P8
Mating Part: N/A, device only

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:8.0mm
  • Row Spacing:11.2mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$6.67
6-19$6.34
20-49$6.00
50-99$5.67
100+$5.34
Quantity:  Kit

6-Way Kit
DL090-6P
6-Way Kit
OEM P/N: 6195-0024
DL090-6P  6-Way Kit
Kit Contents: Housing, 6 pin contacts, 6 seals

Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0024
Mating Part: DL090-6S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:6
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Row Spacing:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA6T
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
Price: $5.75
Quantity:  Kit

6-Way Kit
DL090-6S
6-Way Kit
OEM P/N: 6195-0021
DL090-6S  6-Way Kit
Kit Contents: Housing, 6 socket contacts, 6 seals

Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0021
Mating Part: DL090-6P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:6
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Row Spacing:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA6T
  • Seal Material:NBR
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Ford 3U2Z-14S411-BGAB, WPT-1115 (Tin plated terminals, greased) pigtail connector
QtyPrice
1-5$4.21
6-19$4.00
20-49$3.79
50-99$3.58
100-249$3.37
250-499$3.16
500+$2.95
Quantity:  Kit

8-Way Kit
DL090-8P-1
8-Way Kit
OEM P/N: 6195-0054
DL090-8P-1  8-Way Kit
Kit Contents: Housing, 8 pin contacts, 8 seals

Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0054
Mating Part: DL090-8S-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:8
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:5.0mm
  • Row Spacing:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA6T
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$4.78
6-19$4.54
20-49$4.30
50-99$4.06
100-249$3.82
250-499$3.58
500-999$3.35
1000+$3.11
Quantity:  Kit

8-Way Kit
DL090-8P-2
8-Way Kit
DL090-8P-2  8-Way Kit
Kit Contents: Housing, 8 pin contacts, 8 seals

Mfr: Aftermarket. Sumitomo does not make an actual part.
Series: DL 090 Sealed Series
Mating Part: DL090-8S-2

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:8
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT+GF
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$4.87
6-19$4.63
20-49$4.38
50-99$4.14
100+$3.90
Quantity:  Kit

8-Way Kit

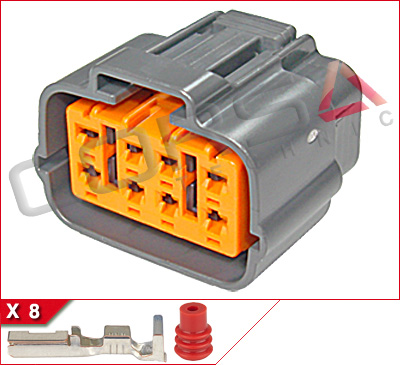

DL090-8S-1
8-Way Kit
OEM P/N: 6195-0051
DL090-8S-1  8-Way Kit
Kit Contents: Housing, 8 socket contacts, 8 seals

Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0051
Mating Part: DL090-8P-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:8
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:5.0mm
  • Row Spacing:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA6T
  • Seal Material:NBR
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$5.44
6-19$5.17
20-49$4.90
50-99$4.62
100-249$4.35
250-499$4.08
500-999$3.81
1000+$3.54
Quantity:  Kit

8-Way Kit
DL090-8S-2
8-Way Kit
OEM P/N: 6195-0038
DL090-8S-2  8-Way Kit
Kit Contents: Housing, 8 socket contacts, 8 seals

Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0038
Part Name: W-DL09IGN8AY-GR
Mating Part: Device only, but aftermarket DL090-8P-2 available.

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:8
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$5.78
6-19$5.49
20-49$5.20
50-99$4.91
100+$4.62
Quantity:  Kit

4-Way Kit
GEN090-4P-1
4-Way Kit
GEN090-4P-1  4-Way Kit
Kit Contents: Housing, 4 pin contacts, 4 seals

Mfr: Aftermarket, Sumitomo does not make an actual part.
Series: DL 090 Sealed Series, RS Series - Type E-RS
Mating Part: 62E-4S-1, DL090-4S-2, RS.E-4S-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$3.45
6-19$3.28
20-49$3.10
50-99$2.93
100+$2.76
Quantity:  Kit

16-Way Kit

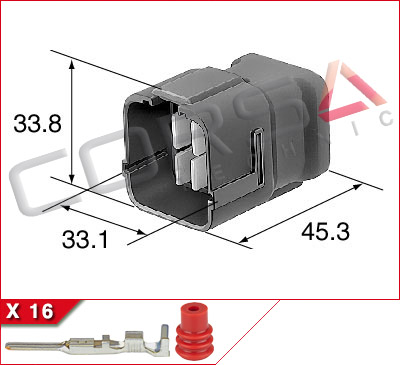

DL090-16P
16-Way Kit
OEM P/N: 6188-0495
DL090-16P  16-Way Kit
Kit Contents: Housing, 16 pin contacts, 16 seals

Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6188-0495
Part Name: W-DL09AY16M-DGR
Mating Part: DL090-16S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:16
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:4
  • Pitch:Multiple
  • Row Spacing:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • KTM 000700000CQ
QtyPrice
1-5$9.72
6-19$9.23
20-49$8.75
50-99$8.26
100+$7.78
Quantity:  Kit

16-Way Kit

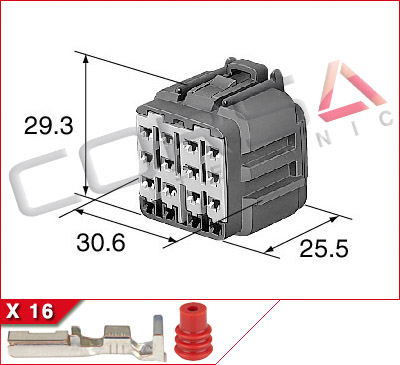

DL090-16S
16-Way Kit
OEM P/N: 6189-0715
DL090-16S  16-Way Kit
Kit Contents: Housing, 16 socket contacts, 16 seals

Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6189-0715
Part Name: W-DL09AY16F-DGR
Mating Part: DL090-16P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:16
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:4
  • Pitch:Multiple
  • Row Spacing:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • KTM 000700000CP
QtyPrice
1-5$8.66
6-19$8.23
20-49$7.79
50-99$7.36
100+$6.93
Quantity:  Kit

HX, DL, SL, TL Sealed Series pin contact
SUMI.B-PIN
HX, DL, SL, TL Sealed Series pin contact
SUMI.B-PIN  HX, DL, SL, TL Sealed Series pin contact

Mfr: Sumitomo
Series: HX 090, DL 090, SL 090, and TL 090 sealed series

Wire SizeFinishP/N:
SUMI.B-PIN1.3-.5 mm2 (22-20 AWG)Tin8230-4472
-Gold1500-0159
SUMI.B-PIN2.75-.85 mm2 (18 AWG)Tin8230-4562
-Gold1500-0169
SUMI.B-PIN31.25-2.0 mm2 (16-14 AWG)Tin8230-4552
-GoldN/A
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-49$0.19
50-99$0.18
100-249$0.17
250-499$0.16
500-999$0.15
1000-2499$0.14
2500+$0.13
Quantity:  Ea

HX, DL, SL, TL Sealed Series Socket Contact
SUMI.B-SKT
HX, DL, SL, TL Sealed Series Socket Contact
SUMI.B-SKT  HX, DL, SL, TL Sealed Series Socket Contact

Mfr: Sumitomo
Series: HX 090, DL 090, SL 090, and TL 090 sealed series

Wire SizeFinishP/N:
SUMI.B-SKT1.3-.5 mm2 (22-20 AWG)Tin8100-1427 (alt p/n: 8240-4862)
-Gold8100-1458
SUMI.B-SKT2.75-.85 mm2 (18 AWG)Tin8100-1429 (alt p/n: 8240-4992)
-Gold8100-1460
SUMI.B-SKT31.25-2.0 mm2 (16-14 AWG)Tin8100-1428 (alt p/n: 8240-4952)
-Gold8100-1459
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-49$0.18
50-99$0.17
100-249$0.16
250-499$0.15
500-999$0.14
1000-2499$0.13
2500-4999$0.12
5000-9999$0.11
10000+$0.10
Quantity:  Ea

DL HW MT SL TL TS Series Plug (P5)
SUMI-PG1
DL HW MT SL TL TS Series Plug (P5)
OEM P/N: 7161-9787
SUMI-PG1  DL HW MT SL TL TS Series Plug (P5)

Mfr: OEM Sumitomo
Series: DL 090 Sealed, HW Sealed, MT Sealed, SL 060 Sealed, SL 090 Sealed, TL Sealed, TS 090 Sealed
OEM P/N: 7161-9787
Part Name: SEAL DMY P5-BR
090 P5 plug, brown rubber
For 5mm pitch housings

spacer
General
  • Sealing:Single Wire Sealed
Mechanical
  • Seal Material:NBR

spacer
spacer
  • Toyota 90980-09229
QtyPrice
1-249$0.18
250-999$0.17
1000+$0.16
Quantity:  Ea

DL HX SL TL Series Plug (P5 and 1.5mm)
SUMI-PG4
DL HX SL TL Series Plug (P5 and 1.5mm)
OEM P/N: 7165-0193
SUMI-PG4  DL HX SL TL Series Plug (P5 and 1.5mm)

Mfr: OEM Sumitomo
Series: DL 090 Sealed, HX 060 Sealed, HX 090 Sealed, SL 060 Sealed, SL 090 Sealed, TL Sealed
OEM P/N: 7165-0193
Part Name: P5/SI-G
Plug, green silicone
For 090 5mm pitch, and 1.5mm (060) housings

spacer
General
  • Sealing:Single Wire Sealed
Mechanical
  • Seal Material:Silicone Rubber

spacer
spacer
QtyPrice
1-99$0.25
100-499$0.24
500-999$0.23
1000-2499$0.22
2500-4999$0.21
5000+$0.20
Quantity:  Ea

DL 090 Sealed Series Seals
SUMI-SL
DL 090 Sealed Series Seals
SUMI-SL  DL 090 Sealed Series Seals

Mfr: Aftermarket/OEM Sumitomo
Series: DL 090 Sealed Series, and used in HX 090 Fuel Pump Series.

Wire Insulation Dia.ColorPart Number
SUMI-SL41.10-1.50 mm (.043-.059 in)Red7165-0210
SUMI-SL51.70-2.40 mm (.067-.094 in)Blue7165-0118
SUMI-SL62.10-2.90 mm (.083-.114 in)Brown7165-0119
Available stock: Aftermarket OEM

spacer

spacer
spacer
QtyPrice
1-49$0.20
50-99$0.19
100-249$0.18
250-499$0.17
500-999$0.16
1000-2499$0.15
2500+$0.14
Quantity:  Ea

Sumitomo Connector Clamp
CLIP-118
Sumitomo Connector Clamp
OEM P/N: 6810-1584
CLIP-118  Sumitomo Connector Clamp

Mfr: OEM Sumitomo
Series: DL 090 sealed, SL 060 sealed, SL 090 sealed, SL 312 sealed
OEM P/N: 6810-1584
For 7.2 x 10.2mm hole with 0.7-2.0mm thickness

spacer

spacer
spacer
QtyPrice
1-5$0.76
6-19$0.72
20-49$0.68
50-99$0.65
100+$0.61
Quantity:  Ea

Rennsteig PEW 12 Die Set for Sumitomo 2.3mm (090) sealed socket terminal
TOOL-CDIE29
Rennsteig PEW 12 Die Set for Sumitomo 2.3mm (090) sealed socket terminal
OEM P/N: 624 1662 3 01 RT
TOOL-CDIE29  Rennsteig PEW 12 Die Set for Sumitomo 2.3mm (090) sealed socket terminal
Kit Contents: Crimp die set, locator

OEM P/N: 624 1662 3 01 RT

Compatibility
P/NWire SizePlatingSumitomo P/N
✗SUMI.B-SKT1.3-.5 mm2 (22-20 AWG)Tin8100-1427 (alt p/n: 8240-4862)
Gold8100-1458
✗SUMI.B-SKT2.75-.85 mm2 (18 AWG)Tin8100-1429 (alt p/n: 8240-4992)
Gold8100-1460
✓SUMI.B-SKT31.25-2.0 mm2 (16-14 AWG)Tin8100-1428 (alt p/n: 8240-4952)
Gold8100-1459

spacer
spacer
spacer
1x - in stock.
Price: $358.01
Quantity:  Ea
