Home ▹ Connectors ▹ By Manufacturer ▹ Sumitomo ▹ HX 060 Sealed Series

HX 060 Sealed Series

2-Way Kit
HX060-2P
2-Way Kit
OEM P/N: 6181-6851
HX060-2P  2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals

Mfr: OEM Sumitomo
Series: HX 060 Sealed
OEM P/N: 6181-6851
Part Name: HX06-2M-B
Mating Part: HX060-2S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:1.5mm (.060)
  • Wire Size:0.13 - 2.00 mm2
  • Number of Rows:1
  • Pitch:4.6mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:12A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$3.03
6-19$2.88
20-49$2.73
50-99$2.58
100+$2.42
Quantity:  Kit

2-Way Kit
HX060-2S
2-Way Kit
OEM P/N: 6189-7408
HX060-2S  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Sumitomo
Series: HX 060 Sealed
OEM P/N: 6189-7408
Part Name: HX06-2F-B
Mating Part: HX060-2P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:1.5mm (.060)
  • Wire Size:0.13 - 2.00 mm2
  • Number of Rows:1
  • Pitch:4.6mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:12A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$2.77
6-19$2.63
20-49$2.49
50-99$2.35
100-249$2.22
250-499$2.08
500+$1.94
Quantity:  Kit

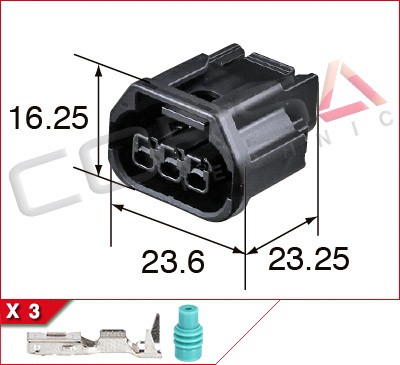

3-Way Kit
HX060-3S
3-Way Kit
OEM P/N: 6189-7494
HX060-3S  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals

Mfr: OEM Sumitomo
Series: HX 060 Sealed
OEM P/N: 6189-7494
Part Name: HX06-3F-B
Mating Part: N/A, Device only

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:1.5mm (.060)
  • Wire Size:0.13 - 2.00 mm2
  • Number of Rows:1
  • Pitch:4.6mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:12A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$3.13
6-19$2.97
20-49$2.82
50-99$2.66
100+$2.50
Quantity:  Kit

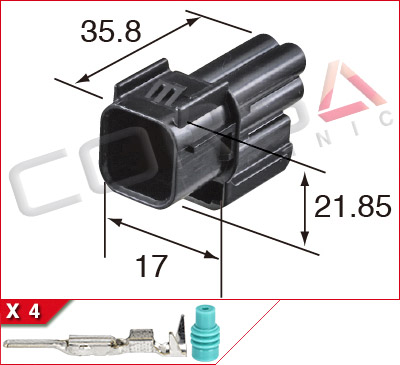

4-Way Kit
HX060-4P
4-Way Kit
OEM P/N: 6181-6783
HX060-4P  4-Way Kit
Kit Contents: Housing, 4 pin contacts, 4 seals

Mfr: OEM Sumitomo
Series: HX 060 Sealed
OEM P/N: 6181-6783
Part Name: HX06-4M-B
Mating Part: HX060-4S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:1.5mm (.060)
  • Wire Size:0.13 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.6mm
  • Row Spacing:4.6mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:12A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$3.49
6-19$3.32
20-49$3.14
50-99$2.97
100+$2.79
Quantity:  Kit

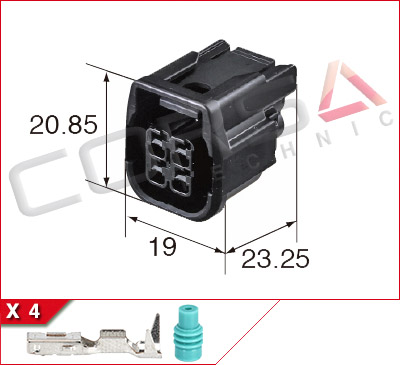

4-Way Kit
HX060-4S
4-Way Kit
OEM P/N: 6189-7409
HX060-4S  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals

Mfr: OEM Sumitomo
Series: HX 060 Sealed
OEM P/N: 6189-7409
Part Name: HX06-4F-B
Mating Part: HX060-4P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:1.5mm (.060)
  • Wire Size:0.13 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.6mm
  • Row Spacing:4.6mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:12A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$3.59
6-19$3.41
20-49$3.23
50-99$3.05
100+$2.87
Quantity:  Kit

8-Way Kit
HX060-8P
8-Way Kit
OEM P/N: 6181-6850
HX060-8P  8-Way Kit
Kit Contents: Housing, 8 pin contacts, 8 seals

Mfr: OEM Sumitomo
Series: HX 060 Sealed
OEM P/N: 6181-6850
Part Name: HX06-8M-B
Mating Part: HX060-8S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:8
  • Contact Size:1.5mm (.060)
  • Wire Size:0.13 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.6mm
  • Row Spacing:4.6mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:12A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$4.47
6-19$4.25
20-49$4.02
50-99$3.80
100+$3.58
Quantity:  Kit

8-Way Kit
HX060-8S
8-Way Kit
OEM P/N: 6189-7423
HX060-8S  8-Way Kit
Kit Contents: Housing, 8 socket contacts, 8 seals

Mfr: OEM Sumitomo
Series: HX 060 Sealed
OEM P/N: 6189-7423
Part Name: HX06-8F-B
Mating Part: HX060-8P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:8
  • Contact Size:1.5mm (.060)
  • Wire Size:0.13 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.6mm
  • Row Spacing:4.6mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:12A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$3.99
6-19$3.79
20-49$3.59
50-99$3.39
100-249$3.19
250+$2.99
Quantity:  Kit

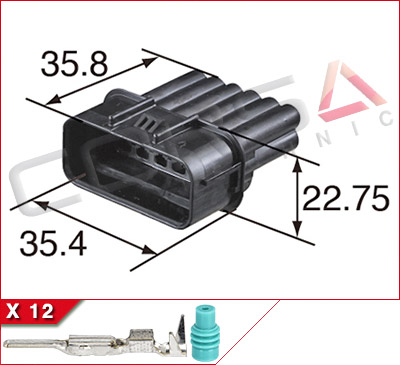

12-Way Kit
HX060-12P
12-Way Kit
OEM P/N: 6181-6784
HX060-12P  12-Way Kit
Kit Contents: Housing, 12 pin contacts, 12 seals

Mfr: OEM Sumitomo
Series: HX 060 Sealed
OEM P/N: 6181-6784
Part Name: HX06-12M-B
Mating Part: HX060-12S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:12
  • Contact Size:1.5mm (.060)
  • Wire Size:0.13 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.6mm
  • Row Spacing:4.6mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:12A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$5.18
6-19$4.92
20-49$4.66
50-99$4.40
100+$4.14
Quantity:  Kit

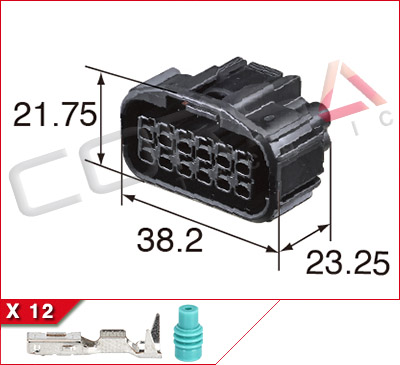

12-Way Kit
HX060-12S
12-Way Kit
OEM P/N: 6189-7410
HX060-12S  12-Way Kit
Kit Contents: Housing, 12 socket contacts, 12 seals

Mfr: OEM Sumitomo
Series: HX 060 Sealed
OEM P/N: 6189-7410
Part Name: HX06-12F-B
Mating Part: HX060-12P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:12
  • Contact Size:1.5mm (.060)
  • Wire Size:0.13 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.6mm
  • Row Spacing:4.6mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:12A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$5.65
6-19$5.37
20-49$5.08
50-99$4.80
100-249$4.52
250-499$4.24
500+$3.96
Quantity:  Kit

HX 060 Sealed Series Pin Contact
HX060-PIN
HX 060 Sealed Series Pin Contact
HX060-PIN  HX 060 Sealed Series Pin Contact

Mfr: Sumitomo
Series: HX 060 Sealed

Wire SizeP/N
HX060-PIN10.13-0.22 mm2 (26-24 AWG)8230-5306
HX060-PIN20.3-0.5 mm2 (22-20 AWG)8230-5307
HX060-PIN30.75-1.25 mm2 (18-16 AWG)8230-5308
HX060-PIN42.0 mm2 (14 AWG)8230-5309
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:1.5mm (.060)
  • Wire Size:0.13 - 2.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:12A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-49$0.17
50-99$0.16
100-249$0.15
250-499$0.14
500-999$0.13
1000-2499$0.12
2500-4999$0.11
5000+$0.10
Quantity:  Ea

HX 060 Sealed Series Socket Contact
HX060-SKT
HX 060 Sealed Series Socket Contact
HX060-SKT  HX 060 Sealed Series Socket Contact

Mfr: Sumitomo
Series: HX 060 Sealed

Wire SizeP/N
HX060-SKT10.13-0.22 mm2 (26-24 AWG)8240-0489
HX060-SKT20.3-0.5 mm2 (22-20 AWG)8240-0490
HX060-SKT30.75-1.25 mm2 (18-16 AWG)8240-0491
HX060-SKT42.0 mm2 (14 AWG)8240-0492
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:1.5mm (.060)
  • Wire Size:0.13 - 2.00 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:12A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-49$0.19
50-99$0.18
100-249$0.17
250-499$0.16
500-999$0.15
1000-2499$0.14
2500-4999$0.13
5000-9999$0.12
10000-19999$0.11
20000+$0.10
Quantity:  Ea

DL HX SL TL Series Plug (P5 and 1.5mm)
SUMI-PG4
DL HX SL TL Series Plug (P5 and 1.5mm)
OEM P/N: 7165-0193
SUMI-PG4  DL HX SL TL Series Plug (P5 and 1.5mm)

Mfr: OEM Sumitomo
Series: DL 090 Sealed, HX 060 Sealed, HX 090 Sealed, SL 060 Sealed, SL 090 Sealed, TL Sealed
OEM P/N: 7165-0193
Part Name: P5/SI-G
Plug, green silicone
For 090 5mm pitch, and 1.5mm (060) housings

spacer
General
  • Sealing:Single Wire Sealed
Mechanical
  • Seal Material:Silicone Rubber

spacer
spacer
QtyPrice
1-99$0.25
100-499$0.24
500-999$0.23
1000-2499$0.22
2500-4999$0.21
5000+$0.20
Quantity:  Ea

HX 060 Sealed Series Seals
HX060-SL
HX 060 Sealed Series Seals
HX060-SL  HX 060 Sealed Series Seals

Mfr: Sumitomo
Series: HX 060 Sealed

Wire Insulation Dia.ColorPart Number
HX060-SL10.85-1.20 mm (.033-.047 in)Violet7165-1562
HX060-SL21.05-1.50 mm (.041-.059 in)Sky blue7165-1563
HX060-SL31.35-1.90 mm (.053-.075 in)Light green7165-1564
HX060-SL41.75-2.40 mm (.069-.094 in)Blue7165-1565
HX060-SL52.40-3.00 mm (.094-.118 in)Dark yellow7165-1566
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:1.5mm (.060)
Mechanical
  • Seal Material:Silicone Rubber

spacer
spacer
QtyPrice
1-49$0.14
50-99$0.13
100-249$0.12
250-499$0.11
500-999$0.10
1000-2499$0.09
2500-4999$0.08
5000-9999$0.07
10000-19999$0.06
20000+$0.05
Quantity:  Ea


Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2024 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1
R7A4
R7A3
R7A2
