Ignition/Coil on Plug/CDI

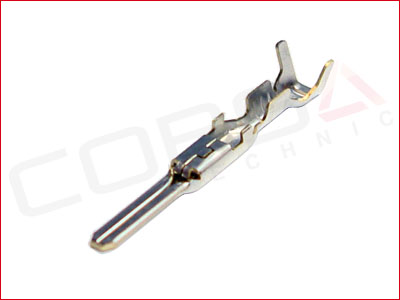

090II-4P-2
4-Way Kit
Kit Contents: Housing, 4 pin contacts, 4 seals
Mfr: Aftermarket, Yazaki does not make an actual part.
Series: 090II Sealed Series
Mating Part: 090II-4S-2
Kit Contents: Housing, 4 pin contacts, 4 seals
Mfr: Aftermarket, Yazaki does not make an actual part.
Series: 090II Sealed Series
Mating Part: 090II-4S-2
General
- Sealing:Single Wire Sealed
- Number of Ways:4
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
090II-4S-2
4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-7449-30 Black
7283-7449-40 Grey
Mating Part: N/A, but an aftermarket part exists. 090II-4P-2
Kit Contents: Housing, 4 socket contacts, 4 seals
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-7449-30 Black
7283-7449-40 Grey
Mating Part: N/A, but an aftermarket part exists. 090II-4P-2
General
- Sealing:Single Wire Sealed
- Number of Ways:4
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Housing Material:HPA
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-11885 (Yazaki), 90980-12176 (Sumitomo)
- Dorman 645-940 pigtail connector

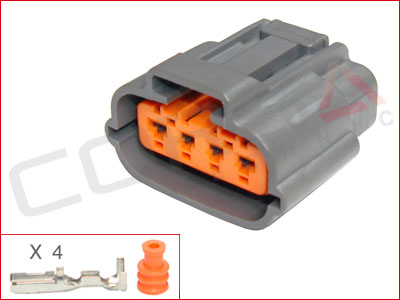

DL090-4S-2
4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals
Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0030
Mating Part: N/A, but an aftermarket part exists. GEN090-4P-1
Kit Contents: Housing, 4 socket contacts, 4 seals
Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0030
Mating Part: N/A, but an aftermarket part exists. GEN090-4P-1
General
- Sealing:Single Wire Sealed
- Number of Ways:4
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Housing Material:PBT
- Seal Material:NBR
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Miata igniter (harness side)
- Miata cam sensor, CAS (harness side)
DL090-8S-2
8-Way Kit
Kit Contents: Housing, 8 socket contacts, 8 seals
Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0038
Part Name: W-DL09IGN8AY-GR
Mating Part: Device only, but aftermarket DL090-8P-2 available.
Kit Contents: Housing, 8 socket contacts, 8 seals
Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0038
Part Name: W-DL09IGN8AY-GR
Mating Part: Device only, but aftermarket DL090-8P-2 available.
General
- Sealing:Single Wire Sealed
- Number of Ways:8
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

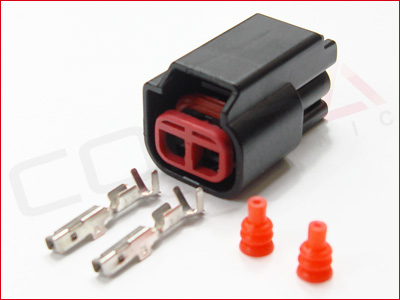

EPC15-2S-1
2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM EPC
Series: 1.5mm Sealed Series
OEM P/N: E-3979
Keying: A
Mating Part: N/A, Device only
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM EPC
Series: 1.5mm Sealed Series
OEM P/N: E-3979
Keying: A
Mating Part: N/A, Device only
NOTE: Not compatible with ignition coils that have a step inside the connector. Incompatible ignition coils include Denso P/N: 129700-xxxx,etc. The correct connector for these is the RFW-2S
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 2.00 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Housing Material:PPE/PA+GF
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:15A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- 2-pin COP pencil ignition coils
- Ford 3U2Z-14S411-SLB, WPT-986 (Tin plated terminals) pigtail connector
- Ford 1F1T-14A464-AB
FEP28-4S
4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals
Mfr: OEM FEP
Series: 2.8 Sealed
OEM P/N: 1J0 973 724, 42034400 (IN STOCK)
unbranded, 42122100
Code: I
Mating Part: Device, FEP28K-4P
Kit Contents: Housing, 4 socket contacts, 4 seals
Mfr: OEM FEP
Series: 2.8 Sealed
OEM P/N: 1J0 973 724, 42034400 (IN STOCK)
unbranded, 42122100
Code: I
Mating Part: Device, FEP28K-4P
General
- Sealing:Single Wire Sealed
- Number of Ways:4
- Contact Size:2.8mm (.110)
- Wire Size:0.20 - 2.50 mm2
- Number of Rows:1
- Pitch:6.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:30A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
FEP28K-4S
4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals
Mfr: OEM FEP
Series: 2.8K Sealed
OEM P/N: 8K0 971 994A, 42581000 w/CPA (IN STOCK)
8K0 971 994, 42571000 w/o CPA
unbranded, 42581100 w/CPA
unbranded, 42571100 w/o CPA
Code: I
Mating Part: Device, FEP28K-4P
Kit Contents: Housing, 4 socket contacts, 4 seals
Mfr: OEM FEP
Series: 2.8K Sealed
OEM P/N: 8K0 971 994A, 42581000 w/CPA (IN STOCK)
8K0 971 994, 42571000 w/o CPA
unbranded, 42581100 w/CPA
unbranded, 42571100 w/o CPA
Code: I
Mating Part: Device, FEP28K-4P
General
- Sealing:Single Wire Sealed
- Number of Ways:4
- Contact Size:2.8mm (.110)
- Wire Size:0.20 - 2.50 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:Yes, connector option
Electrical
- Current Rating[1]:34A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
GT150.35-5S
5-Way Kit
Kit Contents: Housing, 5 socket contacts, 5 seals
Mfr: Aftermarket, Delphi does not make an actual version.
Series: GT-150 3.5mm CL Sealed Series
Mating Part: N/A, device only
Kit Contents: Housing, 5 socket contacts, 5 seals
Mfr: Aftermarket, Delphi does not make an actual version.
Series: GT-150 3.5mm CL Sealed Series
Mating Part: N/A, device only
General
- Sealing:Single Wire Sealed
- Number of Ways:5
- Contact Size:1.5mm (.060)
- Wire Size:0.30 - 1.00 mm2
- Number of Rows:1
- Pitch:3.5mm
- Numbered Cavities:Yes, Alphabetically
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Housing Material:PA66+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:15A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- IGN1A coil connector
GT150.A-4S
4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals
Mfr: OEM Delphi
Series: GT-150 Sealed Device
OEM P/N: w/o CPA: 15466325 IN STOCK
w/CPA: 13723322
Mating Part: N/A, device only
Kit Contents: Housing, 4 socket contacts, 4 seals
Mfr: OEM Delphi
Series: GT-150 Sealed Device
OEM P/N: w/o CPA: 15466325 IN STOCK
w/CPA: 13723322
Mating Part: N/A, device only
General
- Sealing:Single Wire Sealed
- Number of Ways:4
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 1.00 mm2
- Number of Rows:1
- Pitch:4.5mm
- Numbered Cavities:Yes, Alphabetically
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Housing Material:PBT+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:Yes, separate item
Electrical
- Current Rating[1]:15A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
HX090-3S-2
3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals, front lock
Mfr: OEM Sumitomo
Series: HX 090 Sealed Series
OEM P/N: 6189-0728
Mating Part: N/A
Kit Contents: Housing, 3 socket contacts, 3 seals, front lock
Mfr: OEM Sumitomo
Series: HX 090 Sealed Series
OEM P/N: 6189-0728
Mating Part: N/A
General
- Sealing:Single Wire Sealed
- Number of Ways:3
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Honda K-series and F-series ignition pencil coils

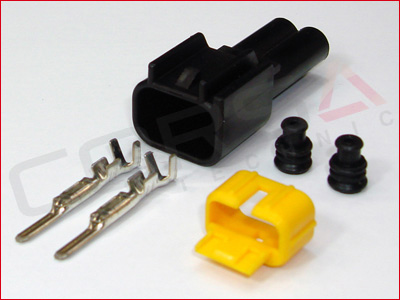

RFW-2P
2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals, lock
Mfr: Aftermarket Furukawa
Series: RFW Series
OEM P/N: FW-C-2M-B (alt p/n: P010703, 12445-5202-2)
Mating Part: RFW-2S
Kit Contents: Housing, 2 pin contacts, 2 seals, lock
Mfr: Aftermarket Furukawa
Series: RFW Series
OEM P/N: FW-C-2M-B (alt p/n: P010703, 12445-5202-2)
Mating Part: RFW-2S
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:14A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- KTM 000700000FC

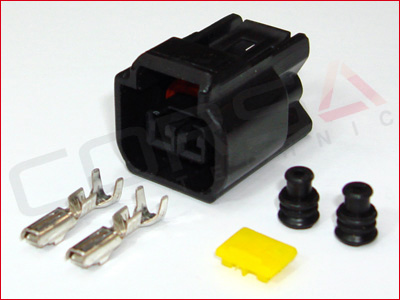

RFW-2S
2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals, lock
Mfr: Aftermarket Furukawa
Series: RFW Series
OEM P/N: FW-C-2F-B (alt p/n: P010693, 12444-5202-2)
Mating Part: RFW-2P
Kit Contents: Housing, 2 socket contacts, 2 seals, lock
Mfr: Aftermarket Furukawa
Series: RFW Series
OEM P/N: FW-C-2F-B (alt p/n: P010693, 12444-5202-2)
Mating Part: RFW-2P
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:14A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- 2-pin COP pencil ignition coils
- KTM 000700000AS
RFW-3S-3
3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals, lock
Mfr: OEM Furukawa
Series: RFW Series
Mating Part: N/A
Kit Contents: Housing, 3 socket contacts, 3 seals, lock
Mfr: OEM Furukawa
Series: RFW Series
Mating Part: N/A
P/N:
Natural (White), FW-C-D3F (alt p/n: R010192, 12444-5A03)
Black, FW-C-D3F-B (alt p/n: R010195, 12444-5A03-2)
Natural (White), FW-C-D3F (alt p/n: R010192, 12444-5A03)
Black, FW-C-D3F-B (alt p/n: R010195, 12444-5A03-2)
General
- Sealing:Single Wire Sealed
- Number of Ways:3
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:14A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Subaru ignition coils
RFW-3S-5
3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals, lock
Mfr: OEM Furukawa
Series: RFW Series
OEM P/N: FW-C-DE3F-GR (alt p/n: FT0792, U020168)
Mating Part: N/A
Kit Contents: Housing, 3 socket contacts, 3 seals, lock
Mfr: OEM Furukawa
Series: RFW Series
OEM P/N: FW-C-DE3F-GR (alt p/n: FT0792, U020168)
Mating Part: N/A
General
- Sealing:Single Wire Sealed
- Number of Ways:3
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:14A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
SMDC.SWS-2S
2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: Aftermarket Sumitomo
Series: SMDC.SWS Series
OEM P/N: 6180-2331
Part Name: SMDC WP-N2F
Mating Part: SMDC.SWS-4P/2P
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: Aftermarket Sumitomo
Series: SMDC.SWS Series
OEM P/N: 6180-2331
Part Name: SMDC WP-N2F
Mating Part: SMDC.SWS-4P/2P
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:1
- Pitch:6.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Certain 80's, early 90's Honda CDI
- XL600R CDI
- Transalp 600 CDI
SMDC.SWS-4P/2P
4+2 Way PCB Header
Kit Contents: PCB header
Mfr: Aftermarket Sumitomo
Series: SMDC.SWS Series
OEM P/N: 6189-6341
Part Name: SMDC WP(4+2)M
Mating Part: SMDC.SWS-2S and SMDC.SWS-4S
Kit Contents: PCB header
Mfr: Aftermarket Sumitomo
Series: SMDC.SWS Series
OEM P/N: 6189-6341
Part Name: SMDC WP(4+2)M
Mating Part: SMDC.SWS-2S and SMDC.SWS-4S
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Certain 80's, early 90's Honda CDI
- XL600R CDI
- Transalp 600 CDI
SMDC.SWS-4S
4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals
Mfr: Aftermarket Sumitomo
Series: SMDC.SWS Series
OEM P/N: 6180-4331
Part Name: SMDC WP-N4F
Mating Part: SMDC.SWS-4P/2P
Kit Contents: Housing, 4 socket contacts, 4 seals
Mfr: Aftermarket Sumitomo
Series: SMDC.SWS Series
OEM P/N: 6180-4331
Part Name: SMDC WP-N4F
Mating Part: SMDC.SWS-4P/2P
General
- Sealing:Single Wire Sealed
- Number of Ways:4
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:2
- Pitch:6.0mm
- Row Spacing:6.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Certain 80's, early 90's Honda CDI
- XL600R CDI
- Transalp 600 CDI
ES3.WTB-18P
18-Way PCB Header
Kit Contents: PCB header with right angle mounting
Mfr: OEM Tyco/AMP
Series: Econoseal III Wire to Board Series
OEM P/N: 344103-1
Mating Part: ES3.WTB-18S
Kit Contents: PCB header with right angle mounting
Mfr: OEM Tyco/AMP
Series: Econoseal III Wire to Board Series
OEM P/N: 344103-1
Mating Part: ES3.WTB-18S
General
- Sealing:Single Wire Sealed
- Number of Ways:18
- Contact Size:1.8mm (.070)
- Number of Rows:3
- Pitch:5.0mm
- Row Spacing:6.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:PCB solder tail
- Housing Material:PA66+GF
- Mounting Style:PCB Board Mount
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:8A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-40 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- M&W CDI Ignition units
- Motec M8 ECU's

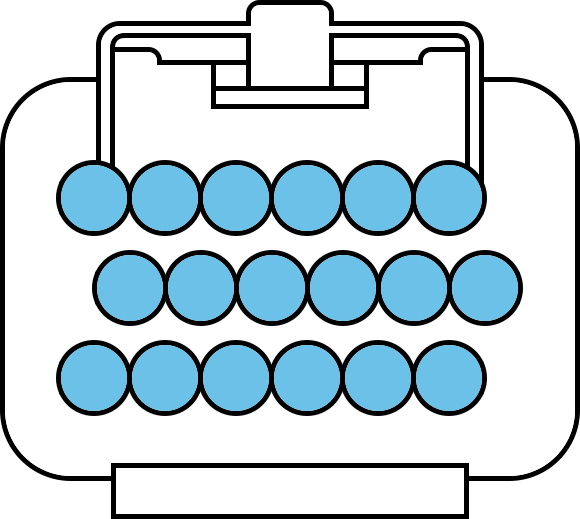

ES3.WTB-18S
18-Way Kit
Kit Contents: Housing, 18 socket contacts for 20-16 AWG wire, 18 seals, front lock
Mfr: OEM Tyco/AMP
Series: Econoseal III Wire to Board Series
OEM P/N: 344106-1
Mating Part: ES3.WTB-18P
Kit Contents: Housing, 18 socket contacts for 20-16 AWG wire, 18 seals, front lock
Mfr: OEM Tyco/AMP
Series: Econoseal III Wire to Board Series
OEM P/N: 344106-1
Mating Part: ES3.WTB-18P
General
- Sealing:Single Wire Sealed
- Number of Ways:18
- Contact Size:1.8mm (.070)
- Wire Size:0.50 - 1.25 mm2
- Number of Rows:3
- Pitch:5.0mm
- Row Spacing:6.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Housing Material:PA66
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:8A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-40 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- M&W CDI Ignition units
- Motec M8 ECU's
ES3.WTB-36P
36-Way PCB Header
Kit Contents: PCB header with right angle mounting
Mfr: OEM Tyco/AMP
Series: Econoseal III Wire to Board Series
OEM P/N: 344108-1
Mating Part: ES3.WTB-36S
Kit Contents: PCB header with right angle mounting
Mfr: OEM Tyco/AMP
Series: Econoseal III Wire to Board Series
OEM P/N: 344108-1
Mating Part: ES3.WTB-36S
General
- Sealing:Single Wire Sealed
- Number of Ways:36
- Contact Size:1.8mm (.070)
- Number of Rows:3
- Pitch:5.0mm
- Row Spacing:6.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:PCB solder tail
- Housing Material:PA66+GF
- Mounting Style:PCB Board Mount
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:8A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-40 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Jaguar XJ6/XJR '93-'96/97 ECU
- M&W CDI Ignition units
- Motec M4, M48, M8 ECU's
- OMEX ECU's
ES3.WTB-36S
36-Way Kit
Kit Contents: Housing, 36 socket contacts for 20-16 AWG wire, 36 seals, front lock
Mfr: OEM Tyco/AMP
Series: Econoseal III Wire to Board Series
OEM P/N: 344111-1
Mating Part: ES3.WTB-36P
Kit Contents: Housing, 36 socket contacts for 20-16 AWG wire, 36 seals, front lock
Mfr: OEM Tyco/AMP
Series: Econoseal III Wire to Board Series
OEM P/N: 344111-1
Mating Part: ES3.WTB-36P
General
- Sealing:Single Wire Sealed
- Number of Ways:36
- Contact Size:1.8mm (.070)
- Wire Size:0.50 - 1.25 mm2
- Number of Rows:3
- Pitch:5.0mm
- Row Spacing:6.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Housing Material:PA66
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:8A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-40 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Jaguar XJ6/XJR '93-'96/97 ECU
- M&W CDI Ignition units
- Motec M4, M48, M8 ECU's
- OMEX ECU's
SMDC.SWS-SKT
SMDC.SWS-Series Socket Contact
Mfr: Aftermarket Sumitomo
Series: SMDC.SWS Series
OEM P/N: 8240-4492
Mfr: Aftermarket Sumitomo
Series: SMDC.SWS Series
OEM P/N: 8240-4492
General
- Sealing:Single Wire Sealed
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 1.25 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
