SMDC Series

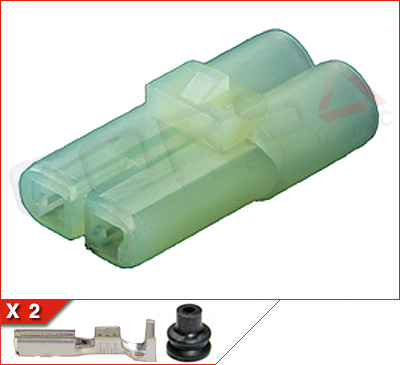

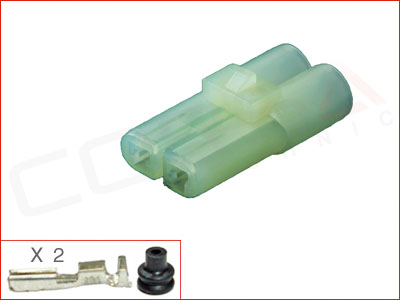

SMDC.SWS-2S
2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: Aftermarket Sumitomo
Series: SMDC.SWS Series
OEM P/N: 6180-2331
Part Name: SMDC WP-N2F
Mating Part: SMDC.SWS-4P/2P
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: Aftermarket Sumitomo
Series: SMDC.SWS Series
OEM P/N: 6180-2331
Part Name: SMDC WP-N2F
Mating Part: SMDC.SWS-4P/2P
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:1
- Pitch:6.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Certain 80's, early 90's Honda CDI
- XL600R CDI
- Transalp 600 CDI
SMDC.SWS-4P/2P
4+2 Way PCB Header
Kit Contents: PCB header
Mfr: Aftermarket Sumitomo
Series: SMDC.SWS Series
OEM P/N: 6189-6341
Part Name: SMDC WP(4+2)M
Mating Part: SMDC.SWS-2S and SMDC.SWS-4S
Kit Contents: PCB header
Mfr: Aftermarket Sumitomo
Series: SMDC.SWS Series
OEM P/N: 6189-6341
Part Name: SMDC WP(4+2)M
Mating Part: SMDC.SWS-2S and SMDC.SWS-4S
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Certain 80's, early 90's Honda CDI
- XL600R CDI
- Transalp 600 CDI
SMDC.SWS-4S

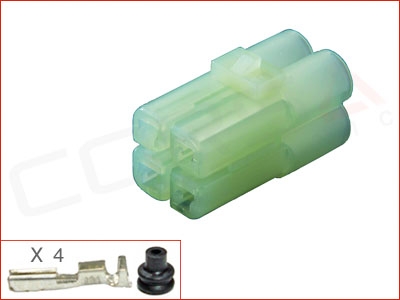

4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals
Mfr: Aftermarket Sumitomo
Series: SMDC.SWS Series
OEM P/N: 6180-4331
Part Name: SMDC WP-N4F
Mating Part: SMDC.SWS-4P/2P
Kit Contents: Housing, 4 socket contacts, 4 seals
Mfr: Aftermarket Sumitomo
Series: SMDC.SWS Series
OEM P/N: 6180-4331
Part Name: SMDC WP-N4F
Mating Part: SMDC.SWS-4P/2P
General
- Sealing:Single Wire Sealed
- Number of Ways:4
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:2
- Pitch:6.0mm
- Row Spacing:6.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Certain 80's, early 90's Honda CDI
- XL600R CDI
- Transalp 600 CDI
SMDC.SWS-SKT

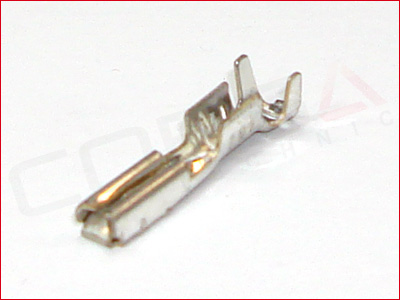

SMDC.SWS-Series Socket Contact
Mfr: Aftermarket Sumitomo
Series: SMDC.SWS Series
OEM P/N: 8240-4492
Mfr: Aftermarket Sumitomo
Series: SMDC.SWS Series
OEM P/N: 8240-4492
General
- Sealing:Single Wire Sealed
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 1.25 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
