Home ▹ Connectors ▹ By Application/Use ▹ Fuel Pump

Fuel Pump

4-Way Kit

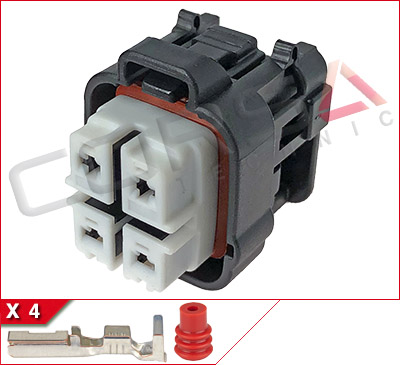

DL090-4S-3
4-Way Kit
OEM P/N: 6195-0315
DL090-4S-3  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals

Mfr: Aftermarket Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0315
Part Name: WDL9F/P-4F AY-DH
Mating Part: N/A, device only

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:8.0mm
  • Row Spacing:11.2mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$4.15
6-19$3.94
20-49$3.74
50-99$3.53
100+$3.32
Quantity:  Kit

4-Way Kit
DL090-4S-4
4-Way Kit
OEM P/N: 6195-0032
DL090-4S-4  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals

Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0032
Part Name: DL09F/P4AY-NA
Mating Part: N/A, device only

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:5.5mm
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$6.07
6-19$5.77
20-49$5.46
50-99$5.16
100+$4.86
Quantity:  Kit

4-Way Kit
DL090-4S-5
4-Way Kit
OEM P/N: 6195-0305
DL090-4S-5  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals

Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0305
Part Name: F/P-WDL9-4FA-P8
Mating Part: N/A, device only

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:8.0mm
  • Row Spacing:11.2mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$6.67
6-19$6.34
20-49$6.00
50-99$5.67
100+$5.34
Quantity:  Kit

4-Way Kit

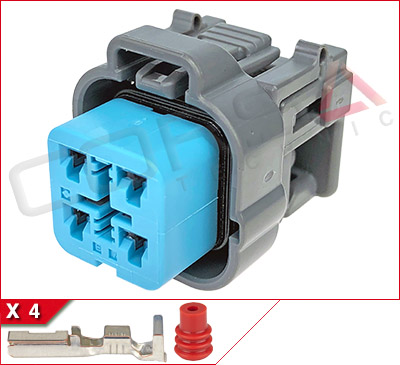

HX090-4S-3
4-Way Kit
OEM P/N: 6189-6887
HX090-4S-3  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals, front lock

Mfr: OEM Sumitomo
Series: HX 090 Sealed Series
OEM P/N: 6189-6887
Part Name: HX9-F/P4FAY-DGR
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:8.0mm
  • Row Spacing:7.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$5.48
6-19$5.21
20-49$4.93
50-99$4.66
100+$4.38
Quantity:  Kit

5-Way Kit
HX090-5S
5-Way Kit
OEM P/N: 6189-0618
HX090-5S  5-Way Kit
Kit Contents: Housing, 5 socket contacts, 5 seals, front lock

Mfr: OEM Sumitomo
Series: HX 090 Sealed Series
OEM P/N: 6189-0618
Part Name: HX9-F/P5FAY-DGR
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:5
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:8.0mm
  • Row Spacing:10.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Ford 8U2Z-14S411-NA, WPT-909 (Tin plated terminals) pigtail connector
QtyPrice
1-5$6.73
6-19$6.39
20-49$6.06
50-99$5.72
100+$5.38
Quantity:  Kit

3-Way Kit
MT-3P-2
3-Way Kit
OEM P/N: 6187-3231
MT-3P-2  3-Way Kit
Kit Contents: Housing, 3 pin contacts, 3 seals

Mfr: Aftermarket Sumitomo
Series: MT Sealed Series
OEM P/N: 6187-3231
Mating Part: MT-3S-2

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Row Spacing:5.2mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • TRE connector on Kawasaki motorcycles
  • Ducati side stand switch on 899, 1199 (harness side)
  • Suzuki
  • TRE connector on Suzuki GSXR's & TL's. For SV's see HM-4P
  • GSXR-600 camshaft sensor on 06-17 (sensor side, black)
  • GSXR-750 camshaft sensor on 06-17 (sensor side, black)
  • GSXR-1000 camshaft sensor on 07-17 (sensor side, black)
  • GSXR-1000 fuel pump/sender on 03-16 (fuel pump side, white)
  • Hayabusa camshaft sensor on 08-17 (sensor side, black)
  • GSXR gear position, neutral sensor (harness side)
  • GSXR 1000 2nd throttle position sensor on 06'> (sensor side)
  • 07> GSXR Crank sensor (harness side)
  • Yamaha
  • YZF-R6 crank sensor 06-09', neutral sensor
  • YZF-R6 TPS 99-02' (sensor side, white)
spacer
  • Hero FRS-108N
  • KTM 000700000AR
  • Suzuki 09900-28710-004 (White)
QtyPrice
1-5$2.89
6-19$2.75
20-49$2.60
50-99$2.46
100-249$2.31
250-499$2.17
500-999$2.02
1000-2499$1.88
2500+$1.73
Quantity:  Kit

3-Way Kit
MT-3S-2
3-Way Kit
OEM P/N: 6180-3241
MT-3S-2  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals

Mfr: Aftermarket Sumitomo
Series: MT Sealed Series
OEM P/N: 6180-3241
Mating Part: MT-3P-2

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Row Spacing:5.2mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Ducati side stand switch on 899, 1199 (sensor side)
  • TRE connector on Kawasaki motorcycles
  • Suzuki
  • TRE connector on Suzuki GSXR's & TL's. For SV's see HM-4P
  • GSXR-600 camshaft sensor on 06-17 (harness side, black)
  • GSXR-750 camshaft sensor on 06-17 (harness side, black)
  • GSXR-1000 camshaft sensor on 07-17 (harness side, black)
  • GSXR-1000 fuel pump/sender on 03-16 (harness side, white)
  • Hayabusa camshaft sensor on 08-17 (harness side, black)
  • GSXR gear position, neutral sensor (harness side)
  • GSXR 1000 2nd throttle position sensor on 06'> (sensor side)
  • Yamaha
  • YZF-R6 TPS 99-02' (sensor side, white)
  • YZF-R6 crank sensor 06-09', neutral sensor
spacer
  • Hero FRS-109N
  • KTM 000700000AM
  • Suzuki 09900-28710-005 (White)
QtyPrice
1-5$2.03
6-19$1.93
20-49$1.83
50-99$1.73
100-249$1.62
250-499$1.52
500-999$1.42
1000-2499$1.32
2500+$1.22
Quantity:  Kit

4-Way Kit
MT-4P-1
4-Way Kit
OEM P/N: 6188-0004
MT-4P-1  4-Way Kit
Kit Contents: Housing, 4 pin contacts, 4 seals

Mfr: Aftermarket Sumitomo
Series: MT Sealed Series
OEM P/N: 6188-0004
Mating Part: MT-4S-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • GSXR-1000 fuel pump/sender on 01-02 (fuel pump side, brown)
spacer
  • Hero FRS-110N
  • KTM 000700000CE (White)
  • Suzuki 09900-28710-011 (White)
QtyPrice
1-5$3.29
6-19$3.06
20-49$2.80
50-99$2.63
100-249$2.30
250+$2.14
Quantity:  Kit

4-Way Kit
MT-4S-1
4-Way Kit
OEM P/N: Natural: 6180-4771
Black is an aftermarket part
MT-4S-1  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals

Mfr: OEM Sumitomo
Series: MT Sealed Series
OEM P/N: Natural: 6180-4771
Black is an aftermarket part
Mating Part: MT-4P-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • GSXR-1000 fuel pump/sender on 01-02 (harness side, brown)
spacer
  • Hero FRS-111N
  • KTM 000700000CA
  • Suzuki 09900-28710-012 (White)
QtyPrice
1-5$2.49
6-19$2.32
20-49$2.12
50-99$1.99
100+$1.74
Quantity:  Kit

2-Way Kit
MTU.IL-2S-3
2-Way Kit
MTU.IL-2S-3  2-Way Kit
Kit Contents: Housing, 2 socket contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Mazda RX-7 fuel pump/sender
spacer
QtyPrice
1-5$3.23
6-19$3.07
20-49$2.91
50-99$2.75
100+$2.58
Quantity:  Kit

2-Way Kit
MTU.IL-2S-4
2-Way Kit
MTU.IL-2S-4  2-Way Kit
Kit Contents: Housing, 2 socket contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Mazda RX-7 fuel pump/sender
spacer
QtyPrice
1-5$3.23
6-19$3.07
20-49$2.91
50-99$2.75
100+$2.58
Quantity:  Kit

4-Way Kit
SS15-4P
4-Way Kit
OEM P/N: 282106-1
SS15-4P  4-Way Kit
Kit Contents: Housing, 4 pin contacts, 4 seals

Mfr: OEM Tyco/AMP
Series: Superseal 1.5 Series
OEM P/N: 282106-1
Mating Part: SS15-4S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:1.5mm (.060)
  • Wire Size:0.30 - 2.50 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66+GF
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:14A
  • Voltage Rating:24V DC
Environmental
  • Temp Range[2]:-40 - 125 °C
  • Protection Rating:IP67
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Ducati fuel tank/pump (tank side)
spacer
QtyPrice
1-5$2.10
6-19$2.00
20-49$1.89
50-99$1.79
100+$1.68
Quantity:  Kit

4-Way Kit
SS15-4S
4-Way Kit
OEM P/N: 282088-1
SS15-4S  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals

Mfr: OEM Tyco/AMP
Series: Superseal 1.5 Series
OEM P/N: 282088-1
Mating Part: SS15-4P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:1.5mm (.060)
  • Wire Size:0.30 - 2.50 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:14A
  • Voltage Rating:24V DC
Environmental
  • Temp Range[2]:-40 - 125 °C
  • Protection Rating:IP67
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Ducati fuel tank/pump (harness side)
spacer
  • Mopar 68127181AA repair kit connector
QtyPrice
1-5$2.13
6-19$2.02
20-49$1.92
50-99$1.81
100+$1.70
Quantity:  Kit

6-Way Kit
VW48-6S
6-Way Kit
OEM P/N: 8W0 973 755 (slide lock on left, as shipped)
8W1 973 755 (slide lock on right)
Slide lock can be swapped between left and right side.
VW48-6S  6-Way Kit
Kit Contents: Housing, 6 socket contacts, 6 seals

Mfr: OEM VW
Series: 4.8 Tab
OEM P/N: 8W0 973 755 (slide lock on left, as shipped)
8W1 973 755 (slide lock on right)
Slide lock can be swapped between left and right side.
Mating Part: N/A, device only

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:6
  • Contact Size:4.8mm (.187)
  • Wire Size:0.35 - 6.00 mm2
  • Number of Rows:1
  • Pitch:9.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:Yes
Electrical
  • Current Rating[1]:45A
Environmental
  • Temp Range[2]:-40 - 140 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
Price: $15.31
Quantity:  Kit

2-Way Kit
090II-2S-21
2-Way Kit
OEM P/N: 7287-1495-30
090II-2S-21  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7287-1495-30
Part Name: 12747W9A02F-BY
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Toyota 90980-12747
QtyPrice
1-5$7.29
6-19$6.93
20-49$6.56
50-99$6.20
100+$5.83
Quantity:  Kit


Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2024 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1
R7A4
R7A3
R7A2
