HM Sealed Series

2-Way Kit

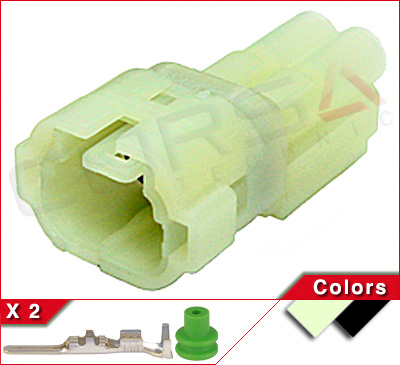

HM-2P
2-Way Kit
OEM P/N: 6187-2801
HM-2P  2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals

Mfr: Aftermarket Sumitomo
Series: HM Sealed Series
OEM P/N: 6187-2801
Part Name: HM090-02MASSY
Mating Part: HM-2S
Bottom of connector features a bracket mount

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Hero FRSH-106
  • Honda 07VPZ-002040A
  • KTM 000700000CK
QtyPrice
1-5$2.95
6-19$2.80
20-49$2.66
50-99$2.51
100-249$2.36
250-499$2.21
500-999$2.07
1000+$1.92
Quantity:  Kit

2-Way Kit

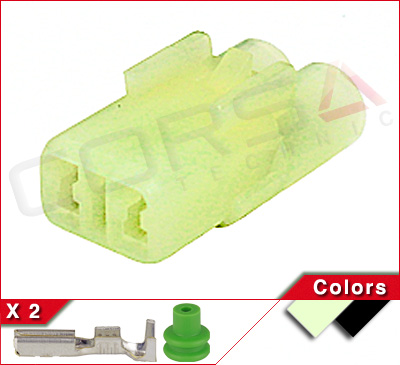

HM-2S
2-Way Kit
OEM P/N: 6180-2451
HM-2S  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: Aftermarket Sumitomo
Series: HM Sealed Series
OEM P/N: 6180-2451
Mating Part: HM-2P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Hero FRSH-107
  • Honda 07VPZ-002010A
  • KTM 000700000FE
QtyPrice
1-5$1.83
6-19$1.74
20-49$1.65
50-99$1.56
100-249$1.46
250-499$1.37
500-999$1.28
1000+$1.19
Quantity:  Kit

3-Way Kit
HM-3P
3-Way Kit
OEM P/N: 6187-3801
HM-3P  3-Way Kit
Kit Contents: Housing, 3 pin contacts, 3 seals

Mfr: Aftermarket Sumitomo
Series: HM Sealed Series
OEM P/N: 6187-3801
Mating Part: HM-3S
Bottom of connector features a bracket mount

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Speed sensor on GSXR (harness side, black)
  • Speed sensor on Hayabusa 99'-07' (harness side, black)
  • Ducati Monster 09'-14' 696, 796, 1100S Brake light (light assy side, natural)
spacer
  • Hero FRSH-108
  • Honda 07VPZ-002060A
  • KTM 000700000EY
  • Suzuki 09900-28710-013 (Natural)
QtyPrice
1-5$3.08
6-19$2.86
20-49$2.62
50-99$2.46
100-499$2.16
500-999$1.85
1000+$1.69
Quantity:  Kit

3-Way Kit
HM-3S
3-Way Kit
OEM P/N: 6180-3451
HM-3S  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals

Mfr: Aftermarket Sumitomo
Series: HM Sealed Series
OEM P/N: 6180-3451
Part Name: HM090WP03F
Mating Part: HM-3P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Speed sensor on GSXR (sensor side, black)
  • Speed sensor on Hayabusa 99'-07' (sensor side, black)
  • Ducati Monster 09'-14' 696, 796, 1100S Brake light (harness side, natural)
spacer
  • Hero FRSH-109
  • Suzuki 09900-28710-014 (Natural)
QtyPrice
1-5$1.98
6-19$1.84
20-49$1.68
50-99$1.58
100+$1.39
Quantity:  Kit

4-Way Kit
HM-4P
4-Way Kit
OEM P/N: 6187-4441
HM-4P  4-Way Kit
Kit Contents: Housing, 4 pin contacts, 4 seals

Mfr: Aftermarket Sumitomo
Series: HM Sealed Series
OEM P/N: 6187-4441
Mating Part: HM-4S
Similar to MT-4P-2, but bottom of connector features a bracket mount.

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Suzuki TRE connector on SV's
  • Suzuki ignition switch on SV's (harness side, green)
spacer
  • Hero FRSH-110
  • Honda 07VPZ-002030A
  • KTM 000700000FS
QtyPrice
1-5$3.17
6-19$3.01
20-49$2.85
50-99$2.69
100-249$2.54
250-499$2.38
500-999$2.22
1000-2499$2.06
2500+$1.90
Quantity:  Kit

4-Way Kit
HM-4S
4-Way Kit
OEM P/N: 6180-4181
HM-4S  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals

Mfr: Aftermarket Sumitomo
Series: HM Sealed Series
OEM P/N: 6180-4181
Mating Part: HM-4P, and MT-4P-2

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Suzuki TRE connector on SV's
  • Suzuki ignition switch on SV's (switch side, green)
spacer
  • Hero FRSH-111
  • Honda 07VPZ-002020A
  • KTM 000700000AN
  • Toyota 90980-10476
QtyPrice
1-5$1.92
6-19$1.82
20-49$1.73
50-99$1.63
100-249$1.54
250-499$1.44
500-999$1.25
1000-1999$1.06
2000+$0.96
Quantity:  Kit

HM-4S Cap/Cover
HM-4S-CAP
HM-4S Cap/Cover
HM-4S-CAP  HM-4S Cap/Cover

Mfr: Aftermarket Sumitomo
Series: HM Sealed Series
Mating Part: HM-4S
Cap/cover for HM-4S diagnostic connector when not in use.

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.3mm (.090)
  • Number of Rows:2
  • Pitch:6.0mm
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging

spacer
spacer
QtyPrice
1-5$1.76
6-19$1.67
20-49$1.58
50-99$1.50
100+$1.41
Quantity:  Kit

6-Way Kit
HM-6P
6-Way Kit
OEM P/N: 6187-6801
HM-6P  6-Way Kit
Kit Contents: Housing, 6 pin contacts, 6 seals

Mfr: Aftermarket Sumitomo
Series: HM Sealed Series
OEM P/N: 6187-6801
Mating Part: HM-6S
Similar to MT-6P-2, but bottom of connector features a bracket mount

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:6
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Ducati ignition switch on 1199 (harness side)
  • Suzuki ignition switch on GSXR to 05' (harness side, green or black depending on year)
spacer
  • Hero FRSH-112
  • Honda 07VPZ-002050A (natural), 070PZ-0020100 (grey)
QtyPrice
1-5$3.80
6-19$3.53
20-49$3.23
50-99$3.04
100-249$2.85
250-499$2.66
500-999$2.28
1000-2499$1.90
2500+$1.52
Quantity:  Kit

6-Way Kit
HM-6S
6-Way Kit
OEM P/N: 6180-6181
HM-6S  6-Way Kit
Kit Contents: Housing, 6 socket contacts, 6 seals

Mfr: Aftermarket Sumitomo
Series: HM Sealed Series
OEM P/N: 6180-6181
Mating Part: MT-6P-2 and HM-6P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:6
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Ducati DTC on 1198S, Streetfighter S
  • Ducati ignition switch on 1199 (switch side)
  • MV Agusta F4-1000 secondary injectors
  • Suzuki ignition switch on GSXR to 05' (switch side, green or black depending on year)
  • <06 YZF-R6 injector harness (main harness side)
  • 06-09 YZF-R6 secondary injector harness (sub-harness side)
spacer
  • Hero FRSH-113
  • Honda 070PZ-002A500
  • KTM 000700000AP (natural)
  • Toyota 90980-10478
QtyPrice
1-5$2.97
6-19$2.82
20-49$2.67
50-99$2.52
100-249$2.38
250-499$2.23
500+$2.08
Quantity:  Kit

8-Way Kit

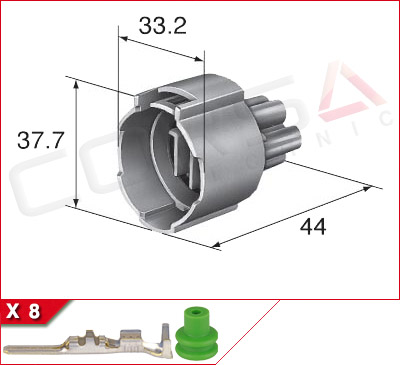

HM-8P
8-Way Kit
OEM P/N: 6187-8691
HM-8P  8-Way Kit
Kit Contents: Housing, 8 pin contacts, 8 seals

Mfr: OEM Sumitomo
Series: HM Sealed Series
OEM P/N: 6187-8691
Part Name: HM090-08MASSY2
Mating Part: HM-8S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:8
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:3
  • Pitch:6.0mm
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Seal Material:NBR
  • Mounting Style:Clip Slot
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$7.57
6-19$7.19
20-49$6.81
50-99$6.43
100+$6.06
Quantity:  Kit

8-Way Kit
HM-8S
8-Way Kit
OEM P/N: 6180-8451
HM-8S  8-Way Kit
Kit Contents: Housing, 8 socket contacts, 8 seals

Mfr: OEM Sumitomo
Series: HM Sealed Series
OEM P/N: 6180-8451
Mating Part: HM-8P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:8
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:3
  • Pitch:6.0mm
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$7.30
6-19$6.93
20-49$6.57
50-99$6.21
100+$5.84
Quantity:  Kit

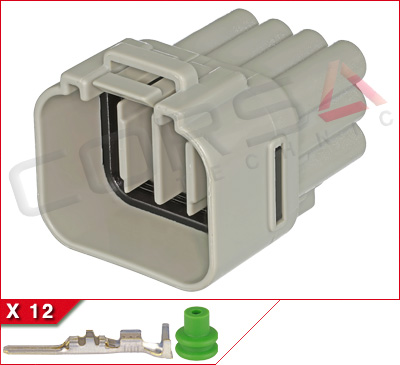

12-Way Kit
HM-12P
12-Way Kit
OEM P/N: 6188-0375
HM-12P  12-Way Kit
Kit Contents: Housing, 12 pin contacts, 12 seals

Mfr: OEM Sumitomo
Series: HM Sealed Series
OEM P/N: 6188-0375
Part Name: HM09WP 12MAY-GR
Mating Part: 6181-2459
Bottom of connector features a bracket mount

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:12
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:3
  • Pitch:6.0mm
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Seal Material:NBR
  • Mounting Style:Clip Slot
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$4.56
6-19$4.24
20-49$3.88
50-99$3.65
100+$3.19
Quantity:  Kit

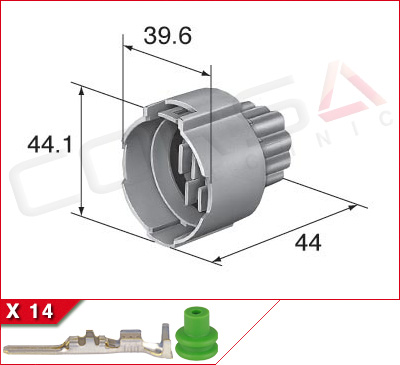

14-Way Kit
HM-14P
14-Way Kit
OEM P/N: 6188-4691
HM-14P  14-Way Kit
Kit Contents: Housing, 14 pin contacts, 14 seals

Mfr: OEM Sumitomo
Series: HM Sealed Series
OEM P/N: 6188-4691
Part Name: HM090WP14MASSY2
Mating Part: HM-14S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:14
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:4
  • Pitch:6.0mm
  • Row Spacing:Multiple
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Seal Material:NBR
  • Mounting Style:Clip Slot
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$7.19
6-19$6.83
20-49$6.47
50-99$6.11
100+$5.75
Quantity:  Kit

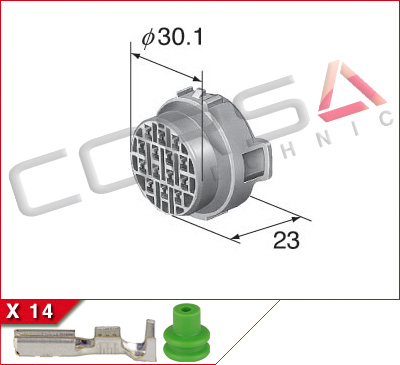

14-Way Kit
HM-14S
14-Way Kit
OEM P/N: 6181-4451
HM-14S  14-Way Kit
Kit Contents: Housing, 14 socket contacts, 14 seals

Mfr: OEM Sumitomo
Series: HM Sealed Series
OEM P/N: 6181-4451
Mating Part: HM-14P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:14
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:4
  • Pitch:6.0mm
  • Row Spacing:Multiple
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$6.84
6-19$6.36
20-49$5.81
50-99$5.47
100+$4.79
Quantity:  Kit

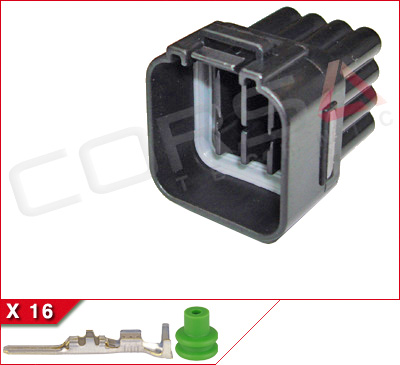

16-Way Kit
HM-16P
16-Way Kit
HM-16P  16-Way Kit
Kit Contents: Housing, 16 pin contacts, 16 seals

Mfr: Aftermarket Sumitomo
Series: HM Sealed Series
Mating Part: HM-16S
Bottom of connector features a bracket mount

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:16
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:4
  • Pitch:6.0mm
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Suzuki GSXR injector sub-harness
spacer
QtyPrice
1-5$7.16
6-19$6.66
20-49$6.09
50-99$5.73
100+$5.01
Quantity:  Kit

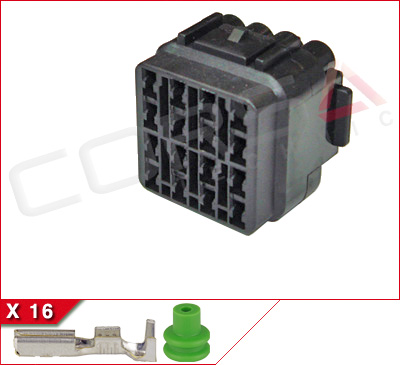

16-Way Kit
HM-16S
16-Way Kit
HM-16S  16-Way Kit
Kit Contents: Housing, 16 socket contacts, 16 seals

Mfr: Aftermarket Sumitomo
Series: HM Sealed Series
Mating Part: HM-16P
Bottom of connector features a bracket mount

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:16
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:4
  • Pitch:6.0mm
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Suzuki GSXR injector sub-harness
spacer
QtyPrice
1-5$5.64
6-19$5.25
20-49$4.79
50-99$4.51
100+$3.95
Quantity:  Kit

MT, HM, HW Sealed Pin Contact
SUMI.A-PIN
MT, HM, HW Sealed Pin Contact
SUMI.A-PIN  MT, HM, HW Sealed Pin Contact

Mfr: Sumitomo
Series: MT 090, HM 090, and HW 090 sealed series

Wire SizeFinishP/N:
SUMI.A-PIN1.3-1.25 mm2 (22-16 AWG)Tin1500-0105
-Gold1500-0134
SUMI.A-PIN22.0-2.7 mm2 (14 AWG)Tin8230-4408
-GoldN/A
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Hero FRS-101N (size 1)
  • Honda 07JAZ-001080A
  • Suzuki 09900-28710-003 (terminal from refill kit)
  • Terminal used in Toyota 82998-12260, 82998-24070 (Gold plated) repair wire
QtyPrice
1-49$0.18
50-99$0.17
100-249$0.16
250-499$0.15
500-999$0.14
1000-2499$0.13
2500-4999$0.12
5000+$0.11
Quantity:  Ea

MT, HM, HW Sealed Socket Contact
SUMI.A-SKT
MT, HM, HW Sealed Socket Contact
SUMI.A-SKT  MT, HM, HW Sealed Socket Contact

Mfr: Sumitomo
Series: MT 090, HM 090, and HW 090 sealed series

Wire SizeMaterial/FinishSumitomoYazaki
SUMI.A-SKT1.3-1.25 mm2 (22-16 AWG)Brass/Tin1500-0106N/A
-Copper/Tin1500-01107116-1420
-Copper/Gold1500-0133N/A
-2.0-2.7 mm2 (14 AWG)Brass/TinN/AN/A
SUMI.A-SKT2Copper/Tin8240-48287116-1421
Available stock: Aftermarket OEM
Cross-compatible with Yazaki 090 Sealed Series


spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Hero FRS-102N (size 1)
  • Honda 07JAZ-001090A, 070MZ-002A800
  • KET ST730502-3 (SKT1), ST730554-3 (SKT2)
  • KUM MT095-31230 (SKT1), MT095-31030 (SKT2)
  • Suzuki 09900-28710-002 (terminal from refill kit)
  • Terminal used in Toyota 82998-12270, 82998-12600, 82998-24080 (Gold plated) repair wire
QtyPrice
1-49$0.21
50-99$0.20
100-249$0.18
250-499$0.17
500-999$0.16
1000-2499$0.15
2500-4999$0.13
5000-9999$0.12
10000+$0.11
Quantity:  Ea

MT HM TS Series Plug (P6)
SUMI-PG2
MT HM TS Series Plug (P6)
OEM P/N: 7160-9465
SUMI-PG2  MT HM TS Series Plug (P6)

Mfr: OEM Sumitomo
Series: MT Sealed, HM Sealed, TS 090 Sealed, TS 090+187 Hybrid
OEM P/N: 7160-9465
090 P6 plug, black rubber
For 6mm pitch housings

spacer
General
  • Sealing:Single Wire Sealed
Mechanical
  • Seal Material:NBR

spacer
spacer
  • Honda 07VPZ-003030A
  • Toyota 90980-09152
QtyPrice
1-49$0.25
50-99$0.23
100-249$0.21
250-499$0.20
500-999$0.19
1000-2499$0.16
2500-4999$0.15
5000-9999$0.14
10000-14999$0.12
15000-19999$0.10
20000+$0.08
Quantity:  Ea

MT HM Seals
SUMI-SL
MT HM Seals
SUMI-SL  MT HM Seals

Mfr: Sumitomo
Series: HM Sealed and MT Sealed series

Wire Insulation Dia.ColorPart Number
SUMI-SL11.3-1.7 mm (.051-.067 in)Green7165-0076
SUMI-SL21.7-2.7 mm (.067-.106 in)Black7160-8234
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
Mechanical
  • Seal Material:Silicone Rubber

spacer
spacer
  • Cross-compatible with Yazaki 090 Sealed Series
  • Hero FRS-103N
  • Honda 070MZ-002A900 (Green, SL1)
  • Honda 07JAZ-001100A (Black, SL2)
  • Suzuki 09900-28710-002, 09900-28710-003 (seal from refill kit)
QtyPrice
1-49$0.10
50-99$0.09
100-249$0.08
250-499$0.07
500-999$0.06
1000+$0.05
Quantity:  Ea

Rennsteig PEW 12 Die Set for Sumitomo HM/HW/MT sealed male terminal - small
TOOL-CDIE10
Rennsteig PEW 12 Die Set for Sumitomo HM/HW/MT sealed male terminal - small
OEM P/N: 624 396 3 012 RT
TOOL-CDIE10  Rennsteig PEW 12 Die Set for Sumitomo HM/HW/MT sealed male terminal - small
Kit Contents: Crimp die set, locator, wire stop

OEM P/N: 624 396 3 012 RT

Compatibility
P/NWire SizeFinishSumitomo P/N
✓SUMI.A-PIN1.3-1.25 mm2 (22-16 AWG)Tin1500-0105
Gold1500-0134
✗SUMI.A-PIN22.0-2.7 mm2 (14 AWG)Tin8230-4408
GoldN/A

spacer
spacer
spacer
This item is backordered.
Price: $354.87
Quantity:  Ea

Rennsteig PEW 12 Die Set for Sumitomo HM/HW/MT sealed female terminal - small
TOOL-CDIE11
Rennsteig PEW 12 Die Set for Sumitomo HM/HW/MT sealed female terminal - small
OEM P/N: 624 397 3 012 RT
TOOL-CDIE11  Rennsteig PEW 12 Die Set for Sumitomo HM/HW/MT sealed female terminal - small
Kit Contents: Crimp die set, locator, wire stop

OEM P/N: 624 397 3 012 RT

Compatibility
P/NWire SizeMaterial/FinishSumitomo P/NYazaki P/N
✓SUMI.A-SKT1.3-1.25 mm2 (22-16 AWG)Brass/Tin1500-0106N/A
Copper/Tin1500-01107116-1420
Copper/Gold1500-0133N/A
✗SUMI.A-SKT22.0-2.7 mm2 (14 AWG)Brass/TinN/AN/A
Copper/Tin8240-48287116-1421

spacer
spacer
spacer
This item is backordered.
Price: $370.84
Quantity:  Ea

Rennsteig PEW 12 Die Set for Sumitomo HM/HW/MT sealed male/female terminals - large
TOOL-CDIE33
Rennsteig PEW 12 Die Set for Sumitomo HM/HW/MT sealed male/female terminals - large
OEM P/N: 624 1726 3 01 RT
TOOL-CDIE33  Rennsteig PEW 12 Die Set for Sumitomo HM/HW/MT sealed male/female terminals - large
Kit Contents: Crimp die set, locator, wire stop

OEM P/N: 624 1726 3 01 RT

Compatibility
P/NWire SizeFinishSumitomo P/NYazaki P/N
✗SUMI.A-PIN1.3-1.25 mm2 (22-16 AWG)Tin1500-0105-
Gold1500-0134-
✓SUMI.A-PIN22.0-2.7 mm2 (14 AWG)Tin8230-4408-
GoldN/A-
✗SUMI.A-SKT1.3-1.25 mm2 (22-16 AWG)Brass/Tin1500-0106N/A
Copper/Tin1500-01107116-1420
Copper/Gold1500-0133N/A
✓SUMI.A-SKT22.0-2.7 mm2 (14 AWG)Brass/TinN/AN/A
Copper/Tin8240-48287116-1421

spacer
spacer
spacer
Price: $358.01
Quantity:  Ea


Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2024 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1
R7A4
R7A3
R7A2
