090 Sealed Series

2-Way Kit
Y090-2S-1
2-Way Kit
OEM P/N: 7223-9327-40

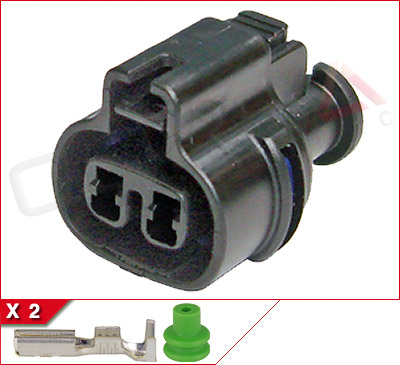

Y090-2S-1  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: Aftermarket Yazaki
Series: 090 Sealed Series
OEM P/N: 7223-9327-40

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Toyota 90980-10576
QtyPrice
1-5$2.09
6-19$1.94
20-49$1.78
50-99$1.67
100+$1.46
Quantity:  Kit

2-Way Kit
Y090-2S-2
2-Way Kit
OEM P/N: 7223-1324-30 (Black)
7223-1324-40 (Light Grey)

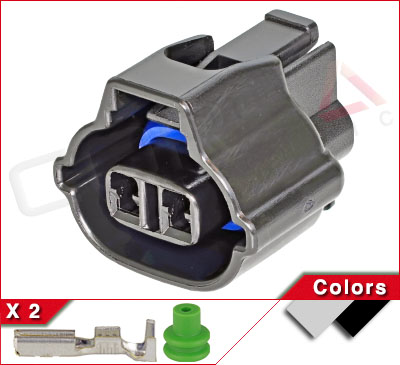

Y090-2S-2  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Yazaki
Series: 090 Sealed Series
OEM P/N: 7223-1324-30 (Black)
7223-1324-40 (Light Grey)
Mating Part: 7122-1324

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Ford CU2Z-14S411-SA, WPT-1269 (Tin plated terminals) pigtail connector (Black)
QtyPrice
1-5$4.91
6-19$4.66
20-49$4.42
50-99$4.17
100+$3.93
Quantity:  Kit

2-Way Kit
Y090-2S-3
2-Way Kit
OEM P/N: 7223-8522-40 (Sumitomo: 6520-0628)
Y090-2S-3  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: Aftermarket Yazaki
Series: 090 Sealed Series
OEM P/N: 7223-8522-40 (Sumitomo: 6520-0628)
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$2.86
6-19$2.66
20-49$2.43
50-99$2.29
100+$2.00
Quantity:  Kit

MT, HM, HW Sealed Pin Contact
SUMI.A-PIN
MT, HM, HW Sealed Pin Contact
SUMI.A-PIN  MT, HM, HW Sealed Pin Contact

Mfr: Sumitomo
Series: MT 090, HM 090, and HW 090 sealed series

Wire SizeFinishP/N:
SUMI.A-PIN1.3-1.25 mm2 (22-16 AWG)Tin1500-0105
-Gold1500-0134
SUMI.A-PIN22.0-2.7 mm2 (14 AWG)Tin8230-4408
-GoldN/A
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Hero FRS-101N (size 1)
  • Honda 07JAZ-001080A
  • Suzuki 09900-28710-003 (terminal from refill kit)
  • Terminal used in Toyota 82998-12260, 82998-24070 (Gold plated) repair wire
QtyPrice
1-49$0.18
50-99$0.17
100-249$0.16
250-499$0.15
500-999$0.14
1000-2499$0.13
2500-4999$0.12
5000+$0.11
Quantity:  Ea

MT, HM, HW Sealed Socket Contact
SUMI.A-SKT
MT, HM, HW Sealed Socket Contact
SUMI.A-SKT  MT, HM, HW Sealed Socket Contact

Mfr: Sumitomo
Series: MT 090, HM 090, and HW 090 sealed series

Wire SizeMaterial/FinishSumitomoYazaki
SUMI.A-SKT1.3-1.25 mm2 (22-16 AWG)Brass/Tin1500-0106N/A
-Copper/Tin1500-01107116-1420
-Copper/Gold1500-0133N/A
-2.0-2.7 mm2 (14 AWG)Brass/TinN/AN/A
SUMI.A-SKT2Copper/Tin8240-48287116-1421
Available stock: Aftermarket OEM
Cross-compatible with Yazaki 090 Sealed Series


spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Hero FRS-102N (size 1)
  • Honda 07JAZ-001090A, 070MZ-002A800
  • KET ST730502-3 (SKT1), ST730554-3 (SKT2)
  • KUM MT095-31230 (SKT1), MT095-31030 (SKT2)
  • Suzuki 09900-28710-002 (terminal from refill kit)
  • Terminal used in Toyota 82998-12270, 82998-12600, 82998-24080 (Gold plated) repair wire
QtyPrice
1-49$0.21
50-99$0.20
100-249$0.18
250-499$0.17
500-999$0.16
1000-2499$0.15
2500-4999$0.13
5000-9999$0.12
10000+$0.11
Quantity:  Ea

MT HM TS Series Plug (P6)
SUMI-PG2
MT HM TS Series Plug (P6)
OEM P/N: 7160-9465
SUMI-PG2  MT HM TS Series Plug (P6)

Mfr: OEM Sumitomo
Series: MT Sealed, HM Sealed, TS 090 Sealed, TS 090+187 Hybrid
OEM P/N: 7160-9465
090 P6 plug, black rubber
For 6mm pitch housings

spacer
General
  • Sealing:Single Wire Sealed
Mechanical
  • Seal Material:NBR

spacer
spacer
  • Honda 07VPZ-003030A
  • Toyota 90980-09152
QtyPrice
1-49$0.25
50-99$0.23
100-249$0.21
250-499$0.20
500-999$0.19
1000-2499$0.16
2500-4999$0.15
5000-9999$0.14
10000-14999$0.12
15000-19999$0.10
20000+$0.08
Quantity:  Ea

MT HM Seals
SUMI-SL
MT HM Seals
SUMI-SL  MT HM Seals

Mfr: Sumitomo
Series: HM Sealed and MT Sealed series

Wire Insulation Dia.ColorPart Number
SUMI-SL11.3-1.7 mm (.051-.067 in)Green7165-0076
SUMI-SL21.7-2.7 mm (.067-.106 in)Black7160-8234
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
Mechanical
  • Seal Material:Silicone Rubber

spacer
spacer
  • Cross-compatible with Yazaki 090 Sealed Series
  • Hero FRS-103N
  • Honda 070MZ-002A900 (Green, SL1)
  • Honda 07JAZ-001100A (Black, SL2)
  • Suzuki 09900-28710-002, 09900-28710-003 (seal from refill kit)
QtyPrice
1-49$0.10
50-99$0.09
100-249$0.08
250-499$0.07
500-999$0.06
1000+$0.05
Quantity:  Ea

Rennsteig PEW 12 Die Set for Sumitomo HM/HW/MT sealed male terminal - small
TOOL-CDIE10
Rennsteig PEW 12 Die Set for Sumitomo HM/HW/MT sealed male terminal - small
OEM P/N: 624 396 3 012 RT
TOOL-CDIE10  Rennsteig PEW 12 Die Set for Sumitomo HM/HW/MT sealed male terminal - small
Kit Contents: Crimp die set, locator, wire stop

OEM P/N: 624 396 3 012 RT

Compatibility
P/NWire SizeFinishSumitomo P/N
✓SUMI.A-PIN1.3-1.25 mm2 (22-16 AWG)Tin1500-0105
Gold1500-0134
✗SUMI.A-PIN22.0-2.7 mm2 (14 AWG)Tin8230-4408
GoldN/A

spacer
spacer
spacer
This item is backordered.
Price: $354.87
Quantity:  Ea

Rennsteig PEW 12 Die Set for Sumitomo HM/HW/MT sealed female terminal - small
TOOL-CDIE11
Rennsteig PEW 12 Die Set for Sumitomo HM/HW/MT sealed female terminal - small
OEM P/N: 624 397 3 012 RT
TOOL-CDIE11  Rennsteig PEW 12 Die Set for Sumitomo HM/HW/MT sealed female terminal - small
Kit Contents: Crimp die set, locator, wire stop

OEM P/N: 624 397 3 012 RT

Compatibility
P/NWire SizeMaterial/FinishSumitomo P/NYazaki P/N
✓SUMI.A-SKT1.3-1.25 mm2 (22-16 AWG)Brass/Tin1500-0106N/A
Copper/Tin1500-01107116-1420
Copper/Gold1500-0133N/A
✗SUMI.A-SKT22.0-2.7 mm2 (14 AWG)Brass/TinN/AN/A
Copper/Tin8240-48287116-1421

spacer
spacer
spacer
This item is backordered.
Price: $370.84
Quantity:  Ea

Rennsteig PEW 12 Die Set for Sumitomo HM/HW/MT sealed male/female terminals - large
TOOL-CDIE33
Rennsteig PEW 12 Die Set for Sumitomo HM/HW/MT sealed male/female terminals - large
OEM P/N: 624 1726 3 01 RT
TOOL-CDIE33  Rennsteig PEW 12 Die Set for Sumitomo HM/HW/MT sealed male/female terminals - large
Kit Contents: Crimp die set, locator, wire stop

OEM P/N: 624 1726 3 01 RT

Compatibility
P/NWire SizeFinishSumitomo P/NYazaki P/N
✗SUMI.A-PIN1.3-1.25 mm2 (22-16 AWG)Tin1500-0105-
Gold1500-0134-
✓SUMI.A-PIN22.0-2.7 mm2 (14 AWG)Tin8230-4408-
GoldN/A-
✗SUMI.A-SKT1.3-1.25 mm2 (22-16 AWG)Brass/Tin1500-0106N/A
Copper/Tin1500-01107116-1420
Copper/Gold1500-0133N/A
✓SUMI.A-SKT22.0-2.7 mm2 (14 AWG)Brass/TinN/AN/A
Copper/Tin8240-48287116-1421

spacer
spacer
spacer
Price: $358.01
Quantity:  Ea
