Home ▹ Connectors ▹ By Application/Use ▹ Throttle TPS

Throttle TPS

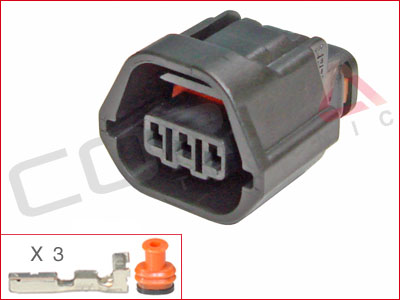

3-Way Kit
DMS-3S-A
3-Way Kit
OEM P/N: 7283-1334-30
DMS-3S-A  3-Way Kit
Kit Contents: Housing, 3 socket contacts for 20-18 AWG wire, 3 seals for 1.6-1.8mm O.D. wire, rear TPA

Mfr: Yazaki
Series: DMS Series
OEM P/N: 7283-1334-30
Keying: A
Mating Part: N/A, device only

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.8mm (.110)
  • Wire Size:0.50 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.3mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Ford F6DB-14A464-BJA
  • Ford 3U2Z-14S411-EYAA, WPT-754 (Tin plated terminals) pigtail connector
  • Ford 1U2Z-14S411-AFB, WPT-993 (Tin plated, greased terminals) pigtail connector
QtyPrice
1-5$5.08
6-19$4.83
20-49$4.57
50-99$4.32
100+$4.06
Quantity:  Kit

6-Way Kit
GT150.A-6S
6-Way Kit
OEM P/N: 15355297
GT150.A-6S  6-Way Kit
Kit Contents: Housing, 6 socket contacts, 6 seals

Mfr: OEM Delphi
Series: GT-150 Sealed Device
OEM P/N: 15355297
Mating Part: N/A, Device only

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:6
  • Contact Size:1.5mm (.060)
  • Wire Size:0.35 - 1.00 mm2
  • Number of Rows:2
  • Pitch:4.5mm
  • Row Spacing:7.0mm
  • Numbered Cavities:Yes, Alphabetically
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PPA+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes, separate item
Electrical
  • Current Rating[1]:15A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$6.39
6-19$6.07
20-49$5.75
50-99$5.43
100+$5.11
Quantity:  Kit

3-Way Kit
HW-3S-3
3-Way Kit
OEM P/N: 6189-0154
HW-3S-3  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals, TPA lock

Mfr: Aftermarket Sumitomo
Series: HW Sealed Series
OEM P/N: 6189-0154
Part Name: HW09T/S3FAY-DGR
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • VFR1000 TPS
  • Honda B-series TPS
spacer
  • Honda 986CC-0000300
QtyPrice
1-5$4.07
6-19$3.79
20-49$3.46
50-99$3.26
100+$2.85
Quantity:  Kit

3-Way Kit
HX040-3S-1
3-Way Kit
OEM P/N: Black: 6189-0887
Dark Blue: 6189-0970
HX040-3S-1  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals, front lock

Mfr: OEM Sumitomo
Series: HX 040 Sealed Series
OEM P/N: Black: 6189-0887
Dark Blue: 6189-0970
Part Name: HX4-DC3FAY2-B, HX4DCV3FAY-DL
Mating Part: HX040-3P-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Pitch:4.1mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • CBR 1000RR TPS, MAP (blue)
  • GL1800 tail light (black)
  • Acura, Honda K series MAP sensor
spacer
  • KTM 000700000FT
QtyPrice
1-5$3.49
6-19$3.32
20-49$3.14
50-99$2.97
100-249$2.79
250-499$2.62
500-999$2.44
1000+$2.27
Quantity:  Kit

3-Way Kit
MP150.2-3S
3-Way Kit
OEM P/N: 12162182
MP150.2-3S  3-Way Kit
Kit Contents: Housing, 3 socket contacts

Mfr: OEM Delphi
Series: Metri-Pack 150.2 Pull to Seat Series
OEM P/N: 12162182
Mating Part: N/A

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:3
  • Contact Size:1.5mm (.060)
  • Wire Size:0.35 - 1.00 mm2
  • Number of Rows:1
  • Pitch:3.5mm
  • Numbered Cavities:Yes, Alphabetically
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:14A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Ducati TPS, on ST2, 748, 996, 998, Monster (Magneti Marelli PF1C, PF3C or CTS 175 sensor)
  • MV Agusta TPS
  • Moto Guzzi TPS
spacer
  • Harley Davidson 72280-95
  • Ford 3U2Z-14S411-KHA, WPT-406 (Tin plated terminals) pigtail connector
QtyPrice
1-5$4.34
6-19$4.12
20-49$3.91
50-99$3.69
100+$3.47
Quantity:  Kit

6-Way Kit
MQS-6S-A
6-Way Kit
OEM P/N: 1-967616-1
MQS-6S-A  6-Way Kit
Kit Contents: Housing, 6 socket contacts for 20 awg wire, 6 seals

Mfr: OEM Tyco/AMP
Series: Sealed MQS
OEM P/N: 1-967616-1
Code: A
Mating Part: 1-967587-3

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:6
  • Contact Size:0.63mm (.025)
  • Wire Size:0.20 - 0.75 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:3.5mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT+GF15
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:7.5A
Environmental
  • Temp Range[2]:-40 - 120 °C
  • Protection Rating:IP X9K
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Bosch DBW throttle bodies: 0 280 750 148, 0 280 750 149, 0 280 750 150, 0 280 750 151, 0 280 750 156, 0 280 750 101, 0 280 750 474
spacer
  • Bosch D 261 205 358-01
  • Ford 2L1T-14A464-YA
  • Mopar 68018956AC repair kit connector
  • VW 7M0 973 119
QtyPrice
1-5$4.75
6-19$4.51
20-49$4.28
50-99$4.04
100+$3.80
Quantity:  Kit

3-Way Kit
MT-3P-2
3-Way Kit
OEM P/N: 6187-3231
MT-3P-2  3-Way Kit
Kit Contents: Housing, 3 pin contacts, 3 seals

Mfr: Aftermarket Sumitomo
Series: MT Sealed Series
OEM P/N: 6187-3231
Mating Part: MT-3S-2

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Row Spacing:5.2mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • TRE connector on Kawasaki motorcycles
  • Ducati side stand switch on 899, 1199 (harness side)
  • Suzuki
  • TRE connector on Suzuki GSXR's & TL's. For SV's see HM-4P
  • GSXR-600 camshaft sensor on 06-17 (sensor side, black)
  • GSXR-750 camshaft sensor on 06-17 (sensor side, black)
  • GSXR-1000 camshaft sensor on 07-17 (sensor side, black)
  • GSXR-1000 fuel pump/sender on 03-16 (fuel pump side, white)
  • Hayabusa camshaft sensor on 08-17 (sensor side, black)
  • GSXR gear position, neutral sensor (harness side)
  • GSXR 1000 2nd throttle position sensor on 06'> (sensor side)
  • 07> GSXR Crank sensor (harness side)
  • Yamaha
  • YZF-R6 crank sensor 06-09', neutral sensor
  • YZF-R6 TPS 99-02' (sensor side, white)
spacer
  • Hero FRS-108N
  • KTM 000700000AR
  • Suzuki 09900-28710-004 (White)
QtyPrice
1-5$2.89
6-19$2.75
20-49$2.60
50-99$2.46
100-249$2.31
250-499$2.17
500-999$2.02
1000-2499$1.88
2500+$1.73
Quantity:  Kit

3-Way Kit
MT-3S-2
3-Way Kit
OEM P/N: 6180-3241
MT-3S-2  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals

Mfr: Aftermarket Sumitomo
Series: MT Sealed Series
OEM P/N: 6180-3241
Mating Part: MT-3P-2

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Row Spacing:5.2mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Ducati side stand switch on 899, 1199 (sensor side)
  • TRE connector on Kawasaki motorcycles
  • Suzuki
  • TRE connector on Suzuki GSXR's & TL's. For SV's see HM-4P
  • GSXR-600 camshaft sensor on 06-17 (harness side, black)
  • GSXR-750 camshaft sensor on 06-17 (harness side, black)
  • GSXR-1000 camshaft sensor on 07-17 (harness side, black)
  • GSXR-1000 fuel pump/sender on 03-16 (harness side, white)
  • Hayabusa camshaft sensor on 08-17 (harness side, black)
  • GSXR gear position, neutral sensor (harness side)
  • GSXR 1000 2nd throttle position sensor on 06'> (sensor side)
  • Yamaha
  • YZF-R6 TPS 99-02' (sensor side, white)
  • YZF-R6 crank sensor 06-09', neutral sensor
spacer
  • Hero FRS-109N
  • KTM 000700000AM
  • Suzuki 09900-28710-005 (White)
QtyPrice
1-5$2.03
6-19$1.93
20-49$1.83
50-99$1.73
100-249$1.62
250-499$1.52
500-999$1.42
1000-2499$1.32
2500+$1.22
Quantity:  Kit

3-Way Kit (Keying A)
SSC-3S-A
3-Way Kit (Keying A)
OEM P/N: 184032-1
SSC-3S-A  3-Way Kit (Keying A)
Kit Contents: Housing, 3 socket contacts, 3 seals

Mfr: OEM Tyco/AMP
Series: Sealed Sensor Connector Series
OEM P/N: 184032-1
Keying: A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:1.8mm (.070)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT+GF15
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes, connector option
Electrical
  • Current Rating[1]:17A
  • Voltage Rating:125V
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • 6th Gen. alternator on many Fords '01-'09
  • CBR F4, F4i TPS 99-06' (harness side)
spacer
  • Ford 1U2Z-14S411-TA, WPT-118 (Tin plated terminals) pigtail connector
  • Ford 3U2Z-14S411-ESAA, WPT-777 (Gold plated terminals) pigtail connector
  • Mopar 05019915AB repair kit connector
QtyPrice
1-5$3.43
6-19$3.26
20-49$3.09
50-99$2.92
100+$2.74
Quantity:  Kit

3-Way Kit
SSD-3S-1
3-Way Kit
OEM P/N: 7283-8730-30
SSD-3S-1  3-Way Kit
Kit Contents: Housing, 3 socket contacts for 22-18 AWG wire, 3 seals, rear lock

Mfr: OEM Yazaki
Series: SSD Series
OEM P/N: 7283-8730-30
Mating Part: SSD-3P-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:1.2mm (.047)
  • Wire Size:0.30 - 0.85 mm2
  • Number of Rows:1
  • Pitch:4.1mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:5A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Miata CMP
  • GSXR1000 K4,K5,K8 TPS
spacer
  • KTM 000700000EX
QtyPrice
1-5$4.34
6-19$4.12
20-49$3.91
50-99$3.69
100-499$3.47
500-999$3.25
1000+$3.04
Quantity:  Kit

3-Way Kit
TS090-3S-3
3-Way Kit
OEM P/N: Light gray: 6189-0326
Black: 6189-0099 (In stock)
Natural: 6189-0622
Dark gray: 6189-0312
TS090-3S-3  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals

Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: Light gray: 6189-0326
Black: 6189-0099 (In stock)
Natural: 6189-0622
Dark gray: 6189-0312
Part Name: WP090VCM3FAY
Mating Part: TS090-3P-3Z (Universal keying)

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Various Mikuni TPS
  • Suzuki motorcycles with TPS p/n: 13550-13D60
  • -GSX-R600 97-00
  • -GSX-R750 96-99
  • -Bandit (GSF1200/S/Z) 01-05
  • -Katana (GSX600F/GSX750F) 98-06
  • -SV1000/SV1000S 03-07
  • -GS500F 04-09
  • -SV650 03-07
  • -V-Strom (DL650) 04-06
  • Yamaha motorcycles with TPS p/n: 4HD-85885-00-00 (supersedes 4SV-85885-00-00)
  • And TPS p/n: 2D1-85885-00-00 (supersedes 5FL-85885-00-00, 5FL-85885-01-00, 5FL-85885-02-00)
  • -YZF-R1 98-01, 04-06
  • -YZF1000 97-98
  • -FZ1 07-14
  • -FZS1 2015
  • -FZ6 04-09
  • -FZ6R 09-17
  • -YZF-R7 99
  • -SRX700 00-02
  • -SX Viper 02-06
  • -Venture 700 2004
spacer
  • KTM 000700000BZ
  • Toyota 90980-10845, 90980-12636
QtyPrice
1-5$3.57
6-19$3.39
20-49$3.21
50-99$3.03
100+$2.86
Quantity:  Kit

4-Way Kit
TS090-4S-3
4-Way Kit
OEM P/N: Natural: 6189-0565
Black: 6189-0225 (Yazaki: 7283-1440-30)
Gray: 6189-0598
Available stock: Aftermarket OEM
TS090-4S-3  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals

Mfr: Sumitomo
Series: TS 090 Sealed Series
OEM P/N: Natural: 6189-0565
Black: 6189-0225 (Yazaki: 7283-1440-30)
Gray: 6189-0598
Available stock: Aftermarket OEM
Part Name: 11150W9A04F-NA

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Toyota/Lexus 2JZGE distributor
  • Lexus Accelerator Pedal Position Sensor
spacer
  • Toyota 90980-11150, 90980-12057
QtyPrice
1-5$4.77
6-19$4.53
20-49$4.29
50-99$4.05
100+$3.82
Quantity:  Kit

3-Way Kit
WP-3S-1
3-Way Kit
OEM P/N: 12015793
WP-3S-1  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals

Mfr: OEM Delphi
Series: Weather-Pack series
OEM P/N: 12015793
Mating Part: WP-3P-1 and WP-3P-2

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.6mm (.102)
  • Wire Size:0.35 - 3.00 mm2
  • Number of Rows:1
  • Pitch:7.7mm
  • Numbered Cavities:Yes, Alphabetically
Mechanical
  • Contact Type:Socket, circular
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • '85-91 Corvette TPS
  • '85-92 Camaro, Firebird TPS
spacer
QtyPrice
1-5$2.99
6-19$2.84
20-49$2.69
50-99$2.54
100-249$2.39
250+$2.24
Quantity:  Kit


Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2024 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1
R7A4
R7A3
R7A2
