Sealed Sensor Connector Series

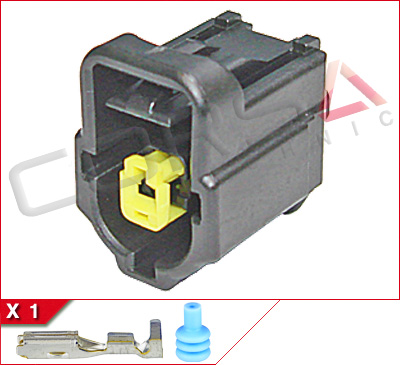

1-Way Kit (Keying A)
SSC-1S-A
1-Way Kit (Keying A)
OEM P/N: 184042-1
SSC-1S-A  1-Way Kit (Keying A)
Kit Contents: Housing, 1 socket contact, 1 seal

Mfr: OEM Tyco/AMP
Series: Sealed Sensor Connector Series
OEM P/N: 184042-1
Keying: A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:1.8mm (.070)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT+GF15
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:17A
  • Voltage Rating:125V
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Ford 3U2Z-14S411-MHA, WPT-439 (Tin plated terminals) pigtail connector
  • Ford 3U2Z-14S411-UHA, WPT-538 (Gold plated terminals) pigtail connector
  • Ford F65B-14A464-CA
QtyPrice
1-5$2.05
6-19$1.95
20-49$1.84
50-99$1.74
100+$1.64
Quantity:  Kit

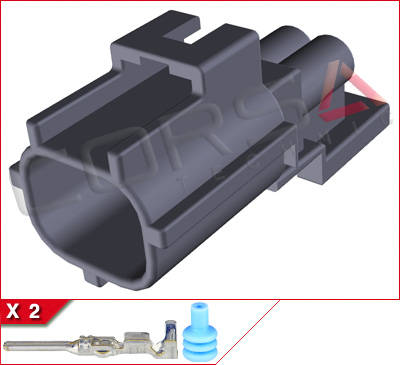

2-Way Kit (Keying A)
SSC-2P-A
2-Way Kit (Keying A)
OEM P/N: 184163-1
SSC-2P-A  2-Way Kit (Keying A)
Kit Contents: Housing, 2 pin contacts, 2 seals, lock

Mfr: OEM Tyco/AMP
Series: Sealed Sensor Connector Series
OEM P/N: 184163-1
Keying: A
Mating Part: SSC-2S-A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:1.8mm (.070)
  • Wire Size:0.20 - 1.25 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT+GF15
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:17A
  • Voltage Rating:125V
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$4.42
6-19$4.20
20-49$3.98
50-99$3.76
100+$3.54
Quantity:  Kit

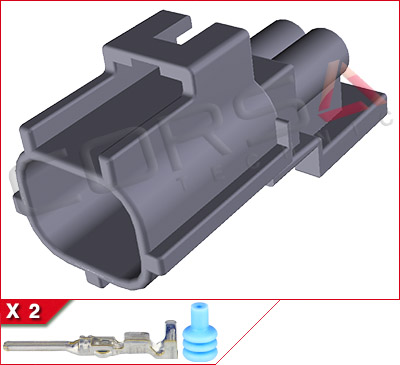

2-Way Kit (Keying B)
SSC-2P-B
2-Way Kit (Keying B)
OEM P/N: 184164-1
SSC-2P-B  2-Way Kit (Keying B)
Kit Contents: Housing, 2 pin contacts, 2 seals, lock

Mfr: OEM Tyco/AMP
Series: Sealed Sensor Connector Series
OEM P/N: 184164-1
Keying: B
Mating Part: SSC-2S-B

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:1.8mm (.070)
  • Wire Size:0.20 - 1.25 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT+GF15
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:17A
  • Voltage Rating:125V
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$4.64
6-19$4.41
20-49$4.18
50-99$3.94
100+$3.71
Quantity:  Kit

2-Way Kit (Keying C)
SSC-2P-C
2-Way Kit (Keying C)
OEM P/N: 184165-1
SSC-2P-C  2-Way Kit (Keying C)
Kit Contents: Housing, 2 pin contacts, 2 seals, lock

Mfr: OEM Tyco/AMP
Series: Sealed Sensor Connector Series
OEM P/N: 184165-1
Keying: C
Mating Part: SSC-2S-C

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:1.8mm (.070)
  • Wire Size:0.20 - 1.25 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT+GF15
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:17A
  • Voltage Rating:125V
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$4.61
6-19$4.38
20-49$4.15
50-99$3.92
100+$3.69
Quantity:  Kit

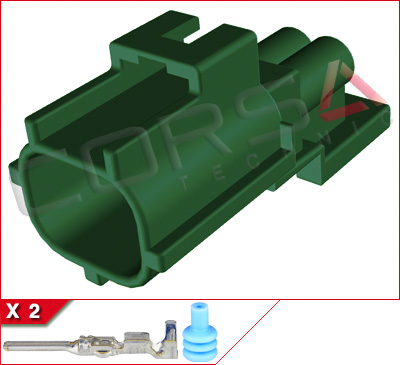

2-Way Kit (Keying D)
SSC-2P-D
2-Way Kit (Keying D)
OEM P/N: 184166-1
SSC-2P-D  2-Way Kit (Keying D)
Kit Contents: Housing, 2 pin contacts, 2 seals, lock

Mfr: OEM Tyco/AMP
Series: Sealed Sensor Connector Series
OEM P/N: 184166-1
Keying: D
Mating Part: SSC-2S-D

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:1.8mm (.070)
  • Wire Size:0.20 - 1.25 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT+GF15
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:17A
  • Voltage Rating:125V
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$4.71
6-19$4.47
20-49$4.24
50-99$4.00
100+$3.77
Quantity:  Kit

2-Way Kit (Keying G)
SSC-2P-G
2-Way Kit (Keying G)
OEM P/N: 184169-1
SSC-2P-G  2-Way Kit (Keying G)
Kit Contents: Housing, 2 pin contacts, 2 seals, lock

Mfr: OEM Tyco/AMP
Series: Sealed Sensor Connector Series
OEM P/N: 184169-1
Keying: G
Mating Part: SSC-2S-G

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:1.8mm (.070)
  • Wire Size:0.20 - 1.25 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT+GF15
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:17A
  • Voltage Rating:125V
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$3.98
6-19$3.78
20-49$3.58
50-99$3.38
100+$3.18
Quantity:  Kit

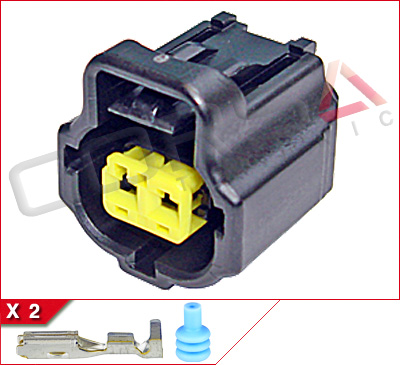

2-Way Kit (Keying A)
SSC-2S-A
2-Way Kit (Keying A)
OEM P/N: 184000-1
SSC-2S-A  2-Way Kit (Keying A)
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Tyco/AMP
Series: Sealed Sensor Connector Series
OEM P/N: 184000-1
Keying: A
Mating Part: SSC-2P-A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:1.8mm (.070)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT+GF15
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:17A
  • Voltage Rating:125V
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Miata IAC connector
spacer
  • Toyota 90980-10734
  • Ford 3U2Z-14S411-HVA, WPT-357 (Tin plated terminals) pigtail connector
  • Ford 3U2Z-14S411-CDA, WPT-304 (Gold plated terminals) pigtail connector
  • Ford F57B-14A464-APB (black)
  • Mopar 05014002AA repair kit connector
QtyPrice
1-5$2.55
6-19$2.42
20-49$2.29
50-99$2.17
100+$2.04
Quantity:  Kit

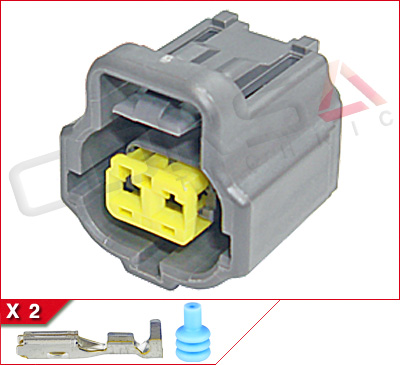

2-Way Kit (Keying B)
SSC-2S-B
2-Way Kit (Keying B)
OEM P/N: 184002-1
SSC-2S-B  2-Way Kit (Keying B)
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Tyco/AMP
Series: Sealed Sensor Connector Series
OEM P/N: 184002-1
Keying: B
Mating Part: SSC-2P-B

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:1.8mm (.070)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT+GF15
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:17A
  • Voltage Rating:125V
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Ford 3U2Z-14S411-HYB, WPT-989 (Tin plated terminals, greased) pigtail connector
  • Ford F5AB-14A464-BB
  • Mopar 05014003AA repair kit connector
  • Toyota 90980-10735, 90980-11061
QtyPrice
1-5$4.37
6-19$4.15
20-49$3.93
50-99$3.71
100+$3.50
Quantity:  Kit

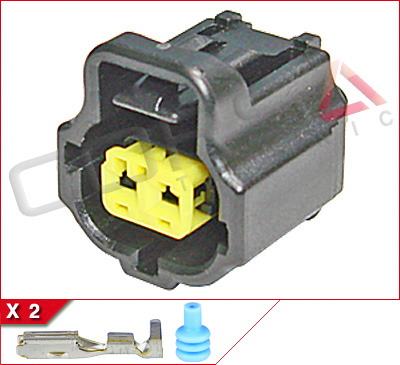

2-Way Kit (Keying C)
SSC-2S-C
2-Way Kit (Keying C)
OEM P/N: 184004-1
SSC-2S-C  2-Way Kit (Keying C)
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Tyco/AMP
Series: Sealed Sensor Connector Series
OEM P/N: 184004-1
Keying: C
Mating Part: SSC-2P-C

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:1.8mm (.070)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT+GF15
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:17A
  • Voltage Rating:125V
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Toyota 90980-10736
  • Ford 3U2Z-14S411-JZA, WPT-322 (Tin plated terminals, greased) pigtail connector
  • Ford 3U2Z-14S411-JUA, WPT-420 (Gold plated terminals) pigtail connector
QtyPrice
1-5$2.86
6-19$2.72
20-49$2.57
50-99$2.43
100+$2.29
Quantity:  Kit

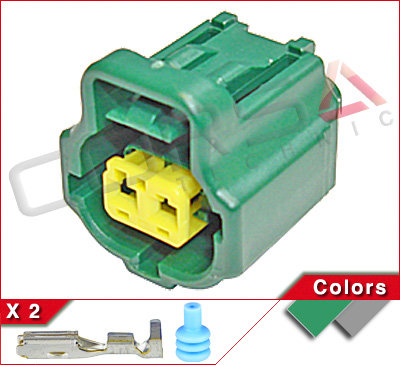

2-Way Kit (Keying D)
SSC-2S-D
2-Way Kit (Keying D)
OEM P/N: 184006-1 (Green), 184006-2 (Grey)
SSC-2S-D  2-Way Kit (Keying D)
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Tyco/AMP
Series: Sealed Sensor Connector Series
OEM P/N: 184006-1 (Green), 184006-2 (Grey)
Keying: D
Mating Part: SSC-2P-D

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:1.8mm (.070)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT+GF15
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:17A
  • Voltage Rating:125V
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Intake temp sensor on various Suzuki motorcycles
  • Coolant temp sensor on various Suzuki motorcycles
spacer
  • Cross-compatible to Econoseal J-series Mk II p/n: 178449-4
  • Toyota 90980-10737, 90980-11062
  • Ford 3U2Z-14S411-BA, WPT-410 (Green body, Gold plated terminals) pigtail connector
  • Ford 3U2Z-14S411-BB (Green body, ? terminals) pigtail connector
  • Mopar 05014005AA (green) repair kit connector
QtyPrice
1-5$2.69
6-19$2.56
20-49$2.42
50-99$2.29
100+$2.15
Quantity:  Kit

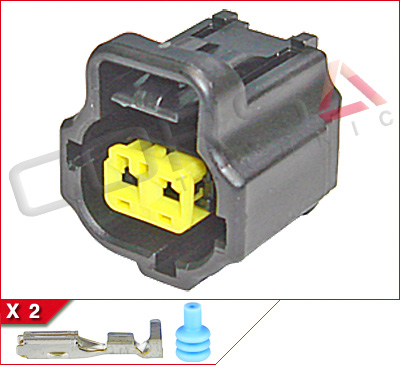

2-Way Kit (Keying E)
SSC-2S-E
2-Way Kit (Keying E)
OEM P/N: 184008-1
SSC-2S-E  2-Way Kit (Keying E)
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Tyco/AMP
Series: Sealed Sensor Connector Series
OEM P/N: 184008-1
Keying: E

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:1.8mm (.070)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT+GF15
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:17A
  • Voltage Rating:125V
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Ford 3U2Z-14S411-JCA, WPT-359 (Tin plated terminals) pigtail connector
QtyPrice
1-5$3.89
6-19$3.73
20-49$3.62
50-99$3.50
100+$3.31
Quantity:  Kit

2-Way Kit (Keying F)
SSC-2S-F
2-Way Kit (Keying F)
OEM P/N: 184010-1
SSC-2S-F  2-Way Kit (Keying F)
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Tyco/AMP
Series: Sealed Sensor Connector Series
OEM P/N: 184010-1
Keying: F

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:1.8mm (.070)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT+GF15
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:17A
  • Voltage Rating:125V
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Ford 3U2Z-14S411-USA, WPT-545 (Tin plated terminals) pigtail connector
  • Ford F5AB-14A464-MB (black)
QtyPrice
1-5$2.49
6-19$2.37
20-49$2.24
50-99$2.12
100+$1.99
Quantity:  Kit

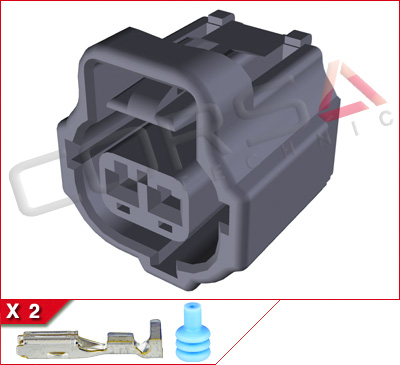

2-Way Kit (Keying G)
SSC-2S-G
2-Way Kit (Keying G)
OEM P/N: 184012-1
SSC-2S-G  2-Way Kit (Keying G)
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Tyco/AMP
Series: Sealed Sensor Connector Series
OEM P/N: 184012-1
Keying: G
Mating Part: SSC-2P-G

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:1.8mm (.070)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT+GF15
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:17A
  • Voltage Rating:125V
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Ford 3U2Z-14S411-MDB, WPT-985 (Tin plated terminals, greased) pigtail connector
QtyPrice
1-5$2.54
6-19$2.41
20-49$2.29
50-99$2.16
100+$2.03
Quantity:  Kit

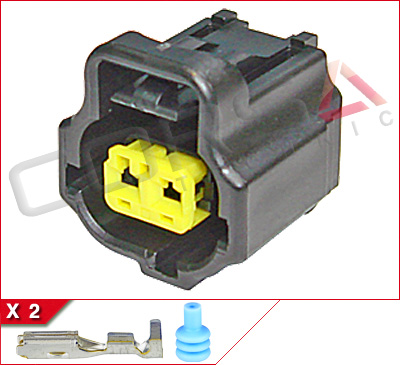

2-Way Kit (Keying H)
SSC-2S-H
2-Way Kit (Keying H)
OEM P/N: 184014-1
SSC-2S-H  2-Way Kit (Keying H)
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Tyco/AMP
Series: Sealed Sensor Connector Series
OEM P/N: 184014-1
Keying: H

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:1.8mm (.070)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT+GF15
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:17A
  • Voltage Rating:125V
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Ford 3U2Z-14S411-LXB, WPT-1325 (Tin plated terminals, greased) pigtail connector
QtyPrice
1-5$3.23
6-19$3.07
20-49$2.91
50-99$2.75
100+$2.58
Quantity:  Kit

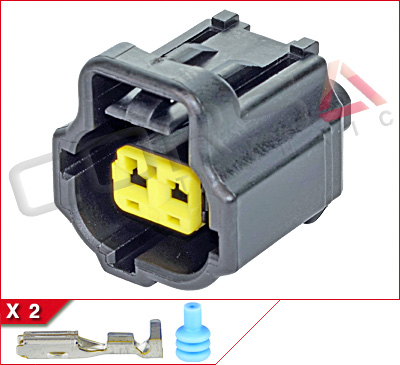

2-Way Kit (Keying J)
SSC-2S-J
2-Way Kit (Keying J)
OEM P/N: 184016-1
SSC-2S-J  2-Way Kit (Keying J)
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Tyco/AMP
Series: Sealed Sensor Connector Series
OEM P/N: 184016-1
Keying: J

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:1.8mm (.070)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT+GF15
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:17A
  • Voltage Rating:125V
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Ford 3U2Z-14S411-CGC, WPT-1271 (Tin plated terminals, greased) pigtail connector
QtyPrice
1-5$1.96
6-19$1.86
20-49$1.76
50-99$1.67
100+$1.57
Quantity:  Kit

2-Way Kit (Keying L)
SSC-2S-L
2-Way Kit (Keying L)
OEM P/N: 184020-1
SSC-2S-L  2-Way Kit (Keying L)
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Tyco/AMP
Series: Sealed Sensor Connector Series
OEM P/N: 184020-1
Keying: L

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:1.8mm (.070)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT+GF15
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:17A
  • Voltage Rating:125V
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Ford 3U2Z-14S411-ARB, WPT-1120 (Tin plated terminals, greased) pigtail connector
QtyPrice
1-5$4.88
6-19$4.64
20-49$4.39
50-99$4.15
100+$3.90
Quantity:  Kit

2-Way Kit (Keying M)
SSC-2S-M
2-Way Kit (Keying M)
OEM P/N: 184022-1
SSC-2S-M  2-Way Kit (Keying M)
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Tyco/AMP
Series: Sealed Sensor Connector Series
OEM P/N: 184022-1
Keying: M

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:1.8mm (.070)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT+GF15
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:17A
  • Voltage Rating:125V
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Ford 3U2Z-14S411-MSA, WPT-470 (Gold plated terminals) pigtail connector
QtyPrice
1-5$2.73
6-19$2.59
20-49$2.46
50-99$2.32
100+$2.18
Quantity:  Kit

3-Way Kit (Keying A)
SSC-3S-A
3-Way Kit (Keying A)
OEM P/N: 184032-1
SSC-3S-A  3-Way Kit (Keying A)
Kit Contents: Housing, 3 socket contacts, 3 seals

Mfr: OEM Tyco/AMP
Series: Sealed Sensor Connector Series
OEM P/N: 184032-1
Keying: A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:1.8mm (.070)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT+GF15
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes, connector option
Electrical
  • Current Rating[1]:17A
  • Voltage Rating:125V
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • 6th Gen. alternator on many Fords '01-'09
  • CBR F4, F4i TPS 99-06' (harness side)
spacer
  • Ford 1U2Z-14S411-TA, WPT-118 (Tin plated terminals) pigtail connector
  • Ford 3U2Z-14S411-ESAA, WPT-777 (Gold plated terminals) pigtail connector
  • Mopar 05019915AB repair kit connector
QtyPrice
1-5$3.43
6-19$3.26
20-49$3.09
50-99$2.92
100+$2.74
Quantity:  Kit

4-Way PCB Header (Keying A)
SSC-4P-A
4-Way PCB Header (Keying A)
SSC-4P-A  4-Way PCB Header (Keying A)
Kit Contents: PCB header with straight pins

Mfr: Aftermarket, Tyco/AMP does not make an actual part.
Series: Sealed Sensor Connector Series
Keying: A
Mating Part: SSC-4S-A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:1.8mm (.070)
  • Wire Size:0.20 - 1.25 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:PCB solder tail
  • Housing Material:PBT+GF15
  • Mounting Style:PCB Board Mount
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:17A
  • Voltage Rating:125V
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$2.48
6-19$2.36
20-49$2.23
50-99$2.11
100+$1.98
Quantity:  Ea

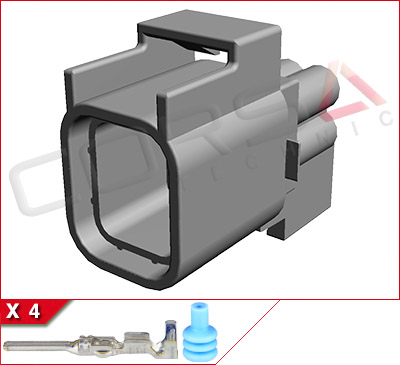

4-Way Kit
SSC-4P-Z
4-Way Kit
SSC-4P-Z  4-Way Kit
Kit Contents: Housing, 4 pin contacts, 4 seals, lock

Mfr: Aftermarket Tyco/AMP
Series: Sealed Sensor Connector Series
Keying: Z-no keying

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:1.8mm (.070)
  • Wire Size:0.20 - 1.25 mm2
  • Number of Rows:2
  • Pitch:5.0mm
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT+GF15
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:17A
  • Voltage Rating:125V
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$4.88
6-19$4.64
20-49$4.39
50-99$4.15
100+$3.90
Quantity:  Kit

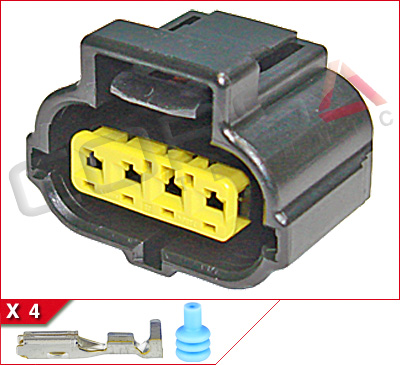

4-Way Kit (Keying A)
SSC-4S-A
4-Way Kit (Keying A)
OEM P/N: 184046-1
SSC-4S-A  4-Way Kit (Keying A)
Kit Contents: Housing, 4 socket contacts, 4 seals

Mfr: OEM Tyco/AMP
Series: Sealed Sensor Connector Series
OEM P/N: 184046-1
Keying: A
Mating Part: SSC-4P-A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:1.8mm (.070)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT+GF15
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes, connector option
Electrical
  • Current Rating[1]:17A
  • Voltage Rating:125V
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Mopar 05019924AA repair kit connector
  • Toyota 90980-10711
QtyPrice
1-5$3.84
6-19$3.65
20-49$3.46
50-99$3.26
100+$3.07
Quantity:  Kit

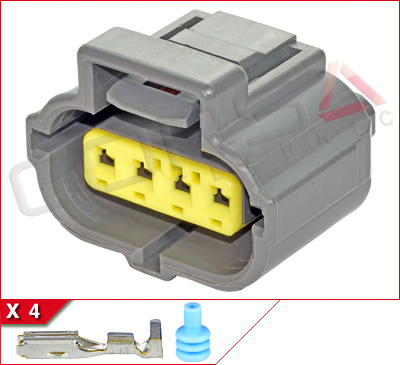

4-Way Kit (Keying C)
SSC-4S-C
4-Way Kit (Keying C)
OEM P/N: 184050-2 (Grey), 184050-1 (Black)
SSC-4S-C  4-Way Kit (Keying C)
Kit Contents: Housing, 4 socket contacts, 4 seals

Mfr: OEM Tyco/AMP
Series: Sealed Sensor Connector Series
OEM P/N: 184050-2 (Grey), 184050-1 (Black)
Keying: C

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:1.8mm (.070)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT+GF15
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes, connector option
Electrical
  • Current Rating[1]:17A
  • Voltage Rating:125V
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$4.57
6-19$4.34
20-49$4.11
50-99$3.88
100+$3.66
Quantity:  Kit

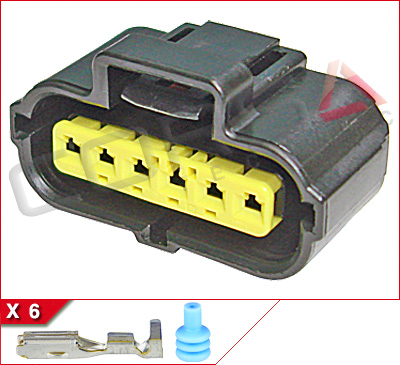

6-Way Kit (Keying A)
SSC-6S-A
6-Way Kit (Keying A)
OEM P/N: 184060-1
SSC-6S-A  6-Way Kit (Keying A)
Kit Contents: Housing, 6 socket contacts, 6 seals

Mfr: OEM Tyco/AMP
Series: Sealed Sensor Connector Series
OEM P/N: 184060-1
Keying: A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:6
  • Contact Size:1.8mm (.070)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT+GF15
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:17A
  • Voltage Rating:125V
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Ford 1U2Z-14S411-AY, WPT-1091 (Tin plated terminals, greased) pigtail connector
  • Ford F5AB-14A464-EA
  • Mopar 68040448AB repair kit connector
QtyPrice
1-5$4.35
6-19$4.13
20-49$3.91
50-99$3.70
100+$3.48
Quantity:  Kit

SSC (Sealed Sensor Connector) Series Socket Contact
SSC-SKT
SSC (Sealed Sensor Connector) Series Socket Contact
SSC-SKT  SSC (Sealed Sensor Connector) Series Socket Contact

Mfr: Tyco/AMP
Series: Sealed Sensor Connector Series

Part Number
Wire SizePlatingStripLoose
SSC-SKT1.3-.85 mm2 (22-18 AWG)Tin184095-2171699-1
-Gold184095-1N/A
SSC-SKT2.5-2.0 mm2 (20-14 AWG)Tin184030-3173707-1
-Gold184030-1N/A
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:1.8mm (.070)
  • Wire Size:0.30 - 2.00 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:17A
  • Voltage Rating:125V
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Terminal used in Toyota 82998-12620 repair wire
QtyPrice
1-49$0.22
50-99$0.21
100-249$0.20
250-499$0.19
500-999$0.18
1000-2499$0.17
2500+$0.16
Quantity:  Ea

TE 070 Pin Contact for ESJ, ES3.WW, SSC
TE070-PIN
TE 070 Pin Contact for ESJ, ES3.WW, SSC
TE070-PIN  TE 070 Pin Contact for ESJ, ES3.WW, SSC

Mfr: Tyco/AMP
Series: Econoseal 3 Wire to Wire, Econoseal J Series Mk II, Sealed Sensor Connector Series

Part Number
Wire SizePlatingStripLoose
TE070-PIN1.2-.5 mm2 (24-20 AWG)Tin171631-1173600-1
-Gold171631-2N/A
TE070-PIN2.5-1.25 mm2 (20-16 AWG)Tin171661-1173706-1
-Gold171661-2N/A
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:1.8mm (.070)
  • Wire Size:0.20 - 1.25 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Hero FRA-103N (size 2)
QtyPrice
1-49$0.21
50-99$0.20
100-249$0.19
250-499$0.18
500-999$0.17
1000+$0.16
Quantity:  Ea

TE 070 Seal Plug for ESJ, ES3.WW, SSC
TE070-PG
TE 070 Seal Plug for ESJ, ES3.WW, SSC
OEM P/N: 2822357-1 (supersedes 172748-1)
TE070-PG  TE 070 Seal Plug for ESJ, ES3.WW, SSC

Mfr: OEM Tyco/AMP
Series: Econoseal 3 Wire to Wire, Econoseal J Series Mk II, Sealed Sensor Connector Series
OEM P/N: 2822357-1 (supersedes 172748-1)

spacer
General
  • Sealing:Single Wire Sealed
Mechanical
  • Seal Material:NBR
Environmental
  • Temp Range[2]:-30 - 105 °C
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Ford F50B-14A666-BA
QtyPrice
1-49$0.20
50-99$0.19
100-249$0.18
250-499$0.17
500-999$0.16
1000+$0.15
Quantity:  Ea

SSC (Sealed Sensor Connector) Series Seals
SSC-SL
SSC (Sealed Sensor Connector) Series Seals
SSC-SL  SSC (Sealed Sensor Connector) Series Seals

Mfr: Tyco/AMP
Series: Sealed Sensor Connector Series

Wire Insulation Dia.ColorPart Number
SSC-SL11.2-1.7 mm (.047-.067 in)Light blue184139-1
SSC-SL21.6-2.1 mm (.063-.083 in)Red/orange184140-1
SSC-SL32.2-2.7 mm (.086-.106 in)Purple184141-1
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
Mechanical
  • Seal Material:Silicone Rubber

spacer
spacer
QtyPrice
1-49$0.20
50-99$0.19
100-249$0.18
250-499$0.17
500+$0.16
Quantity:  Ea

EPC Connector Clamp
CLIP-207
EPC Connector Clamp
OEM P/N: E-0942
CLIP-207  EPC Connector Clamp

Mfr: OEM EPC
Series: Molex MX150 Sealed Series
TE Sealed Sensor Connector Series
Yazaki YESC 1.5+58 Y Hybrid Sealed
OEM P/N: E-0942
For 6.5mm dia. hole with 5.1mm thickness maximum.

spacer
spacer
spacer
QtyPrice
1-5$0.61
6-19$0.58
20-49$0.55
50-99$0.52
100+$0.49
Quantity:  Ea

Rennsteig PEW 12 Die Set for AMP/TE Econoseal 070 terminals (20-16 AWG)
TOOL-CDIE64
Rennsteig PEW 12 Die Set for AMP/TE Econoseal 070 terminals (20-16 AWG)
OEM P/N: 624 1730 3 01 RT
TOOL-CDIE64  Rennsteig PEW 12 Die Set for AMP/TE Econoseal 070 terminals (20-16 AWG)
Kit Contents: Crimp die set, locator

OEM P/N: 624 1730 3 01 RT

Compatibility
P/NWire SizePlatingStripLoose
✗TE070-PIN1.2-.5 mm2 (24-20 AWG)Tin171631-1173600-1
Gold171631-2N/A
✓TE070-PIN2.5-1.25 mm2 (20-16 AWG)Tin171661-1173706-1
Gold171661-2N/A
✗TE070-SKT1.2-.5 mm2 (24-20 AWG)Tin171630-1171699-1
Gold171630-5N/A
✓TE070-SKT2.5-1.25 mm2 (20-16 AWG)Tin171662-1173707-1
Gold171662-5N/A

spacer
spacer
spacer
1x - in stock.
Price: $372.52
Quantity:  Ea


Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2024 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1
R7A4
R7A3
R7A2
