Home ▹ Connectors ▹ By Manufacturer ▹ Delphi (Aptiv) ▹ Weather-Pack

Weather-Pack

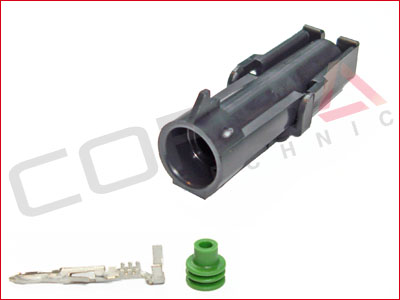

1-Way Kit
WP-1P
1-Way Kit
OEM P/N: 12010996
WP-1P  1-Way Kit
Kit Contents: Housing, 1 pin contact and seal

Mfr: OEM Delphi
Series: Weather-Pack series
OEM P/N: 12010996
Mating Part: WP-1S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:2.6mm (.102)
  • Wire Size:0.22 - 3.00 mm2
  • Number of Rows:1
  • Pitch:7.7mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, circular
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$1.41
6-19$1.34
20-49$1.27
50-99$1.20
100+$1.13
Quantity:  Kit

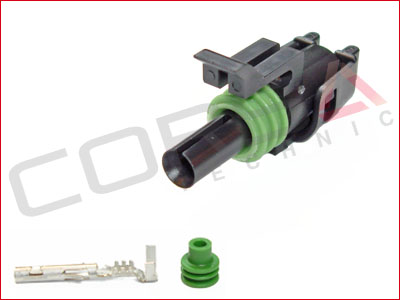

1-Way Kit
WP-1S
1-Way Kit
OEM P/N: 12015791
WP-1S  1-Way Kit
Kit Contents: Housing, 1 socket contact and seal

Mfr: OEM Delphi
Series: Weather-Pack series
OEM P/N: 12015791
Mating Part: WP-1P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:2.6mm (.102)
  • Wire Size:0.35 - 3.00 mm2
  • Number of Rows:1
  • Pitch:7.7mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, circular
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$1.53
6-19$1.45
20-49$1.38
50-99$1.30
100-249$1.22
250+$1.15
Quantity:  Kit

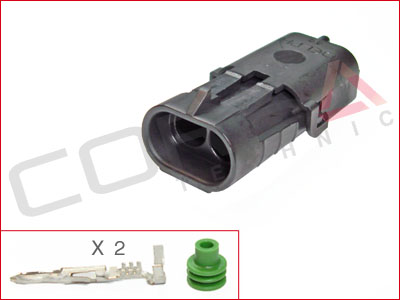

2-Way Kit
WP-2P-1
2-Way Kit
OEM P/N: 12010973
WP-2P-1  2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals

Mfr: OEM Delphi
Series: Weather-Pack series
OEM P/N: 12010973
Mating Part: WP-2S-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.6mm (.102)
  • Wire Size:0.22 - 3.00 mm2
  • Number of Rows:1
  • Pitch:7.7mm
  • Numbered Cavities:Yes, Alphabetically
Mechanical
  • Contact Type:Pin, circular
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$1.52
6-19$1.44
20-49$1.37
50-99$1.29
100+$1.22
Quantity:  Kit

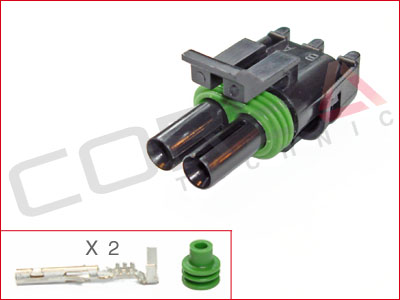

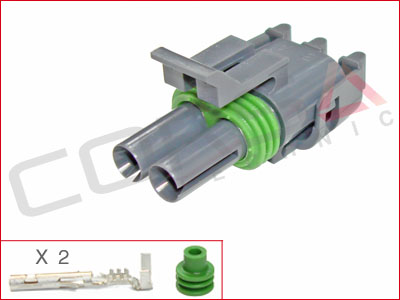

2-Way Kit
WP-2S-1
2-Way Kit
OEM P/N: 12015792
WP-2S-1  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Delphi
Series: Weather-Pack series
OEM P/N: 12015792
Mating Part: WP-2P-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.6mm (.102)
  • Wire Size:0.35 - 3.00 mm2
  • Number of Rows:1
  • Pitch:7.7mm
  • Numbered Cavities:Yes, Alphabetically
Mechanical
  • Contact Type:Socket, circular
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Ford 3U2Z-14S411-NZA, WPT-494 (Tin plated terminals) pigtail connector
  • Mopar 05019910AA repair kit connector
Price: $1.80
Quantity:  Kit

2-Way Kit
WP-2S-2
2-Way Kit
OEM P/N: 12015378
WP-2S-2  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Delphi
Series: Weather-Pack series
OEM P/N: 12015378
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.6mm (.102)
  • Wire Size:0.35 - 3.00 mm2
  • Number of Rows:1
  • Pitch:7.7mm
  • Numbered Cavities:Yes, Alphabetically
Mechanical
  • Contact Type:Socket, circular
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-4$2.35
5-19$2.23
20-49$2.12
50-99$2.00
100-249$1.88
250+$1.76
Quantity:  Kit

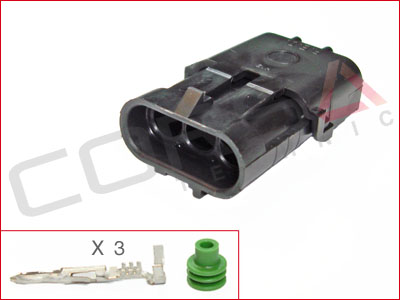

3-Way Kit
WP-3P-1
3-Way Kit
OEM P/N: 12010717
WP-3P-1  3-Way Kit
Kit Contents: Housing, 3 pin contacts, 3 seals

Mfr: OEM Delphi
Series: Weather-Pack series
OEM P/N: 12010717
Mating Part: WP-3S-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.6mm (.102)
  • Wire Size:0.22 - 3.00 mm2
  • Number of Rows:1
  • Pitch:7.7mm
  • Numbered Cavities:Yes, Alphabetically
Mechanical
  • Contact Type:Pin, circular
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$2.35
6-19$2.23
20-49$2.12
50-99$2.00
100+$1.88
Quantity:  Kit

3-Way Kit
WP-3P-2
3-Way Kit
OEM P/N: 12015460
WP-3P-2  3-Way Kit
Kit Contents: Housing, 3 pin contacts, 3 seals

Mfr: OEM Delphi
Series: Weather-Pack series
OEM P/N: 12015460
Mating Part: WP-3S-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.6mm (.102)
  • Wire Size:0.22 - 3.00 mm2
  • Number of Rows:1
  • Pitch:7.7mm
  • Numbered Cavities:Yes, Alphabetically
Mechanical
  • Contact Type:Pin, circular
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$2.92
6-19$2.80
20-49$2.72
50-99$2.63
100+$2.48
Quantity:  Kit

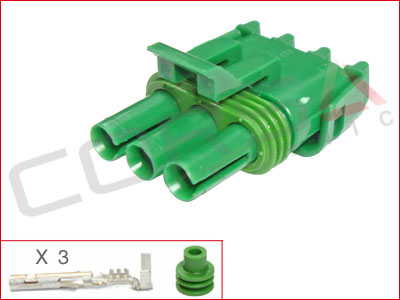

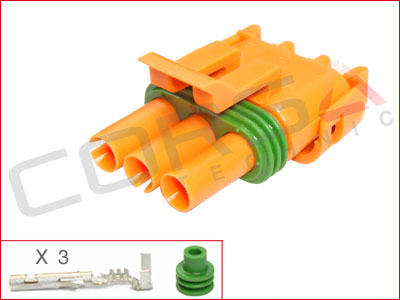

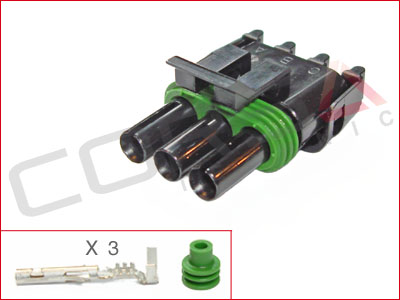

3-Way Kit
WP-3S-1
3-Way Kit
OEM P/N: 12015793
WP-3S-1  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals

Mfr: OEM Delphi
Series: Weather-Pack series
OEM P/N: 12015793
Mating Part: WP-3P-1 and WP-3P-2

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.6mm (.102)
  • Wire Size:0.35 - 3.00 mm2
  • Number of Rows:1
  • Pitch:7.7mm
  • Numbered Cavities:Yes, Alphabetically
Mechanical
  • Contact Type:Socket, circular
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • '85-91 Corvette TPS
  • '85-92 Camaro, Firebird TPS
spacer
QtyPrice
1-5$2.99
6-19$2.84
20-49$2.69
50-99$2.54
100-249$2.39
250+$2.24
Quantity:  Kit

3-Way Kit
WP-3S-3
3-Way Kit
OEM P/N: 12041332
WP-3S-3  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals

Mfr: OEM Delphi
Series: Weather-Pack series
OEM P/N: 12041332
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.6mm (.102)
  • Wire Size:0.35 - 3.00 mm2
  • Number of Rows:1
  • Pitch:7.7mm
  • Numbered Cavities:Yes, Alphabetically
Mechanical
  • Contact Type:Socket, circular
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Delphi MAP sensor
spacer
QtyPrice
1-5$3.97
6-19$3.81
20-49$3.69
50-99$3.57
100+$3.37
Quantity:  Kit

3-Way Kit
WP-3S-4
3-Way Kit
OEM P/N: 12020403
WP-3S-4  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals

Mfr: OEM Delphi
Series: Weather-Pack series
OEM P/N: 12020403
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.6mm (.102)
  • Wire Size:0.35 - 3.00 mm2
  • Number of Rows:1
  • Pitch:7.7mm
  • Numbered Cavities:Yes, Alphabetically
Mechanical
  • Contact Type:Socket, circular
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Delphi MAP sensor
spacer
QtyPrice
1-5$2.93
6-19$2.78
20-49$2.64
50-99$2.49
100-249$2.34
250+$2.20
Quantity:  Kit

3-Way Kit
WP-3S-5
3-Way Kit
OEM P/N: 12015795
WP-3S-5  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals

Mfr: OEM Delphi
Series: Weather-Pack series
OEM P/N: 12015795
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.6mm (.102)
  • Wire Size:0.35 - 3.00 mm2
  • Number of Rows:1
  • Pitch:7.7mm
  • Numbered Cavities:Yes, Alphabetically
Mechanical
  • Contact Type:Socket, circular
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$3.70
6-19$3.52
20-49$3.33
50-99$3.15
100+$2.96
Quantity:  Kit

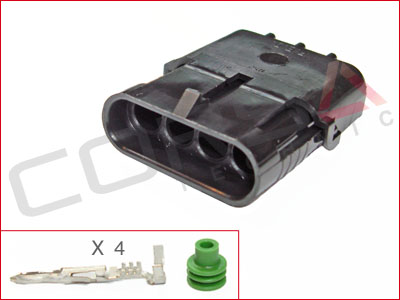

4-Way Kit
WP-4P-1
4-Way Kit
OEM P/N: 12010974
WP-4P-1  4-Way Kit
Kit Contents: Housing, 4 pin contacts, 4 seals

Mfr: OEM Delphi
Series: Weather-Pack series
OEM P/N: 12010974
Mating Part: WP-4S-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.6mm (.102)
  • Wire Size:0.22 - 3.00 mm2
  • Number of Rows:1
  • Pitch:7.7mm
  • Numbered Cavities:Yes, Alphabetically
Mechanical
  • Contact Type:Pin, circular
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$2.97
6-19$2.82
20-49$2.67
50-99$2.52
100+$2.38
Quantity:  Kit

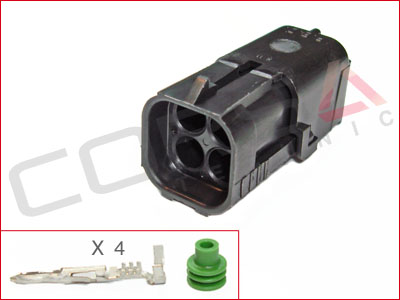

4-Way Kit
WP-4P-2
4-Way Kit
OEM P/N: 12015024
WP-4P-2  4-Way Kit
Kit Contents: Housing, 4 pin contacts, 4 seals

Mfr: OEM Delphi
Series: Weather-Pack series
OEM P/N: 12015024
Mating Part: WP-4S-2

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.6mm (.102)
  • Wire Size:0.22 - 3.00 mm2
  • Number of Rows:2
  • Pitch:7.7mm
  • Row Spacing:7.7mm
  • Numbered Cavities:Yes, Alphabetically
Mechanical
  • Contact Type:Pin, circular
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$3.44
6-19$3.27
20-49$3.10
50-99$2.92
100+$2.75
Quantity:  Kit

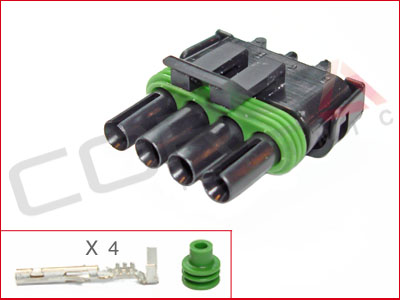

4-Way Kit
WP-4S-1
4-Way Kit
OEM P/N: 12015797
WP-4S-1  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals

Mfr: OEM Delphi
Series: Weather-Pack series
OEM P/N: 12015797
Mating Part: WP-4P-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.6mm (.102)
  • Wire Size:0.35 - 3.00 mm2
  • Number of Rows:1
  • Pitch:7.7mm
  • Numbered Cavities:Yes, Alphabetically
Mechanical
  • Contact Type:Socket, circular
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$3.18
6-19$3.02
20-49$2.86
50-99$2.70
100-249$2.54
250+$2.39
Quantity:  Kit

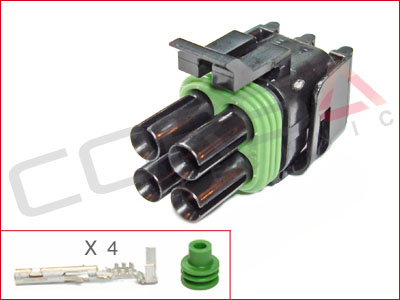

4-Way Kit
WP-4S-2
4-Way Kit
OEM P/N: 12015798
WP-4S-2  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals

Mfr: OEM Delphi
Series: Weather-Pack series
OEM P/N: 12015798
Mating Part: WP-4P-2

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.6mm (.102)
  • Wire Size:0.35 - 3.00 mm2
  • Number of Rows:2
  • Pitch:7.7mm
  • Row Spacing:7.7mm
  • Numbered Cavities:Yes, Alphabetically
Mechanical
  • Contact Type:Socket, circular
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$3.92
6-19$3.72
20-49$3.53
50-99$3.33
100-249$3.14
250+$2.94
Quantity:  Kit

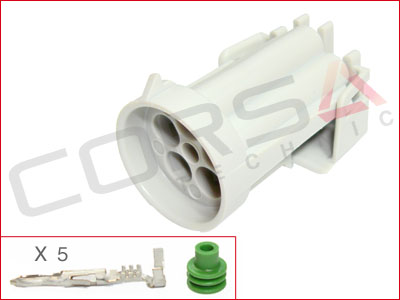

5-Way Kit
WP-5P-2
5-Way Kit
OEM P/N: 12065158 Only grey available. Other colors are obsolete.
WP-5P-2  5-Way Kit
Kit Contents: Housing, 5 pin contacts, 5 seals

Mfr: OEM Delphi
Series: Weather-Pack series
OEM P/N: 12065158 Only grey available. Other colors are obsolete.
Mating Part: WP-5S-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:5
  • Contact Size:2.6mm (.102)
  • Wire Size:0.22 - 3.00 mm2
  • Number of Rows:N/A
  • Pitch:N/A, Circular
  • Numbered Cavities:Yes, Alphabetically
Mechanical
  • Contact Type:Pin, circular
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$4.09
6-19$3.89
20-49$3.68
50-99$3.48
100+$3.27
Quantity:  Kit

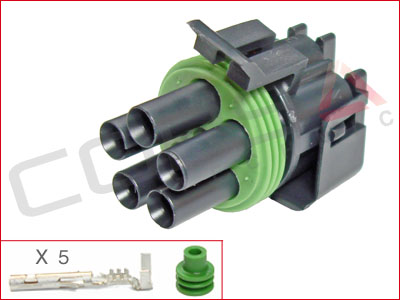

5-Way Kit
WP-5S-1
5-Way Kit
OEM P/N: 12034342
WP-5S-1  5-Way Kit
Kit Contents: Housing, 5 socket contacts, 5 seals

Mfr: OEM Delphi
Series: Weather-Pack series
OEM P/N: 12034342
Mating Part: WP-5P-2 (grey only)

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:5
  • Contact Size:2.6mm (.102)
  • Wire Size:0.35 - 3.00 mm2
  • Number of Rows:N/A
  • Pitch:N/A, Circular
  • Numbered Cavities:Yes, Alphabetically
Mechanical
  • Contact Type:Socket, circular
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
Price: $5.97
Quantity:  Kit

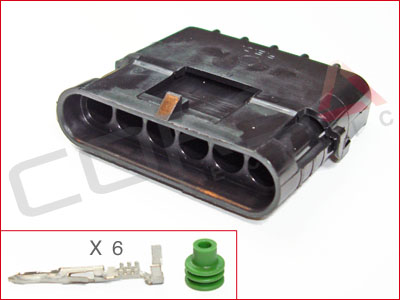

6-Way Kit
WP-6P
6-Way Kit
OEM P/N: 12010975
WP-6P  6-Way Kit
Kit Contents: Housing, 6 pin contacts, 6 seals

Mfr: OEM Delphi
Series: Weather-Pack series
OEM P/N: 12010975
Mating Part: WP-6S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:6
  • Contact Size:2.6mm (.102)
  • Wire Size:0.22 - 3.00 mm2
  • Number of Rows:1
  • Pitch:7.7mm
  • Numbered Cavities:Yes, Alphabetically
Mechanical
  • Contact Type:Pin, circular
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$3.97
6-19$3.81
20-49$3.69
50-99$3.57
100+$3.37
Quantity:  Kit

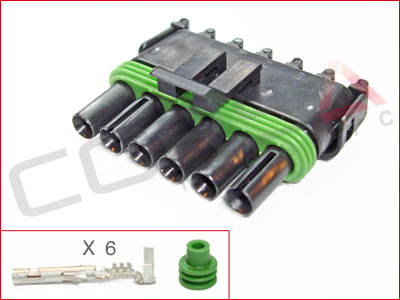

6-Way Kit
WP-6S
6-Way Kit
OEM P/N: 12015799
WP-6S  6-Way Kit
Kit Contents: Housing, 6 socket contacts, 6 seals

Mfr: OEM Delphi
Series: Weather-Pack series
OEM P/N: 12015799
Mating Part: WP-6P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:6
  • Contact Size:2.6mm (.102)
  • Wire Size:0.35 - 3.00 mm2
  • Number of Rows:1
  • Pitch:7.7mm
  • Numbered Cavities:Yes, Alphabetically
Mechanical
  • Contact Type:Socket, circular
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$3.66
6-19$3.51
20-49$3.40
50-99$3.29
100+$3.11
Quantity:  Kit

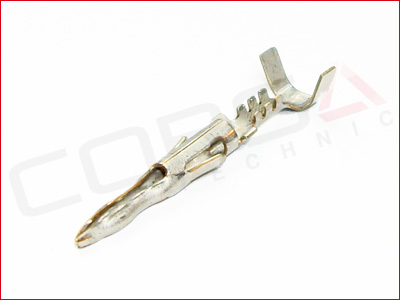

Weatherpack Pin Contact
WP-PIN
Weatherpack Pin Contact
WP-PIN  Weatherpack Pin Contact

Mfr: Delphi
Series: Weather-Pack series

Wire SizeP/N
WP-PIN1.22-.35 mm2 (24-22 AWG)12089307
WP-PIN2.5-.8 mm2 (20-18 AWG)12089040
WP-PIN31.0-2.0 mm2 (16-14 AWG)12124582
WP-PIN43.0 mm2 (12 AWG)12124587
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.6mm (.102)
  • Wire Size:0.22 - 3.00 mm2
  • Number of Rows:1
Mechanical
  • Contact Type:Pin, circular
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-49$0.23
50-99$0.22
100-249$0.21
250-499$0.20
500-999$0.19
1000+$0.18
Quantity:  Ea

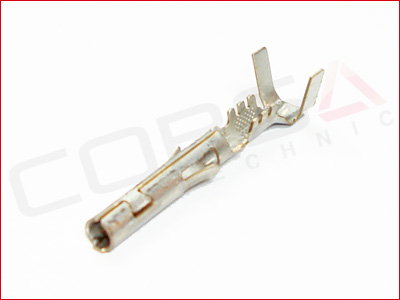

Weatherpack Socket
WP-SKT
Weatherpack Socket
WP-SKT  Weatherpack Socket

Mfr: Delphi
Series: Weather-Pack series

Wire SizeP/N
WP-SKT1.35 mm2 (22 AWG)12020801
WP-SKT2.5-.8 mm2 (20-18 AWG)12089188
WP-SKT31.0-2.0 mm2 (16-14 AWG)12124580
WP-SKT43.0 mm2 (12 AWG)12124581
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.6mm (.102)
  • Wire Size:0.35 - 3.00 mm2
Mechanical
  • Contact Type:Socket, circular
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-49$0.23
50-99$0.22
100-249$0.21
250-499$0.20
500-999$0.19
1000+$0.18
Quantity:  Ea

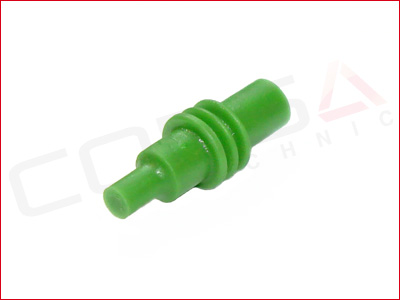

Weatherpack Seal Plug
WP-PG
Weatherpack Seal Plug
OEM P/N: 12010300
WP-PG  Weatherpack Seal Plug

Mfr: OEM Delphi
Series: Weather-Pack series
OEM P/N: 12010300
Cavity plug for unused connector positions.

NOTE: The Weather-Pack and Metri-Pack 280 series use the same plug.


spacer
General
  • Sealing:Single Wire Sealed
Mechanical
  • Seal Material:Silicone Rubber
Environmental
  • Temp Range[2]:-40 - 140 °C
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-49$0.19
50-99$0.18
100-249$0.17
250-499$0.16
500-999$0.15
1000-2499$0.14
2500+$0.13
Quantity:  Ea

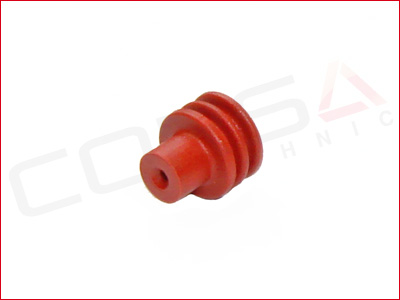

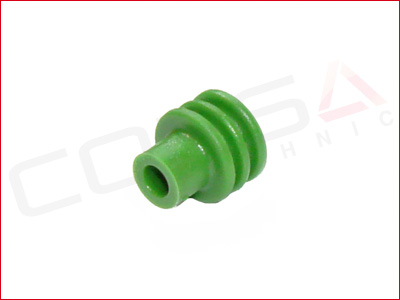

Weatherpack Seals
WP-SL
Weatherpack Seals
WP-SL  Weatherpack Seals

Mfr: Delphi
Series: Weather-Pack series

Wire Insulation Dia.ColorPart NumberAlt. Info
WP-SL11.29-1.70 mm (.051-.067 in)Red15324983old: 12015899, reel: 12034365
WP-SL21.60-2.15 mm (.063-.085 in)Purple15324985old: 12089679, reel: 12089444
WP-SL32.03-2.42 mm (.080-.095 in)Tan15324984old: 12041351, reel: 12041352
WP-SL42.03-2.85 mm (.080-.112 in)Green15324982old: 12015323, reel: 12015284
WP-SL52.81-3.49 mm (.111-.137 in)Grey15324980old: 12010293, reel: 12015359
WP-SL63.45-4.30 mm (.136-.170 in)Blue15324981old: 12015193, reel: 12015360
Available stock: Aftermarket OEM
NOTE: The Weather-Pack and Metri-Pack 280 series use the same seals

spacer
General
  • Sealing:Single Wire Sealed
Mechanical
  • Seal Material:Silicone Rubber
Environmental
  • Temp Range[2]:-40 - 140 °C
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-49$0.18
50-99$0.17
100-249$0.16
250-499$0.14
500+$0.13
Quantity:  Ea

Rennsteig PEW 12 Die Set for Weather Pack Terminals, size 1-2
TOOL-CDIE43
Rennsteig PEW 12 Die Set for Weather Pack Terminals, size 1-2
OEM P/N: 624 1528 3 012 RT
TOOL-CDIE43  Rennsteig PEW 12 Die Set for Weather Pack Terminals, size 1-2
Kit Contents: Crimp die set, locator, wire stop, and reference data sheet

OEM P/N: 624 1528 3 012 RT

Compatibility
P/NWire SizeDelphi/Aptiv P/N
✓WP-PIN1.22-.35 mm2 (24-22 AWG)12089307
✓WP-PIN2.5-.8 mm2 (20-18 AWG)12089040
✗WP-PIN31.0-2.0 mm2 (16-14 AWG)12124582
✗WP-PIN43.0 mm2 (12 AWG)12124587
✓WP-SKT1.35 mm2 (22 AWG)12020801
✓WP-SKT2.5-.8 mm2 (20-18 AWG)12089188
✗WP-SKT31.0-2.0 mm2 (16-14 AWG)12124580
✗WP-SKT43.0 mm2 (12 AWG)12124581

spacer
spacer
spacer
  • Aptiv 13782684
Price: $324.08
Quantity:  Ea

Rennsteig PEW 12 Die Set for Weather Pack Terminals, size 3-4
TOOL-CDIE44
Rennsteig PEW 12 Die Set for Weather Pack Terminals, size 3-4
OEM P/N: 624 1476 3 012 RT
TOOL-CDIE44  Rennsteig PEW 12 Die Set for Weather Pack Terminals, size 3-4
Kit Contents: Crimp die set, locator, wire stop, and reference data sheet

OEM P/N: 624 1476 3 012 RT

Compatibility
P/NWire SizeDelphi/Aptiv P/N
✗WP-PIN1.22-.35 mm2 (24-22 AWG)12089307
✗WP-PIN2.5-.8 mm2 (20-18 AWG)12089040
✓WP-PIN31.0-2.0 mm2 (16-14 AWG)12124582
✓WP-PIN43.0 mm2 (12 AWG)12124587
✗WP-SKT1.35 mm2 (22 AWG)12020801
✗WP-SKT2.5-.8 mm2 (20-18 AWG)12089188
✓WP-SKT31.0-2.0 mm2 (16-14 AWG)12124580
✓WP-SKT43.0 mm2 (12 AWG)12124581

spacer
spacer
spacer
  • Aptiv 13782641
1x - in stock.
Price: $338.66
Quantity:  Ea


Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2024 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1
R7A4
R7A3
R7A2
