Junction/Splice Connectors
090II.JC-8P-1
8-Way Splice Connector (All circuits tied)
Kit Contents: 1x 8-way splice connector
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7382-1480-40
Mating Part: 090II-8S-1
Kit Contents: 1x 8-way splice connector
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7382-1480-40
Mating Part: 090II-8S-1
General
- Sealing:Single Wire Sealed
- Number of Ways:8
- Contact Size:2.3mm (.090)
- Number of Rows:2
- Pitch:6.0mm
- Row Spacing:6.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
090II.JC-8P-2
8-Way Splice Connector (4+4)
Kit Contents: 1x 8-way splice connector
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7382-1481-10
Mating Part: 090II-8S-2
Kit Contents: 1x 8-way splice connector
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7382-1481-10
Mating Part: 090II-8S-2
General
- Sealing:Single Wire Sealed
- Number of Ways:8
- Contact Size:2.3mm (.090)
- Number of Rows:2
- Pitch:6.0mm
- Row Spacing:6.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 82824-26020
HW.JC-8P
8-Way Joint Connector (All circuits tied)
Kit Contents: 1x 8-way splice connector
Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6188-0322
Part Name: HW9JC-8MAS-DGR
Mating Part: HW-8S
Kit Contents: 1x 8-way splice connector
Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6188-0322
Part Name: HW9JC-8MAS-DGR
Mating Part: HW-8S
All 8 circuits tied together
General
- Sealing:Single Wire Sealed
- Number of Ways:8
- Contact Size:2.3mm (.090)
- Number of Rows:2
- Pitch:6.0mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Housing Material:PBT
- Mounting Style:Free hanging
- CPA:No
Electrical
- Current Rating[1]:22A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
JC250-5P
5-way grounding bus bar
Mfr: OEM Yazaki
Series: 250 Joint Connector
OEM P/N: 7114-9441
Mating Part: JC250-5S
Mfr: OEM Yazaki
Series: 250 Joint Connector
OEM P/N: 7114-9441
Mating Part: JC250-5S
Has an M6 hole, and anti-rotation tab.
Similar to 7114-9440 which doesn't have an anti-rotation tab.
Similar to 7114-9440 which doesn't have an anti-rotation tab.
General
- Sealing:Unsealed
- Number of Ways:5
- Contact Size:6.3mm (.250)
- Number of Rows:1
- Pitch:8.5mm
Mechanical
- Contact Type:Pin, flat
Electrical
- Current Rating[1]:20A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- KET GP881212
JC250-5S
5-Way Kit
Kit Contents: Housing, 5 socket contacts
Mfr: OEM Yazaki
Series: 250 Joint Connector
OEM P/N: 7123-2655
Mating Part: JC250-5P
Kit Contents: Housing, 5 socket contacts
Mfr: OEM Yazaki
Series: 250 Joint Connector
OEM P/N: 7123-2655
Mating Part: JC250-5P
General
- Sealing:Unsealed
- Number of Ways:5
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:1
- Pitch:8.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Housing Material:PP
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- KET MG630664
HX040.JC-12S
12-Way Joint Connector Kit
Kit Contents: Housing, 12 socket terminals, 1 busbar/splice
Mfr: OEM Sumitomo
Series: HX 040 Sealed Joint Connector Series
OEM P/N: 6189-6913
Part Name: HX4JC12FAY-NA
Kit Contents: Housing, 12 socket terminals, 1 busbar/splice
Mfr: OEM Sumitomo
Series: HX 040 Sealed Joint Connector Series
OEM P/N: 6189-6913
Part Name: HX4JC12FAY-NA
Requires cap, sold separately. HX040.JC-12S CAP
General
- Sealing:Matte Sealed
- Number of Ways:12
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:1
- Pitch:2.75mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HX040.JC-12S CAP
12-Way Joint Connector Cap
Mfr: OEM Sumitomo
Series: HX 040 Sealed Joint Connector Series
OEM P/N: 6911-4095
Part Name: CAP-HX4JC12-B
Mfr: OEM Sumitomo
Series: HX 040 Sealed Joint Connector Series
OEM P/N: 6911-4095
Part Name: CAP-HX4JC12-B
General
- Sealing:Matte Sealed
- Pitch:2.75mm
Mechanical
- Housing Material:PBT
- Mounting Style:Clip Slot
- CPA:No
HW.JC-14P-1
14-Way Joint Connector (7+7)
Kit Contents: 1x 14-way splice connector
Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6188-0378
Part Name: HW9JC-14MAS-DGR
Mating Part: HW-14S
Kit Contents: 1x 14-way splice connector
Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6188-0378
Part Name: HW9JC-14MAS-DGR
Mating Part: HW-14S
General
- Sealing:Single Wire Sealed
- Number of Ways:14
- Contact Size:2.3mm (.090)
- Number of Rows:4
- Pitch:6.0mm
- Row Spacing:Multiple
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Housing Material:PBT
- Mounting Style:Free hanging
- CPA:No
Electrical
- Current Rating[1]:22A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
HMU.SP-20P-4
20-Way Splice Connector, Type 4
Kit Contents: 1x 20-way splice connector
Mfr: OEM Sumitomo
Series: HM Unsealed - Splice Series
OEM P/N: 6409-0073
Part Name: J/C AS 20P-M-L
Mating Part: HMU.SP-20S-4
Kit Contents: 1x 20-way splice connector
Mfr: OEM Sumitomo
Series: HM Unsealed - Splice Series
OEM P/N: 6409-0073
Part Name: J/C AS 20P-M-L
Mating Part: HMU.SP-20S-4
General
- Sealing:Unsealed
- Number of Ways:20
- Contact Size:2.3mm (.090)
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HMU.SP-20S-4

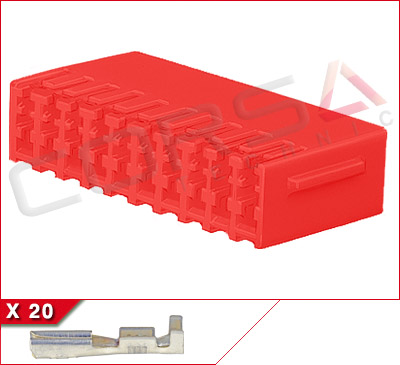

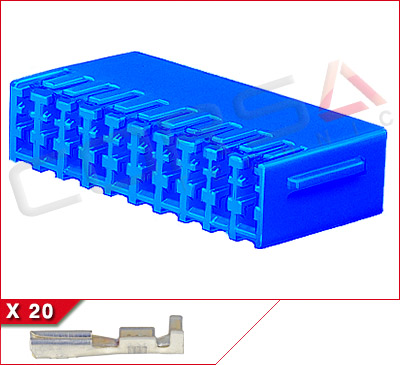

20-Way Kit, Type 4
Kit Contents: Housing, 20 socket contacts
Mfr: OEM Sumitomo
Series: HM Unsealed - Splice Series
OEM P/N: 6400-0014
Part Name: J/C RD 20P-F-L
Mating Part: HMU.SP-20P-4
Kit Contents: Housing, 20 socket contacts
Mfr: OEM Sumitomo
Series: HM Unsealed - Splice Series
OEM P/N: 6400-0014
Part Name: J/C RD 20P-F-L
Mating Part: HMU.SP-20P-4
General
- Sealing:Unsealed
- Number of Ways:20
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HX040.JC-12P-x
Busbar/Splice for 24-way joint connector
Mfr: OEM Sumitomo
Series: HX 040 Sealed Joint Connector Series
Mfr: OEM Sumitomo
Series: HX 040 Sealed Joint Connector Series
| Bus Circuit | Color | Part Number | |
|---|---|---|---|
| Type A | 12-way splice | Black | 6440-0294 |
| B | 6+6 | Light Grey | 6440-0295 |
| C | 4x3 | Dark Grey | 6440-0296 |
| D | 3x4 | Green | 6440-0297 |
| E | 8+4 | Blue | 6440-0298 |
| F | 9+3 | Brown | 6440-0299 |
| G | 7+5 | Dark Green | 6440-0300 |
| H | 5+4+3 | Light Blue | 6440-0313 |
| I | 6+3+3 | Dark Blue | 6440-0327 |
| Available stock: Aftermarket OEM | |||
General
- Sealing:Matte Sealed
- Number of Ways:12
- Contact Size:1.0mm (.040)
- Number of Rows:1
- Pitch:2.75mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Housing Material:PBT+GF
Electrical
- Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HX040.JC-24S
24-Way Joint Connector Kit
Kit Contents: Housing, 24 socket terminals, 2 busbar/splices
Mfr: OEM Sumitomo
Series: HX 040 Sealed Joint Connector Series
OEM P/N: 6189-0900
Part Name: HX4JC24FAY-NA
Kit Contents: Housing, 24 socket terminals, 2 busbar/splices
Mfr: OEM Sumitomo
Series: HX 040 Sealed Joint Connector Series
OEM P/N: 6189-0900
Part Name: HX4JC24FAY-NA
Requires cap, sold separately. HX040.JC-24S CAP
General
- Sealing:Matte Sealed
- Number of Ways:24
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:2
- Pitch:2.75mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HX040.JC-24S CAP
24-Way Joint Connector Cap
Mfr: OEM Sumitomo
Series: HX 040 Sealed Joint Connector Series
OEM P/N: 6911-2024
Part Name: CAP-HX4JC24-B
Mfr: OEM Sumitomo
Series: HX 040 Sealed Joint Connector Series
OEM P/N: 6911-2024
Part Name: CAP-HX4JC24-B
General
- Sealing:Matte Sealed
Mechanical
- Housing Material:PBT
- Mounting Style:Clip Slot
- CPA:No
HMU.SP-20P-6
20-Way Splice Connector, Type 6
Kit Contents: 1x 20-way splice connector
Mfr: OEM Sumitomo
Series: HM Unsealed - Splice Series
OEM P/N: 6409-0075
Part Name: J/C AS 20P-M-O
Mating Part: HMU.SP-20S-6
Kit Contents: 1x 20-way splice connector
Mfr: OEM Sumitomo
Series: HM Unsealed - Splice Series
OEM P/N: 6409-0075
Part Name: J/C AS 20P-M-O
Mating Part: HMU.SP-20S-6
General
- Sealing:Unsealed
- Number of Ways:20
- Contact Size:2.3mm (.090)
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HMU.SP-20S-6
20-Way Kit, Type 6
Kit Contents: Housing, 20 socket contacts
Mfr: OEM Sumitomo
Series: HM Unsealed - Splice Series
OEM P/N: 6400-0016
Part Name: J/C RD 20P-F-O
Mating Part: HMU.SP-20P-6
Kit Contents: Housing, 20 socket contacts
Mfr: OEM Sumitomo
Series: HM Unsealed - Splice Series
OEM P/N: 6400-0016
Part Name: J/C RD 20P-F-O
Mating Part: HMU.SP-20P-6
General
- Sealing:Unsealed
- Number of Ways:20
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HMU.SP-20P-9
20-Way Splice Connector, Type 9
Kit Contents: 1x 20-way splice connector
Mfr: OEM Sumitomo
Series: HM Unsealed - Splice Series
OEM P/N: 6440-0128
Part Name: J/C AS 20P-M-P
Mating Part: HMU.SP-20S-9
Kit Contents: 1x 20-way splice connector
Mfr: OEM Sumitomo
Series: HM Unsealed - Splice Series
OEM P/N: 6440-0128
Part Name: J/C AS 20P-M-P
Mating Part: HMU.SP-20S-9
General
- Sealing:Unsealed
- Number of Ways:20
- Contact Size:2.3mm (.090)
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

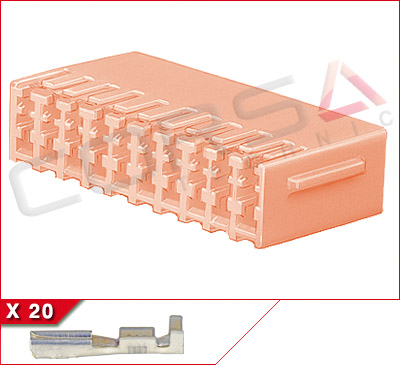

HMU.SP-20S-9
20-Way Kit, Type 9
Kit Contents: Housing, 20 socket contacts
Mfr: OEM Sumitomo
Series: HM Unsealed - Splice Series
OEM P/N: 6440-0129
Part Name: J/C RD 20P-F-P
Mating Part: HMU.SP-20P-9
Kit Contents: Housing, 20 socket contacts
Mfr: OEM Sumitomo
Series: HM Unsealed - Splice Series
OEM P/N: 6440-0129
Part Name: J/C RD 20P-F-P
Mating Part: HMU.SP-20P-9
General
- Sealing:Unsealed
- Number of Ways:20
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HMU.SP-20P-10
20-Way Splice Connector, Type 10
Kit Contents: 1x 20-way splice connector
Mfr: OEM Sumitomo
Series: HM Unsealed - Splice Series
OEM P/N: 6409-0603
Part Name: J/C AS 20P-M-BR
Mating Part: HMU.SP-20S-10
Kit Contents: 1x 20-way splice connector
Mfr: OEM Sumitomo
Series: HM Unsealed - Splice Series
OEM P/N: 6409-0603
Part Name: J/C AS 20P-M-BR
Mating Part: HMU.SP-20S-10
General
- Sealing:Unsealed
- Number of Ways:20
- Contact Size:2.3mm (.090)
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HMU.SP-20S-10
20-Way Kit, Type 10
Kit Contents: Housing, 20 socket contacts
Mfr: OEM Sumitomo
Series: HM Unsealed - Splice Series
OEM P/N: 6400-0186
Part Name: J/C RD 20P-F-BR
Mating Part: HMU.SP-20P-10
Kit Contents: Housing, 20 socket contacts
Mfr: OEM Sumitomo
Series: HM Unsealed - Splice Series
OEM P/N: 6400-0186
Part Name: J/C RD 20P-F-BR
Mating Part: HMU.SP-20P-10
General
- Sealing:Unsealed
- Number of Ways:20
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
© 2009-2024 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
