58 X Sealed Series

1-Way Kit
58X-1P
1-Way Kit
OEM P/N: 7222-6214-40
58X-1P  1-Way Kit
Kit Contents: Housing, 1 pin contact, 1 seal

Mfr: Aftermarket Yazaki
Series: 58 X Sealed
OEM P/N: 7222-6214-40
Part Name: X01MGY
Mating Part: 58X-1S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:6.3mm (.250)
  • Wire Size:0.50 - 3.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$2.90
6-19$2.70
20-49$2.46
50-99$2.32
100+$2.03
Quantity:  Kit

1-Way Kit
58X-1S
1-Way Kit
OEM P/N: 7123-6214-40
58X-1S  1-Way Kit
Kit Contents: Housing, 1 socket contact, 1 seal

Mfr: Aftermarket Yazaki
Series: 58 X Sealed
OEM P/N: 7123-6214-40
Part Name: X01FGY
Mating Part: 58X-1P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:6.3mm (.250)
  • Wire Size:0.50 - 3.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Nissan/Bosch J-48817-187 pigtail connector
  • Nissan service part 24008-9DN7D connector
QtyPrice
1-5$1.80
6-19$1.67
20-49$1.53
50-99$1.44
100+$1.26
Quantity:  Kit

2-Way Kit
58X-2P-1
2-Way Kit
OEM P/N: 7222-6423-30
58X-2P-1  2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals, rear retainer/lock

Mfr: OEM Yazaki
Series: 58 X Sealed
OEM P/N: 7222-6423-30
Part Name: X02MB
Mating Part: 58X-2S-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.50 - 3.00 mm2
  • Number of Rows:1
  • Pitch:8.4mm
  • Numbered Cavities:Yes, Polarity
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$3.90
6-19$3.71
20-49$3.51
50-99$3.31
100+$3.12
Quantity:  Kit

2-Way Kit

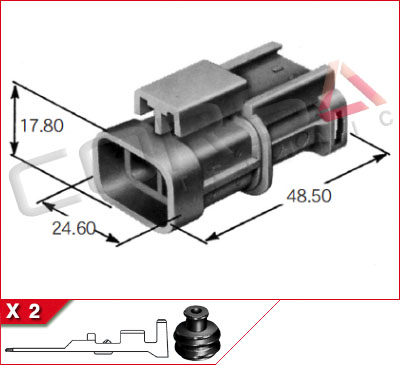

58X-2P-2
2-Way Kit
OEM P/N: 7122-6224-40
58X-2P-2  2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals, rear retainer/lock

Mfr: Aftermarket Yazaki
Series: 58 X Sealed
OEM P/N: 7122-6224-40
Part Name: X02MW
Mating Part: 58X-2S-2

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.50 - 3.00 mm2
  • Number of Rows:1
  • Pitch:8.4mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$3.08
6-19$2.86
20-49$2.62
50-99$2.46
100+$2.16
Quantity:  Kit

2-Way Kit

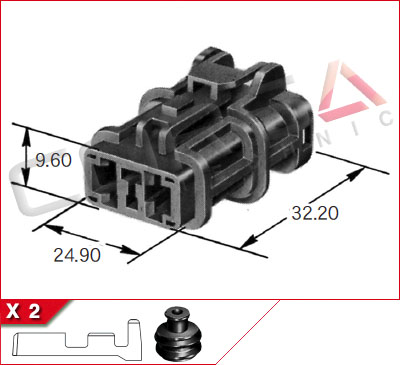

58X-2S-1
2-Way Kit
OEM P/N: 7123-6423-30
58X-2S-1  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals, rear retainer/lock

Mfr: OEM Yazaki
Series: 58 X Sealed
OEM P/N: 7123-6423-30
Part Name: X02FB
Mating Part: 58X-2P-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.50 - 3.00 mm2
  • Number of Rows:1
  • Pitch:8.4mm
  • Numbered Cavities:Yes, Polarity
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Ford 3U2Z-14S411-TYA, WPT-520 (Tin plated terminals) pigtail connector
QtyPrice
1-5$3.32
6-19$3.15
20-49$2.99
50-99$2.82
100+$2.66
Quantity:  Kit

2-Way Kit
58X-2S-2
2-Way Kit
OEM P/N: 7223-6224-40 (Brown: 7223-6428-80)
58X-2S-2  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals, rear retainer/lock

Mfr: Aftermarket Yazaki
Series: 58 X Sealed
OEM P/N: 7223-6224-40 (Brown: 7223-6428-80)
Part Name: X02FW
Mating Part: 58X-2P-2

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.50 - 3.00 mm2
  • Number of Rows:1
  • Pitch:8.4mm
  • Numbered Cavities:Yes, Polarity
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$4.19
6-19$3.98
20-49$3.77
50-99$3.56
100+$3.35
Quantity:  Kit

3-Way Kit

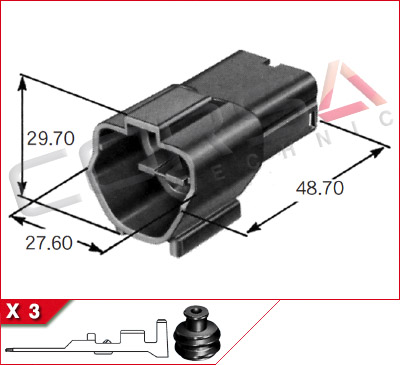

58X-3P
3-Way Kit
OEM P/N: 7222-6234-40
58X-3P  3-Way Kit
Kit Contents: Housing, 3 pin contacts, 3 seals, rear retainer/lock

Mfr: OEM Yazaki
Series: 58 X Sealed
OEM P/N: 7222-6234-40
Part Name: X03MGY
Mating Part: 58X-3S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:6.3mm (.250)
  • Wire Size:0.50 - 3.00 mm2
  • Number of Rows:2
  • Pitch:10.4mm
  • Row Spacing:8.55mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$6.18
6-19$5.87
20-49$5.56
50-99$5.25
100+$4.94
Quantity:  Kit

3-Way Kit

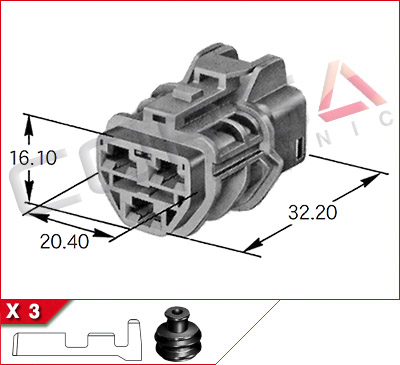

58X-3S
3-Way Kit
OEM P/N: 7123-6234-40
58X-3S  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals, rear retainer/lock

Mfr: OEM Yazaki
Series: 58 X Sealed
OEM P/N: 7123-6234-40
Part Name: X03FGY
Mating Part: 58X-3P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:6.3mm (.250)
  • Wire Size:0.50 - 3.00 mm2
  • Number of Rows:2
  • Pitch:10.4mm
  • Row Spacing:8.55mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$5.33
6-19$4.96
20-49$4.53
50-99$4.26
100+$3.73
Quantity:  Kit

4-Way Kit
58X-4P
4-Way Kit
OEM P/N: 7222-6244-40
58X-4P  4-Way Kit
Kit Contents: Housing, 4 pin contacts, 4 seals, rear retainer/lock

Mfr: OEM Yazaki
Series: 58 X Sealed
OEM P/N: 7222-6244-40
Part Name: X04MGY
Mating Part: 58X-4S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:6.3mm (.250)
  • Wire Size:0.50 - 3.00 mm2
  • Number of Rows:2
  • Pitch:10.0mm
  • Row Spacing:8.4mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$5.88
6-19$5.59
20-49$5.29
50-99$5.00
100+$4.70
Quantity:  Kit

4-Way Kit
58X-4S
4-Way Kit
OEM P/N: 7123-6244-40
58X-4S  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals, rear retainer/lock

Mfr: OEM Yazaki
Series: 58 X Sealed
OEM P/N: 7123-6244-40
Part Name: X04FGY
Mating Part: 58X-4P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:6.3mm (.250)
  • Wire Size:0.50 - 3.00 mm2
  • Number of Rows:2
  • Pitch:10.0mm
  • Row Spacing:8.4mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$4.61
6-19$4.38
20-49$4.15
50-99$3.92
100+$3.69
Quantity:  Kit

5-Way Kit
58X-5P
5-Way Kit
OEM P/N: 7222-6550-40
58X-5P  5-Way Kit
Kit Contents: Housing, 5 pin contacts, 5 seals, rear retainer/lock

Mfr: OEM Yazaki
Series: 58 X Sealed
OEM P/N: 7222-6550-40
Mating Part: 58X-5S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:5
  • Contact Size:6.3mm (.250)
  • Wire Size:0.50 - 3.00 mm2
  • Number of Rows:2
  • Pitch:10.4mm
  • Row Spacing:8.55mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$6.64
6-19$6.31
20-49$5.98
50-99$5.64
100+$5.31
Quantity:  Kit

5-Way Kit
58X-5S
5-Way Kit
OEM P/N: 7123-6550-40
58X-5S  5-Way Kit
Kit Contents: Housing, 5 socket contacts, 5 seals, rear retainer/lock

Mfr: OEM Yazaki
Series: 58 X Sealed
OEM P/N: 7123-6550-40
Mating Part: 58X-5P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:5
  • Contact Size:6.3mm (.250)
  • Wire Size:0.50 - 3.00 mm2
  • Number of Rows:2
  • Pitch:10.4mm
  • Row Spacing:8.55mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$5.76
6-19$5.47
20-49$5.18
50-99$4.90
100+$4.61
Quantity:  Kit

58 X Sealed Pin Contact
58X-PIN
58 X Sealed Pin Contact
58X-PIN  58 X Sealed Pin Contact

Mfr: Yazaki
Series: 58 X Sealed

Wire SizePlatingYazaki
-.5-1.25 mm2 (20-16 AWG)None7114-2873
58X-PIN1Tin7114-2873-02
-2.0-3.0 mm2 (14-12 AWG)None7114-2874
58X-PIN2Tin7114-2874-02
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:6.3mm (.250)
  • Wire Size:0.50 - 3.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-49$0.30
50-99$0.28
100-249$0.27
250-499$0.24
500-999$0.22
1000-2400$0.21
2500+$0.20
Quantity:  Ea

58 X Sealed Socket Contact
58X-SKT
58 X Sealed Socket Contact
58X-SKT  58 X Sealed Socket Contact

Mfr: Yazaki
Series: 58 X Sealed

Wire SizeMaterialPlatingYazaki
-.5-1.25 mm2 (20-16 AWG)BrassNone7116-2873
58X-SKT1BrassTin7116-2873-02
-Copper alloyTin7116-2878
-2.0-3.0 mm2 (14-12 AWG)BrassNone7116-2874
58X-SKT2BrassTin7116-2874-02
-Copper alloyTin7116-2879
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:6.3mm (.250)
  • Wire Size:0.50 - 3.00 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Nissan/Bosch J-48817-249 repair wire terminal
QtyPrice
1-49$0.29
50-99$0.28
100-249$0.26
250-499$0.25
500-999$0.23
1000+$0.22
Quantity:  Ea

58 X Sealed Plug
58X-PG
58 X Sealed Plug
58X-PG  58 X Sealed Plug

Mfr: Aftermarket Yazaki
Series: 58 X Sealed
Generic design plug to meet function of 7157-3572-80

spacer
General
  • Sealing:Single Wire Sealed
Mechanical
  • Contact Type:Pin, flat
  • Seal Material:Silicone Rubber

spacer
spacer
QtyPrice
1-49$0.12
50-99$0.11
100-249$0.10
250-499$0.09
500+$0.08
Quantity:  Ea

58 X Sealed Seals
58X-SL
58 X Sealed Seals
58X-SL  58 X Sealed Seals

Mfr: Yazaki
Series: 58 X Sealed

Wire Insulation Dia.ColorYazaki
58X-SL11.5-2.8 mm (.059-.110 in)Black7157-3570
58X-SL22.9-3.6 mm (.114-.142 in)Brown7157-3571-80
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
Mechanical
  • Contact Type:Pin, flat
  • Seal Material:Silicone Rubber

spacer
spacer
QtyPrice
1-49$0.51
50-99$0.48
100-249$0.46
250-499$0.41
500+$0.36
Quantity:  Ea


Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2024 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1
R7A4
R7A3
R7A2
