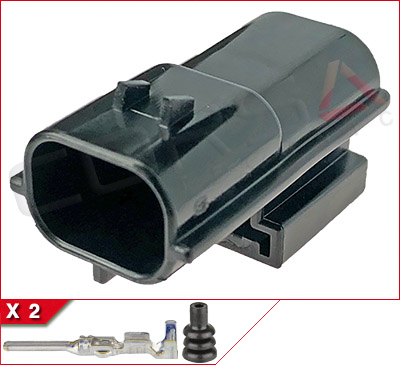

Econoseal III Wire to Wire Series
ES3.WW-2P
2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals, lock
Mfr: OEM Tyco/AMP
Series: Econoseal 3 Wire to Wire
OEM P/N: 344274-1
Mating Part: ES3.WW-2S
Kit Contents: Housing, 2 pin contacts, 2 seals, lock
Mfr: OEM Tyco/AMP
Series: Econoseal 3 Wire to Wire
OEM P/N: 344274-1
Mating Part: ES3.WW-2S
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:1.8mm (.070)
- Wire Size:0.20 - 1.25 mm2
- Number of Rows:1
- Pitch:4.8mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Housing Material:PA66
- Mounting Style:Clip Slot
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

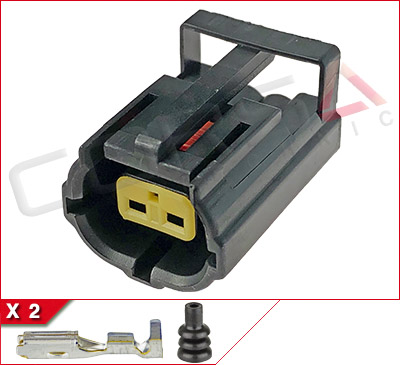

ES3.WW-2S
2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals, lock plate
Mfr: OEM Tyco/AMP
Series: Econoseal 3 Wire to Wire
OEM P/N: 344276-1
Mating Part: ES3.WW-2P
Kit Contents: Housing, 2 socket contacts, 2 seals, lock plate
Mfr: OEM Tyco/AMP
Series: Econoseal 3 Wire to Wire
OEM P/N: 344276-1
Mating Part: ES3.WW-2P
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:1.8mm (.070)
- Wire Size:0.20 - 1.25 mm2
- Number of Rows:1
- Pitch:4.8mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Housing Material:PA66
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
TE070-PIN
TE 070 Pin Contact for ESJ, ES3.WW, SSC
Mfr: Tyco/AMP
Series: Econoseal 3 Wire to Wire, Econoseal J Series Mk II, Sealed Sensor Connector Series
Mfr: Tyco/AMP
Series: Econoseal 3 Wire to Wire, Econoseal J Series Mk II, Sealed Sensor Connector Series
| Part Number | ||||
|---|---|---|---|---|
| Wire Size | Plating | Strip | Loose | |
| TE070-PIN1 | .2-.5 mm2 (24-20 AWG) | Tin | 171631-1 | 173600-1 |
| - | Gold | 171631-2 | N/A | |
| TE070-PIN2 | .5-1.25 mm2 (20-16 AWG) | Tin | 171661-1 | 173706-1 |
| - | Gold | 171661-2 | N/A | |
| Available stock: Aftermarket OEM | ||||
General
- Sealing:Single Wire Sealed
- Contact Size:1.8mm (.070)
- Wire Size:0.20 - 1.25 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
Electrical
- Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Hero FRA-103N (size 2)
TE070-SKT
TE 070 Socket Contact for ESJ, ES3.WW
Mfr: Tyco/AMP
Series: Econoseal 3 Wire to Wire, Econoseal J Series Mk II
Mfr: Tyco/AMP
Series: Econoseal 3 Wire to Wire, Econoseal J Series Mk II
| Part Number | ||||
|---|---|---|---|---|
| Wire Size | Plating | Strip | Loose | |
| TE070-SKT1 | .2-.5 mm2 (24-20 AWG) | Tin | 171630-1 | 171699-1 |
| - | Gold | 171630-5 | N/A | |
| TE070-SKT2 | .5-1.25 mm2 (20-16 AWG) | Tin | 171662-1 | 173707-1 |
| - | Gold | 171662-5 | N/A | |
| Available stock: Aftermarket OEM | ||||
General
- Sealing:Single Wire Sealed
- Contact Size:1.8mm (.070)
- Wire Size:0.20 - 1.25 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
Electrical
- Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Hero FRA-104N (size 2)
- Nissan/Bosch J-48817-236 repair wire terminal
TE070-PG
TE 070 Seal Plug for ESJ, ES3.WW, SSC
Mfr: OEM Tyco/AMP
Series: Econoseal 3 Wire to Wire, Econoseal J Series Mk II, Sealed Sensor Connector Series
OEM P/N: 2822357-1 (supersedes 172748-1)
Mfr: OEM Tyco/AMP
Series: Econoseal 3 Wire to Wire, Econoseal J Series Mk II, Sealed Sensor Connector Series
OEM P/N: 2822357-1 (supersedes 172748-1)
General
- Sealing:Single Wire Sealed
Mechanical
- Seal Material:NBR
Environmental
- Temp Range[2]:-30 - 105 °C
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For detailed characteristics, see applicable product documents.
- Ford F50B-14A666-BA
TE070-SL
TE 070 Seals for ESJ, ES3.WW
Mfr: OEM Tyco/AMP
Series: Econoseal 3 Wire to Wire, Econoseal J Series Mk II
Mfr: OEM Tyco/AMP
Series: Econoseal 3 Wire to Wire, Econoseal J Series Mk II
| Wire Insulation Dia. | Color | Part Number | |
|---|---|---|---|
| TE070-SL1 | 1.4-2.4 mm (.055-.094 in) | Black | 2822352-1 (ss: 172746-1) |
| TE070-SL2 | 2.0-2.6 mm (.079-.102 in) | Black | 2822354-1 (ss: 172888-2) |
| Available stock: Aftermarket OEM | |||
General
- Sealing:Single Wire Sealed
- Contact Size:1.8mm (.070)
- Wire Size:0.20 - 1.25 mm2
Mechanical
- Seal Material:NBR
Environmental
- Temp Range[2]:-30 - 105 °C
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For detailed characteristics, see applicable product documents.
- Hero FRA-106N1
TOOL-CDIE64
Rennsteig PEW 12 Die Set for AMP/TE Econoseal 070 terminals (20-16 AWG)
Kit Contents: Crimp die set, locator
OEM P/N: 624 1730 3 01 RT
Kit Contents: Crimp die set, locator
OEM P/N: 624 1730 3 01 RT
| Compatibility | |||||
|---|---|---|---|---|---|
| P/N | Wire Size | Plating | Strip | Loose | |
| ✗ | TE070-PIN1 | .2-.5 mm2 (24-20 AWG) | Tin | 171631-1 | 173600-1 |
| Gold | 171631-2 | N/A | |||
| ✓ | TE070-PIN2 | .5-1.25 mm2 (20-16 AWG) | Tin | 171661-1 | 173706-1 |
| Gold | 171661-2 | N/A | |||
| ✗ | TE070-SKT1 | .2-.5 mm2 (24-20 AWG) | Tin | 171630-1 | 171699-1 |
| Gold | 171630-5 | N/A | |||
| ✓ | TE070-SKT2 | .5-1.25 mm2 (20-16 AWG) | Tin | 171662-1 | 173707-1 |
| Gold | 171662-5 | N/A | |||
