Home ▹ Connectors ▹ By Application/Use ▹ Motorcycle/Sport-Bike ▹ 16-Way

16-Way

16-Way Kit
HM-16P
16-Way Kit
HM-16P  16-Way Kit
Kit Contents: Housing, 16 pin contacts, 16 seals

Mfr: Aftermarket Sumitomo
Series: HM Sealed Series
Mating Part: HM-16S
Bottom of connector features a bracket mount

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:16
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:4
  • Pitch:6.0mm
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Suzuki GSXR injector sub-harness
spacer
QtyPrice
1-5$7.16
6-19$6.66
20-49$6.09
50-99$5.73

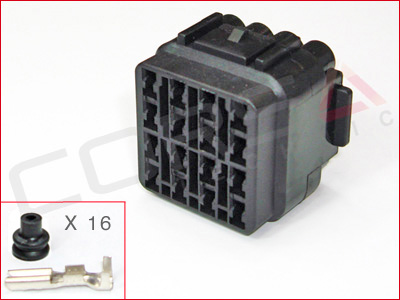

100+$5.01
Quantity:  Kit

16-Way Kit
HM-16S
16-Way Kit
HM-16S  16-Way Kit
Kit Contents: Housing, 16 socket contacts, 16 seals

Mfr: Aftermarket Sumitomo
Series: HM Sealed Series
Mating Part: HM-16P
Bottom of connector features a bracket mount

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:16
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:4
  • Pitch:6.0mm
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Suzuki GSXR injector sub-harness
spacer
QtyPrice
1-5$5.64
6-19$5.25
20-49$4.79
50-99$4.51
100+$3.95
Quantity:  Kit

16-Way Kit
HMU-16P
16-Way Kit
OEM P/N: 6090-1099 (natural color)
HMU-16P  16-Way Kit
Kit Contents: Housing, 16 pin contacts

Mfr: OEM Sumitomo
Series: HM Unsealed Series
OEM P/N: 6090-1099 (natural color)
Mating Part: HMU-16S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:16
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Clip Slot
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$3.66
6-19$3.40
20-49$3.11
50-99$2.93
100+$2.56
Quantity:  Kit

16-Way Kit
HMU-16S
16-Way Kit
OEM P/N: 6090-1071 (natural color)
HMU-16S  16-Way Kit
Kit Contents: Housing, 16 socket contacts

Mfr: OEM Sumitomo
Series: HM Unsealed Series
OEM P/N: 6090-1071 (natural color)
Mating Part: HMU-16P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:16
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$3.51
6-19$3.26
20-49$2.98
50-99$2.81
100+$2.46
Quantity:  Kit

16-Way PCB Header - Angled Pin
MX34-16P-A
16-Way PCB Header - Angled Pin
OEM P/N: MX34016NF1
MX34-16P-A  16-Way PCB Header - Angled Pin
Kit Contents: PCB header

Mfr: OEM JAE
Series: MX34 Series
OEM P/N: MX34016NF1
Mating Part: MX34-16S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:16
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.85 mm2
  • Number of Rows:2
  • Pitch:2.2mm
  • Row Spacing:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:SPS+GF
  • Mounting Style:PCB Board Mount
  • CPA:No
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • GSXR-1000 '07-'08 dash
  • GSXR-1300R K8 dash
  • Kawasaki Z1000 '07-'09 dash
spacer
QtyPrice
1-5$2.83
6-19$2.63
20-49$2.41
50-99$2.26
100+$1.98
Quantity:  Ea

16-Way PCB Header - Straight Pin
MX34-16P-S
16-Way PCB Header - Straight Pin
OEM P/N: MX34016UF1
MX34-16P-S  16-Way PCB Header - Straight Pin
Kit Contents: PCB header

Mfr: OEM JAE
Series: MX34 Series
OEM P/N: MX34016UF1
Mating Part: MX34-16S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:16
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.85 mm2
  • Number of Rows:2
  • Pitch:2.2mm
  • Row Spacing:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:SPS+GF
  • Mounting Style:PCB Board Mount
  • CPA:No
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • GSXR-1000 '07-'08 dash
  • GSXR-1300R K8 dash
  • Kawasaki Z1000 '07-'09 dash
spacer
QtyPrice
1-5$3.18
6-19$2.96
20-49$2.70
50-99$2.54
100+$2.23
Quantity:  Ea

16-Way Kit
MX34-16S
16-Way Kit
OEM P/N: MX34016SF1
MX34-16S  16-Way Kit
Kit Contents: Housing, 16 socket contacts

Mfr: OEM JAE
Series: MX34 Series
OEM P/N: MX34016SF1
Mating Part: MX34-16P-A, MX34-16P-S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:16
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.85 mm2
  • Number of Rows:2
  • Pitch:2.2mm
  • Row Spacing:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PPE+PA66
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Kawasaki Z1000 '07-'09 dash
  • GSXR-1300R K8 dash
  • GSXR-1000 '07-'08 dash
spacer
QtyPrice
1-5$2.65
6-19$2.46
20-49$2.25
50-99$2.12
100+$1.85
Quantity:  Kit

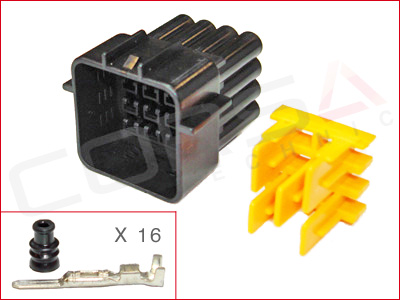

16-Way Kit
RFW-16P
16-Way Kit
OEM P/N: FW-C-16M-B (alt p/n: P010645, 12445-5216-2)
RFW-16P  16-Way Kit
Kit Contents: Housing, 16 pin contacts, 16 seals, lock

Mfr: OEM Furukawa
Series: RFW Series
OEM P/N: FW-C-16M-B (alt p/n: P010645, 12445-5216-2)
Mating Part: RFW-16S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:16
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:4
  • Pitch:5.8mm
  • Row Spacing:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:14A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$7.24
6-19$6.88
20-49$6.52
50-99$6.15
100-249$5.79
250-499$5.43
500+$5.07
Quantity:  Kit

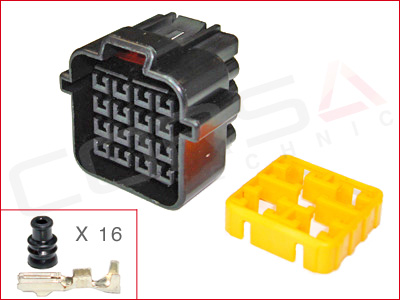

16-Way Kit
RFW-16S
16-Way Kit
OEM P/N: Black: FW-C-16F-B (alt p/n: P010643, 12444-5216-2) OEM
White: FW-C-16F-W Aftermarket
Blue: FW-C-16F-L
Green: FW-C-16F-G
RFW-16S  16-Way Kit
Kit Contents: Housing, 16 socket contacts, 16 seals, lock

Mfr: Furukawa
Series: RFW Series
OEM P/N: Black: FW-C-16F-B (alt p/n: P010643, 12444-5216-2) OEM
White: FW-C-16F-W Aftermarket
Blue: FW-C-16F-L
Green: FW-C-16F-G
Mating Part: RFW-16P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:16
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:4
  • Pitch:5.8mm
  • Row Spacing:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:14A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$6.80
6-19$6.46
20-49$6.12
50-99$5.78
100-249$5.44
250-499$5.10
500+$4.76
Quantity:  Kit
