Home ▹ Connectors ▹ By Manufacturer ▹ Sumitomo ▹ 58 W Sealed Series

58 W Sealed Series

1-Way Kit
58W-1S
1-Way Kit
OEM P/N: 7223-1814-40
58W-1S  1-Way Kit
Kit Contents: Housing, 1 socket contact, 1 seal, rear holder/lock

Mfr: OEM Yazaki
Series: Sumitomo: 58 W Sealed, Yazaki: 58 W Sealed
OEM P/N: 7223-1814-40
Part Name: W01FW
Mating Part: 7122-1814-40

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$5.73
6-19$5.44
20-49$5.16
50-99$4.87
100+$4.58
Quantity:  Kit

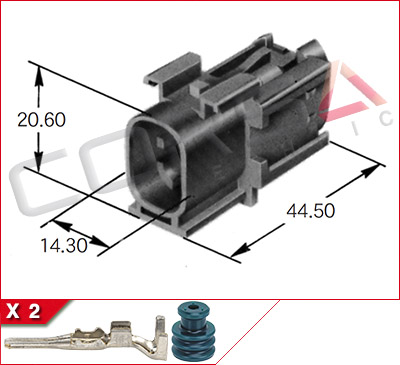

2-Way Kit
58W-2P-2
2-Way Kit
OEM P/N: 7122-1823-30
58W-2P-2  2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals, rear holder/lock

Mfr: OEM Yazaki
Series: Sumitomo: 58 W Sealed, Yazaki: 58 W Sealed
OEM P/N: 7122-1823-30
Part Name: W02MB
Mating Part: 58W-2S-2

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Row Spacing:8.7mm
  • Numbered Cavities:Yes, Polarity
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$3.95
6-19$3.75
20-49$3.56
50-99$3.36
100+$3.16
Quantity:  Kit

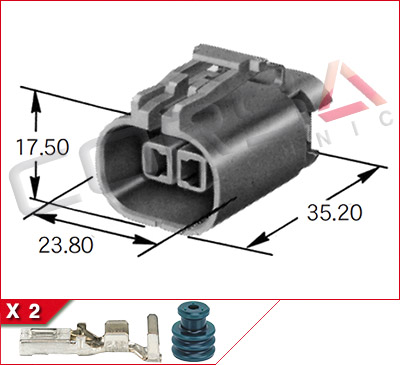

2-Way Kit
58W-2S-1
2-Way Kit
OEM P/N: 6189-2841, 7223-1824-40 (stocked) (alt p/n: 7223-1824-80, Brown)
58W-2S-1  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals, rear holder/lock

Mfr: OEM Yazaki
Series: Sumitomo: 58 W Sealed, Yazaki: 58 W Sealed
OEM P/N: 6189-2841, 7223-1824-40 (stocked) (alt p/n: 7223-1824-80, Brown)
Part Name: W02FW
Mating Part: 7122-1824-40

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:8.7mm
  • Numbered Cavities:Yes, Polarity
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$5.44
6-19$5.17
20-49$4.90
50-99$4.62
100+$4.35
Quantity:  Kit

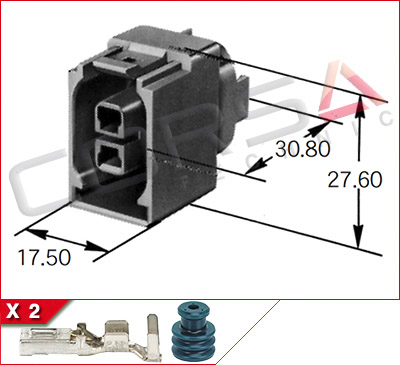

2-Way Kit
58W-2S-2
2-Way Kit
OEM P/N: 7223-1823-30
58W-2S-2  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals, rear holder/lock

Mfr: OEM Yazaki
Series: Sumitomo: 58 W Sealed, Yazaki: 58 W Sealed
OEM P/N: 7223-1823-30
Part Name: W02FB
Mating Part: 58W-2P-2

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Row Spacing:8.7mm
  • Numbered Cavities:Yes, Polarity
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$3.96
6-19$3.76
20-49$3.56
50-99$3.37
100+$3.17
Quantity:  Kit

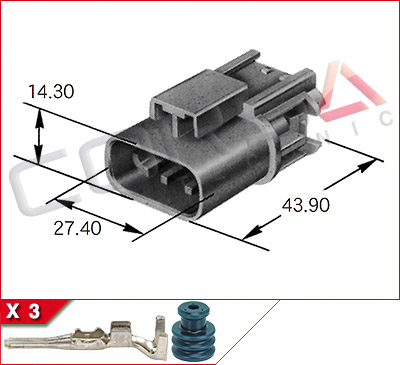

3-Way Kit
58W-3P
3-Way Kit
OEM P/N: 7122-1834-40
58W-3P  3-Way Kit
Kit Contents: Housing, 3 pin contacts, 3 seals, rear holder/lock

Mfr: OEM Yazaki
Series: Sumitomo: 58 W Sealed, Yazaki: 58 W Sealed
OEM P/N: 7122-1834-40
Part Name: W03MW
Mating Part: 7223-1834-40

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.8mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$5.04
6-19$4.79
20-49$4.54
50-99$4.28
100+$4.03
Quantity:  Kit

58 W Sealed Pin Contact
58W-PIN
58 W Sealed Pin Contact
58W-PIN  58 W Sealed Pin Contact

Mfr: Sumitomo, Yazaki
Series: Sumitomo: 58 W Sealed, Yazaki: 58 W Sealed

Wire SizePlatingSumitomoYazaki
58W-PIN1.3-.85 mm2 (22-18 AWG)Tin1500-00977114-1232
-GoldN/A7114-1232-08
58W-PIN21.25-2.0 mm2 (16-14 AWG)Tin1500-00987114-1233
-GoldN/A7114-1233-08
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 2.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-49$0.17
50-99$0.16
100-249$0.15
250-499$0.14
500-999$0.13
1000+$0.12
Quantity:  Ea

58 W Sealed Socket Contact
58W-SKT
58 W Sealed Socket Contact
58W-SKT  58 W Sealed Socket Contact

Mfr: Sumitomo, Yazaki
Series: Sumitomo: 58 W Sealed, U Series, Yazaki: 58 W Sealed

Wire SizeMaterialPlatingSumitomoYazaki
58W-SKT1.3-.85 mm2 (22-18 AWG)BrassTin1400-02097116-1232
-Copper alloyTin1410-00037116-1236
-BrassGoldN/A7116-1232-08
-Copper alloyGold1500-01237116-1236-08
58W-SKT21.25-2.0 mm2 (16-14 AWG)BrassTin1400-02107116-1233
-Copper alloyTin1400-02417116-1237
-BrassGoldN/A7116-1233-08
-Copper allowGold1500-0129N/A
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 2.00 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Terminal used in Toyota 82998-12550, 82998-12610 repair wire
QtyPrice
1-49$0.18
50-99$0.17
100-249$0.16
250-499$0.15
500-999$0.14
1000+$0.13
Quantity:  Ea

58 W Sealed Socket Contact, Heavy Type
58W-SKTx-H
58 W Sealed Socket Contact, Heavy Type
58W-SKTx-H  58 W Sealed Socket Contact, Heavy Type

Mfr: Sumitomo, Yazaki
Series: Sumitomo: 58 W Sealed, U Series, Yazaki: 58 W Sealed

Wire SizeMaterialPlatingSumitomoYazaki
58W-SKT1.3-.85 mm2 (22-18 AWG)BrassTin1400-02097116-1232
58W-SKT1-HCopper alloyTin1410-00037116-1236
-BrassGoldN/A7116-1232-08
-Copper alloyGold1500-01237116-1236-08
58W-SKT21.25-2.0 mm2 (16-14 AWG)BrassTin1400-02107116-1233
58W-SKT2-HCopper alloyTin1400-02417116-1237
-BrassGoldN/A7116-1233-08
-Copper allowGold1500-0129N/A
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 2.00 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Terminal used in Toyota 82998-12550, 82998-12610 repair wire
QtyPrice
1-49$0.34
50-99$0.32
100-249$0.31
250-499$0.29
500-999$0.27
1000+$0.26
Quantity:  Ea

58 W Seal Plug
58W-PG
58 W Seal Plug
OEM P/N: Sumitomo: 7165-0060
Yazaki: 7157-3562-80
58W-PG  58 W Seal Plug

Mfr: Sumitomo, Yazaki
Series: Sumitomo: 58 W Sealed, Yazaki: 58 W Sealed
OEM P/N: Sumitomo: 7165-0060
Yazaki: 7157-3562-80

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.8mm (.110)
Mechanical
  • Seal Material:Silicone Rubber

spacer
spacer
QtyPrice
1-49$0.34
50-99$0.32
100-249$0.31
250-499$0.27
500+$0.24
Quantity:  Ea

58 W Sealed Seals
58W-SL
58 W Sealed Seals
58W-SL  58 W Sealed Seals

Mfr: Sumitomo, Yazaki
Series: Sumitomo: 58 W Sealed, U Series, Yazaki: 58 W Sealed

Wire Insulation Dia.ColorSumitomoYazaki
58W-SL11.4-1.6 mm (.055-.063 in)Green7165-00597157-3563-60
58W-SL21.8-2.1 mm (.070-.083 in)Black7165-00417157-3560
58W-SL32.3-2.9 mm (.090-.114 in)Brown/Red7165-00427157-3561-80
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 2.00 mm2
Mechanical
  • Seal Material:Silicone Rubber

spacer
spacer
QtyPrice
1-49$0.61
50-99$0.58
100-249$0.55
250-499$0.52
500-999$0.49
1000+$0.46
Quantity:  Ea
