36-Way
ES3.WTB-36P
36-Way PCB Header
Kit Contents: PCB header with right angle mounting
Mfr: OEM Tyco/AMP
Series: Econoseal III Wire to Board Series
OEM P/N: 344108-1
Mating Part: ES3.WTB-36S
Kit Contents: PCB header with right angle mounting
Mfr: OEM Tyco/AMP
Series: Econoseal III Wire to Board Series
OEM P/N: 344108-1
Mating Part: ES3.WTB-36S
3D STEP (344108-1_H-3d_stp.zip)
Mfr Drawing (C-344108_H.pdf)General
- Sealing:Single Wire Sealed
- Number of Ways:36
- Contact Size:1.8mm (.070)
- Number of Rows:3
- Pitch:5.0mm
- Row Spacing:6.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:PCB solder tail
- Housing Material:PA66+GF
- Mounting Style:PCB Board Mount
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:8A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-40 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Jaguar XJ6/XJR '93-'96/97 ECU
- M&W CDI Ignition units
- Motec M4, M48, M8 ECU's
- OMEX ECU's

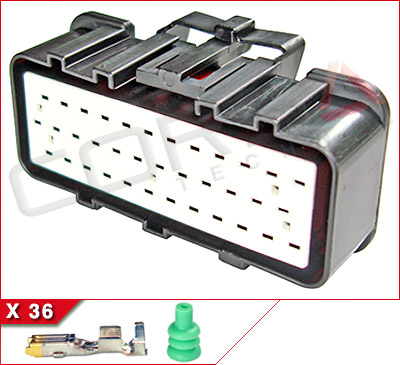

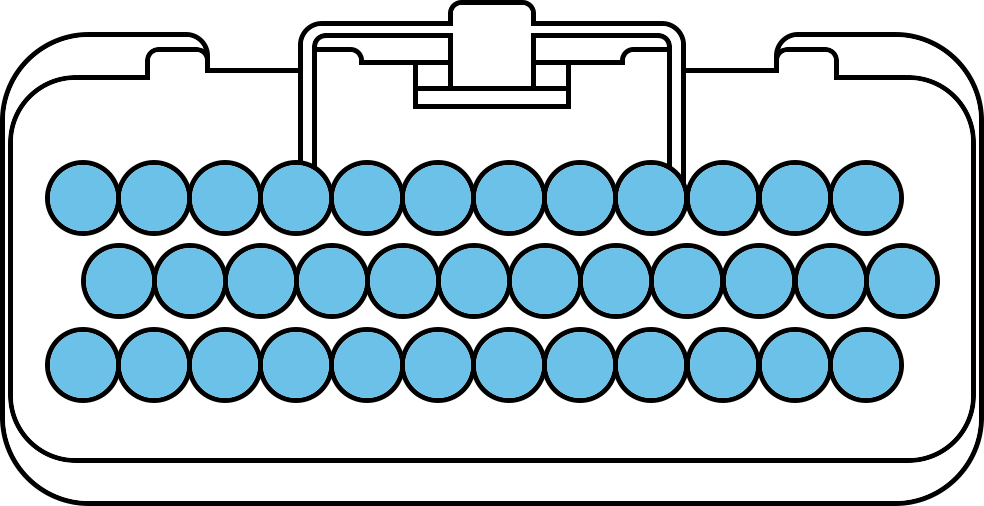

ES3.WTB-36S
36-Way Kit
Kit Contents: Housing, 36 socket contacts for 20-16 AWG wire, 36 seals, front lock
Mfr: OEM Tyco/AMP
Series: Econoseal III Wire to Board Series
OEM P/N: 344111-1
Mating Part: ES3.WTB-36P
Kit Contents: Housing, 36 socket contacts for 20-16 AWG wire, 36 seals, front lock
Mfr: OEM Tyco/AMP
Series: Econoseal III Wire to Board Series
OEM P/N: 344111-1
Mating Part: ES3.WTB-36P
General
- Sealing:Single Wire Sealed
- Number of Ways:36
- Contact Size:1.8mm (.070)
- Wire Size:0.50 - 1.25 mm2
- Number of Rows:3
- Pitch:5.0mm
- Row Spacing:6.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:8A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-40 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Jaguar XJ6/XJR '93-'96/97 ECU
- M&W CDI Ignition units
- Motec M4, M48, M8 ECU's
- OMEX ECU's
MX23A-36S-1
36-Way Kit
Kit Contents: Housing, 36 socket contacts, front lock
Mfr: OEM JAE
Series: MX23A Series
OEM P/N: MX23A36SF1
Mating Part: MX23A36NF1
Kit Contents: Housing, 36 socket contacts, front lock
Mfr: OEM JAE
Series: MX23A Series
OEM P/N: MX23A36SF1
Mating Part: MX23A36NF1
General
- Sealing:Matte Sealed
- Number of Ways:36
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:3
- Pitch:2.5mm
- Row Spacing:4.4mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:7A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Suzuki motorcycle ECU's on GSXR 1000 K7 and up, GSXR 600, 750 K8 and up
MX23A-36S-2
36-Way Kit (Alternate Keying, Grey)
Kit Contents: Housing, 36 socket contacts, front lock
Mfr: OEM JAE
Series: MX23A Series
OEM P/N: MX23A36SF2
Mating Part: MX23A36NF6
Kit Contents: Housing, 36 socket contacts, front lock
Mfr: OEM JAE
Series: MX23A Series
OEM P/N: MX23A36SF2
Mating Part: MX23A36NF6
General
- Sealing:Matte Sealed
- Number of Ways:36
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:3
- Pitch:2.5mm
- Row Spacing:4.4mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:7A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Suzuki motorcycle ECU's on GSXR 1000 K7 and up, GSXR 600, 750 K8 and up (Grey connector)
ZRO-36P
36-Way PCB Header
Kit Contents: PCB header for right angle mounting
Mfr: OEM JST
Series: ZRO Series
OEM P/N: S36B-ZROK-2A-R Normal type (alt pn: S36B-ZROK-3A-R w/ case lock)
Keying: A
Mating Part: 36ZRO-B-1A, 36ZRO-B-2A
Kit Contents: PCB header for right angle mounting
Mfr: OEM JST
Series: ZRO Series
OEM P/N: S36B-ZROK-2A-R Normal type (alt pn: S36B-ZROK-3A-R w/ case lock)
Keying: A
Mating Part: 36ZRO-B-1A, 36ZRO-B-2A
Electrical
- Current Rating[1]:7A
- Voltage Rating:50 V DC
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
