YESC.63KU-SKT
YESC KAIZEN 6.3 Unsealed Socket Terminal
Images shown may represent a range of products or be for illustration purposes only.
| Wire Size | Part Number | |
|---|---|---|
| YESC.63KU-SKT1 | 0.5-1.25 mm2 (20-16 AWG) | 7116-4120-02 |
| YESC.63KU-SKT2 | 1.35-2.0 mm2 (14 AWG) | 7116-4121-02 |
| YESC.63KU-SKT3 | 2.5-4.0 mm2 (12 AWG) | 7116-4122-02 |
| YESC.63KU-SKT4 | 5.0 mm2 (10 AWG) | 7116-4124-02 |
| Available stock: Aftermarket OEM | ||
Documents

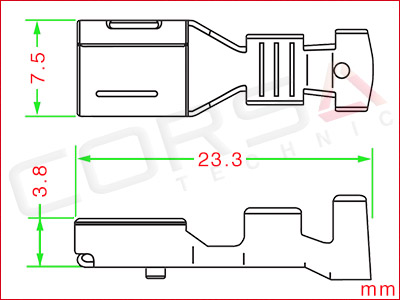

Drawing (7116-4120-02.pdf)Specifications
General
- Sealing:Unsealed
- Contact Size:6.3mm (.250)
- Wire Size:0.50 - 5.00 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:30A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
