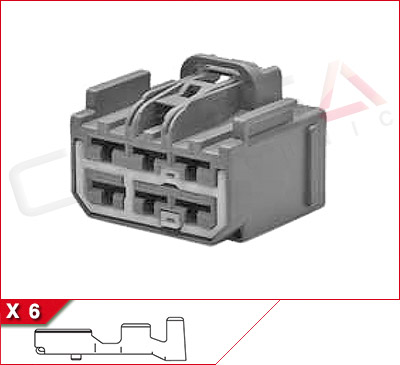

YESC KAIZEN 6.3 System Unsealed
YESC.63KU-6S-1
6-Way Kit
Kit Contents: Housing, 6 socket contacts
Mfr: OEM Yazaki
Series: YESC KAIZEN 6.3 System Unsealed
OEM P/N: 7283-3740-40 (ss: 7283-5591-40)
Keying: A
Mating Part: YESC 7282-5604-40
Kit Contents: Housing, 6 socket contacts
Mfr: OEM Yazaki
Series: YESC KAIZEN 6.3 System Unsealed
OEM P/N: 7283-3740-40 (ss: 7283-5591-40)
Keying: A
Mating Part: YESC 7282-5604-40
Mfr Drawing (7283-3740-40.pdf)General
- Sealing:Unsealed
- Number of Ways:6
- Contact Size:6.3mm (.250)
- Wire Size:0.50 - 5.00 mm2
- Number of Rows:2
- Pitch:8.5mm
- Row Spacing:7.3mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT+GF
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:30A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Ford 3U2Z-14S411-HEA, WPT-363 (Tin & Gold terminals) pigtail connector
YESC.63KU-SKT
YESC KAIZEN 6.3 Unsealed Socket Terminal
Mfr: Yazaki
Series: YESC KAIZEN 6.3 System Unsealed
Mfr: Yazaki
Series: YESC KAIZEN 6.3 System Unsealed
| Wire Size | Part Number | |
|---|---|---|
| YESC.63KU-SKT1 | 0.5-1.25 mm2 (20-16 AWG) | 7116-4120-02 |
| YESC.63KU-SKT2 | 1.35-2.0 mm2 (14 AWG) | 7116-4121-02 |
| YESC.63KU-SKT3 | 2.5-4.0 mm2 (12 AWG) | 7116-4122-02 |
| YESC.63KU-SKT4 | 5.0 mm2 (10 AWG) | 7116-4124-02 |
| Available stock: Aftermarket OEM | ||
General
- Sealing:Unsealed
- Contact Size:6.3mm (.250)
- Wire Size:0.50 - 5.00 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:30A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
