Home ▹ Connectors ▹ By Application/Use ▹ Motorcycle/Sport-Bike

Motorcycle/Sport-Bike

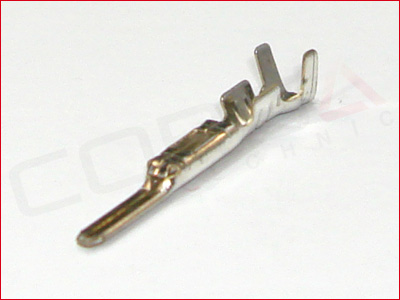

MT, HM, HW Sealed Pin Contact
SUMI.A-PIN
MT, HM, HW Sealed Pin Contact
SUMI.A-PIN  MT, HM, HW Sealed Pin Contact

Mfr: Sumitomo
Series: MT 090, HM 090, and HW 090 sealed series

Wire SizeFinishP/N:
SUMI.A-PIN1.3-1.25 mm2 (22-16 AWG)Tin1500-0105
-Gold1500-0134
SUMI.A-PIN22.0-2.7 mm2 (14 AWG)Tin8230-4408
-GoldN/A
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Hero FRS-101N (size 1)
  • Honda 07JAZ-001080A
  • Suzuki 09900-28710-003 (terminal from refill kit)
  • Terminal used in Toyota 82998-12260, 82998-24070 (Gold plated) repair wire
QtyPrice
1-49$0.18
50-99$0.17
100-249$0.16
250-499$0.15
500-999$0.14
1000-2499$0.13
2500-4999$0.12
5000+$0.11
Quantity:  Ea

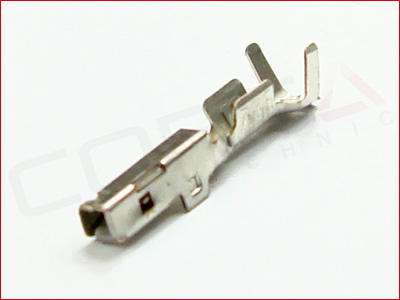

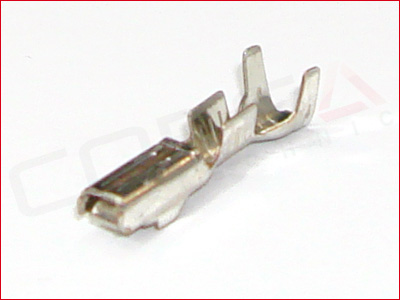

MT, HM, HW Sealed Socket Contact
SUMI.A-SKT
MT, HM, HW Sealed Socket Contact
SUMI.A-SKT  MT, HM, HW Sealed Socket Contact

Mfr: Sumitomo
Series: MT 090, HM 090, and HW 090 sealed series

Wire SizeMaterial/FinishSumitomoYazaki
SUMI.A-SKT1.3-1.25 mm2 (22-16 AWG)Brass/Tin1500-0106N/A
-Copper/Tin1500-01107116-1420
-Copper/Gold1500-0133N/A
-2.0-2.7 mm2 (14 AWG)Brass/TinN/AN/A
SUMI.A-SKT2Copper/Tin8240-48287116-1421
Available stock: Aftermarket OEM
Cross-compatible with Yazaki 090 Sealed Series


spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Hero FRS-102N (size 1)
  • Honda 07JAZ-001090A, 070MZ-002A800
  • KET ST730502-3 (SKT1), ST730554-3 (SKT2)
  • KUM MT095-31230 (SKT1), MT095-31030 (SKT2)
  • Suzuki 09900-28710-002 (terminal from refill kit)
  • Terminal used in Toyota 82998-12270, 82998-12600, 82998-24080 (Gold plated) repair wire
QtyPrice
1-49$0.21
50-99$0.20
100-249$0.18
250-499$0.17
500-999$0.16
1000-2499$0.15
2500-4999$0.13
5000-9999$0.12
10000+$0.11
Quantity:  Ea

HX, DL, SL, TL Sealed Series pin contact
SUMI.B-PIN
HX, DL, SL, TL Sealed Series pin contact
SUMI.B-PIN  HX, DL, SL, TL Sealed Series pin contact

Mfr: Sumitomo
Series: HX 090, DL 090, SL 090, and TL 090 sealed series

Wire SizeFinishP/N:
SUMI.B-PIN1.3-.5 mm2 (22-20 AWG)Tin8230-4472
-Gold1500-0159
SUMI.B-PIN2.75-.85 mm2 (18 AWG)Tin8230-4562
-Gold1500-0169
SUMI.B-PIN31.25-2.0 mm2 (16-14 AWG)Tin8230-4552
-GoldN/A
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-49$0.19
50-99$0.18
100-249$0.17
250-499$0.16
500-999$0.15
1000-2499$0.14
2500+$0.13
Quantity:  Ea

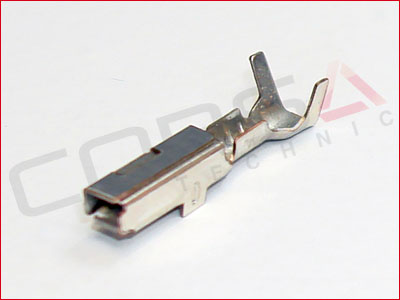

HX, DL, SL, TL Sealed Series Socket Contact
SUMI.B-SKT
HX, DL, SL, TL Sealed Series Socket Contact
SUMI.B-SKT  HX, DL, SL, TL Sealed Series Socket Contact

Mfr: Sumitomo
Series: HX 090, DL 090, SL 090, and TL 090 sealed series

Wire SizeFinishP/N:
SUMI.B-SKT1.3-.5 mm2 (22-20 AWG)Tin8100-1427 (alt p/n: 8240-4862)
-Gold8100-1458
SUMI.B-SKT2.75-.85 mm2 (18 AWG)Tin8100-1429 (alt p/n: 8240-4992)
-Gold8100-1460
SUMI.B-SKT31.25-2.0 mm2 (16-14 AWG)Tin8100-1428 (alt p/n: 8240-4952)
-Gold8100-1459
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-49$0.18
50-99$0.17
100-249$0.16
250-499$0.15
500-999$0.14
1000-2499$0.13
2500-4999$0.12
5000-9999$0.11
10000+$0.10
Quantity:  Ea

Wire Seal SL03
SL03
Wire Seal SL03
SL03  Wire Seal SL03


spacer

QtyPrice
1-49$0.10
50-99$0.09
100-249$0.08
250-499$0.07
500+$0.06
Quantity:  Ea

Wire Seal SL06
SL06
Wire Seal SL06
SL06  Wire Seal SL06


spacer

QtyPrice
1-49$0.10
50-99$0.09
100-249$0.08
250-499$0.07
500+$0.06
Quantity:  Ea
