MCON 1.2 Series - Clean Body

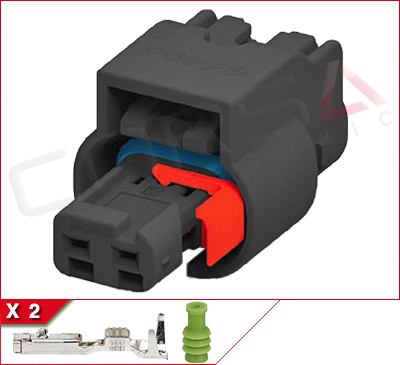

MCON.12CB-2S-A
2-Way Kit, Keying A
OEM P/N: 1-1924067-1 (alt p/n: 1-1924067-9 and 4-1924067-1 w/CPA)
2-Way Kit, Keying A
OEM P/N: 1-1924067-1 (alt p/n: 1-1924067-9 and 4-1924067-1 w/CPA)
MCON.12CB-2S-A
2-Way Kit, Keying A
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM TE/AMP
Series: MCON 1.2 Series
OEM P/N: 1-1924067-1 (alt p/n: 1-1924067-9 and 4-1924067-1 w/CPA)
Keying: A
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM TE/AMP
Series: MCON 1.2 Series
OEM P/N: 1-1924067-1 (alt p/n: 1-1924067-9 and 4-1924067-1 w/CPA)
Keying: A
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:1.2mm (.047)
- Wire Size:0.25 - 1.00 mm2
- Number of Rows:1
- Pitch:4.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Housing Material:PA66+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:Yes, connector option
Electrical
- Current Rating[1]:17A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Mopar 68137867AB repair kit connector
MCON.12CB-2S-B
2-Way Kit, Keying B
OEM P/N: 1-1924067-2 (alt p/n: 2-1924067-0 and 4-1924067-2 w/CPA)
2-Way Kit, Keying B
OEM P/N: 1-1924067-2 (alt p/n: 2-1924067-0 and 4-1924067-2 w/CPA)
MCON.12CB-2S-B
2-Way Kit, Keying B
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM TE/AMP
Series: MCON 1.2 Series
OEM P/N: 1-1924067-2 (alt p/n: 2-1924067-0 and 4-1924067-2 w/CPA)
Keying: B
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM TE/AMP
Series: MCON 1.2 Series
OEM P/N: 1-1924067-2 (alt p/n: 2-1924067-0 and 4-1924067-2 w/CPA)
Keying: B
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:1.2mm (.047)
- Wire Size:0.25 - 1.00 mm2
- Number of Rows:1
- Pitch:4.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Housing Material:PA66+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:Yes, connector option
Electrical
- Current Rating[1]:17A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Mopar 68225152AB repair kit connector
MCON.12CB-SKT
MCON 1.2 Clean Body (CB) Sealed Socket Contact
Mfr: TE/AMP
Series: MCON 1.2 Series
Mfr: TE/AMP
Series: MCON 1.2 Series
| Wire Size | Plating | Part Number | |
|---|---|---|---|
| MCON.12CB-SKT1 | .25-.35 mm2 (24-22 AWG) | Tin | 1418844-1 |
| - | Gold | 1418844-2 | |
| MCON.12CB-SKT2 | .50-.75 mm2 (20 AWG) | Tin | 1670146-1 |
| - | Gold | 1670146-2 | |
| MCON.12CB-SKT3 | 1.0-1.5 mm2 (18-16 AWG) | Tin | 1418850-1 |
| - | Gold | 1418850-2 | |
| Available stock: Aftermarket OEM | |||
General
- Sealing:Single Wire Sealed
- Contact Size:1.2mm (.047)
- Wire Size:0.25 - 1.50 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
Electrical
- Current Rating[1]:17A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MCON/MQS-SL
MCON 1.2 / MQS 0.63 Series Seals
Mfr: TE/AMP
Series: MCON 1.2 Series - Clean Body, MCON 1.2 Series - Locking Lance, Sealed MQS, also used in Hirschmann SealStar 1.2mm, Slimline 1.2mm
Mfr: TE/AMP
Series: MCON 1.2 Series - Clean Body, MCON 1.2 Series - Locking Lance, Sealed MQS, also used in Hirschmann SealStar 1.2mm, Slimline 1.2mm
| Wire Insulation Dia. | Color | Part Number | |
|---|---|---|---|
| MCON/MQS-SL1 | 0.9-1.4 mm (.035-.055 in) | Yellow | 967067-2 |
| MCON/MQS-SL2 | 1.4-2.1 mm (.055-.083 in) | Green | 967067-1 |
| Available stock: Aftermarket OEM | |||
General
- Sealing:Single Wire Sealed
- Contact Size:Mixed
Mechanical
- Seal Material:Silicone Rubber
