MT Unsealed Semi-Locking Series

1-Way Kit
MTU.SL-1P
1-Way Kit
OEM P/N: 6242-1011, 6243-1011 (w/clamp)
MTU.SL-1P  1-Way Kit
Kit Contents: Housing, 1 pin contact

Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Semi-Locking, 090 Unsealed
OEM P/N: 6242-1011, 6243-1011 (w/clamp)
Mating Part: MTU.SL-1S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:4.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$1.48
6-19$1.38
20-49$1.26
50-99$1.18
100+$1.04
Quantity:  Kit

1-Way Kit
MTU.SL-1S
1-Way Kit
MTU.SL-1S  1-Way Kit
Kit Contents: Housing, 1 socket contact

Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Semi-Locking, 090 Unsealed
Mating Part: MTU.SL-1P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:4.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$1.45
6-19$1.35
20-49$1.23
50-99$1.16
100+$1.01
Quantity:  Kit

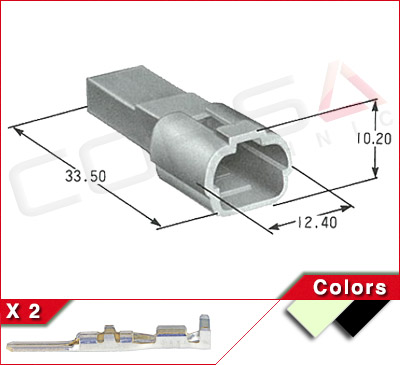

2-Way Kit
MTU.SL-2P
2-Way Kit
OEM P/N: 7122-1520
MTU.SL-2P  2-Way Kit
Kit Contents: Housing, 2 pin contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Semi-Locking, 090 Unsealed
OEM P/N: 7122-1520
Mating Part: MTU.SL-2S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:4.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$1.55
6-19$1.44
20-49$1.32
50-99$1.24
100+$1.08
Quantity:  Kit

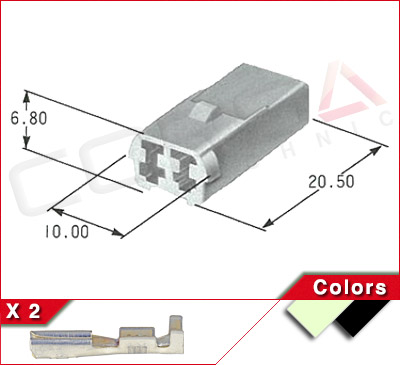

2-Way Kit
MTU.SL-2S
2-Way Kit
OEM P/N: 7123-1520
MTU.SL-2S  2-Way Kit
Kit Contents: Housing, 2 socket contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Semi-Locking, 090 Unsealed
OEM P/N: 7123-1520
Mating Part: MTU.SL-2P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:4.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$1.54
6-19$1.43
20-49$1.31
50-99$1.23
100+$1.08
Quantity:  Kit

3-Way Kit
MTU.SL-3P
3-Way Kit
OEM P/N: 6242-1031, 7122-1430
MTU.SL-3P  3-Way Kit
Kit Contents: Housing, 3 pin contacts

Mfr: OEM Sumitomo, Yazaki
Series: MT Unsealed Semi-Locking, 090 Unsealed
OEM P/N: 6242-1031, 7122-1430
Mating Part: MTU.SL-3S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:3
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:4.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$1.96
6-19$1.82
20-49$1.67
50-99$1.57
100+$1.37
Quantity:  Kit

3-Way Kit
MTU.SL-3S
3-Way Kit
OEM P/N: 6242-5031, 7123-1430
MTU.SL-3S  3-Way Kit
Kit Contents: Housing, 3 socket contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Semi-Locking, 090 Unsealed
OEM P/N: 6242-5031, 7123-1430
Mating Part: MTU.SL-3P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:3
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:4.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$1.96
6-19$1.82
20-49$1.67
50-99$1.57
100+$1.37
Quantity:  Kit

4-Way Kit
MTU.SL-4P
4-Way Kit
MTU.SL-4P  4-Way Kit
Kit Contents: Housing, 4 pin contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Semi-Locking, 090 Unsealed
Mating Part: MTU.SL-4S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:4
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$2.14
6-19$1.99
20-49$1.82
50-99$1.71
100+$1.50
Quantity:  Kit

4-Way Kit
MTU.SL-4S
4-Way Kit
MTU.SL-4S  4-Way Kit
Kit Contents: Housing, 4 socket contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Semi-Locking, 090 Unsealed
Mating Part: MTU.SL-4P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:4
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$1.73
6-19$1.61
20-49$1.47
50-99$1.38
100+$1.21
Quantity:  Kit

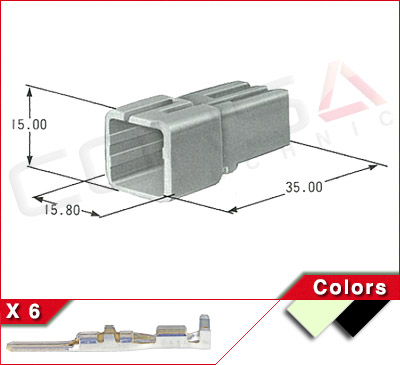

6-Way Kit
MTU.SL-6P-1
6-Way Kit
OEM P/N: 6242-1061, 7122-1460
MTU.SL-6P-1  6-Way Kit
Kit Contents: Housing, 6 pin contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Semi-Locking, 090 Unsealed
OEM P/N: 6242-1061, 7122-1460
Mating Part: MTU.SL-6S-1

spacer
General
  • Sealing:Unsealed
  • Number of Ways:6
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$2.36
6-19$2.19
20-49$2.01
50-99$1.89
100+$1.65
Quantity:  Kit

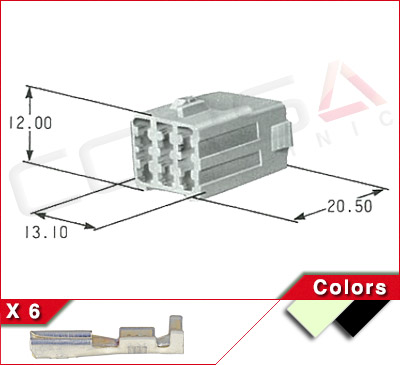

6-Way Kit
MTU.SL-6S-1
6-Way Kit
OEM P/N: 6242-5061, 7123-1460
MTU.SL-6S-1  6-Way Kit
Kit Contents: Housing, 6 socket contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Semi-Locking, 090 Unsealed
OEM P/N: 6242-5061, 7123-1460
Mating Part: MTU.SL-6P-1

spacer
General
  • Sealing:Unsealed
  • Number of Ways:6
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$2.21
6-19$2.06
20-49$1.88
50-99$1.77
100+$1.55
Quantity:  Kit

DS, HD, HM, MT 090 Unsealed Series Pin Contact
SUMI.090U.A-PIN
DS, HD, HM, MT 090 Unsealed Series Pin Contact
SUMI.090U.A-PIN  DS, HD, HM, MT 090 Unsealed Series Pin Contact

Mfr: Sumitomo, Yazaki
Series: Sumitomo: HD 090 Unsealed, HD 090+187 Hybrid Unsealed, HM Unsealed, MT Unsealed Interlocking, MT Unsealed Semi-Locking
Yazaki: 090 Unsealed

Wire SizeFinishSumitomoYazaki
SUMI.090U.A-PIN1.3-.5 mm2 (22-20 AWG)Tin8230-42727114-1170
-Gold8230-44197114-1170-08
SUMI.090U.A-PIN2.5-1.25 mm2 (20-16 AWG)Tin8230-42827114-1171
-GoldN/A7114-1171-08
SUMI.090U.A-PIN32.0 mm2 (14 AWG)Tin8230-4392N/A
-GoldN/AN/A
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Terminal used in Toyota 82998-12160, 82998-24050 (Gold plated) repair wire
QtyPrice
1-49$0.16
50-99$0.15
100-249$0.14
250-499$0.13
500-999$0.12
1000-2499$0.11
2500-4999$0.10
5000-9999$0.09
10000+$0.08
Quantity:  Ea

DS, HD, HM, MT 090 Unsealed Series Socket Contact
SUMI.090U.A-SKT
DS, HD, HM, MT 090 Unsealed Series Socket Contact
SUMI.090U.A-SKT  DS, HD, HM, MT 090 Unsealed Series Socket Contact

Mfr: Sumitomo, Yazaki
Series: Sumitomo: HD 090 Unsealed, HD 090+187 Hybrid Unsealed, HM Unsealed, HM Unsealed Splice, MT Unsealed Interlocking, MT Unsealed Semi-Locking
Yazaki: 090 Unsealed

Wire SizeFinishSumitomoYazaki
SUMI.090U.A-SKT1.3-.5 mm2 (22-20 AWG)Tin8240-44127116-1180
-Gold8240-48497116-1180-08
SUMI.090U.A-SKT2.5-1.25 mm2 (20-16 AWG)Tin8240-44227116-1181
-GoldN/A7116-1181-08
SUMI.090U.A-SKT32.0 mm2 (14 AWG)Tin8240-4652N/A
-GoldN/AN/A
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Terminal used in Toyota 82998-12170 repair wire
QtyPrice
1-49$0.17
50-99$0.16
100-249$0.15
250-499$0.14
500-999$0.13
1000-2499$0.12
2500-4999$0.11
5000-9999$0.10
10000+$0.09
Quantity:  Ea


Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2024 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1
R7A4
R7A3
R7A2
