Home ▹ Connectors ▹ By Manufacturer ▹ Sumitomo ▹ 250 Special Type

250 Special Type

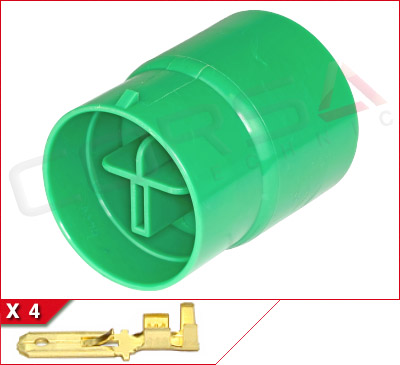

4-Way Kit
250.AVR-4P
4-Way Kit
250.AVR-4P  4-Way Kit
Kit Contents: Housing, 4 pin contacts, rear wire seal

Mfr: Aftermarket Sumitomo
Series: 250 Special Type
Mating Part: 250.AVR-4S

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:4
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:10.0mm
  • Row Spacing:8.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PP
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-20 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Mitsubishi and Nippondenso type alternators
spacer
QtyPrice
1-5$4.57
6-19$4.25
20-49$3.88
50-99$3.66
100+$3.20
Quantity:  Kit

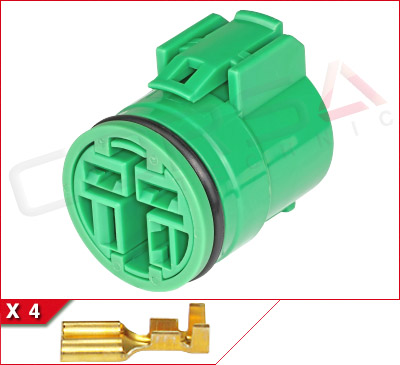

4-Way Kit
250.AVR-4S
4-Way Kit
250.AVR-4S  4-Way Kit
Kit Contents: Housing, 4 socket contacts, rear wire seal

Mfr: Aftermarket Sumitomo
Series: 250 Special Type
Mating Part: 250.AVR-4P

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:4
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:10.0mm
  • Row Spacing:8.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PP
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-20 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Mitsubishi and Nippondenso type alternators
spacer
QtyPrice
1-5$4.56
6-19$4.24
20-49$3.88
50-99$3.65
100+$3.19
Quantity:  Kit

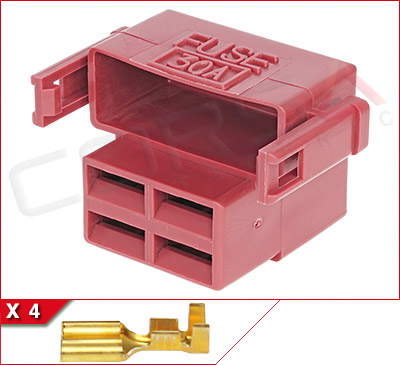

4-Way Kit
CP-4S
4-Way Kit
OEM P/N: 6098-0006
CP-4S  4-Way Kit
Kit Contents: Housing, 4 socket contacts

Mfr: OEM Sumitomo
Series: 250 Special Type
OEM P/N: 6098-0006
Part Name: CP 4F-R 30A
Mating Part: N/A, Device only
Starter solenoid/main fuse cover common on many motorcycles. 30A marking.

spacer
General
  • Sealing:Unsealed
  • Number of Ways:4
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:9.0mm
  • Row Spacing:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PP
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:30A
Environmental
  • Temp Range[2]:-20 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$5.36
6-19$5.09
20-49$4.82
50-99$4.56
100+$4.29
Quantity:  Kit

250 Series Pin Contact
250.TL-PIN
250 Series Pin Contact
250.TL-PIN  250 Series Pin Contact

Mfr: Sumitomo, Yazaki
Series: 250 Armlock-Terminal Lance, 250 Lock series, 250 Special series, 250 LT Type, 250 Waterproof Connector, CN(A) Tang Type Terminal

Wire SizePlatingSumitomoYazaki
-.3 mm2 (22 AWG)Plain Brass8230-40307114-2023
-Tin8230-40127114-2023-02
250.TL-PIN1.5-2.0 mm2 (20-14 AWG)Plain Brass1800-20937114-2020
-Tin1800-20927114-2020-02
250.TL-PIN23.0 mm2 (12 AWG)Plain Brass1500-00487114-2021
-Tin1500-00497114-2021-02
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:20A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Hero B-9
  • Honda 07692-0010900
  • Suzuki 09900-28701-011 (brass)
QtyPrice
1-49$0.15
50-99$0.14
100-249$0.13
250-499$0.12
500-999$0.11
1000-2400$0.10
2500-4999$0.09
5000+$0.08
Quantity:  Ea

250 Series Socket Contact
250.TL-SKT
250 Series Socket Contact
250.TL-SKT  250 Series Socket Contact

Mfr: Sumitomo, Yazaki
Series: 250 Armlock-Terminal Lance, 250 Lock series, 250 Special series, 250 LT Type, 250 Waterproof Connector, CN(A) Tang Type Terminal

Wire SizePlatingSumitomoYazaki
-.3 mm2 (22 AWG)Plain Brass8240-4020-
-Tin8240-4012-
-.3-.5 mm2 (22-20 AWG)Plain Brass-7116-2095
-Tin-7116-2095-02
250.TL-SKT1.5-2.0 mm2 (20-14 AWG)Plain Brass1800-2094-
-Tin1800-2095-
-.85-2.0 mm2 (18-14 AWG)Plain Brass-7116-2090
-Tin-7116-2090-02
250.TL-SKT23.0 mm2 (12 AWG)Plain Brass1500-00097116-2092
-Tin1500-00277116-2092-02
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:20A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Hero B-10
  • Honda 07692-0011000 (0.5-2.3mm2, SKT1), 070PZ-002A700 (SKT2)
  • Suzuki 09900-28701-012 (brass)
QtyPrice
1-48$0.18
49-99$0.17
50-249$0.16
250-499$0.15
500-999$0.14
1000-2499$0.13
2500-4999$0.12
5000-9999$0.11
10000+$0.10
Quantity:  Ea
