YESC.64KU-SKT1
YESC KAIZEN 0.64 Unsealed Socket Terminal
Images shown may represent a range of products or be for illustration purposes only.
| Wire Size | Plating | Part Number | |
|---|---|---|---|
| YESC.64KU-SKT1 | .3-.5 mm2 (22-20 AWG) | Tin | 7116-4618-02 |
| - | Gold | 7116-4618-08 | |
| YESC.64KU-SKT2 | 0.85 mm2 (18 AWG) | Tin | 7116-4619-02 |
| - | Gold | 7116-4619-08 | |
| Available stock: Aftermarket OEM | |||
Documents

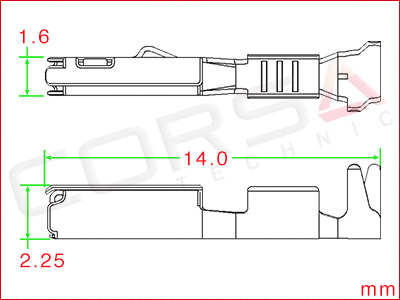

Drawing (7116-4618-02.pdf)Specifications
General
- Sealing:Unsealed
- Contact Size:0.64mm (.025)
- Wire Size:0.35 - 0.75 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:6A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
