LEMO
LEMO-00-4P
4-Way Kit
Kit Contents: Housing with male solder cup insert for 30 AWG
Mfr: OEM LEMO
Series: B Series
OEM P/N: FGG.00.304.CLAD35 for cable dia. 2.8-3.5mm (.110-.138in.)
Kit Contents: Housing with male solder cup insert for 30 AWG
Mfr: OEM LEMO
Series: B Series
OEM P/N: FGG.00.304.CLAD35 for cable dia. 2.8-3.5mm (.110-.138in.)
General
- Sealing:Unsealed
- Number of Ways:4
- Contact Size:.5mm dia.
- Wire Size:0.05 - 0.05 mm2
- Number of Rows:N/A
- Pitch:N/A, Circular
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, circular
- Termination:Solder Cup
- Housing Material:Brass
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:1A
Environmental
- Temp Range[2]:-55 - 250 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
LEMO-0B-0.7-PIN
0B Series 0.7mm Pin Contact
Mfr: OEM LEMO
Series: B Series
OEM P/N: FGG.0B.555.ZZC for 26-22 AWG
Mfr: OEM LEMO
Series: B Series
OEM P/N: FGG.0B.555.ZZC for 26-22 AWG
General
- Sealing:Unsealed
- Contact Size:.7mm dia.
- Wire Size:0.14 - 0.34 mm2
Mechanical
- Contact Type:Pin, circular
- Termination:Closed barrel crimp
Electrical
- Current Rating[1]:6A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
LEMO-0B-0.7-SKT
0B Series 0.7mm Socket Contact
Mfr: OEM LEMO
Series: B Series
OEM P/N: EGG.0B.655.ZZM for 26-22 AWG
Mfr: OEM LEMO
Series: B Series
OEM P/N: EGG.0B.655.ZZM for 26-22 AWG
General
- Sealing:Unsealed
- Contact Size:.7mm dia.
- Wire Size:0.14 - 0.34 mm2
Mechanical
- Contact Type:Socket, circular
- Termination:Closed barrel crimp
Electrical
- Current Rating[1]:6A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

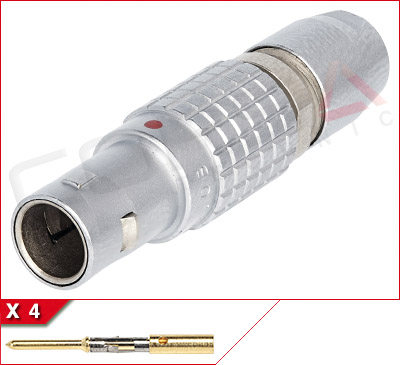

LEMO-0B-4P
4-Way Kit
Kit Contents: Housing, 4 pin contacts for 26-22 AWG
Mfr: OEM LEMO
Series: B Series
OEM P/N: FGG.0B.304.CYCD42 for cable dia. 3.3-4.2mm (.130-.165 in)
Mating Part: LEMO-0B-4S
Kit Contents: Housing, 4 pin contacts for 26-22 AWG
Mfr: OEM LEMO
Series: B Series
OEM P/N: FGG.0B.304.CYCD42 for cable dia. 3.3-4.2mm (.130-.165 in)
Mating Part: LEMO-0B-4S
General
- Sealing:Unsealed
- Number of Ways:4
- Contact Size:.7mm dia.
- Wire Size:0.14 - 0.34 mm2
- Number of Rows:N/A
- Pitch:N/A, Circular
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, circular
- Termination:Closed barrel crimp
- Housing Material:Brass
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:6A
Environmental
- Temp Range[2]:-55 - 250 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Common on Pi Research/Cosworth data systems and hardware

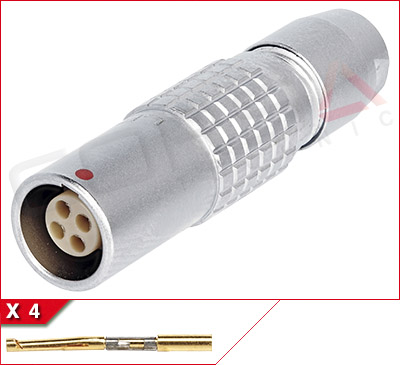

LEMO-0B-4S
4-Way Kit
Kit Contents: Housing, 4 socket contacts for 26-22 AWG
Mfr: OEM LEMO
Series: B Series
OEM P/N: PHG.0B.304.CYMD42 for cable dia. 3.3-4.2mm (.130-.165 in)
Mating Part: LEMO-0B-4P
Kit Contents: Housing, 4 socket contacts for 26-22 AWG
Mfr: OEM LEMO
Series: B Series
OEM P/N: PHG.0B.304.CYMD42 for cable dia. 3.3-4.2mm (.130-.165 in)
Mating Part: LEMO-0B-4P
General
- Sealing:Unsealed
- Number of Ways:4
- Contact Size:.7mm dia.
- Wire Size:0.14 - 0.34 mm2
- Number of Rows:N/A
- Pitch:N/A, Circular
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, circular
- Termination:Closed barrel crimp
- Housing Material:Brass
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:6A
Environmental
- Temp Range[2]:-55 - 250 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Common on Pi Research/Cosworth data systems and hardware
