APEX 2.8 Series

2-Way Kit, Type A

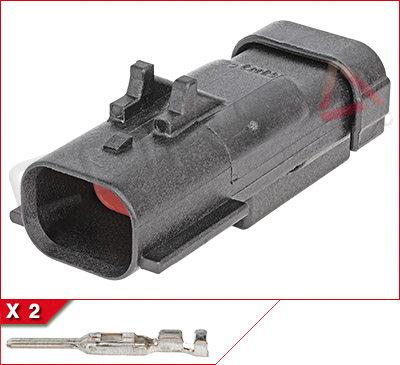

APEX.28-2P-A
2-Way Kit, Type A
OEM P/N: 54200210 (Aptiv p/n: 15488574)
APEX.28-2P-A  2-Way Kit, Type A
Kit Contents: Housing, 2 pin contacts

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200210 (Aptiv p/n: 15488574)
Keying: A
Mating Part: APEX.28-2S-A

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:2
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 6.00 mm2
  • Number of Rows:1
  • Pitch:5.25mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:40A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP68
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Chrysler 04687921
  • Yazaki 7282-5292-30
QtyPrice
1-5$4.53
6-19$4.30
20-49$4.08
50-99$3.85
100+$3.62
Quantity:  Kit

2-Way Kit, Type A

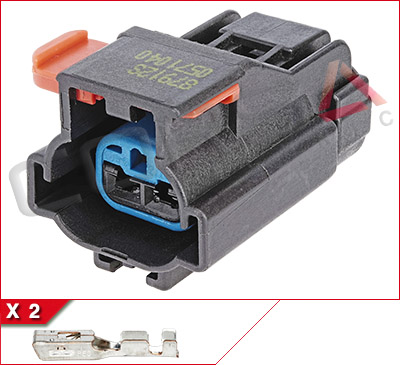

APEX.28-2S-A
2-Way Kit, Type A
OEM P/N: 54200206 (Aptiv p/n: 10757672)
APEX.28-2S-A  2-Way Kit, Type A
Kit Contents: Housing, 2 socket contacts

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200206 (Aptiv p/n: 10757672)
Keying: A
Mating Part: APEX.28-2P-A

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:2
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 6.00 mm2
  • Number of Rows:1
  • Pitch:5.25mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:Yes
Electrical
  • Current Rating[1]:40A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP68
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Chrysler 04687912, and connector used in Mopar 05017117AA repair kit.
QtyPrice
1-5$4.58
6-19$4.35
20-49$4.12
50-99$3.89
100+$3.66
Quantity:  Kit

3-Way Kit, Type C

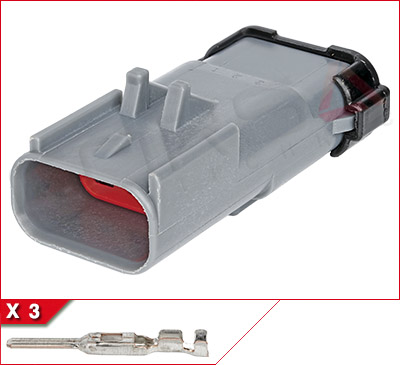

APEX.28-3P-C
3-Way Kit, Type C
OEM P/N: 54200314 (Aptiv p/n: 13865701)
APEX.28-3P-C  3-Way Kit, Type C
Kit Contents: Housing, 3 pin contacts

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200314 (Aptiv p/n: 13865701)
Keying: C
Mating Part: APEX.28-3S-C

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:3
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 6.00 mm2
  • Number of Rows:1
  • Pitch:5.25mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:40A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP68
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Chrysler 56038165
QtyPrice
1-5$6.05
6-19$5.75
20-49$5.45
50-99$5.14
100+$4.84
Quantity:  Kit

3-Way Kit, Type A
APEX.28-3S-A
3-Way Kit, Type A
OEM P/N: 54200308 (Aptiv p/n: 10757671)
APEX.28-3S-A  3-Way Kit, Type A
Kit Contents: Housing, 3 socket contacts

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200308 (Aptiv p/n: 10757671)
Keying: A
Mating Part: 54200312

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:3
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 6.00 mm2
  • Number of Rows:1
  • Pitch:5.25mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes
Electrical
  • Current Rating[1]:40A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP68
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Chrysler 56038149, and connector used in Mopar 05014007AB repair kit.
  • Nissan/Bosch J-48817-1110 pigtail connector
  • Nissan service part 24008-9DK1A connector
QtyPrice
1-5$4.67
6-19$4.44
20-49$4.20
50-99$3.97
100+$3.74
Quantity:  Kit

3-Way Kit, Type B
APEX.28-3S-B
3-Way Kit, Type B
OEM P/N: 54200309 (Aptiv p/n: 15380782)
APEX.28-3S-B  3-Way Kit, Type B
Kit Contents: Housing, 3 socket contacts

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200309 (Aptiv p/n: 15380782)
Keying: B
Mating Part: 54200313

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:3
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 6.00 mm2
  • Number of Rows:1
  • Pitch:5.25mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes
Electrical
  • Current Rating[1]:40A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP68
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Chrysler 56038150, and connector used in Mopar 05014008AA repair kit.
  • Nissan/Bosch J-48817-1111 pigtail connector
  • Nissan service part 24008-9DK1B connector
QtyPrice
1-5$5.73
6-19$5.44
20-49$5.16
50-99$4.87
100+$4.58
Quantity:  Kit

3-Way Kit, Type C

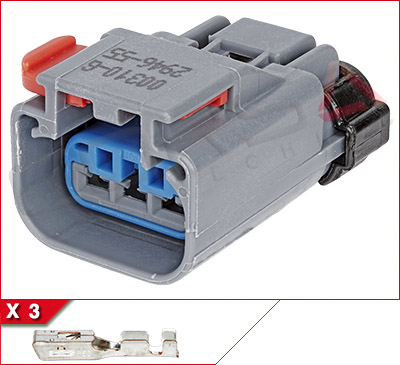

APEX.28-3S-C
3-Way Kit, Type C
OEM P/N: 54200310 (Aptiv p/n: 13849913)
APEX.28-3S-C  3-Way Kit, Type C
Kit Contents: Housing, 3 socket contacts

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200310 (Aptiv p/n: 13849913)
Keying: C
Mating Part: APEX.28-3P-C

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:3
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 6.00 mm2
  • Number of Rows:1
  • Pitch:5.25mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes
Electrical
  • Current Rating[1]:40A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP68
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Chrysler 56038151, and connector used in Mopar 05014009AA repair kit.
  • Nissan/Bosch J-48817-1112 pigtail connector
  • Nissan service part 24008-9DK1C connector
QtyPrice
1-5$5.51
6-19$5.23
20-49$4.96
50-99$4.68
100+$4.41
Quantity:  Kit

3-Way Kit, Type D

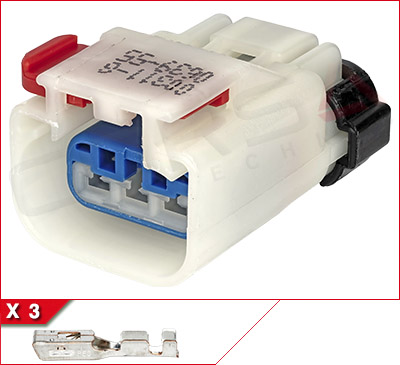

APEX.28-3S-D
3-Way Kit, Type D
OEM P/N: 54200311 (Aptiv p/n: 13849911)
APEX.28-3S-D  3-Way Kit, Type D
Kit Contents: Housing, 3 socket contacts

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200311 (Aptiv p/n: 13849911)
Keying: D
Mating Part: 54200315 (Aptiv p/n: 33500095)

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:3
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 6.00 mm2
  • Number of Rows:1
  • Pitch:5.25mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes
Electrical
  • Current Rating[1]:40A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP68
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Chrysler 56038152, and connector used in Mopar 05014010AB repair kit.
QtyPrice
1-5$5.51
6-19$5.23
20-49$4.96
50-99$4.68
100+$4.41
Quantity:  Kit

4-Way Kit, Type B
APEX.28-4P-B
4-Way Kit, Type B
OEM P/N: 54200414 (Aptiv p/n: 13754761)
APEX.28-4P-B  4-Way Kit, Type B
Kit Contents: Housing, 4 pin contacts

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200414 (Aptiv p/n: 13754761)
Keying: B
Mating Part: APEX.28-4S-B

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:4
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 6.00 mm2
  • Number of Rows:1
  • Pitch:5.25mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:40A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP68
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Chrysler 04707267, and connector used in Mopar 05013983AA repair kit.
  • Ford DU5T-14A594-AA
QtyPrice
1-5$6.15
6-19$5.84
20-49$5.54
50-99$5.23
100-249$4.92
250+$4.61
Quantity:  Kit

4-Way Kit, Type A

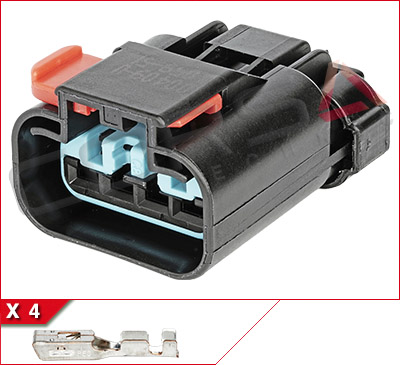

APEX.28-4S-A
4-Way Kit, Type A
OEM P/N: 54200409 (Aptiv p/n: 15425692)
APEX.28-4S-A  4-Way Kit, Type A
Kit Contents: Housing, 4 socket contacts

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200409 (Aptiv p/n: 15425692)
Keying: A
Mating Part: 54200413 (Aptiv p/n: 15489820)

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:4
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 6.00 mm2
  • Number of Rows:1
  • Pitch:5.25mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes
Electrical
  • Current Rating[1]:40A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP68
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Chrysler 04707262, and connector used in Mopar 05013979AC repair kit.
  • Nissan/Bosch J-48817-1114 pigtail connector
  • Nissan service part 24008-9DK1E connector
QtyPrice
1-5$5.90
6-19$5.61
20-49$5.31
50-99$5.02
100+$4.72
Quantity:  Kit

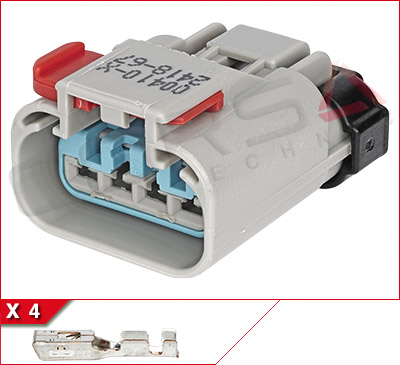

4-Way Kit, Type B
APEX.28-4S-B
4-Way Kit, Type B
OEM P/N: 54200410 (Aptiv p/n: 15324787)
APEX.28-4S-B  4-Way Kit, Type B
Kit Contents: Housing, 4 socket contacts

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200410 (Aptiv p/n: 15324787)
Keying: B
Mating Part: APEX.28-4P-B

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:4
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 6.00 mm2
  • Number of Rows:1
  • Pitch:5.25mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes
Electrical
  • Current Rating[1]:40A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP68
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Chrysler 04707256, and connector used in Mopar 05013978AA repair kit.
  • Ford 4L3T-14A464-AA, and connector used in WPT-1373 (Tin plated, greased terminals) 3U2Z-14S411-DGAB pigtail connector
QtyPrice
1-5$5.37
6-19$5.10
20-49$4.83
50-99$4.56
100-249$4.30
250+$4.03
Quantity:  Kit

6-Way Kit, Type B
APEX.28-6P-B
6-Way Kit, Type B
OEM P/N: 54200613 (Aptiv p/n: 13589577)
APEX.28-6P-B  6-Way Kit, Type B
Kit Contents: Housing, 6 pin contacts

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200613 (Aptiv p/n: 13589577)
Keying: B
Mating Part: APEX.28-6S-B

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:6
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 6.00 mm2
  • Number of Rows:2
  • Pitch:5.25mm
  • Row Spacing:6.4mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:40A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP68
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$6.40
6-19$6.08
20-49$5.76
50-99$5.44
100+$5.12
Quantity:  Kit

6-Way Kit, Type A
APEX.28-6S-A
6-Way Kit, Type A
OEM P/N: 54200608 (Aptiv p/n: 15419838)
APEX.28-6S-A  6-Way Kit, Type A
Kit Contents: Housing, 6 socket contacts

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200608 (Aptiv p/n: 15419838)
Keying: A
Mating Part: 54200612 (Aptiv p/n: 15430633)

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:6
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 6.00 mm2
  • Number of Rows:2
  • Pitch:5.25mm
  • Row Spacing:6.4mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes
Electrical
  • Current Rating[1]:40A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP68
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Chrysler 04707309, and connector used in Mopar 05013984AA repair kit.
  • Nissan/Bosch J-48817-1115 pigtail connector
  • Nissan service part 24008-9DK2A connector
QtyPrice
1-5$6.37
6-19$6.05
20-49$5.73
50-99$5.41
100+$5.10
Quantity:  Kit

6-Way Kit, Type B
APEX.28-6S-B
6-Way Kit, Type B
OEM P/N: 54200609 (Aptiv p/n: 15412914)
APEX.28-6S-B  6-Way Kit, Type B
Kit Contents: Housing, 6 socket contacts

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200609 (Aptiv p/n: 15412914)
Keying: B
Mating Part: APEX.28-6P-B

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:6
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 6.00 mm2
  • Number of Rows:2
  • Pitch:5.25mm
  • Row Spacing:6.4mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes
Electrical
  • Current Rating[1]:40A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP68
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Chrysler 04707310, and connector used in Mopar 05013985AA repair kit.
  • Ford CU2Z-14S411-TA, WPT-1266 (Tin greased terminals) pigtail connector
QtyPrice
1-5$6.80
6-19$6.46
20-49$6.12
50-99$5.78
100+$5.44
Quantity:  Kit

APEX 2.8 Series Pin Contact
APEX.28-PIN
APEX 2.8 Series Pin Contact
APEX.28-PIN  APEX 2.8 Series Pin Contact

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series

Wire SizePlatingPart Number (Aptiv p/n)
APEX.28-PIN1.3 mm2 (22 AWG)Tin54002201 (10762776)
-Gold54002228
APEX.28-PIN2.5-.85 mm2 (20-18 AWG)Tin54001801 (10762775)
-Gold54001804 (13805590)
APEX.28-PIN31.25-2.0 mm2 (16-14 AWG)Tin54001401 (10757692)
-Gold54001441 (13681974)
APEX.28-PIN43.0-5.0 mm2 (12-10 AWG)Tin54001001 (10762774)
-Gold54001020 (15512730)
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Mixed
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 6.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:40A
Environmental
  • Temp Range[2]:-40 - 150 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-49$0.65
50-99$0.62
100-249$0.58
250-499$0.55
500-999$0.52
1000+$0.49
Quantity:  Ea

APEX 2.8 Series Socket Contact
APEX.28-SKT
APEX 2.8 Series Socket Contact
APEX.28-SKT  APEX 2.8 Series Socket Contact

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series

Wire SizePlatingPart Number (Aptiv p/n)
APEX.28-SKT1.3 mm2 (22 AWG)Tin54002200 (10757691)
-Gold54002203
APEX.28-SKT2.5-.85 mm2 (20-18 AWG)Tin54001800 (10757690)
-Gold54001803 (15422510)
APEX.28-SKT31.25-2.0 mm2 (16-14 AWG)Tin54001400 (10762803)
-Gold54001403 (13681975)
APEX.28-SKT43.0-5.0 mm2 (12-10 AWG)Tin54001000 (10762802)
-Gold54001003 (15512740)
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Mixed
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 6.00 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:40A
Environmental
  • Temp Range[2]:-40 - 150 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-49$0.54
50-99$0.51
100-249$0.49
250-499$0.46
500-999$0.43
1000+$0.41
Quantity:  Ea

APEX 2.8 Series Plug
APEX.28-PG
APEX 2.8 Series Plug
OEM P/N: 54200005
APEX.28-PG  APEX 2.8 Series Plug

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200005

spacer
General
  • Sealing:Matte Sealed
Mechanical

spacer
spacer
QtyPrice
1-49$0.21
50-99$0.20
100-249$0.19
250-499$0.17
500+$0.15
Quantity:  Ea

APEX Series Connector Clamp
CLIP-206
APEX Series Connector Clamp
OEM P/N: 54200010 (13768145)
CLIP-206  APEX Series Connector Clamp

Mfr: OEM FCI
Series: APEX 150, APEX 2.8
OEM P/N: 54200010 (13768145)
For (2x) 6.6mm dia. holes with 0.76-5.10mm thickness.
For Type 1 (Chrysler) clip slots in the APEX series.

spacer

spacer
spacer
QtyPrice
1-5$0.74
6-19$0.70
20-49$0.67
50-99$0.63
100-249$0.59
250+$0.55
Quantity:  Ea

Rennsteig PEW 12 Die Set for FCI/Delphi APEX 2.8 Socket Terminals, 22, 12, 10 AWG
TOOL-CDIE34
Rennsteig PEW 12 Die Set for FCI/Delphi APEX 2.8 Socket Terminals, 22, 12, 10 AWG
OEM P/N: Die: 624 1666 3 0 RT
Locator: 624 1666 0 01 RT
TOOL-CDIE34  Rennsteig PEW 12 Die Set for FCI/Delphi APEX 2.8 Socket Terminals, 22, 12, 10 AWG
Kit Contents: Crimp die set, locator

OEM P/N: Die: 624 1666 3 0 RT
Locator: 624 1666 0 01 RT

Compatibility
P/NWire SizePlatingPart Number (Aptiv p/n)
✓APEX.28-SKT1.3 mm2 (22 AWG)Tin54002200 (10757691)
Gold54002203
✗APEX.28-SKT2.5-.85 mm2 (20-18 AWG)Tin54001800 (10757690)
Gold54001803 (15422510)
✗APEX.28-SKT31.25-2.0 mm2 (16-14 AWG)Tin54001400 (10762803)
Gold54001403 (13681975)
✓APEX.28-SKT43.0-5.0 mm2 (12-10 AWG)Tin54001000 (10762802)
Gold54001003 (15512740)
Note: For TXL wire. Compare your wire specs for compatibility.

spacer
spacer
spacer
This item is backordered.
Price: $350.38
Quantity:  Ea

Rennsteig PEW 12 Die Set for FCI/Delphi APEX 2.8 Socket Terminals, 20-14 AWG
TOOL-CDIE35
Rennsteig PEW 12 Die Set for FCI/Delphi APEX 2.8 Socket Terminals, 20-14 AWG
OEM P/N: Die: 624 1667 3 0 RT
Locator: 624 1666 0 01 RT
TOOL-CDIE35  Rennsteig PEW 12 Die Set for FCI/Delphi APEX 2.8 Socket Terminals, 20-14 AWG
Kit Contents: Crimp die set, locator

OEM P/N: Die: 624 1667 3 0 RT
Locator: 624 1666 0 01 RT

Compatibility
P/NWire SizePlatingPart Number (Aptiv p/n)
✗APEX.28-SKT1.3 mm2 (22 AWG)Tin54002200 (10757691)
Gold54002203
✓APEX.28-SKT2.5-.85 mm2 (20-18 AWG)Tin54001800 (10757690)
Gold54001803 (15422510)
✓APEX.28-SKT31.25-2.0 mm2 (16-14 AWG)Tin54001400 (10762803)
Gold54001403 (13681975)
✗APEX.28-SKT43.0-5.0 mm2 (12-10 AWG)Tin54001000 (10762802)
Gold54001003 (15512740)
Note: For TXL wire. Compare your wire specs for compatibility.

spacer
spacer
spacer
This item is backordered.
Price: $350.38
Quantity:  Ea

Rennsteig PEW 12 Die Set for FCI/Delphi APEX 2.8 Pin Terminals, 22, 12, 10 AWG
TOOL-CDIE36
Rennsteig PEW 12 Die Set for FCI/Delphi APEX 2.8 Pin Terminals, 22, 12, 10 AWG
OEM P/N: Die: 624 1668 3 0 RT
Locator: 624 1668 0 01 RT
TOOL-CDIE36  Rennsteig PEW 12 Die Set for FCI/Delphi APEX 2.8 Pin Terminals, 22, 12, 10 AWG
Kit Contents: Crimp die set, locator

OEM P/N: Die: 624 1668 3 0 RT
Locator: 624 1668 0 01 RT

Compatibility
P/NWire SizePlatingPart Number (Aptiv p/n)
✓APEX.28-PIN1.3 mm2 (22 AWG)Tin54002201 (10762776)
Gold54002228
✗APEX.28-PIN2.5-.85 mm2 (20-18 AWG)Tin54001801 (10762775)
Gold54001804 (13805590)
✗APEX.28-PIN31.25-2.0 mm2 (16-14 AWG)Tin54001401 (10757692)
Gold54001441 (13681974)
✓APEX.28-PIN43.0-5.0 mm2 (12-10 AWG)Tin54001001 (10762774)
Gold54001020 (15512730)
Note: For TXL wire. Compare your wire specs for compatibility.

spacer
spacer
spacer
Price: $335.28
Quantity:  Ea

Rennsteig PEW 12 Die Set for FCI/Delphi APEX 2.8 Pin Terminals, 20-14 AWG
TOOL-CDIE37
Rennsteig PEW 12 Die Set for FCI/Delphi APEX 2.8 Pin Terminals, 20-14 AWG
OEM P/N: Die: 624 1669 3 0 RT
Locator: 624 1668 0 01 RT
TOOL-CDIE37  Rennsteig PEW 12 Die Set for FCI/Delphi APEX 2.8 Pin Terminals, 20-14 AWG
Kit Contents: Crimp die set, locator

OEM P/N: Die: 624 1669 3 0 RT
Locator: 624 1668 0 01 RT

Compatibility
P/NWire SizePlatingPart Number (Aptiv p/n)
✗APEX.28-PIN1.3 mm2 (22 AWG)Tin54002201 (10762776)
Gold54002228
✓APEX.28-PIN2.5-.85 mm2 (20-18 AWG)Tin54001801 (10762775)
Gold54001804 (13805590)
✓APEX.28-PIN31.25-2.0 mm2 (16-14 AWG)Tin54001401 (10757692)
Gold54001441 (13681974)
✗APEX.28-PIN43.0-5.0 mm2 (12-10 AWG)Tin54001001 (10762774)
Gold54001020 (15512730)
Note: For TXL wire. Compare your wire specs for compatibility.

spacer
spacer
spacer
Price: $335.28
Quantity:  Ea


Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2024 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1
R7A4
R7A3
R7A2
