HE 050 Unsealed Series

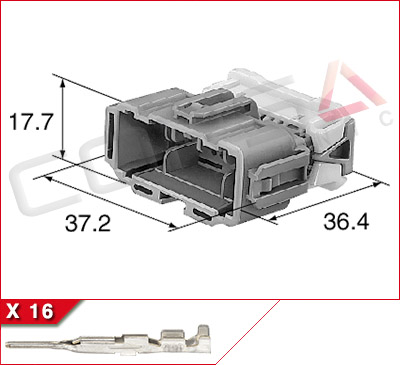

HE050-16P
16-Way Kit
OEM P/N: 6098-1397

HE050-16P 16-Way Kit
Kit Contents: Housing, 16 pin contacts

Mfr: OEM Sumitomo
Series: HE 050 Unsealed Series
OEM P/N: 6098-1397
Part Name: HE05 16MAY-L
Mating Part: HE050-16S

General

Sealing:Unsealed
Number of Ways:16
Contact Size:1.3mm (.050)
Wire Size:0.30 - 0.85 mm²
Number of Rows:2
Pitch:2.5mm
Row Spacing:5.0mm
Numbered Cavities:No

Mechanical

Contact Type:Pin, flat
Termination:Open barrel crimp
Housing Material:PBT
Mounting Style:Clip Slot
TPA:Yes
CPA:No

Electrical

Current Rating^[1]:9A

1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

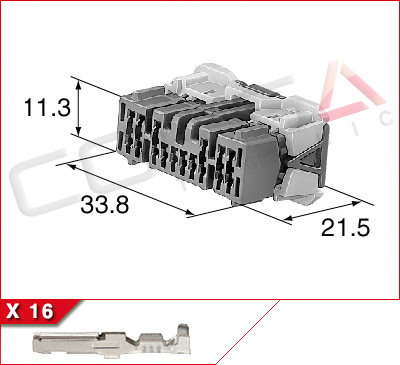

HE050-16S
16-Way Kit
OEM P/N: 6098-1398

HE050-16S 16-Way Kit
Kit Contents: Housing, 16 socket contacts for 22-20awg wire

Mfr: OEM Sumitomo
Series: HE 050 Unsealed Series
OEM P/N: 6098-1398
Part Name: HE05 16FAY-L
Mating Part: HE050-16P

General

Sealing:Unsealed
Number of Ways:16
Contact Size:1.3mm (.050)
Wire Size:0.30 - 0.85 mm²
Number of Rows:2
Pitch:2.5mm
Row Spacing:5.0mm
Numbered Cavities:No

Mechanical

Contact Type:Socket, flat
Termination:Open barrel crimp
Housing Material:PBT
Mounting Style:Free hanging
TPA:Yes
CPA:No

Electrical

Current Rating^[1]:9A

1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

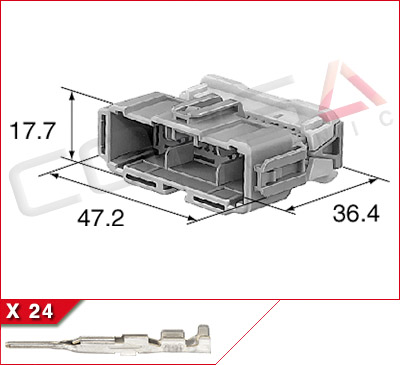

HE050-24P
24-Way Kit
OEM P/N: 6098-1371

HE050-24P 24-Way Kit
Kit Contents: Housing, 24 pin contacts for 22-20awg wire

Mfr: OEM Sumitomo
Series: HE 050 Unsealed Series
OEM P/N: 6098-1371
Part Name: HE05 24MAY-SB
Mating Part: HE050-24S

General

Sealing:Unsealed
Number of Ways:24
Contact Size:1.3mm (.050)
Wire Size:0.30 - 0.85 mm²
Number of Rows:2
Pitch:2.5mm
Row Spacing:5.0mm
Numbered Cavities:No

Mechanical

Contact Type:Pin, flat
Termination:Open barrel crimp
Housing Material:PBT
Mounting Style:Clip Slot
TPA:Yes
CPA:No

Electrical

Current Rating^[1]:9A

1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

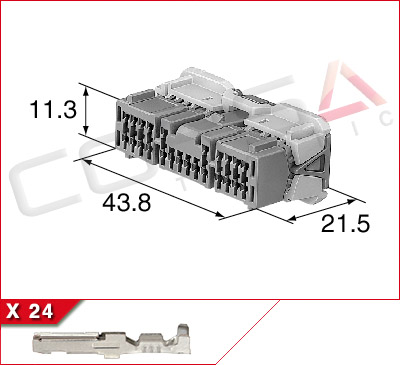

HE050-24S
24-Way Kit
OEM P/N: 6098-1374

HE050-24S 24-Way Kit
Kit Contents: Housing, 24 socket contacts for 22-20awg wire

Mfr: OEM Sumitomo
Series: HE 050 Unsealed Series
OEM P/N: 6098-1374
Part Name: HE05 24FAY-SB
Mating Part: HE050-24P

General

Sealing:Unsealed
Number of Ways:24
Contact Size:1.3mm (.050)
Wire Size:0.30 - 0.85 mm²
Number of Rows:2
Pitch:2.5mm
Row Spacing:5.0mm
Numbered Cavities:No

Mechanical

Contact Type:Socket, flat
Termination:Open barrel crimp
Housing Material:PBT
Mounting Style:Free hanging
TPA:Yes
CPA:No

Electrical

Current Rating^[1]:9A

1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

HE050-PIN
HE 050 Series Pin Contact

HE050-PIN HE 050 Series Pin Contact

Mfr: Sumitomo
Series: HB 050, HC 050, HE 050, HE 050+187 Hybrid

	Wire Size	P/N
HE050-PIN1	.3-.5 mm² (22-20 AWG)	8100-1462
HE050-PIN2	.85 mm² (18 AWG)	8100-1461
Available stock: Aftermarket OEM

General

Sealing:Unsealed
Contact Size:1.3mm (.050)
Wire Size:0.30 - 0.85 mm²

Mechanical

Contact Type:Pin, flat
Termination:Open barrel crimp

Electrical

Current Rating^[1]:9A

1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

HE050-SKT1
HE 050 Series Socket Contact

HE050-SKT1 HE 050 Series Socket Contact

Mfr: Sumitomo
Series: HB 050, HC 050, HE 050, HE 050+187 Hybrid

	Wire Size	P/N
HE050-SKT1	.3-.5 mm² (22-20 AWG)	8100-1469
HE050-SKT2	.85 mm² (18 AWG)	8100-1468
Available stock: Aftermarket OEM

General

Sealing:Unsealed
Contact Size:1.3mm (.050)
Wire Size:0.30 - 0.85 mm²

Mechanical

Contact Type:Socket, flat
Termination:Open barrel crimp

Electrical

Current Rating^[1]:9A

1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

CLIP-105
Sumitomo Connector Clamp
OEM P/N: 6810-1203

CLIP-105 Sumitomo Connector Clamp

Mfr: Aftermarket Sumitomo
Series: HB 050, HD 090, HD 090+187 Hybrid, HD 250, HD 250+305 Hybrid, HE 040, HE 050, HE 050+187 Hybrid, HE 090+187 Hybrid
Yazaki: HLC 060 Series
OEM P/N: 6810-1203

For 7mm dia. hole with 0.65-1.6mm thickness
