9-Way
MTW-9P
9-Way Kit
Kit Contents: Housing, 9 pin contacts
Mfr: Aftermarket Sumitomo
Series: MTW Series
OEM P/N: 6030-9991
Mating Part: MTW-9S
Kit Contents: Housing, 9 pin contacts
Mfr: Aftermarket Sumitomo
Series: MTW Series
OEM P/N: 6030-9991
Mating Part: MTW-9S
3D STEP (MTW-9P.stp)
Series Catalog (MTW-CAT.pdf)General
- Sealing:Unsealed
- Number of Ways:9
- Contact Size:2.8mm (.110)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:3
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Honda 070MZ-0020700 (natural)
- KTM 000700000CG
MTW-9S
9-Way Kit
Kit Contents: Housing, 9 socket contacts
Mfr: Aftermarket Sumitomo
Series: MTW Series
OEM P/N: 6040-9111
Mating Part: MTW-9P
Kit Contents: Housing, 9 socket contacts
Mfr: Aftermarket Sumitomo
Series: MTW Series
OEM P/N: 6040-9111
Mating Part: MTW-9P
General
- Sealing:Unsealed
- Number of Ways:9
- Contact Size:2.8mm (.110)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:3
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Honda 070MZ-0020600 (natural)
- KTM 000700000CS

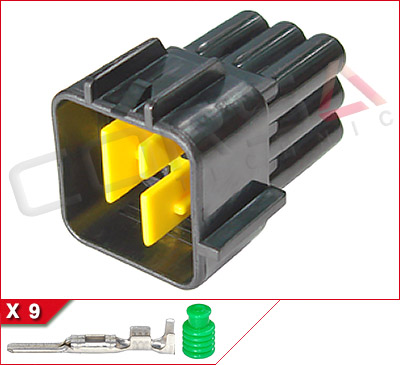

RFW-9P
9-Way Kit
Kit Contents: Housing, 9 pin contacts, 9 seals, lock
Mfr: Aftermarket Furukawa
Series: RFW Series
OEM P/N: FW-C-9M-B (alt p/n: P010671, 12445-5209-2)
Mating Part: RFW-9S
Kit Contents: Housing, 9 pin contacts, 9 seals, lock
Mfr: Aftermarket Furukawa
Series: RFW Series
OEM P/N: FW-C-9M-B (alt p/n: P010671, 12445-5209-2)
Mating Part: RFW-9S
General
- Sealing:Single Wire Sealed
- Number of Ways:9
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:3
- Pitch:5.8mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:14A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- 06-09 YZF-R6 primary injector harness (main harness side)

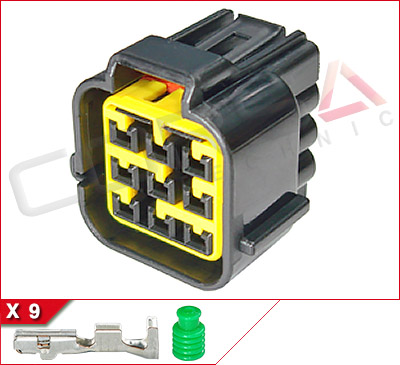

RFW-9S
9-Way Kit
Kit Contents: Housing, 9 socket contacts, 9 seals, lock
Mfr: Aftermarket Furukawa
Series: RFW Series
OEM P/N: FW-C-9F-B (alt p/n: P010668, 12444-5209-2)
Mating Part: RFW-9P
Kit Contents: Housing, 9 socket contacts, 9 seals, lock
Mfr: Aftermarket Furukawa
Series: RFW Series
OEM P/N: FW-C-9F-B (alt p/n: P010668, 12444-5209-2)
Mating Part: RFW-9P
General
- Sealing:Single Wire Sealed
- Number of Ways:9
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:3
- Pitch:5.8mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:14A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- 06-09 YZF-R6 primary injector harness (sub-harness side)
