Autosport/Mil-Spec Terminals

Pin Contact
M39029/4-110
Pin Contact
OEM P/N: M39029/4-110
M39029/4-110  Pin Contact

OEM P/N: M39029/4-110
Contact size: 20, Wire size: 24-20 awg

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:Size 20
  • Wire Size:0.20 - 0.50 mm2
Mechanical
  • Contact Type:Pin, circular
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:7.5A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-5$0.65
6-19$0.62
20-49$0.60
50-99$0.58
100-499$0.55
500-999$0.52
1000-1499$0.49
1500+$0.46
Quantity:  Ea

Pin Contact
M39029/4-111
Pin Contact
OEM P/N: M39029/4-111
M39029/4-111  Pin Contact

OEM P/N: M39029/4-111
Contact size: 16, Wire size: 20-16 awg

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:Size 16
  • Wire Size:0.50 - 1.25 mm2
Mechanical
  • Contact Type:Pin, circular
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:13A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-5$0.92
6-19$0.87
20-49$0.86
50-99$0.83
100-499$0.78
500-999$0.74
1000-1499$0.69
1500+$0.64
Quantity:  Ea

Pin Contact
M39029/4-112
Pin Contact
OEM P/N: M39029/4-112
M39029/4-112  Pin Contact

OEM P/N: M39029/4-112
Contact size: 16, Wire size: 24-20 awg

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:Size 16
  • Wire Size:0.20 - 0.50 mm2
Mechanical
  • Contact Type:Pin, circular
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:13A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-5$1.53
6-19$1.45
20-49$1.42
50-99$1.38
100-499$1.30
500-999$1.22
1000-1499$1.15
1500+$1.07
Quantity:  Ea

Pin Contact
M39029/4-113
Pin Contact
OEM P/N: M39029/4-113
M39029/4-113  Pin Contact

OEM P/N: M39029/4-113
Contact size: 12, Wire size: 14-12 awg

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:Size 12
  • Wire Size:2.00 - 3.00 mm2
Mechanical
  • Contact Type:Pin, circular
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:23A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-5$1.72
6-19$1.63
20-49$1.60
50-99$1.55
100-499$1.46
500-999$1.38
1000-1499$1.29
1500+$1.20
Quantity:  Ea

Pin Contact
M39029/4-114
Pin Contact
OEM P/N: M39029/4-114
M39029/4-114  Pin Contact

OEM P/N: M39029/4-114
Contact size: 12, Wire size: 20-16 awg

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:Size 12
  • Wire Size:0.50 - 1.25 mm2
Mechanical
  • Contact Type:Pin, circular
  • Termination:Closed barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:23A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

This item is backordered.

Socket Contact
M39029/5-115
Socket Contact
OEM P/N: M39029/5-115
M39029/5-115  Socket Contact

OEM P/N: M39029/5-115
Contact size: 20, Wire size: 24-20 awg

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:Size 20
  • Wire Size:0.20 - 0.50 mm2
Mechanical
  • Contact Type:Socket, circular
  • Termination:Closed barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:7.5A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-5$0.67
6-19$0.64
20-49$0.62
50-99$0.60
100-499$0.57
500-999$0.54
1000-1499$0.50
1500+$0.47
Quantity:  Ea

Socket Contact
M39029/5-116
Socket Contact
OEM P/N: M39029/5-116
M39029/5-116  Socket Contact

OEM P/N: M39029/5-116
Contact size: 16, Wire size: 20-16 awg

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:Size 16
  • Wire Size:0.50 - 1.25 mm2
Mechanical
  • Contact Type:Socket, circular
  • Termination:Closed barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:13A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-5$1.37
6-19$1.30
20-49$1.27
50-99$1.23
100-499$1.16
500-999$1.10
1000-1499$1.03
1500+$0.96
Quantity:  Ea

Socket Contact
M39029/5-117
Socket Contact
OEM P/N: M39029/5-117
M39029/5-117  Socket Contact

OEM P/N: M39029/5-117
Contact size: 16, Wire size: 24-20 awg

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:Size 16
  • Wire Size:0.20 - 0.50 mm2
Mechanical
  • Contact Type:Socket, circular
  • Termination:Closed barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:13A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-5$1.94
6-19$1.84
20-49$1.80
50-99$1.75
100-499$1.65
500-999$1.55
1000-1499$1.46
1500+$1.36
Quantity:  Ea

Socket Contact
M39029/5-118
Socket Contact
OEM P/N: M39029/5-118
M39029/5-118  Socket Contact

OEM P/N: M39029/5-118
Contact size: 12, Wire size: 14-12 awg

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:Size 12
  • Wire Size:2.00 - 3.00 mm2
Mechanical
  • Contact Type:Socket, circular
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:23A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-5$1.75
6-19$1.66
20-49$1.63
50-99$1.57
100-499$1.49
500-999$1.40
1000-1499$1.31
1500+$1.23
Quantity:  Ea

Socket Contact
M39029/5-119
Socket Contact
OEM P/N: M39029/5-119
M39029/5-119  Socket Contact

OEM P/N: M39029/5-119
Contact size: 12, Wire size: 20-16 awg

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:Size 12
  • Wire Size:0.50 - 1.25 mm2
Mechanical
  • Contact Type:Socket, circular
  • Termination:Closed barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:23A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

This item is backordered.

Socket Contact

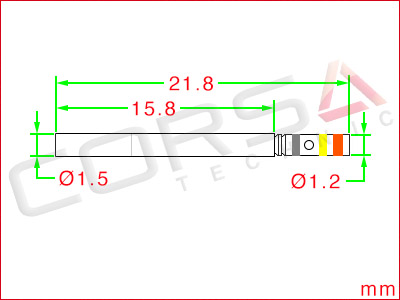

M39029/56-348
Socket Contact
OEM P/N: M39029/56-348
M39029/56-348  Socket Contact

OEM P/N: M39029/56-348
Contact size: 22/22D, Wire size: 28-22 awg

spacer
General
  • Sealing:Matte Sealed
  • Wire Size:0.08 - 0.30 mm2
Mechanical
  • Contact Type:Socket, circular
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:5A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-5$0.56
6-19$0.53
20-49$0.52
50-99$0.50
100-499$0.48
500-999$0.45
1000-1499$0.42
1500+$0.39
Quantity:  Ea

Socket Contact

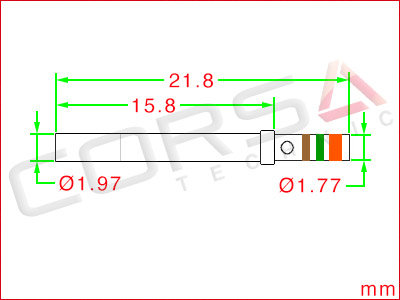

M39029/56-351
Socket Contact
OEM P/N: M39029/56-351
M39029/56-351  Socket Contact

OEM P/N: M39029/56-351
Contact size: 20, Wire size: 24-20 awg

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:Size 20
  • Wire Size:0.20 - 0.50 mm2
Mechanical
  • Contact Type:Socket, circular
  • Termination:Closed barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:7.5A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-5$0.84
6-19$0.80
20-49$0.78
50-99$0.76
100-499$0.71
500-999$0.67
1000-1499$0.63
1500+$0.59
Quantity:  Ea

Socket Contact

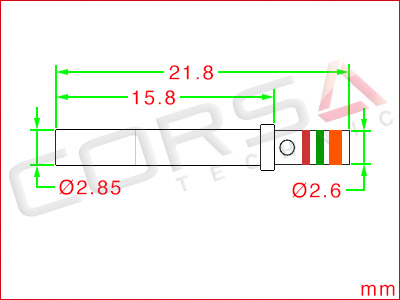

M39029/56-352
Socket Contact
OEM P/N: M39029/56-352
M39029/56-352  Socket Contact

OEM P/N: M39029/56-352
Contact size: 16, Wire size: 20-16 awg

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:Size 16
  • Wire Size:0.50 - 1.25 mm2
Mechanical
  • Contact Type:Socket, circular
  • Termination:Closed barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:13A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-5$1.27
6-19$1.21
20-49$1.18
50-99$1.14
100-499$1.08
500-999$1.02
1000-1499$0.95
1500+$0.89
Quantity:  Ea

Socket Contact

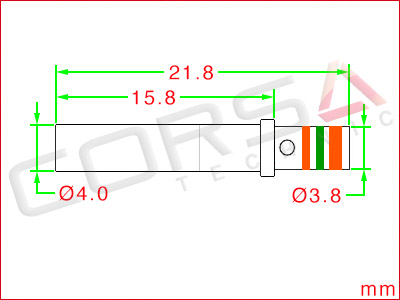

M39029/56-353
Socket Contact
OEM P/N: M39029/56-353
M39029/56-353  Socket Contact

OEM P/N: M39029/56-353
Contact size: 12, Wire size: 14-12 awg

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:Size 12
  • Wire Size:2.00 - 3.00 mm2
Mechanical
  • Contact Type:Socket, circular
  • Termination:Closed barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:23A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-5$2.84
6-19$2.70
20-49$2.64
50-99$2.56
100-499$2.41
500-999$2.27
1000-1499$2.13
1500+$1.99
Quantity:  Ea

Pin Contact
M39029/58-360
Pin Contact
OEM P/N: M39029/58-360
M39029/58-360  Pin Contact

OEM P/N: M39029/58-360
Contact size: 22/22D, Wire size: 28-22 awg

spacer
General
  • Sealing:Matte Sealed
  • Wire Size:0.08 - 0.30 mm2
Mechanical
  • Contact Type:Pin, circular
  • Termination:Closed barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:5A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-5$0.42
6-19$0.40
20-49$0.39
50-99$0.38
100-499$0.36
500-999$0.34
1000-1499$0.32
1500+$0.29
Quantity:  Ea

Pin Contact
M39029/58-363
Pin Contact
OEM P/N: M39029/58-363
M39029/58-363  Pin Contact

OEM P/N: M39029/58-363
Contact size: 20, Wire size: 24-20 awg

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:Size 20
  • Wire Size:0.20 - 0.50 mm2
Mechanical
  • Contact Type:Pin, circular
  • Termination:Closed barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:7.5A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-5$0.43
6-19$0.41
20-49$0.40
50-99$0.39
100-499$0.37
500-999$0.34
1000-1499$0.32
1500+$0.30
Quantity:  Ea

Pin Contact
M39029/58-364
Pin Contact
OEM P/N: M39029/58-364
M39029/58-364  Pin Contact

OEM P/N: M39029/58-364
Contact size: 16, Wire size: 20-16 awg

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:Size 16
  • Wire Size:0.50 - 1.25 mm2
Mechanical
  • Contact Type:Pin, circular
  • Termination:Closed barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:13A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-5$0.94
6-19$0.89
20-49$0.87
50-99$0.85
100-499$0.80
500-999$0.75
1000-1499$0.70
1500+$0.66
Quantity:  Ea

Pin Contact
M39029/58-365
Pin Contact
OEM P/N: M39029/58-365
M39029/58-365  Pin Contact

OEM P/N: M39029/58-365
Contact size: 12, Wire size: 14-12 awg

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:Size 12
  • Wire Size:2.00 - 3.00 mm2
Mechanical
  • Contact Type:Pin, circular
  • Termination:Closed barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:23A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-5$1.51
6-19$1.43
20-49$1.40
50-99$1.36
100-499$1.28
500-999$1.21
1000-1499$1.13
1500+$1.06
Quantity:  Ea


Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2025 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1
R7A4
R7A3
R7A2
